China Export Borehole Camera and 360 Degree Borescope Camera Deep Well Camera

FOB Reference Price:Get Latest Price
$2,000.00 - $4,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Borehole Inspection Survey Camera and 360 Degree Borescope Camera
Style:
Dome Camera PTZ Camera
Resolution:
1280 X 960
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
Gold
Model Number:
GYGD-3
Special Features:
Waterproof / Weatherproof
Sensor:
CCD
Technology:
Pan / Tilt / Zoom
Style:
Mini Camera
Product name:
Borehole Camera Water Well Camera
Type:
360 Degree or Paniramic
Usage:
Borehole Inspection, Water Well, Underwater Inspection
Depth:
0-1000M
Pressure:
10Mpa
Recording:
Mini DVR wiht SD card
Storage:
8G Standard, can support 16G
Power:
220V /50HZ 12V DC
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case To Packing Borehole Camera and 360 Degree Borescope Camera Deep Well Camera
Port
Chongqing To Shipping Borehole Camera and 360 Degree Borescope Camera Deep Well Camera
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description
Product Description

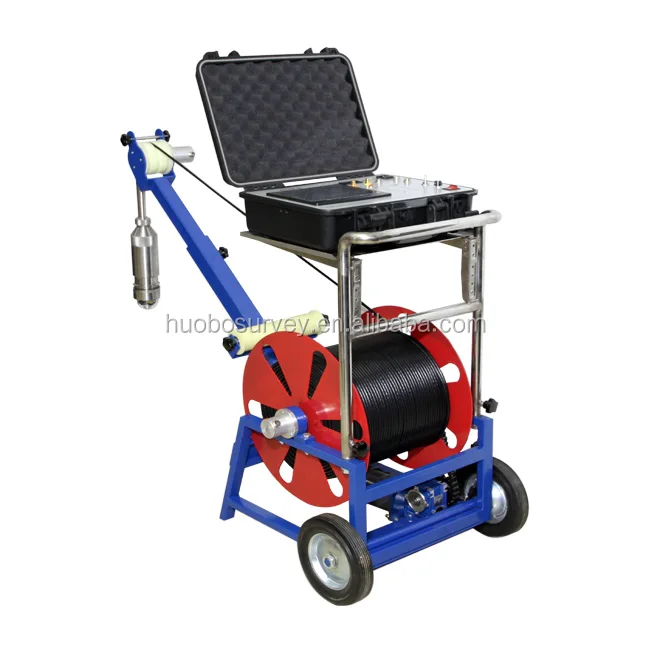

China Export Borehole Camera and 360 Degree Borescope Camera Deep Well Camera


Main application:

Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

360 Degree Borehole Camera and 360 Degree Borescope Camera Deep Well Camera


Main features:

Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
oceaneering.

No.
Configuration
Dimension
Specification
1
Camera probe
Diameter: 50/70mm

1. Camera lens are manufactured with high-quality resins.
2. High-quality steel body with solid structure, not easy to be damaged.
3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water)
4. 6-12 LED lamps are available
2
Camera
1. Sony inducer 1/3'' CCD
2. HD 850 TVL image definition
3. Waterproof
4. Panoramic/Electric rotating lens camera
3
Specialized cable
Length: 0-2000m (optional)
1. With steel wire
2. Max bearable tension: 260kg
4
Control unit
1. 220V/380V/12V optional voltage mode
2. Aeronautic aluminium case
5
Downhole pulley
Logging depth counter equiped
6
Logging winch
Manual & electric winch available
7
HD DVR
Video recording

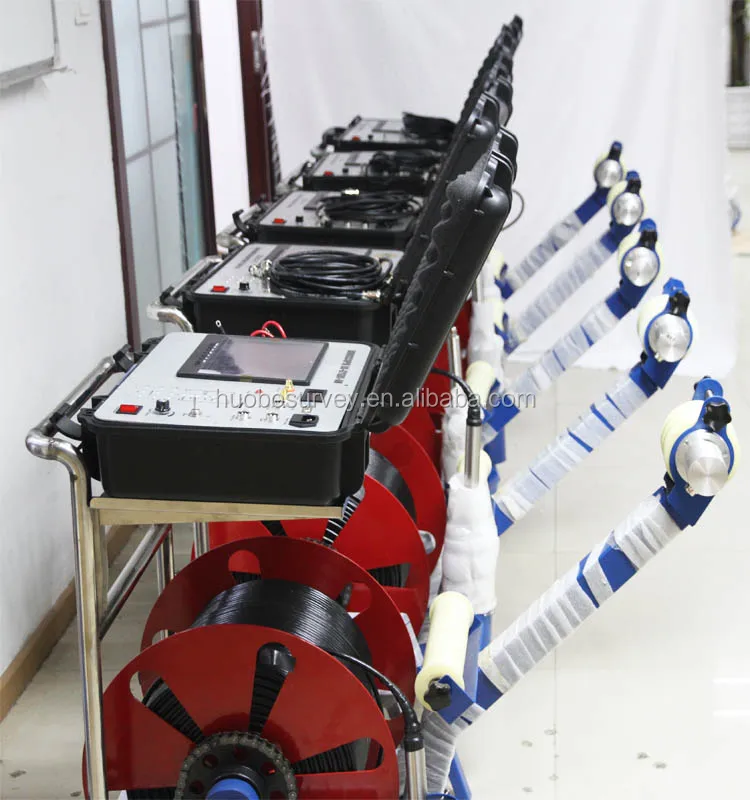

Detailed Images
