China High Quality 25 Micron 50 Micron Stainless Steel wedge wire water well screen pipe \/ Johnson Screen

  • 30-99 Pieces
    $14.90
  • 100-499 Pieces
    $14.50
  • >=500 Pieces
    $13.90
Model Number:
DS-912
Aperture:
3.00mm
$
- +
available
0.15mm
$
- +
available
0.20mm
$
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Dongshuo
Type:
Filter Cylinder
Material:
Metal
Usage:
Liquid Filter
Thickness:
1.5mm-3.0mm
Width:
100mm-1200mm
Length:
100mm-1200mm
Hole Shape:
rectangle
Filter Rating:
65%-95%
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Product name:
Johnson wedge wire screen
Application:
Filter
Slot:
Standard 0,10 -3mm. Smaller on available on customer's request
Shape:
Cylindrical

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X20 cm
Single gross weight:
0.230 kg
Package Type:
1. Air bubble film inside, and wooden case outside. 2. Special package can be customized as customers' request.
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 30 31 - 100 101 - 500 >500
Est. Time(days) 5 7 8 To be negotiated
Product Description
China High Quality 25 Micron 50 Micron Stainless Steel wedge wire water well screen pipe \/ Johnson Screen

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5
2x3

1.5x2.5
2x3

1.5x2.5
2x3

1.8*2.5
2x3

2x3
2x4
3x5
3x6
3x10
4x7

2x4
3x5
3x6
3x10
4x7
5x6

3x5
3x6
3x10
4x7
5x6
5x8

End Finishing

Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc

Note

Customized According To Requirement

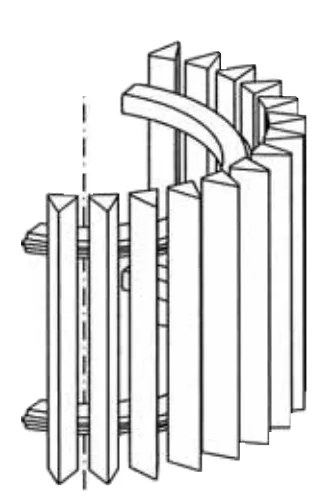

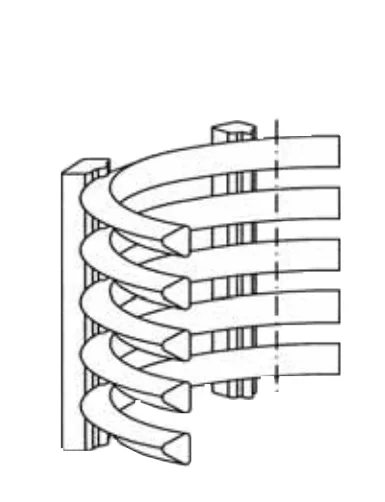

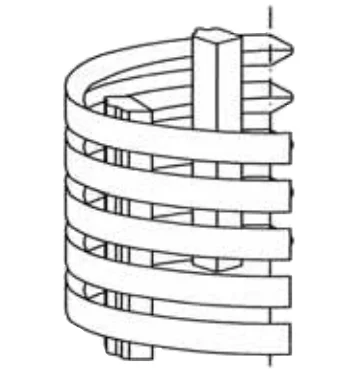

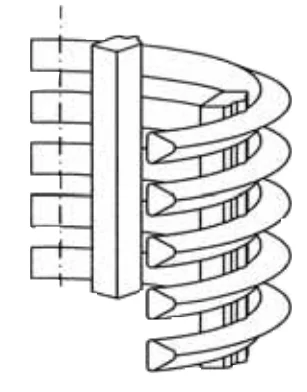

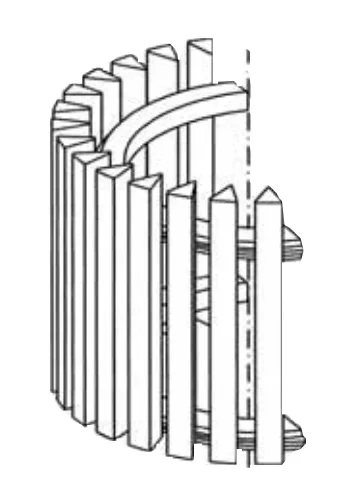

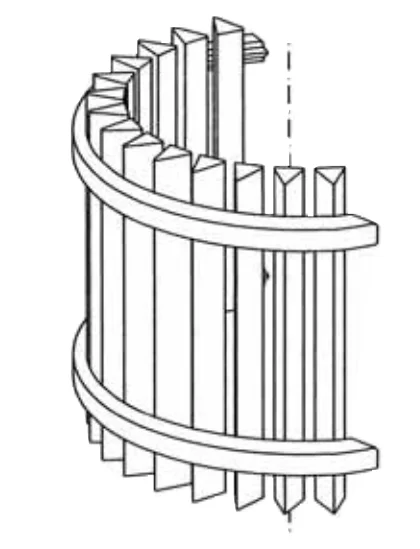

CONFIGURATION

1.  Normal radial external wire

  1. 2.  Inverted radial external wire

  1. 3.  Normal axial external wire

  1. 4. Inverted axial external wire

  1. 5. Normal axial internal wire

  1. 6. Normal radial internal wire

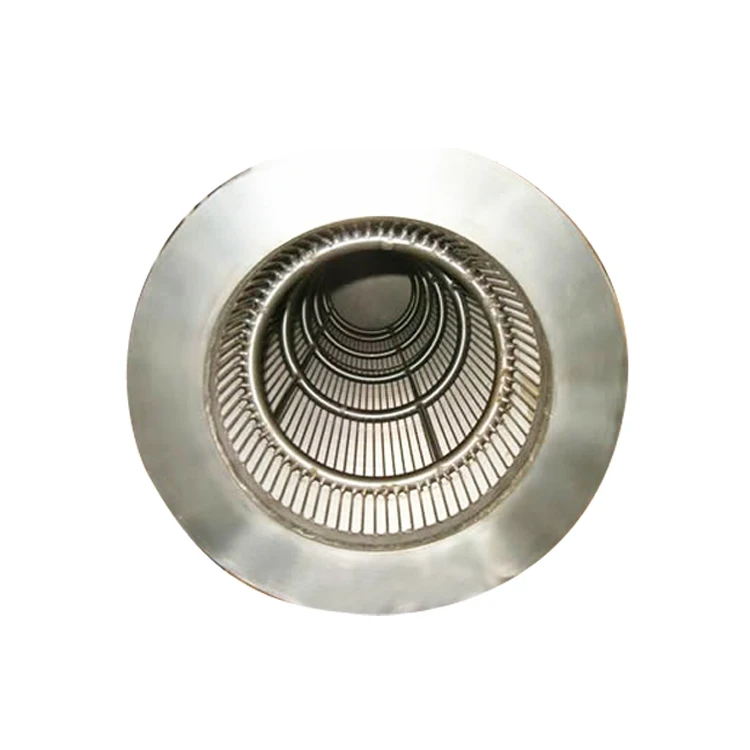

Stainless Steel wedge wire screen filter


Product instruction

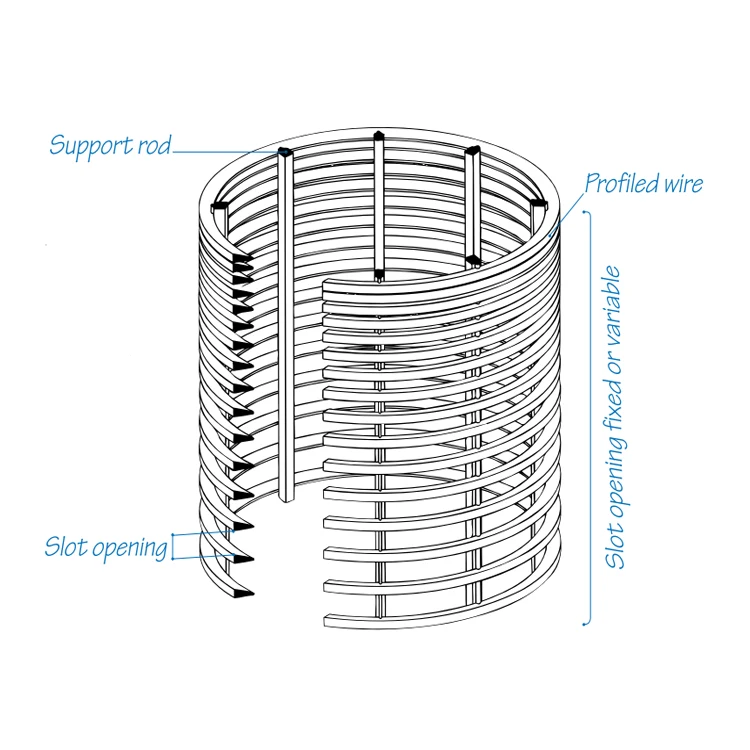

      It is made of 'V' shaped stainless steel wire and stainless steel strip. Smooth surface is for filtering, the gap is strip, belonging to the form of surface filtration. As a multiform of automatic filters ( such as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning filter) are widely used in various industries of fluid filtration.


Product Feature

      Easy leakage, wear resistance, corrosion resistance. The mesh cross section is a trapezoid, narrow width of the gap, have a wire made of cold rolled stainless steel, this wire is support rods. The screen is uniform, the welding is stable, high hole rate, long service life, high strength, stiffness and bearing capacity of rigid, screening filter device can be made into various shapes.


Application

      Ming, coal, oil, fertilizer, chemical, grain, salt, environmental protection and so on. Screening of liquid and powder.

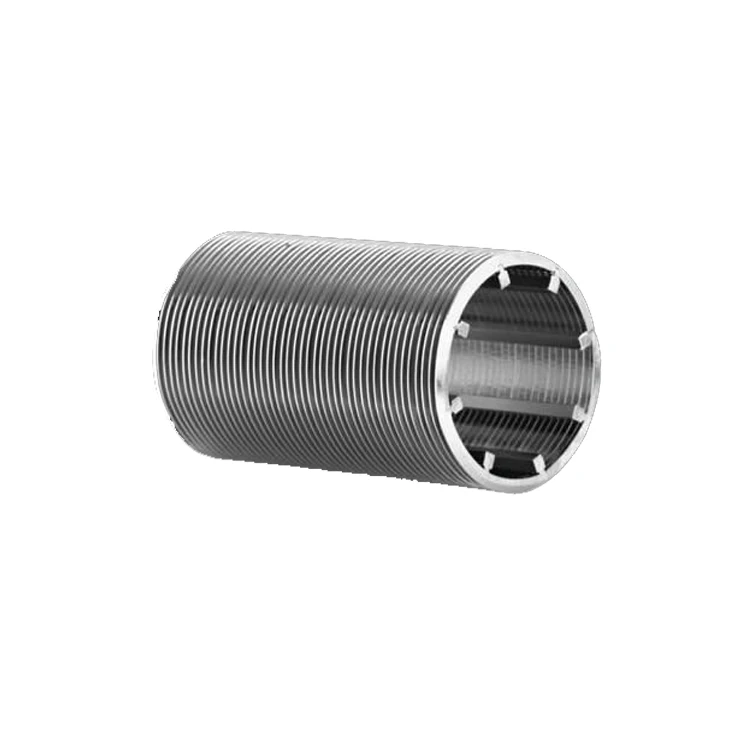

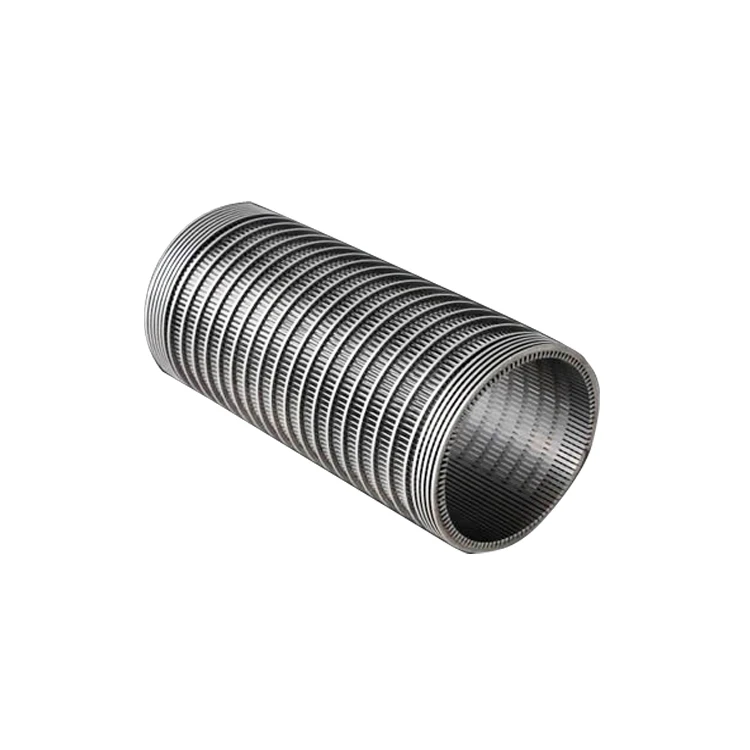

Continuous slot stainless steel wedge mesh pipe

If you need quotation,please provide us the follows:

1.      Material:  201,AISI304/316/316L etc. Please choose one.

2.      Slot size(also called aperture):0.1mm-6.00mm,also can be customized as your request.

3.      Profile Wire: please refer to the specification then provide us the accurate data.

4.      Support Rod: please refer to the specification then provide us the accurate data.

5.      Length:  Max 6 meters

6.      Diameter: 25mm-1200mm(Outer or Inner)

7.      Drawing: If you have,please provide. so that we can offer you accurate quotation.

8.      The direction of cylindrical screen: Please select one from the types of the direction.

9.     End fitting: Thread fitting,Flange,Closed Plated,Resistance welded closed plate,Metal Ring,etc. Please choose one.

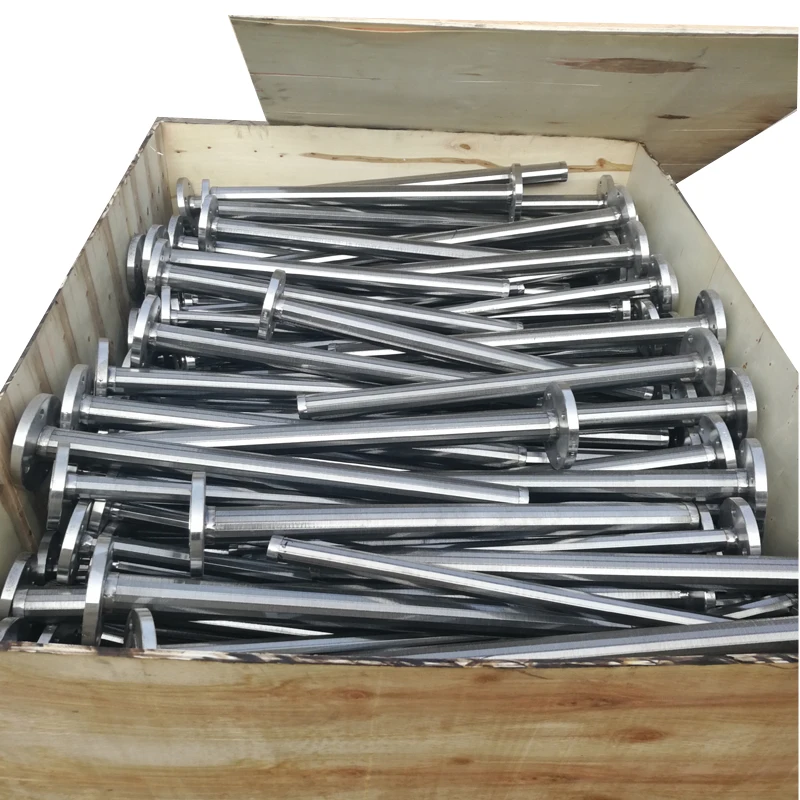

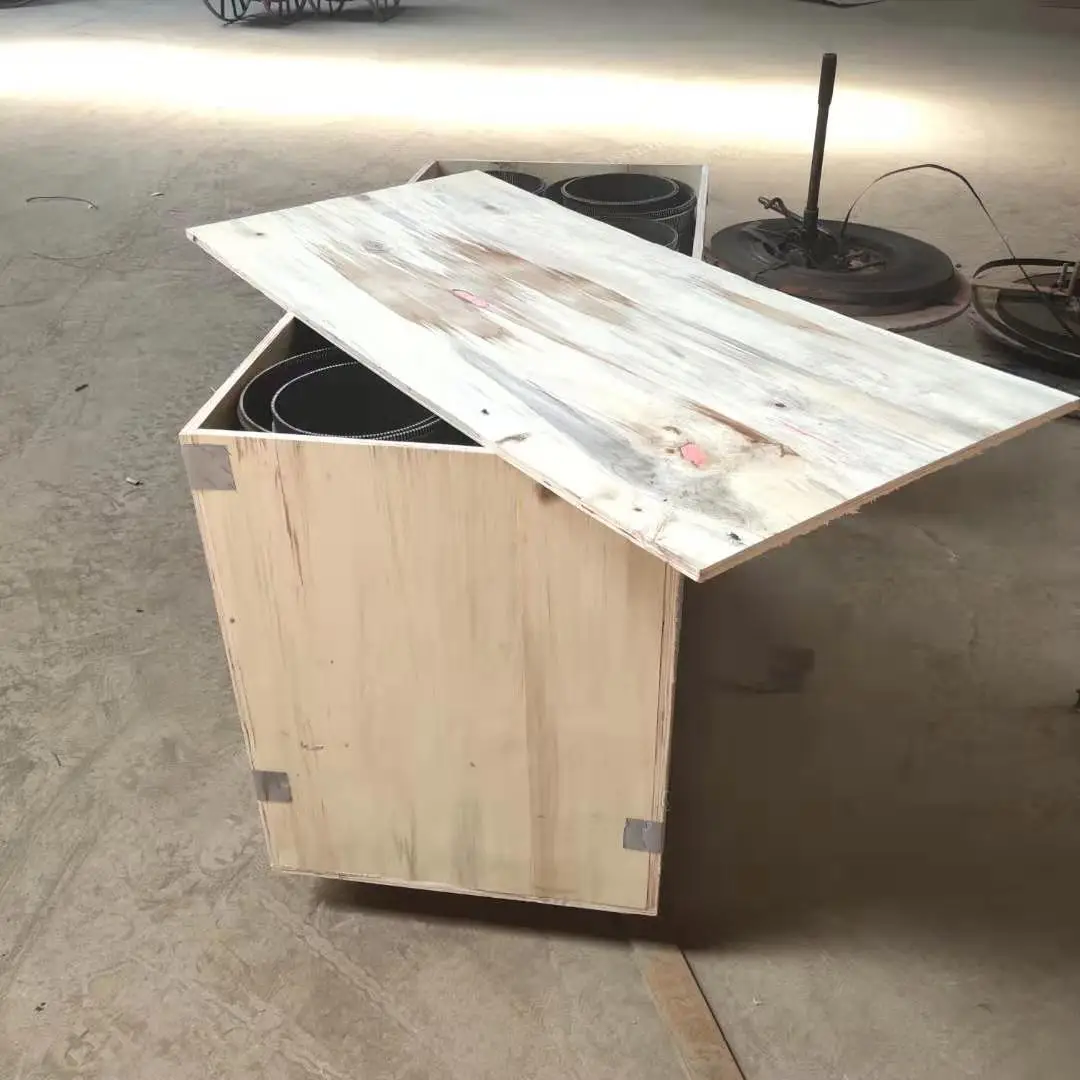

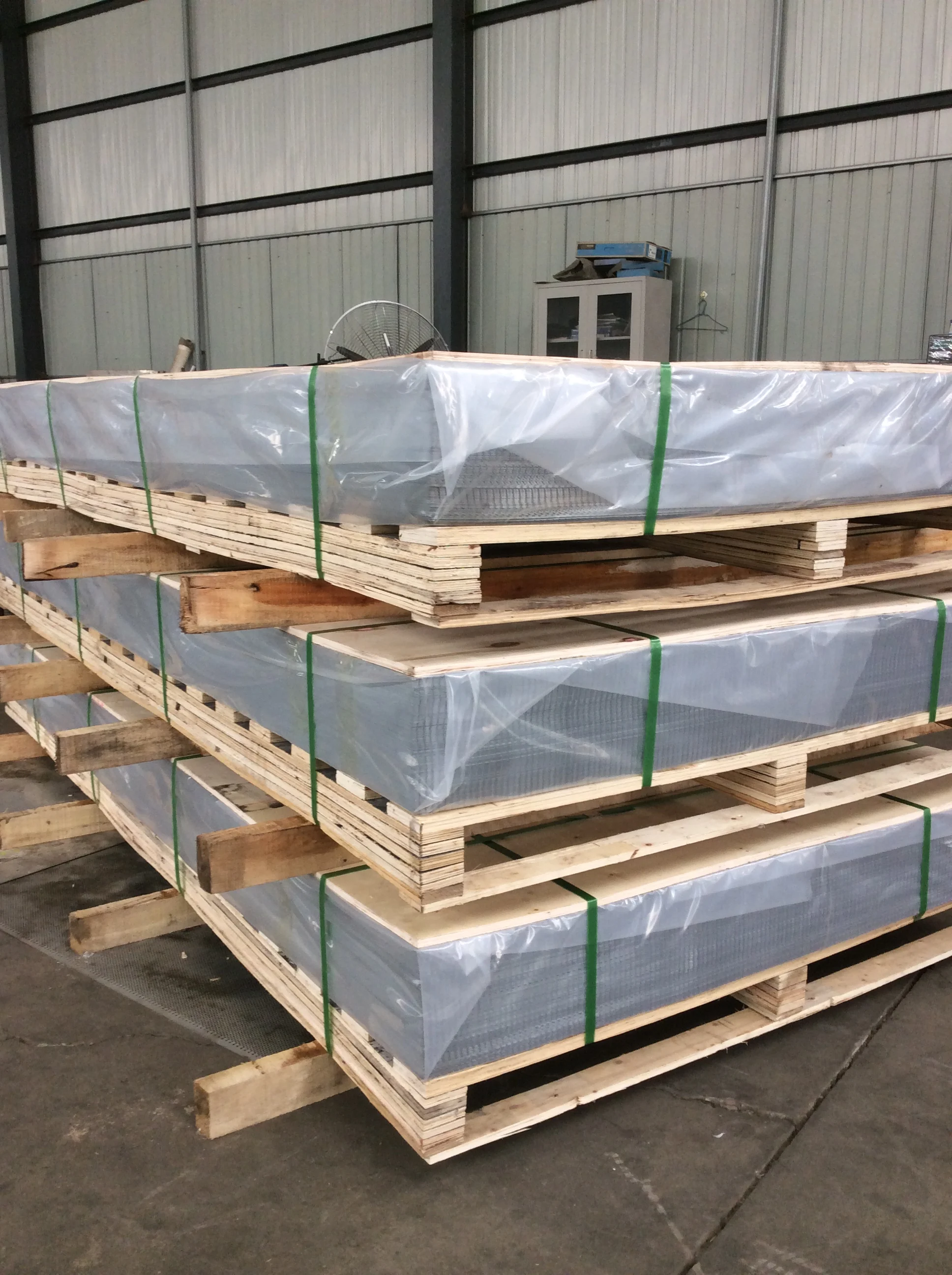

Product packaging

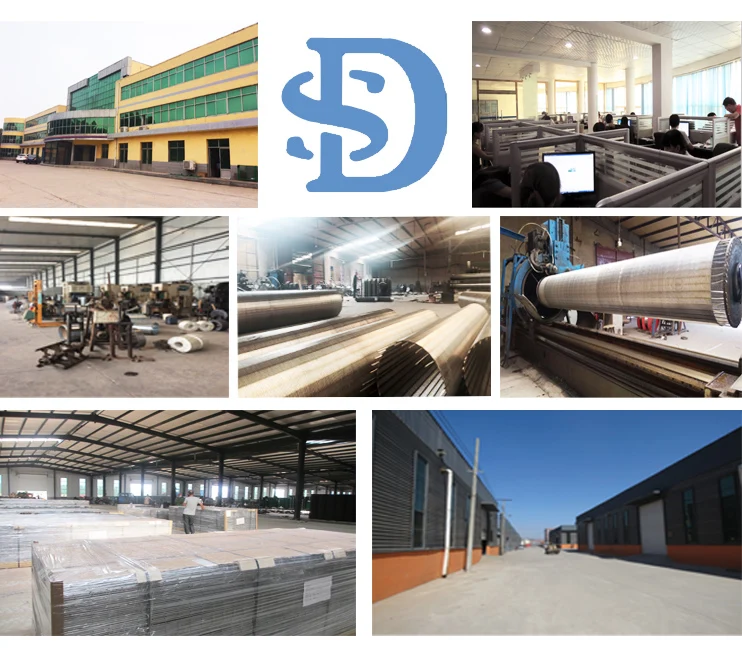

Company Profile

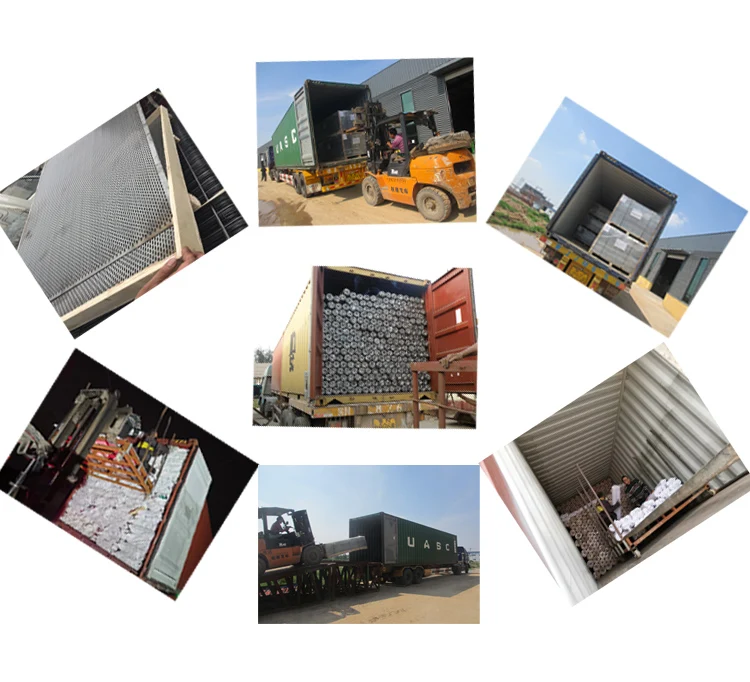

Loading
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
