China LED manufacturer Waterproof 50m/Roll 60led 5050 220v flexible 230v rgb outdoor led light strips

Free Inspection
FOB Reference Price:Get Latest Price
We offer premium service for Trade Assurance orders. Learn more
US $2.15-3.25 / Meter | 100 Meter/Meters outdoor led light strips Sample are welcomed (Min. Order)
Supply Ability:
1000000 Meter/Meters per Month outdoor led light strips order are welcome
Port:
shenzhen
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
AC100-120V or 220-240V (50-60Hz)
Lamp Power:
500W
Lamp Luminous Flux(lm):
22-24lm/led
CRI (Ra>):
75
Color Temperature(CCT):
2400-7000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
35000
Lamp Body Material:
PVC
Certification:
CE, EMC, ETL, RoHS, VDE
Emitting Color:
W/WW/R/Y/B/G/RGB
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BET
Model Number:
YH-HRF305050220S-RGB
LED Source:
SMD5050
LED QTY:
60led/M
Packaging:
50M/reel
Waterprof Grade:
IP67
Warranty:
2 years
Beam angle:
120 degree
Cuttable unit:
1M/CUT
Delievery:
usually by Express, bulk order by sea
Payment term:
T/T, Western Union, Paypal
key word:
outdoor led light strips
Packaging & Delivery
Packaging Details
1.50 meter/roll, 2, 2 roll/box, 3, Carton size:35*35*31CM 4.N.W:15KG G.W:16KG
Delivery Time
3-5 days for sample order,7-15 working days for bulk order
Specification
Item NO.
YH-HRF305050220S- W//WW/R/G/B/RGB
Input Voltage
AC100-120V or 200-240V (50-60Hz)
Power
220V:10W/meter  110V:5W/meter
Color
Cool white,warm white,blue,green,red...
Length
50m/roll
LED sources
SMD5050
LED Qty
60pcs/meter
IP grade
IP67
Cuttable unit
Every 0.5 meter  ( RGB color : 1.0 meter / cut)
Lifespan
35,000 hours
Warranty
2 years
Certifications
ETL,CE & RoHS
Material
PVC cover
Working temperature
-20~60
Product Description

Product Details



For single color LED strip

We use "D"shape PVC cover, like magnifying glass, can concentrate & magnify the lights, make the LED strip looks more bright!


For RGB LED strip
Compared with others RGB led strip, we use the double
loop in the circuit board, one led was broken, won't affect
other leds, the led strip will be lighten on as always.This
special design makes the RGB LED strip stabler than the
normal one. The lifespan will be longer too.

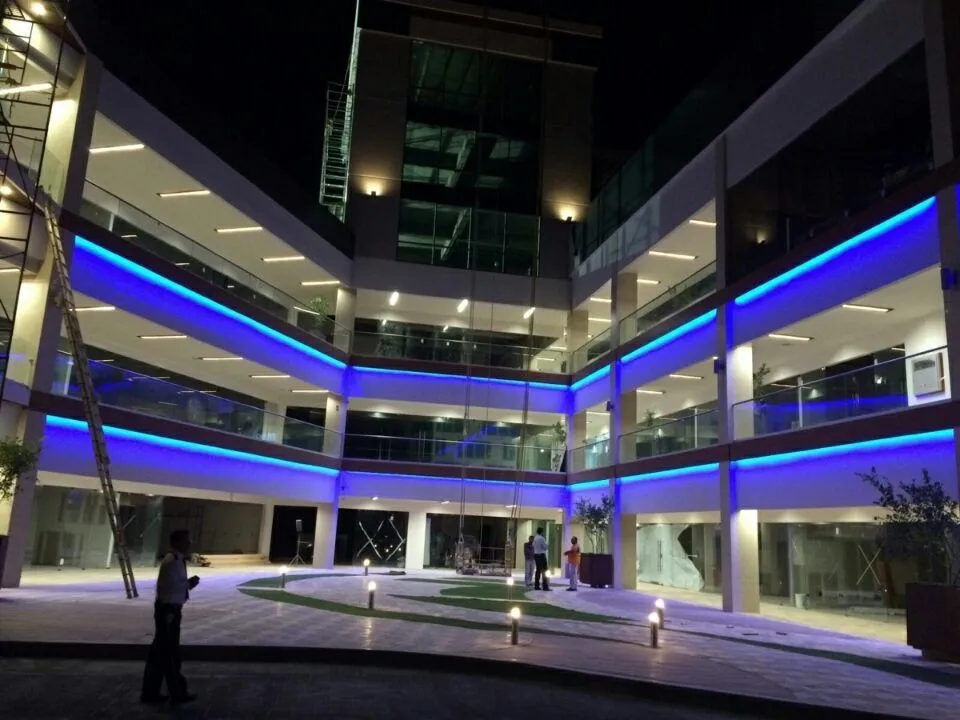

Application :

1) Architectural decorative lighting                                                                         2) Archway, canopy and bridge edge lighting

3) Amusement park, theater and aircraft cabin mood lighting                   4) Emergency hallway lighting

5) Auditorium walkway lighting                                                                               6) Stairway accent lighting

7) Concealed lighting                                                                                                    8) Backlighting for signage letters

9) Channel letter lighting                                                                                           10) Emergency exit path lighting

11) Cove lighting

Features

1. Can be run in 220V or 120V without extra adaptor or power source;

2. Can be max run 50 meter and also be cut or connected in every meter or 0.5m;
3. PVC tube provides good waterproof and can be used both indoor & outdoor;
4. 120pcs 5050 LED per meter provide greater brightness;
5. Solid-state for high vibration resistance and good flexibility for any shape.
6. Many nice colors for your choce(blue,red,green,warm white cool white).

Advantage

Chip

All the chips BET use good brand chip with 22-24 LM /per(5050),3528

7-8 lm,5630 50-55lm permeter, with

uniform light and low light decay with high quality and long life span, Two

years Guarantee, ETL, CE & ROHS

approved.

PVC

BET Strips use high transparent plastic material, It can bear high

temperature and with strong

anti-ultraviolet, While most of the

other normal strips only adopt muddy plastic material, this makes strips

not so bright and will be easily turn
yellow after short time using.

Technology

The LED and resistors BET mounted

is with vertical mounted, while the

others is with horizontal mounted.

This will be not so easy to fall off

with the mounting when make

installing.

Copper Wire

BET Adopt pure cooper wire, With

super conductivity, Higher brightness and more uniform light.While the

common one only use the iron wire

with low material cost and poor

conduction.

PCB

The PCB width we adopt is with

8MM, While others is only with 5MM, wider PCB is better for heat

dissipation and protect the LEDS.

Craft

BET adopt advanced machine and

technology for every process, you

can see our BET’s PCB inside is flat

while other’s is curly.

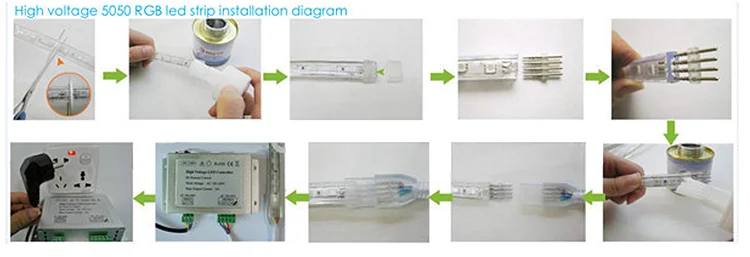

Installation Diagram

Install

                 Take out the package,make sure it comes with necessary accessories,which should include : Fixing clips,                              Middle connector,End caps,Head wires.


Fix the strips with clips onto where you need,put the wire into sockets to light the strips.

Cut

Please cut the strips only along the cutting mark on the PCB,don't cut at random.Block up the end with end caps,

seal with enough glue to make sure it is still waterproof.

Connect

Plug the head wire into a strip to conduct the electricity,or plug a middle plug into the ends of two separate strips to connect them into a long strip,after well connected,seal all the plugs with enough glue.

Notice

RGB color need to connect a controller (pls kindly check installation accessories and steps as below).

Company Information

BETTER TECHNOLOGY



We are professional manufacturer of LED products in Shenzhen,China.The products have achieved CE&RoHS&ETL. Factory directly offers a competitive price with high quality.



                                                                      View More >>

   COMPETITIVE ADVANTAGES

Experienced technical staff

Advanced equipment

High quality

Experienced R&D department

OEM accepted

Strong production capability

Large scale production lines

Clients' special requirement accepted

Unique design

Warranty Term
2 years since the date of purchase

1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period,we will provide free/rework new products.


2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction,BET will provide paid maintance within warranty period.

FAQ

Q1. Quality Control

A:100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its

temperature after 24 hours’ lighting.

Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC

procedures before shipping to customer.

Q2. Order infomation

A: MOQ: Normally 200 meter

Trade term: EXW / FOB Shenzhen
Delivery time: 3-5 working days for sample order, 7-10 working days for mass order

Q3. Package

A: For high voltage LED strip: 50 meter/ roll,two rolls in to a standard export carton;

    For low voltage LED strip: 5 meter/roll ,40 rolls in to a carton;

    We can custom the package as your requirement.

Q4. Trade Terms

1. Payment term: T/T 100% payment in advance, or for over 10,000 USD, TT 30% deposit after order confirmed,the

balance after goods ready before shipping .or Western Union, Paypal for small amount .

2. Lead time : normally in 10~15 days after deposit received .

3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment

received .

4. Shipping port: Shenzhen , China

5. Discounts : We offer discount for big quantity .
