China Manufacturer 4kw Motor Driven 600mm Transverse Length Coil Transformer Coil Winding Machine

  • 1 - 1 Sets
    $8,990.00
  • >=2 Sets
    $8,810.00
Model Number:
ZPX600
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Function (Min. Order: 1 Sets)

More

Colour (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, 12 months
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
Zhutang
CNC or Not:
CNC
Condition:
New
Dimension(L*W*H):
1800x1500x1650mm
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Weight (KG):
800
Motor Power (kw):
4
Center Height (mm):
900
Coil Type:
round, oval, rectangle
Max.Transformer Capacity(kVA):
600
Max. Load (KG):
500
Wire Diameter Range (mm):
0.3-5.0
Length of Axis (mm):
900
Center height:
850mm
Axial length:
600mm
Winding power:
3KW
Winding speed:
0-200 rpm
Wire type:
Round or Flat wire
Usage:
Winding
Product type:
Transformer winding machine
Control system:
PLC
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Seaworthy packing
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

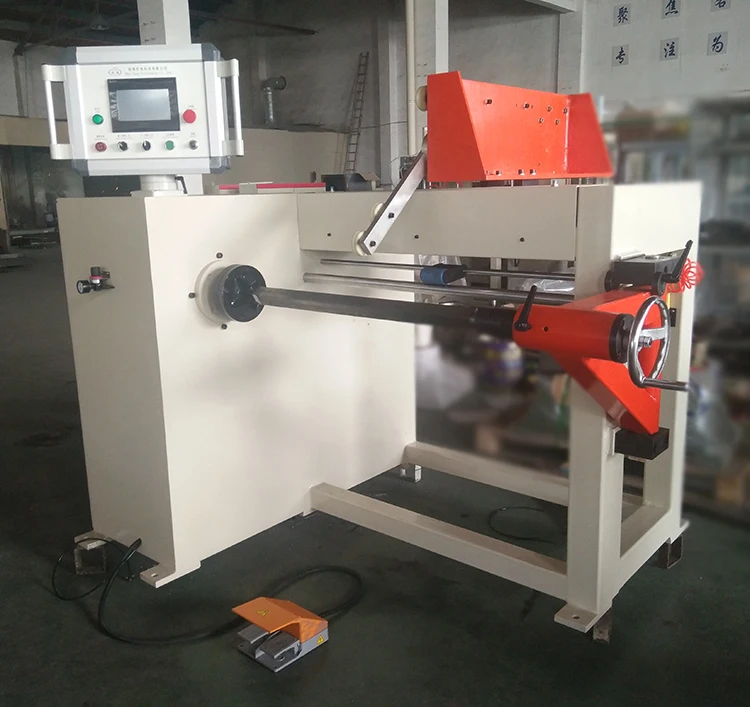

China Manufacturer 4kw Motor Driven 600mm Transverse Length Coil Transformer Coil Winding Machine


China Manufacturer 4kw Motor Driven 600mm Transverse Length Coil Transformer Coil Winding Machine ZPX600, adopting automatic wire laying and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized transformers, reactors and other similar products. This kind of wire winder is provided with main winding motor, automatic winding displacement unit, layer insulation feeder unit, tension adjustable decoiler, pneumatic system, PLC control, and servo motors, etc. The wire winder features high automation, full functions, and strong driving force, etc.



Main Components



1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system



Technical Parameters



Typical standard specifications of ZPX series are shown below, however these can be easily modified as requested.



ItemZPX600ZPX800ZPX1000ZPX1200
Center Height:900mm900mm900mm900mm
Finished Coil Height:≤600mm≤800mm≤1000mm≤1200mm
Winding Power:4kw4kw5.5kw5.5kw
Winding Speed:0-200rpm0-160rpm0-120rpm0-100rpm
Speed Regulation:stepless regulationstepless regulationstepless regulationstepless regulation
Max. Flat Wire Size:5x12mm5x12mm5x12mm5x12mm
Round Wire Diameter0.3-5.0mm0.3-5.0mm0.3-5.0mm0.3-5.0mm
Finished Coil OD.:≤800mm≤800mm≤800mm≤1000mm
Loading Capacity:≤500kg≤700kg≤800kg≤1000kg
Min. Spread Pitch:0.01mm0.01mm0.01mm0.01mm
Counting Range:0 - 9999.90 - 9999.90 - 9999.90 - 9999.9
