China OEM Smart 4-20Ma Output Hart Pressure Transmitter

  • 1-49 Sets
    $281.00
  • >=50 Sets
    $270.00
Material:
stainless steel
Accuracy:
0.075%FS
Type:
Liquid Stream Gas
Pressure Range:
Gage Pressure
$
- +
available
Absolute Pressure
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Samples: $281.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $281.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
MICROCYBER CORPORATION
Model Number:
NCS-PT105II series1
Pressure Sensor's Accuracy:
0.075%FS (Pressure Transmitter)
Pressure Transducer's Measure Object:
Liquid/Gas/Stream (Pressure Transmitter)
Explosion-proof:
Ex ia II C T4 Ga, Ex d II C T4/T6 Ga, IP65
Output Signal:
4-20mA/HART/FF/PA (Pressure Transmitter)
Pressure Sensor's Stability:
Up to ±0.1% of Upper Range Limit (URL) for 1 Year
Absolute Pressure Sensor's Range Rate:
20°C, Range Rate 10:1 ( Pressure Transmitter)
Power (FF,PA):
9~32V dc(FF,PA) (Pressure Transmitter)
Pressure Sensor's Power (Explosion):
9~17.5VDC(FF,PA; Explosion-Proof) (Pressure Transmitter)
Power (HART):
11.9~42VDC(HART) (Pressure Transmitter)
Pressure Transmitter's Power:
11.9~30VDC(HART; Explosion-Proof) (NCS-PT105IIS Pressure Transmitter)

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X15X18 cm
Single gross weight:
3.300 kg
Package Type:
Carton or standard factory package. In order to protect the products, we use paper boxes to package Profibus DP Pressure Transmitter. In order to prevent damage to the goods during transportation, we will use foam in the cartons to better protect the products. If the products are too heavy, we will reinforce them with pallets.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Products Description
NCS Series of Intelligent Transmitters are digital, intelligent, network-based, merged with advanced, reliable and stable sensor technology, to be designed as a new generation of Fieldbus Intelligent Transmitter. NCS Series of Intelligent Transmitter have been designed with high precision and high reliability, high stability. The pressure, temperature, currents and other physical quantities are displayed on LCD module. Zero drift, range settings and many other functions, are realized by the magnetism bar operation. The interoperability between different systems and equipments are realized by the Equipment Description Document, which is coMpatible to a variety of device management software, and adapting to harsh electromagnetic environment. NCS Series of Intelligent Transmitter have been used in inflammable and explosive places according to Intrinsically Safety Design. NCS-PT105 series of Intelligent Pressure Transmitters are well- designed with advanced, mature and reliable capacitance sensors, combined with advanced microprocessor technology and digital capacitance measurement technology. Internal microprocessor make it intelligent, high-precise, high reliable and zero-point stable. It is easy to debug in the field. NCS-PT105 Series of Intelligent Pressure Transmitters, complied with HART Protocol, have been used to measure pressure, level, flow and other industrial parameters, which have been widely used in petroleum, chemical, metallurgy, electricity, cement, etc. NCS-PT105Ⅱ series Smart Pressure Transmitter with advanced, mature, reliable 3151 capacitance sensors has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement technology. The powerful functions and high-speed computing capability of the microprocessor make it have excellent qualifications such as smart, high precision, high reliability, stable zero and so on. Its LCD can display many physical parameters (e.g. pressure, temperature, current and so on). It can realize the functions such as zero adjustment, range settings by key-press operation, and it is easy for field testing. NCS-PT105Ⅱ series Smart Pressure Transmitter supports HART, FF, and PA protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc..

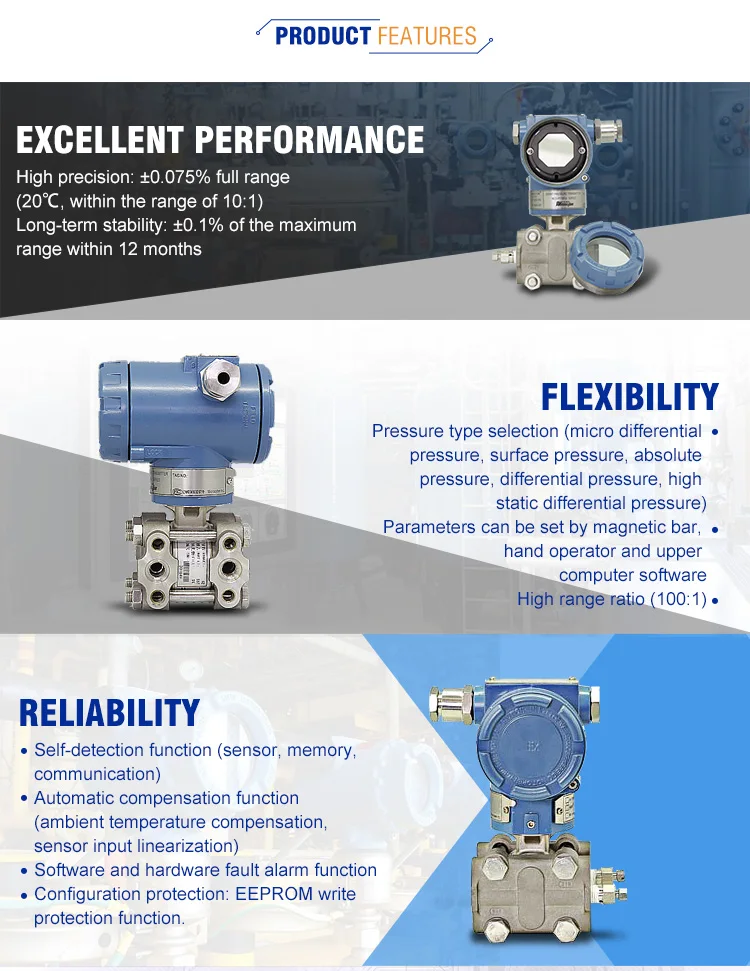

Features
Excellent Performance -- High precision: ±0.075% full range (20℃, within the range of 10:1) -- Long-term stability: ±0.1% of the maximum range within 12 months Flexibility -- Pressure type selection (micro differential pressure, surface pressure, absolute pressure, differential pressure, high static differential pressure) -- Parameters can be set by magnetic bar, hand operator and upper computer software -- High range ratio (100:1) Reliability -- Self-detection function (sensor, memory, communication) -- Automatic compensation function (ambient temperature compensation, sensor input linearization) -- Software and hardware fault alarm function -- Configuration protection: EEPROM write protection function
Specification
According to the type of measurable pressure
Model
Name
NCS-PT105ⅡSR
Differential Pressure Transmitter
NCS-PT105ⅡSG
Gauge Pressure Transmitter
NCS-PT105ⅡSA
Absolute Pressure Transmitter
NCS-PT105ⅡSD
Differential Pressure Transmitter
NCS-PT105ⅡSH
Differential Pressure Transmitter For High Static Pressure
Precision
The Accuracy Is ±0.075% Of The Regulated Range.If The Range Regulated Is Less Than 1/10 Of The Maximum Range, The Accuracy Is
±[0.025 + 0.005 × (Maximum Range/Range Regulated)]%
Temperature Influence
Every 28℃(50 ° f)Range ≥0.1 Maximum Range: ±[0.019% Maximum Range + 0.125% Maximum Range]Adjustable Range < 0.1 Max Range:
±[0.025% Max Range + 0.125% Adjustable Range]
Stability
Not Exceeding ±0.1% Of The Maximum Range Within 12 Months
Static Pressure Influence
SR
±0.5%/ 6.89Mpa Of The Maximum Range
SD
±0.25%/13.8Mpa Of The Maximum Range
SH
±0.25%/31.0Mpa Of The Maximum Range
Installation Position Influence
The Maximum Zero Drift Is 0.24Kpa
The Power Influence
Less Than 0.005%/v Of The Calibration Range
Vibration Influence
Any Axial 0 ~ 200hz, The Error Is ±0.05%/g Of The Maximum Range

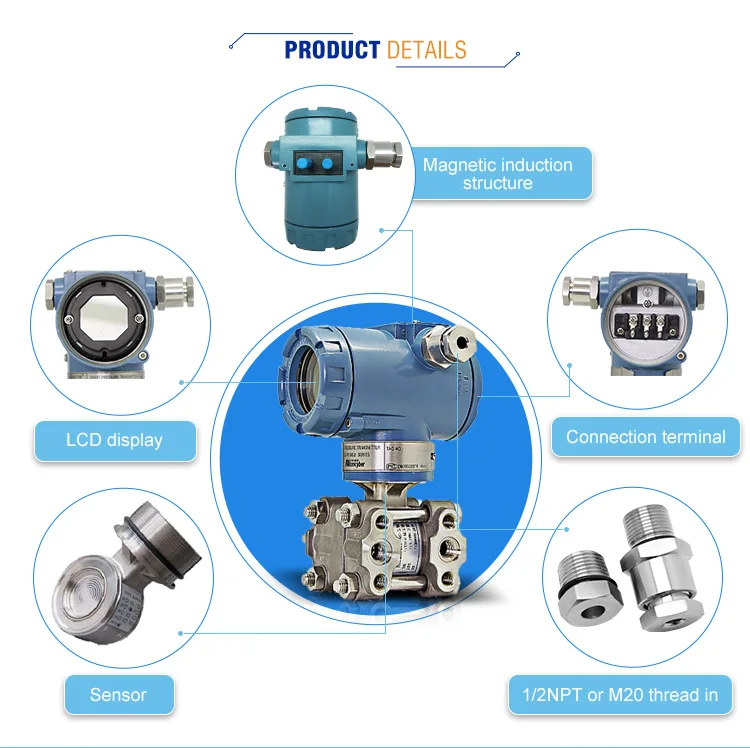

The power and signal of Smart Transmitter are sharing one pair of cables (Bus Cable). The ordinary cables can be selected by HART
smart transmitter, but FF, PA Smart Transmitter is suggested to use specific Fieldbus cable the IEC61158-2 recommended. The
terminal is at the rear cover, the terminal wiring board could be seen after screwing the rear cover (indicated “FIELD TERMINAL”).
Working Principle

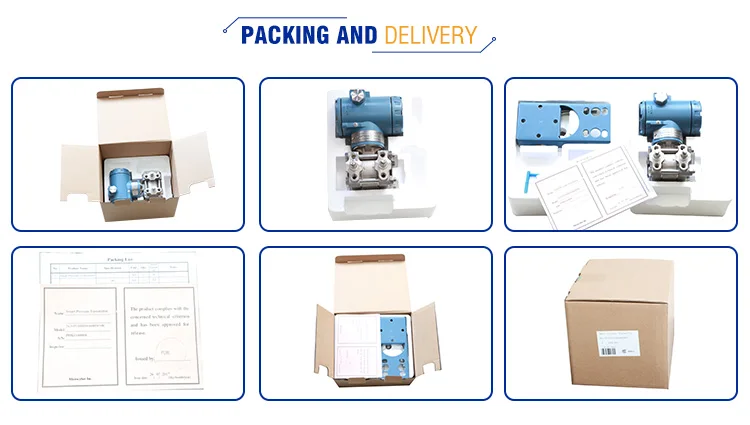

Packing & Delivery
Company Profie
FAQ
FAQ
Q: Which one is the most popular model?
A: NCS-PT105ⅡSG and NCS-PT105ⅡSD.

Q: How to install NCS-PT105II Pressure Transmitter (Capacitance Sensor) ?
A: There are three ways to install NCS-PT105II Pressure Transmitter (Capacitance Sensor): installation of pipe mounting flat
bracket, installation of pipe mounting angle bracket and installation of plat mounting angle bracket.


Q: Can I get a free electronic manual?
A: Yes, if you want it, please contact us.

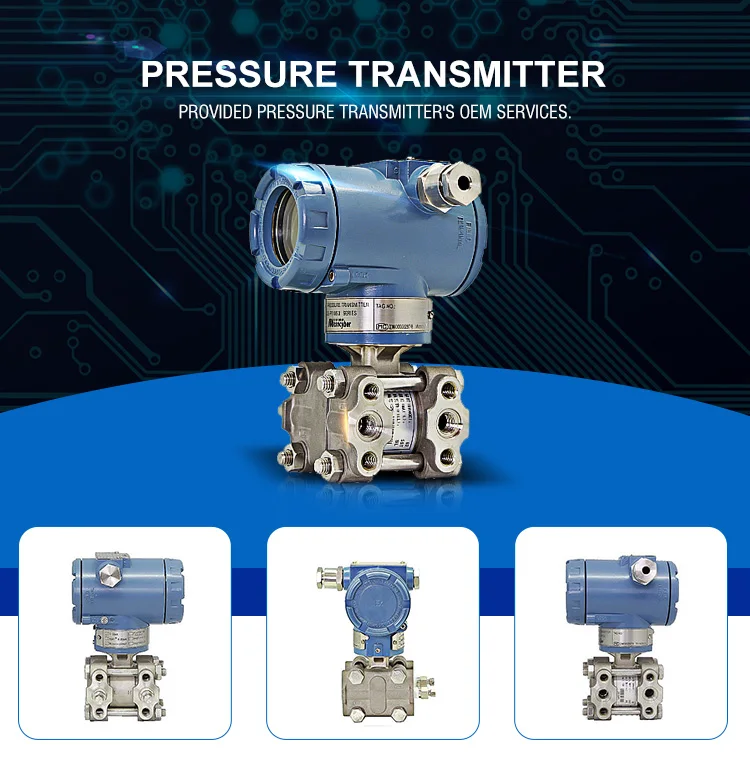

Q: Can you provided OEM service?
A: Yes, we can, such as communication board, we can also provided fieldbus development toolkit.
