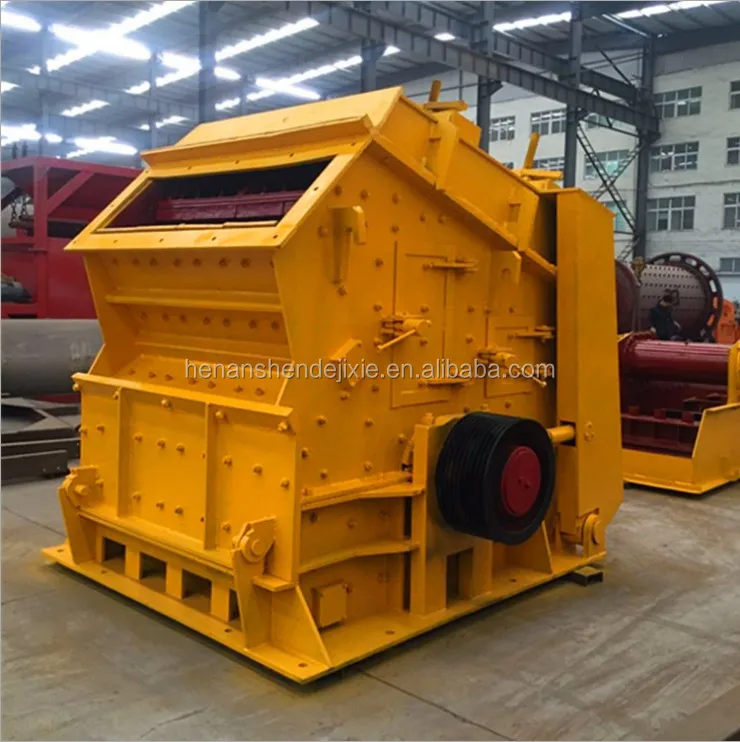

China Professional Stone Crushing Machine Impact Crusher Used in Mining Construction and Chemical Industry

FOB Reference Price:Get Latest Price
$1,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PF
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 12 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Impact Crusher
Application:
Mining, building materials, mining, railway, highway, energy, chemical
Motor Type:
AC Motor
Power(W):
37-560kw
Capacity(t/h):
24-860t
Place of Origin:
Henan, China (Mainland)
Brand Name:
Shende
Dimension(L*W*H):
Specification
Weight:
9.5-90t
Certification:
ISO9001
Warranty:
12 months
Name:
Spiral Classifier
The Machines classification:
Crusing Equipment
Capacity:
24-860t/h
Max. Feeding Size:
300-1000mm
Color:
Customizable
Installation:
Technical Guidance
Spare Parts Supply:
Lifelong Provide
Price:
Negotible and reasonable
Factory Visit:
Warmly Welcomed
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month Impact Crusher Used in Mining Construction and Chemical Industry
Packaging & Delivery
Packaging Details
Main body of impact crushe is in nude packing, other spare parts are packed with standard wooden cases.(China Professional Stone Crushing Machine Impact Crusher Used in Mining Construction and Chemical Industry).
Port
QingDao, ShangHai, DaLian or at customers' request
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 12 To be negotiated
Product Description

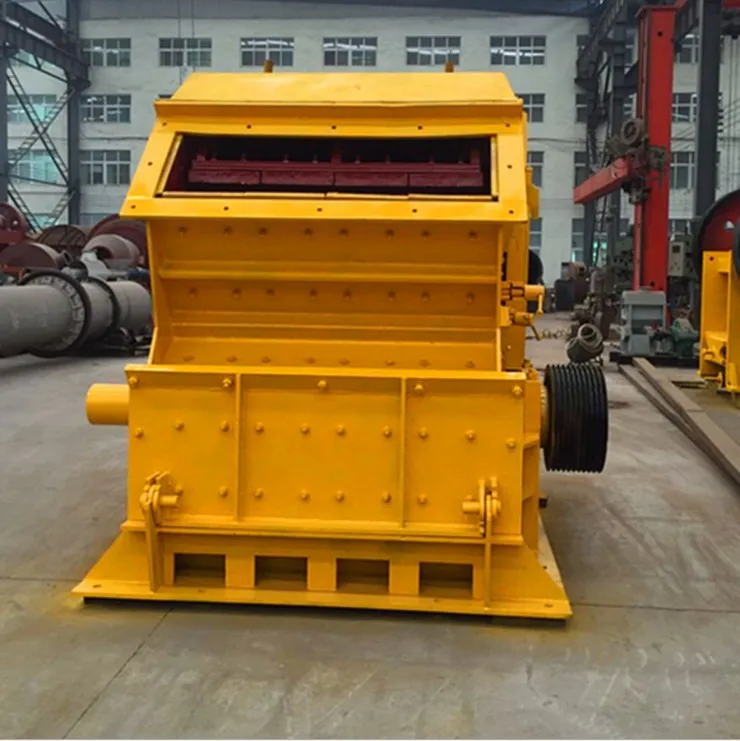

Impact Crusher's Introduction

The impact crusher is used for crushing materials with the side length less than 500mm, with the maximum pressure resistance up to 350 mpa, with the advantages of large crushing ratio and the output particles are in the shape of cubic. It is widely used in mining, building materials, energy, transportation, cement, chemical industry and other industries. The discharge particle size can be adjusted and the crushing specification is diversified

Model
Inlet Size
(mm)
Max. Feed Size(mm)
Capacity
(t/h)
Power(kw)
Weight(t)
Dimension
(mm)
PF-1007
820*700
300
24-45
37-55
9.5
1800*1600*1800
PF-1010
1170*720
350
50-80
55-75
10
2340*2007*2500
PF-1210
1090*465
350
80-130
110-132
14
2582*2053*2809
PF-1214
1440*465
350
100-160
132-160
18
2582*2403*2809
PF-1315
1532*560
500
140-200
180-220
19.3
2930*2761*3053
PF-1515
1580*696
500
220-280
250-280
28.5
3553*2835*3277
PF-1620
1600*2080
800
350-450
500-560
47.5
3800*3350*3250
PF-1822
1500*2250
1000
550-860
630
90
4260*3550*3640
PFV-1007
400*730
300
25-45
55
10.5
1800*1600*1800
PFV-1010
400*1080
350
35-60
75
14.8
2340*2007*2500
PFV-1210
400*1080
350
45-100
110
18
2582*2053*2809
PFV-1214
400*1430
350
60-140
132
23.5
2582*2403*2809
PFV-1315
860*1520
500
70-180
200
28
2930*2761*3053

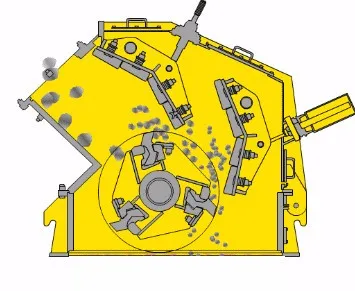

Impact Crusher's Working Principle

The impact crusher is a kind of crushing machine which uses impact energy to break materials. When the machine is working, the rotor rotates in high-speed under the drive of the motor, the material goes into the plate hammer function area, impacting with the plate hammer on the rotor and being broken. Then the material is throw to impact device again to be broken, and then is sprung back to the plate hammer function area to be broken. This process is repeated, material from big to small goes into the three impact chamber to be broken repeatedly until the material being broken to the required size, and finally is being exhausted from port discharge.

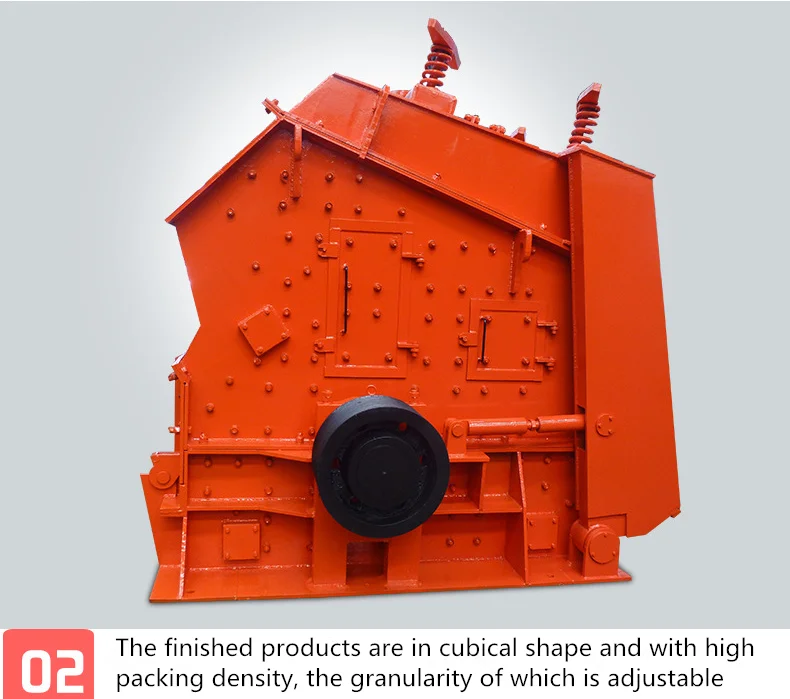

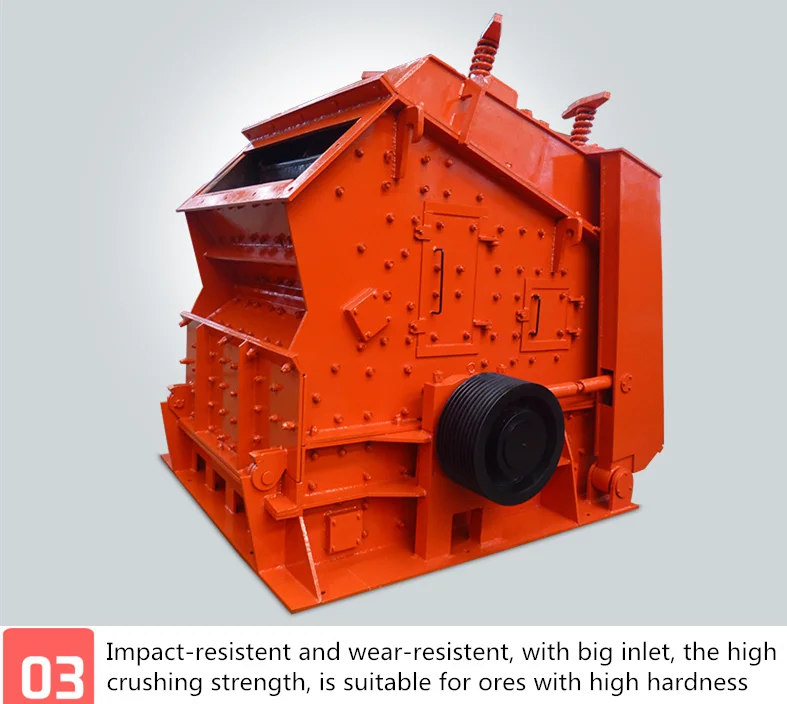

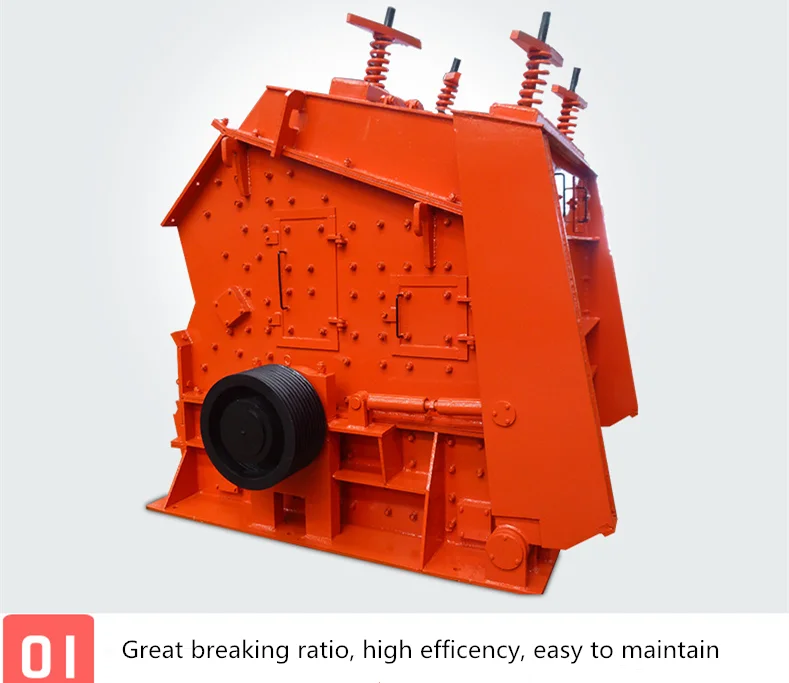

Advantages of Impact Crusher

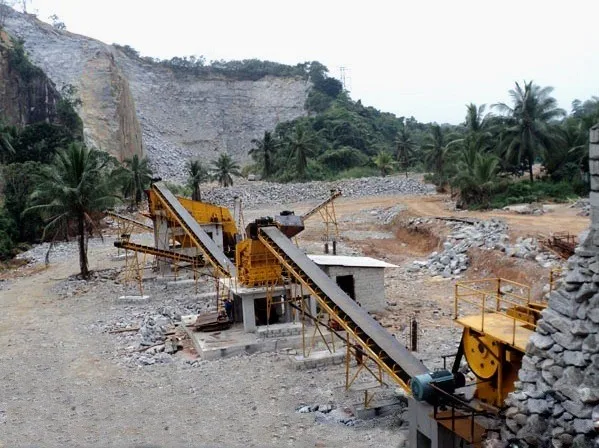

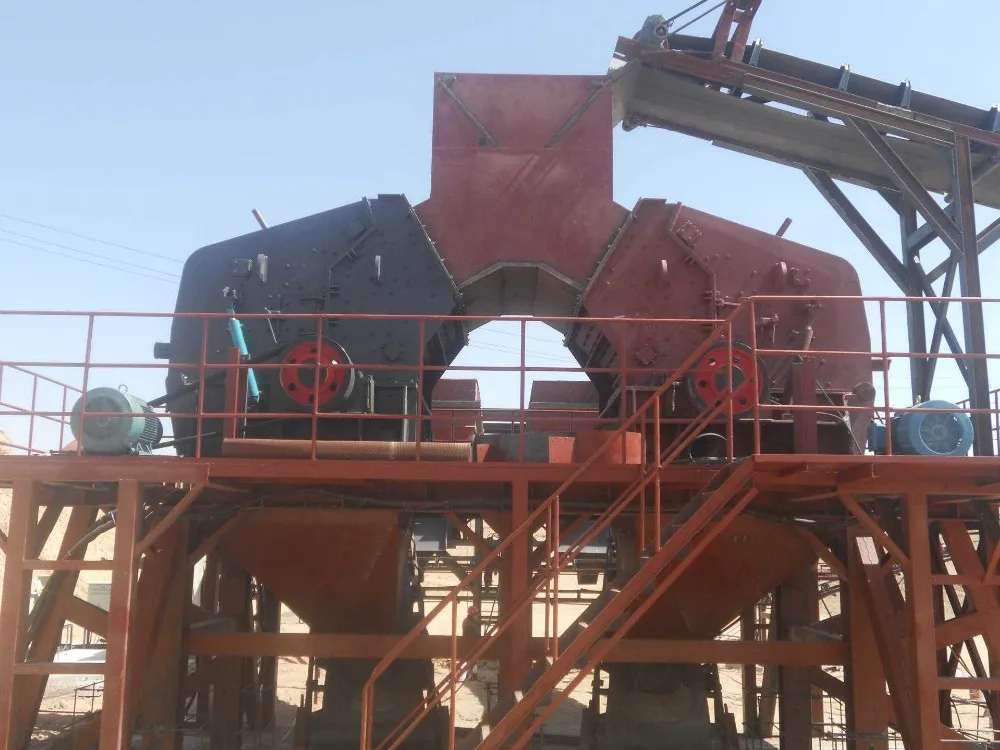

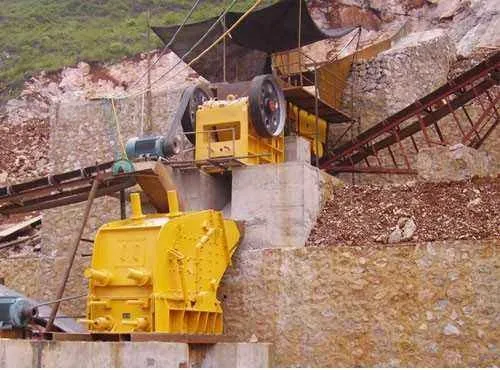

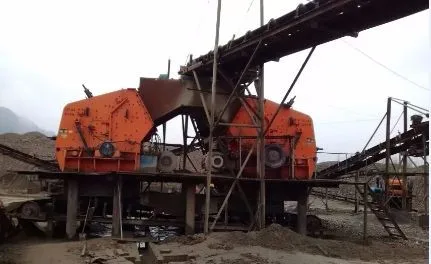

Working Impact Crusher
Packing & Delivery

Main body of impact crushe is in nude packing, other spare parts are packed with standard wooden cases.

Our Service
Contact

If you are interested in this machine, impact crusher, and want to know more detailed information about it , please contact with me and tell me your specific requirements. I will try my best to introduce this machine to you and recommend you the most appropriate machine.

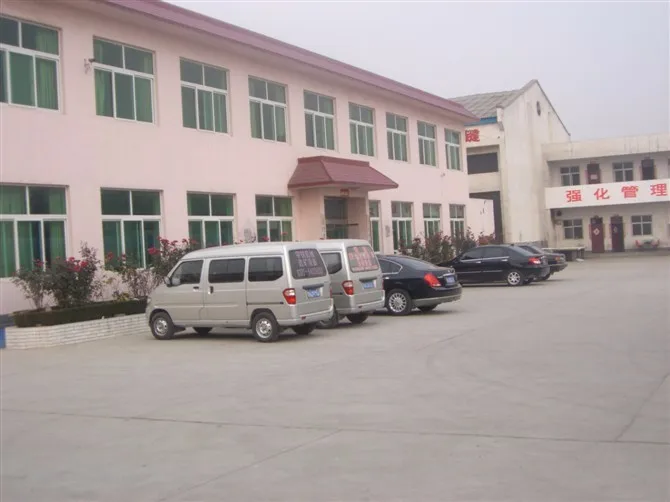

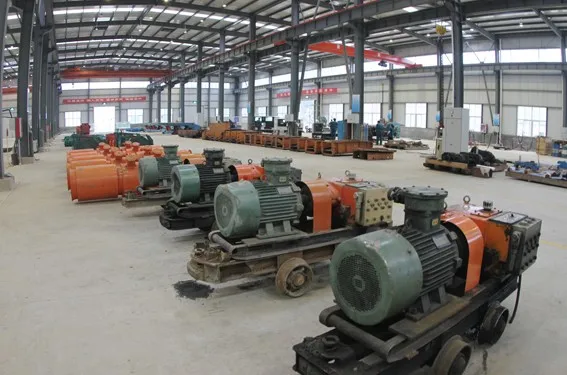

About Us

Henan Shende Machinery Co., Ltd.

Has been establishen for more than 20 years.

 Research, Development and manufacturing.

Products have been sold to more than 20 countries.

First-class production equipment and sophisticated detectin equipment.


Maintian a close cooperation with scientific research institutions and well-known universities.

Regular, oriented, fixed position training to the staffs.



Special international trade department, professional staffs.

In pursuit of honsety, innovation and improvement, always practical-minded.
