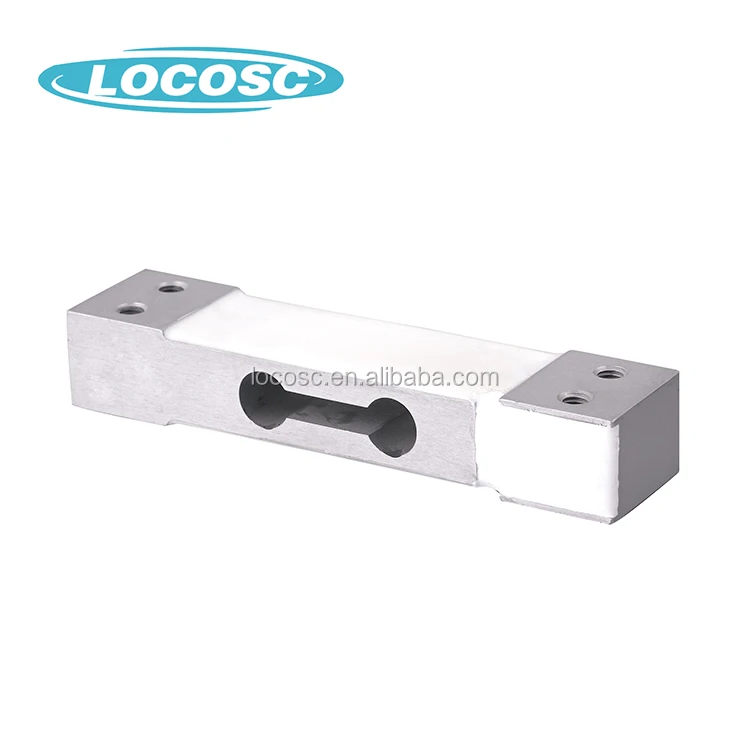

China Single Point Cheap Aluminum Load Cell,Load Cell 350Kg

FOB Reference Price:Get Latest Price
$5.00 - $8.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Locosc
Model Number:
LP7166
Usage:
Pressure Sensor
Theory:
Resistance Sensor
Output:
Analog Sensor
Accuracy Class : load cell:
C3
Sensitivity (Cn): load cell:
2.0 ± 0.2mv/V
Non-linearity: load cell:
± 0.02% F.S.
Creep (30 min): load cell:
± 0.016% F.S.
Input Impedance: load cell:
406 ±10 Ω
Output Impedance: load cell:
350 ± 3 Ω
Safe overload: load cell:
120% F.S.
Destructive Load: load cell:
150% F.S.
Excitation Voltage: load cell:
4~12VDC, Max.15VDC
Operating temperature:
-10~+40°C
Supply Ability
Supply Ability:
4000 Piece/Pieces per Month Load Cell
Packaging & Delivery
Packaging Details
Foam, inner box, export carton
Bending Beam Load Cell Single Ended Load Beam
low cost load cell.
Port
Shanghai / Ningbo
Video Description

Product Description

 Specification:


Rated Capacity2.5/3/5/6/8/10/15/20/30/35/40/50KG
Accuracy ClassC3
Rated Output2.0±0.2mv/v
Non-linearity±0.02% F.S
Creep(30min)±0.016% F.S
Input Impedance406±10Ω
Output Impedance350±3Ω
Operation Temperature-10~+40°C
Safe overload120%F.S
Destructive Load150%F.S
Excitation Recommended4~12VDC,  Max:15vDC
CableLength: 3mExc+( red),          Exc-(black),
4-wire with shieldSig+(green), Sig-(White)
Constructionaluminum, IP65
Application forbench/counting scale,check weighing etc
