China Supplier Heavy Duty Warehouse Storage Pallet Rack

FOB Reference Price:Get Latest Price
$20.30 - $30.00 / Sets | 1 Set/Sets pallet rack, storage pallet rack, heavy duty pallet rack (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Xinmiao
Model Number:
xm-s4r
Type:
Selective Pallet Rack
Material:
Steel, Q235B steel
Feature:
Esd Protection
Use:
Warehouse Rack
Certification:
CE
Depth:
customized
Weight Capacity:
800-3000kg/layer
Width:
0.6-2.5m
Height:
2-16m
Item:
China Supplier Heavy Duty Warehouse Storage Pallet Rack
Keywords:
pallet rack, storage pallet rack, heavy duty pallet rack
Uprihgt:
60*50, 90*65mm
Beam:
60*40,80*40,80*45,100*45,120*45,140*45
Loading capacity:
800-3000kg/layer
Color:
customized
Packaging:
carton and bubble film
Pitch holes:
75mm
Surface treatment:
Power Coated
Supply Ability
Supply Ability:
20000 Set/Sets per Month pallet rack, storage pallet rack, heavy duty pallet rack
Packaging & Delivery
Packaging Details
Packaging Detail:packed with peart-cotton,then with carton
China Supplier Heavy Duty Warehouse Storage Pallet Rack
Port
guangzhou,shenzhen
Product Name
Product Description-

Heavy Duty Rack:

          Heavy duty rack is hooking structured,easy to dismount and install.It can be adjusted by each 50mm based on the goods height,and can load 800-3000kg/layer.Steel plate,wood plate,and MDF can be chose as the layer board.This kinds of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.

Brade
XINMIAO
Raw-Material
High-Quality Q235 Cold rolled steel
Color
Upright  frame is bule,Beam is orange,can be customized.
Standards Size
L2300*D1000*H4500 and size can be customized according to your requirment
Height
1500-8000mm or Customized;
Wide/Depth
400-1500mm    or Customized;
Length
1500-3200mm  or Customized;

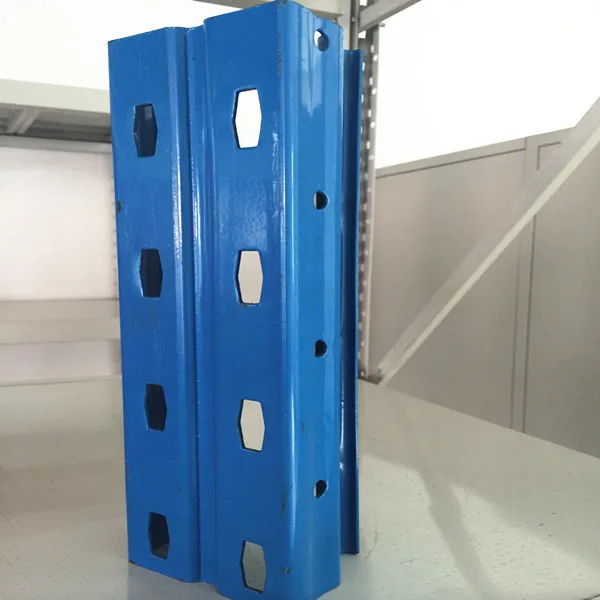

Upright-Section
80*60*1.5/1.8/2.0mm,90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm ect
Loading Capacity
1000~6000kgs or 2200~13200lbs
Beam-Section
80*45mm, 100*45mm, 120*45mm, 140*45mm,160*45mm,180*45mm etc.
Treatment Surface
Powder coated
Packing Term
Air bubble,Wooden Case,etc.


Feature and Application

1.Heavy Duty Rack are widely used in the manufacturing,Third-Part Logistics and Distribution center,etc,applies to muti-varieties and small batch goods,and few varieties and big batch goods.

2.Heavy Duty Rack is low cost,safety and reliable,convenient assembly and disassembly simple;

3.Suitable for artificial access box goods, or with separate parts box, turnover box matching load heavy goods.

4.Often applied in the field, warehousing logistics, etc.

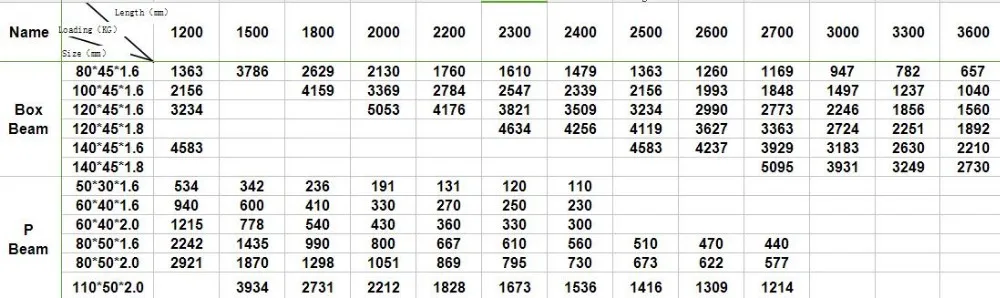

Beam Loading Capacity&Size

Box Beam

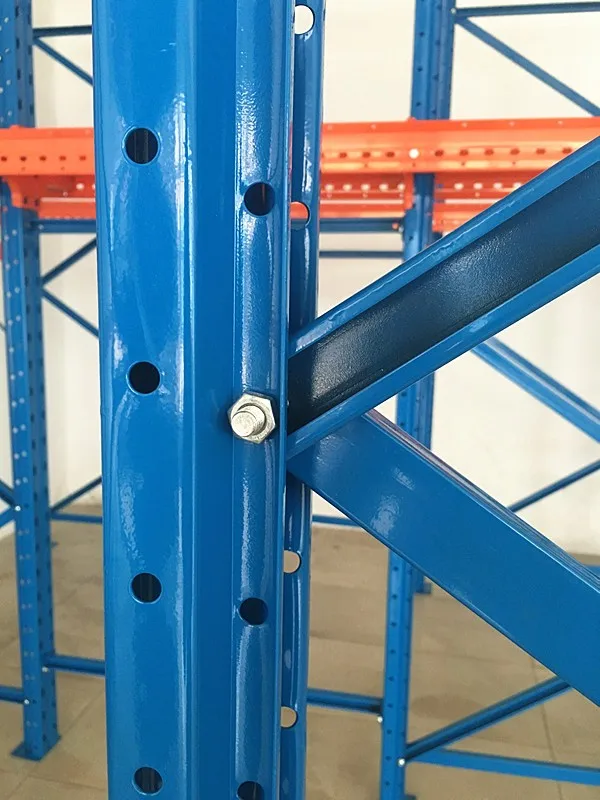

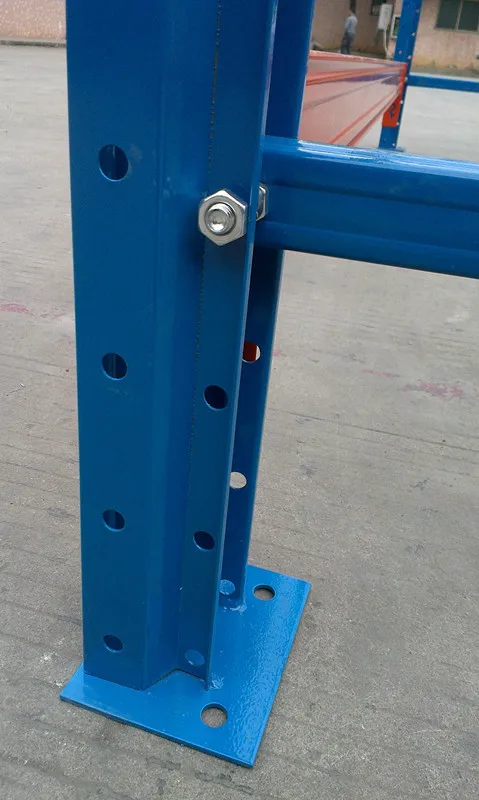

Upright&Beam Connection

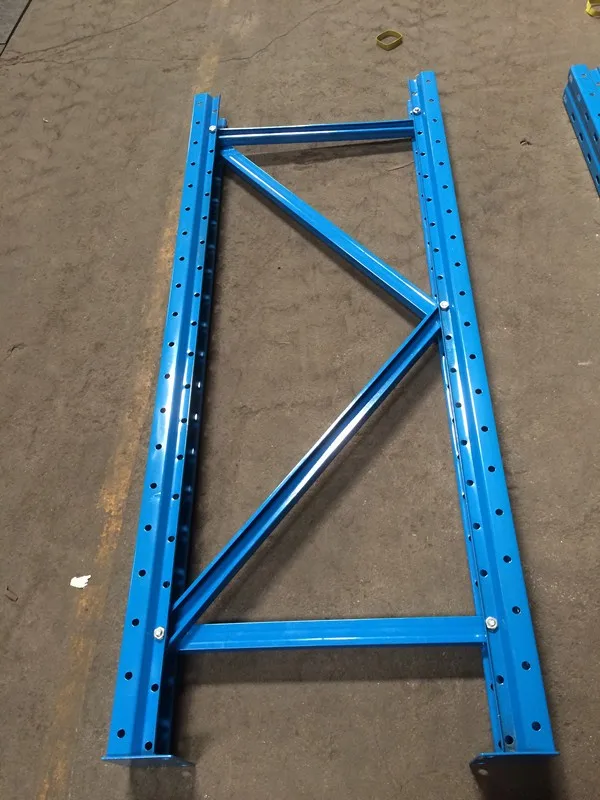

Frame

Production Steps

Professional Design Service Group

Storage Hold Area For Raw Materials

All-automatic Cold Rolling Line

Spraying Coating Line

Stamping Area(Bracket)

Goods Packaging Area(Upright&Beam)

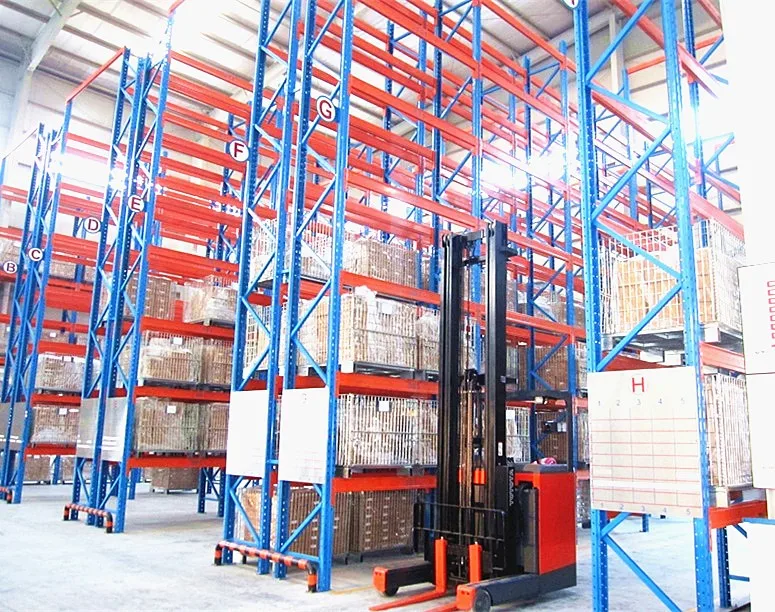

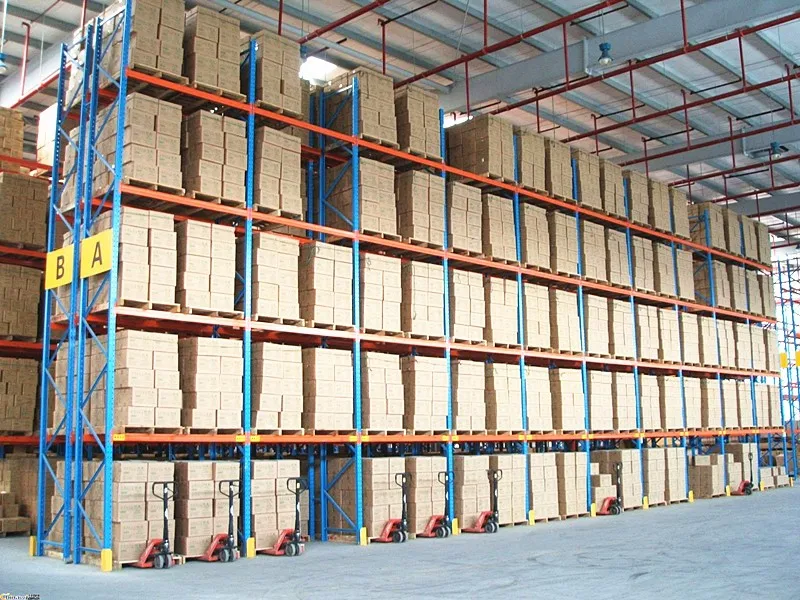

Product Overviews
Company Information

                                                                  About Xinmiao

Dongguan Xinmiao Storage Equipment Co.,Ltd. devotes itself to the design and manufacture of storage equipment.We are specialised in producing various pallet racking, longspan shelving, warehouse rack,mould rack,wire container,mobile filing cabinet,cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.

Through products and service aimed at providing complete assistance for all warehouseing,products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price,as well as rapid delivery time and first-class back-up service.

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

 Finished Product Area

Our Product

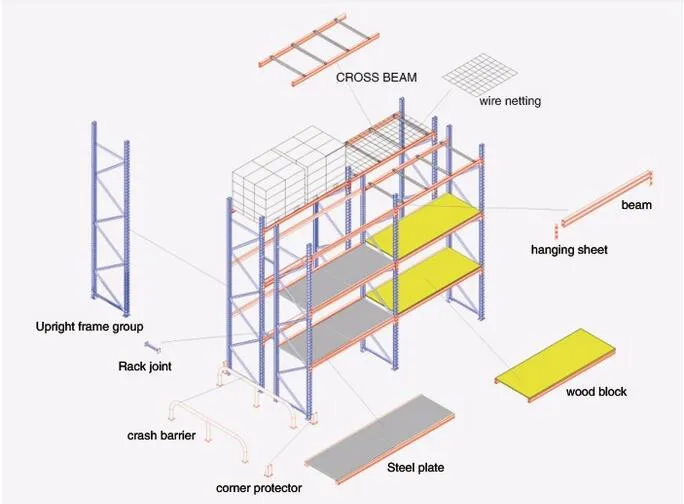

Installation Drawing

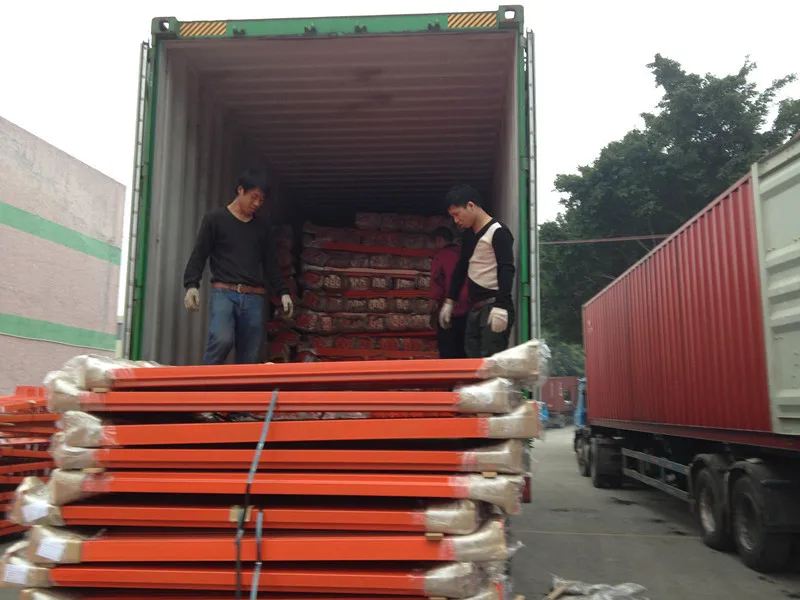

Packaging & Shipping
FAQ

1.Q:Are you a factory or trading company?

A:We are a factory.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Chang'an City, Guangdong Province, China, near Shenzhen.You can fly to Shenzhen&Guangzhou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:What is he material of your products?

A: The material is Q235 Cold rolled steel . We can also choose material as customers’ requirement.

4.Q:How can I get some samples?

A: We are honored to offer you samples.

5.Q:How does your factory do regarding quality control?

A:"Quality is priority. Jusonwoodpeople always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 2001,SGS authentication.
