China cheap 3D welding table system with jigs&fixture

FOB Reference Price:Get Latest Price
US $1,000-6,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Soldering Station
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
NEW-machinery
Model Number:
D28 & D16
Dimensions:
1000X1000mm-2000X4000mm
Weight:
500-3000kg
Usage:
Welding
Certification:
ISO 9001:2008
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
Casting Welding Tables (HT300)
Name:
3d Welding Table
Supply Ability
Supply Ability:
50 Ton/Tons per Week
Packaging & Delivery
Packaging Details
Wood packing or according to customer requirements
Port
TianJin
Lead Time :
Delivery within 40 working days from the date of payment
Video Description
Product Description

2D and 3D Welding Table: Welding Table 3D

3D Welding table: five working surfaces the locating piece can be installed on. Also can be extended via any of its five working surfaces.

• For its material divided into: Steel Welding Tables (Q345) and Casting Welding Tables (HT300).

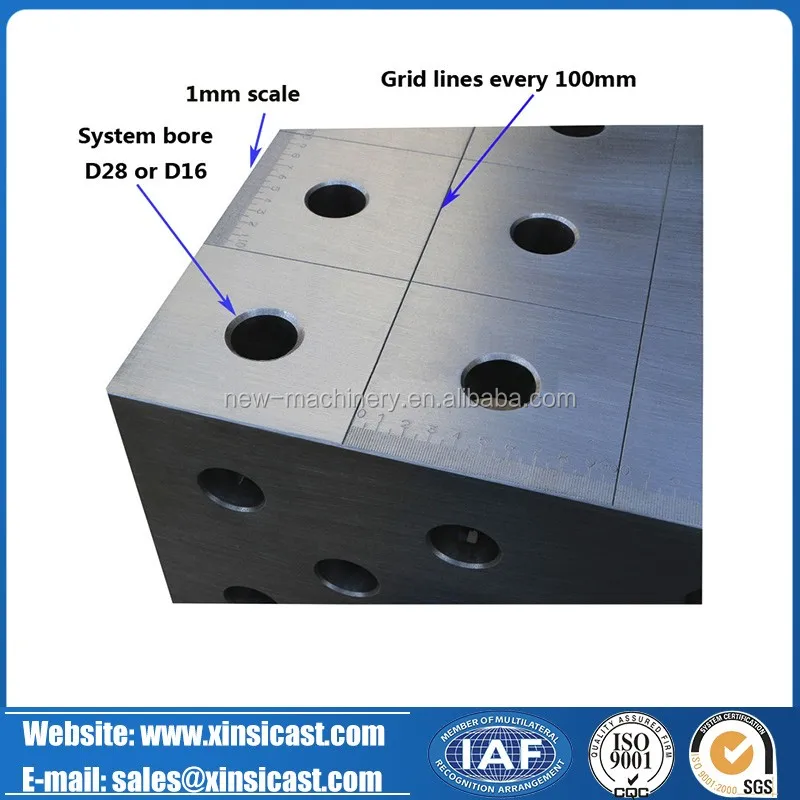

• For its hole diameter divided into: D28 series and D16 series.

Diagonal Grid: D28 is 100*100mm; D16 is 50*50mm.

Supporting: legs, steel frame and hydraulic lift box, according to the requirement.

Components can be equipped after your selecting:

1, Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

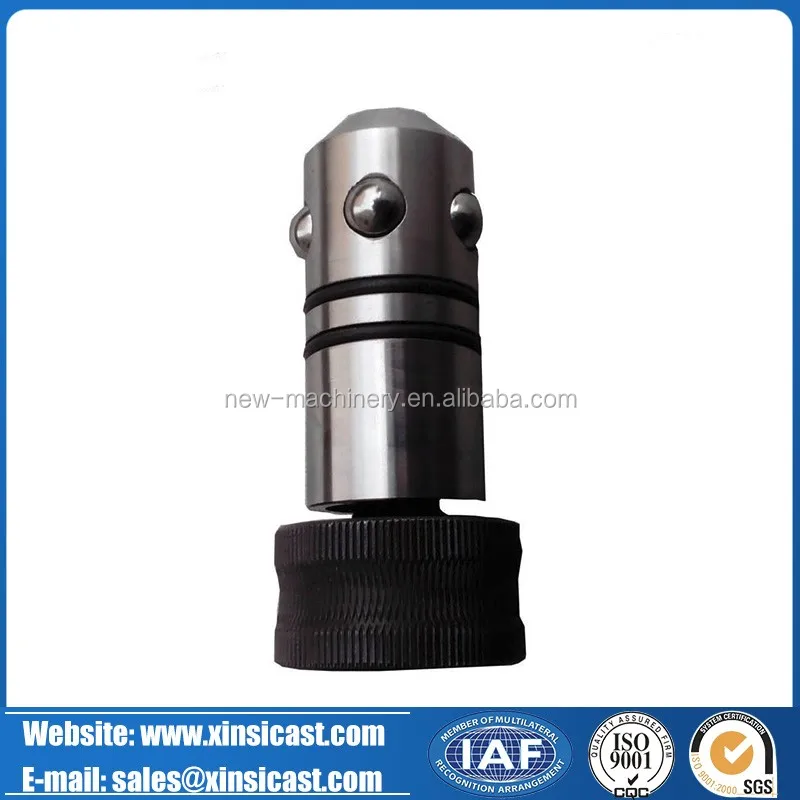

2, spare parts for Locating:

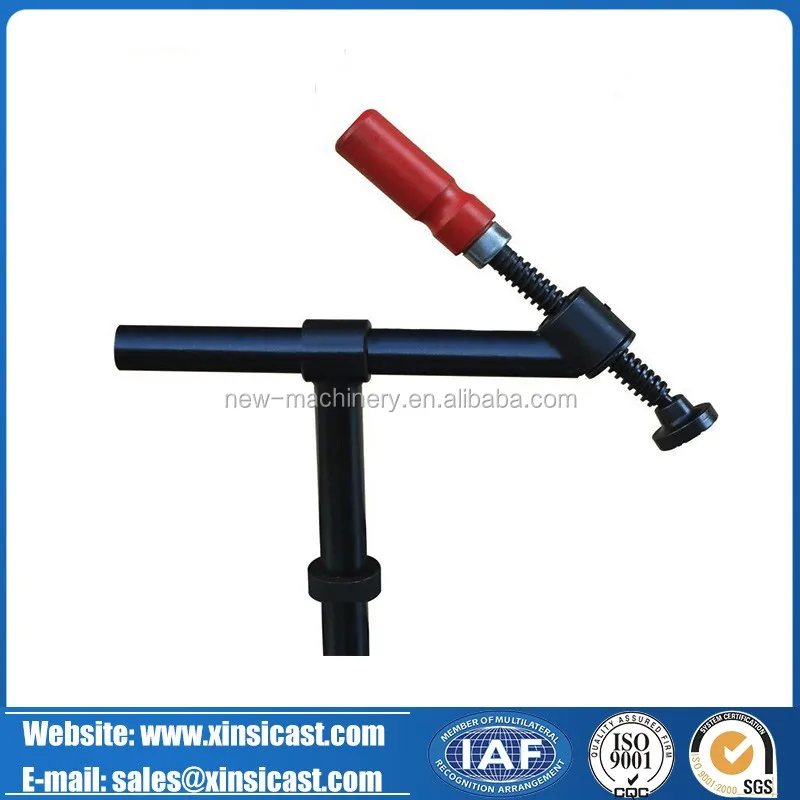

3, Tools for clamping and fixing

4, spare parts for locking working piece

5, Auxiliary Tools

Features:

• Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding.

• Imprecise dimensions of workpiece can be adjusted during preliminary working process.

• It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.


Economical:

• Save much cost instead of reserving a lot of complicated and expensive traditional fixtures

• Applies to various working conditions without the need of any modification

• Easy and safe to operate.

Flexible:

• Solid enough to bear extremely heavy loads.

• Five surfaces, regular holes and grid lines(no inclined holes or T-shaped grooves)

• Any workpiece can be fixed and clamped on the table with locating pins

• 3D welding tables can link together against any of its five surfaces.

Precise:

• Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding

• Imprecise dimensions of workpiece can be adjusted during preliminary working process.

Repeatable:

• It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.

Widely applied in the manufacturing and processing of machines, machining equipments, railways and tracks, automobiles, motorcycles, ships, pressurized containers, sheet metals, classis and cabinets, testing and measurement instruments and steel constructions.

Product Name
3D Welding table &jigs&fixtures
Material
Cast iron(HT250-300)&Steel(Q345)

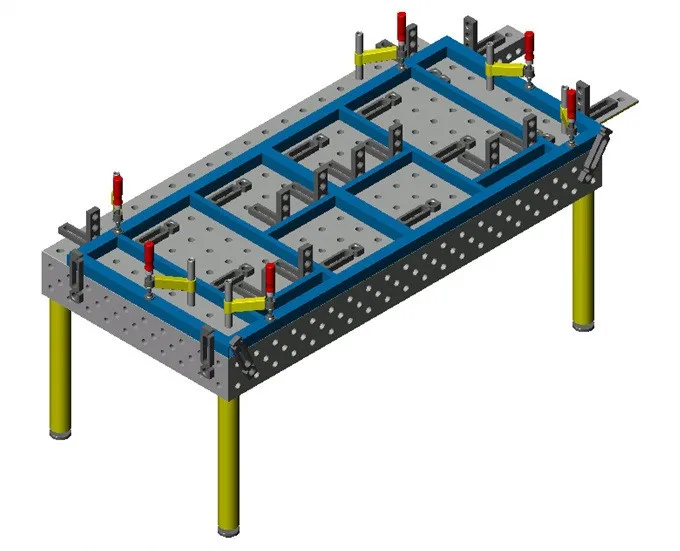

Products Show

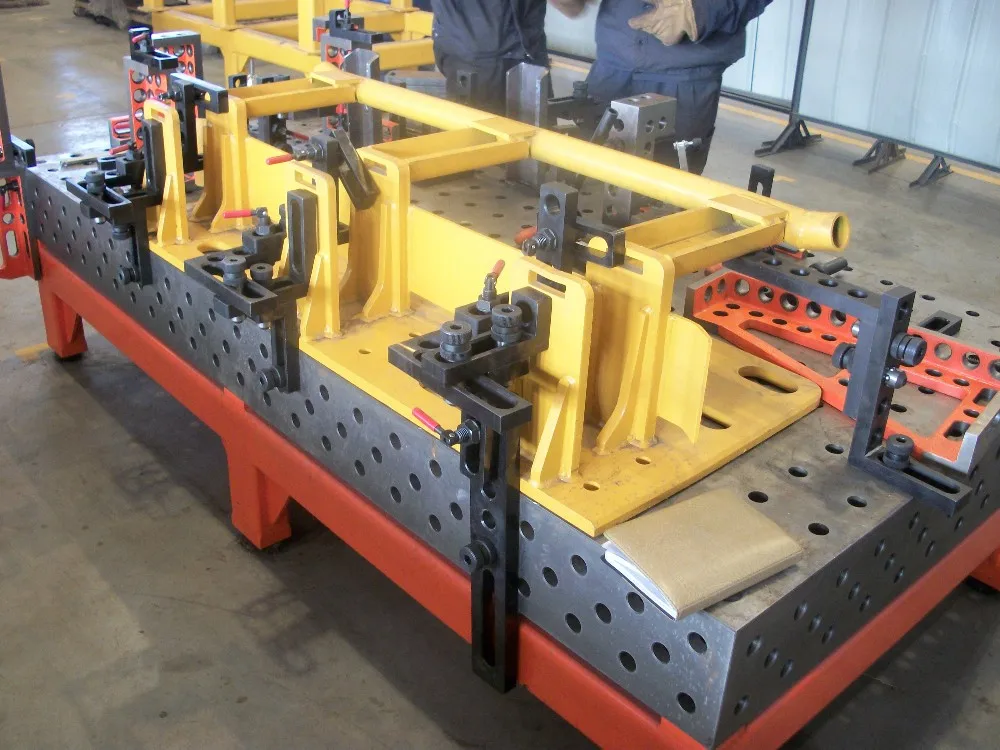

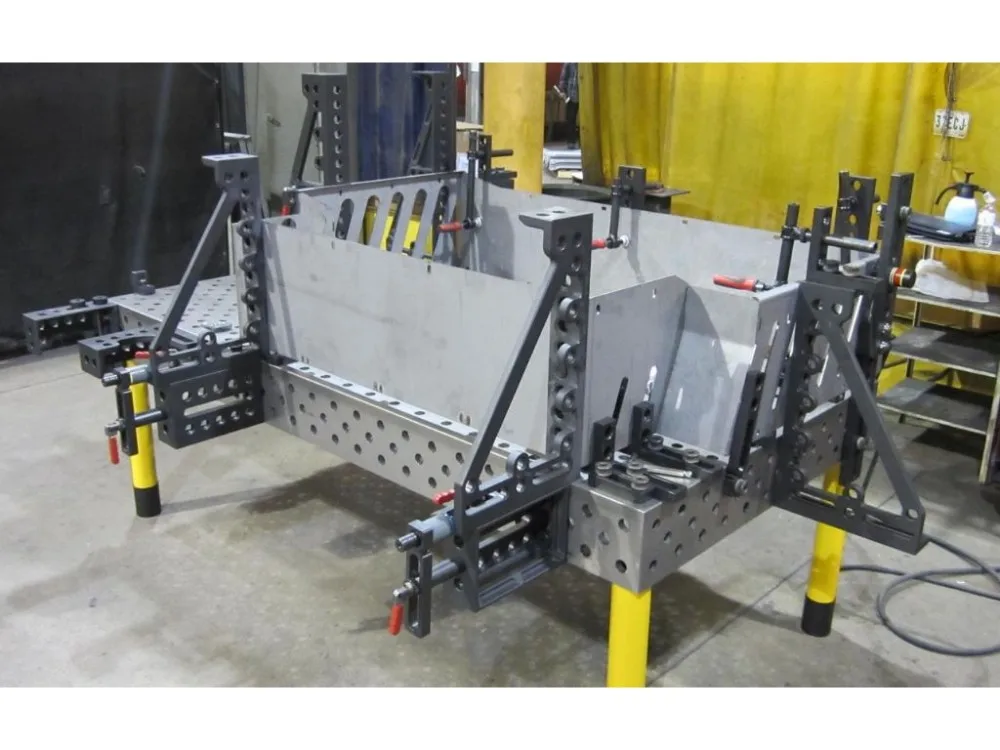

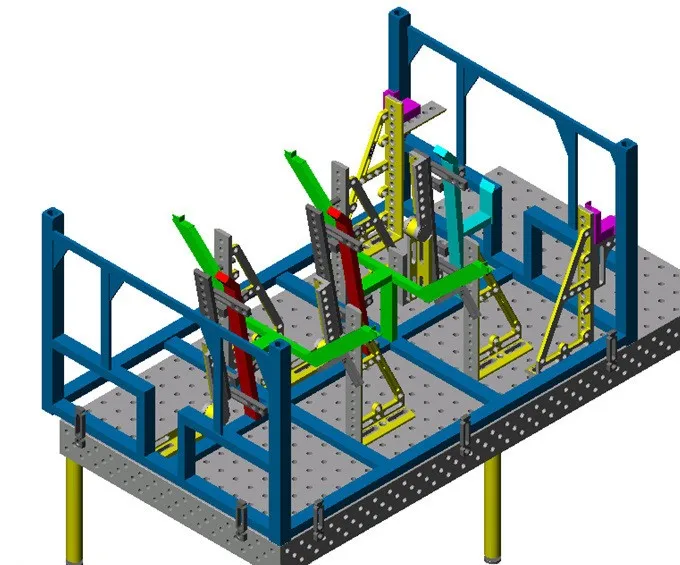

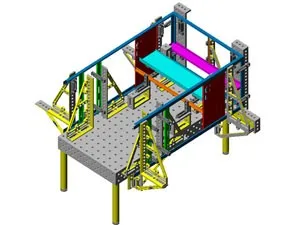

Case

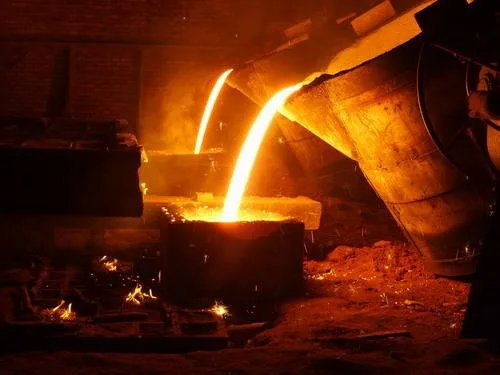

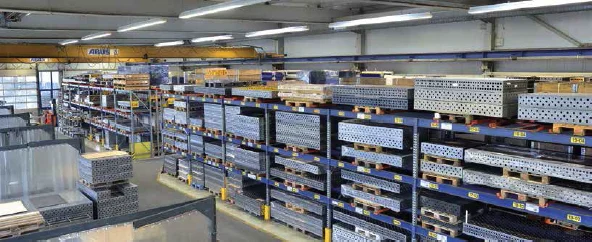

Our Company




Packing & Delivery
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film

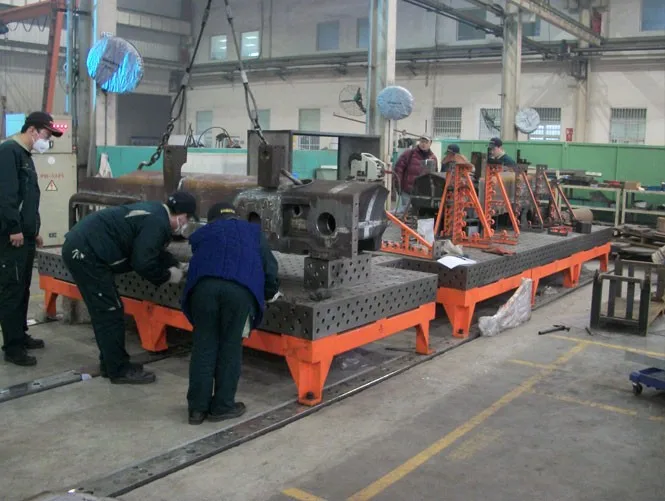

Customer Photo







FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 40-50 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
