China cheap atc woodworking machinery milling wood cutting lathe machine 1325 2030 price for sale

Feedback Ratings
$33,500.00 / Set | 1 Set (Min. Order)
Model Number:
1325
$33,500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
28 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $33,500.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
PHILICAM
Voltage:
220V/380V
Power(W):
9.0KW
Dimension(L*W*H):
1300*2500*200mm
Weight:
3800KG
Certification:
CE ISO
Warranty:
18 Months
Product name:
cnc router
Control system:
Syntec 6MD
Spindle:
9.0 kw Air Cooling Spindle
Transmission:
XY-axis:rack ; Z-axis: ball screw
Motor:
750W Yasukawa Servo Motor
Reducer:
Shimpo reducer
Air pipes and connectors:
Japan SMC
Software:
Ucancam / ArtCam/ Alphacam/TYPE3
Working voltage:
AC220V/AC380/50HZ/60HZ
Tool changer system:
Automatic of the desk with 12 tools
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
4300X2280X2600 cm
Single gross weight:
3800.0 kg
Package Type:
wooden box package
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 28 To be negotiated
Product Description
Wood cnc router machine Application
Material
MDF, acrylic, green board, soft metal, PVC, aluminum-plastic panel, particle board, insulation board, particle board, solid wood, multilayer board, marble
Product
Furniture industry:  cabinet door, kitchen,door,cabinet,wardrobe, study, chair, table, picture frame, handicraft.
Advertise industry:  Advertising board, Label design, Acrylic cutting, model of the multi material decoration products.
Wood cnc router machine Parameter
No.
Wood cnc router Description
Wood cnc router Parameter
1
Work area
1300*2500*200mm
2
Max speed
60000mm/min
3
Max engraving speed
35000mm/min
4
Working accuracy/table
±0.05/vacuum table
5
Working made
9kw atc spindle and 5+4 boring head
6
Rpm
0-24000rpm/min
7
Tools diameter
Φ 2.0-20 Φ
8
Highest speed
50m/min
9
Guide rail
Square liner rail from Taiwan
10
Spindle speed
6000-18000r/min
11
Engraving instruction
G code*,U00*,mmg*,nc
12
Inverter
Vecror inverter

China cheap atc woodworking machinery mini wood cutting lathe machine 1325 2030 price for sale

Wood cnc router machine Main Features


1. When the machine working, but the voltage is broken, the machine will start working from the broken point.


2. The lubrication system can auto lubrication different point at same time when the machine working after a certain period of work, and you can set this time.


3. System have auto nesting function, it can calculate the most mathod that save your material, improve work efficiency.


4. Auto loading and unloading system and pushing device, when the machine finish work, the pushing device will push the material. At same time, auto loading material. Save the labor cost and save reduce loading and unloading matrial time.
Machine Sample

100 USD discount and additional accessories gift will send to you together with machine, only preferential quota of ten people per month, whoever comes first gets first till all are given out.

Quality Assurance

Testing Wood cnc router machine

Detailed Images

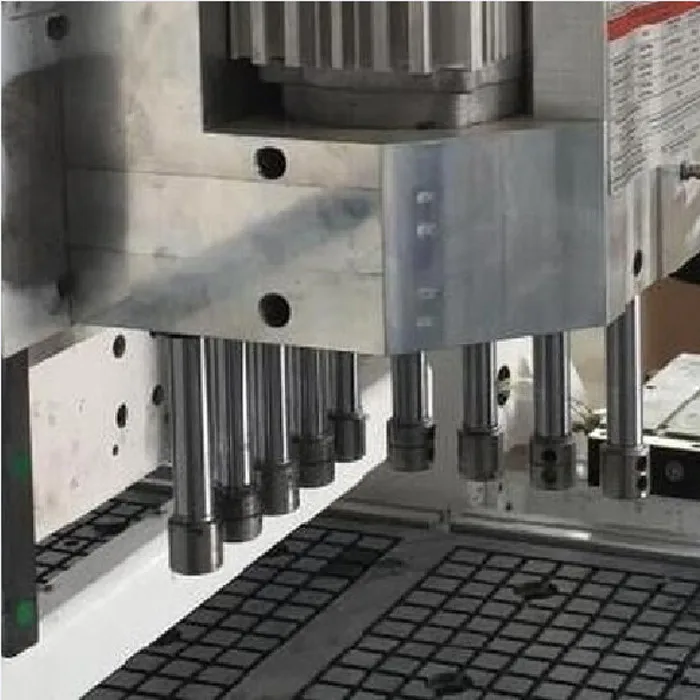

Name: 5+4 drills

Brand: Italy HSD


Advantage:

It can drilling and engraving, apply to tables, chair, doors,windows, headboards and so on, improve work efficiency

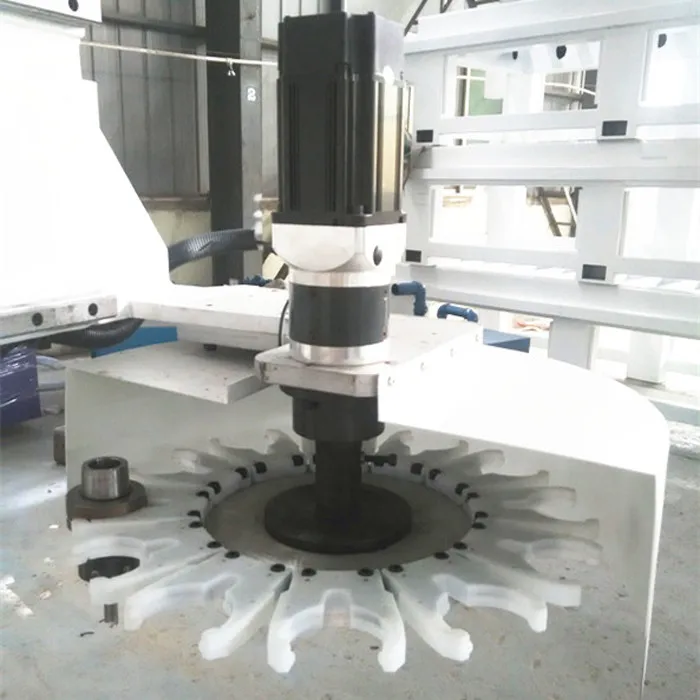

Name: Tool magazine


Advantage:
There are 12 positions on this magazine,this can match almost

requirements of furniture production market. It located right side

of the machine, it can protect your workers avoid get hurt while

load or unload materials.

Name: Pop-up pins

Advantage:
The pop-up pins are equipped with aluminum slots, when the

machine used the pushing function the slots will rise up as a tank

on the table surface so that the positioning surface is big enough

to stop smalls pieces falling off the machine.

Name: Vacuum Table

Advantage:
The vacuum table surface is multi-zoned which allows the

operator to easily switch from full sheet processing to smaller

part processing. Zones can be turned off easily via control valves

on the front of the machine.

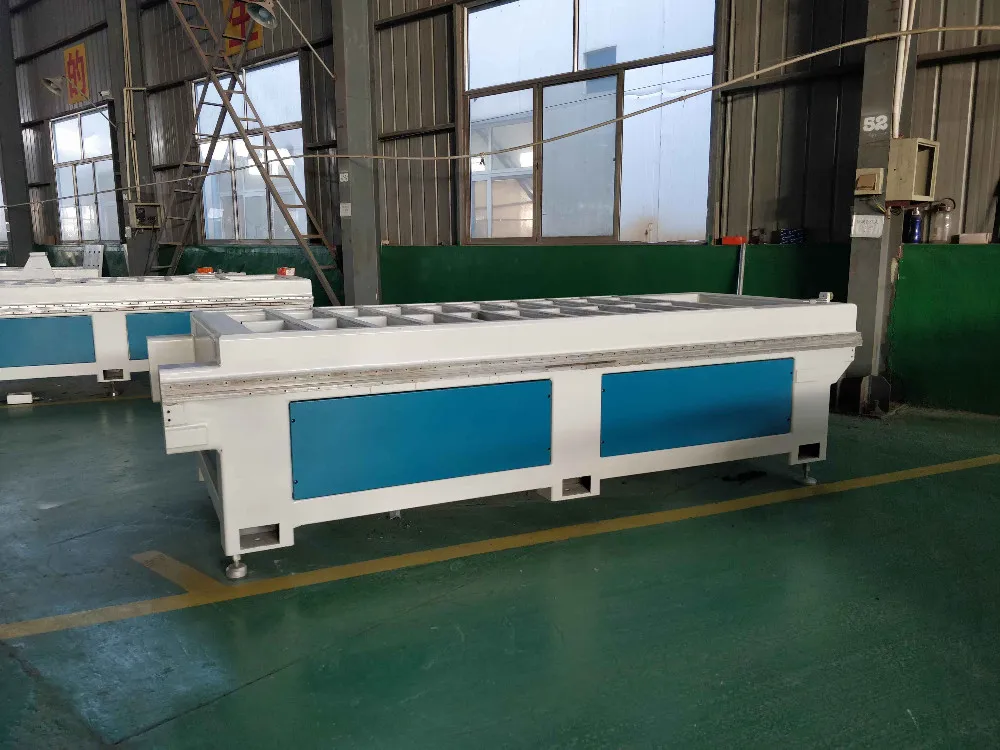

Name: Machine body


Advantage:

The base frame is fabricated from heavy-duty steel, precision
machined and stress relieved so that the foundation remains
stable and steady over the operational life of the machine.

Package & Service
Wood cnc router machine Packaging
Size
3450 (L) * 2100 (W) * 2000 (D)
Weight
3000 KG



Packaging Details
∗ Water-proof plywood package with
foam protection in each corner.

∗ Solid Seaworthy Plywood Box Package
with Steel Belt.

∗ Save space as much as possible for
container loading.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Philicam Group

PHILICAM Group was established in 2003, which is a high-tech corporation with cnc routers development, design, production,

maintainance and marketing. Engaged in R&D of CAD/CAM technology with the cooperation of Shandong Mechanical Institute,

Philicam enjoys fast development and has a high level Professioalism and service system.
