China factory high quality full color china indoor LED display pic supplier

FOB Reference Price:Get Latest Price
$550.00 - $880.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Worbest
Model Number:
JF-I Series
Usage:
Indoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
2.5/2.6/3.1/3.9/4.8/5.59mm
Screen Dimension:
Customized Size
Module Structure:
SMD2020
Brightness:
1000cd/m2
Module size:
250*250mm
Panel material:
Die Casting Aluminum
Type:
Worbest LED JF-I Series
Color:
Full Color
Driving method:
1/16 Scan
Certificate:
CE ROHS FCC
Life span:
100000 Hours
Warranty:
2 years
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Wooden Box or Flight Case
Port
Shenzhen
Lead Time :
Shipped in 25 days after payment
Product Description

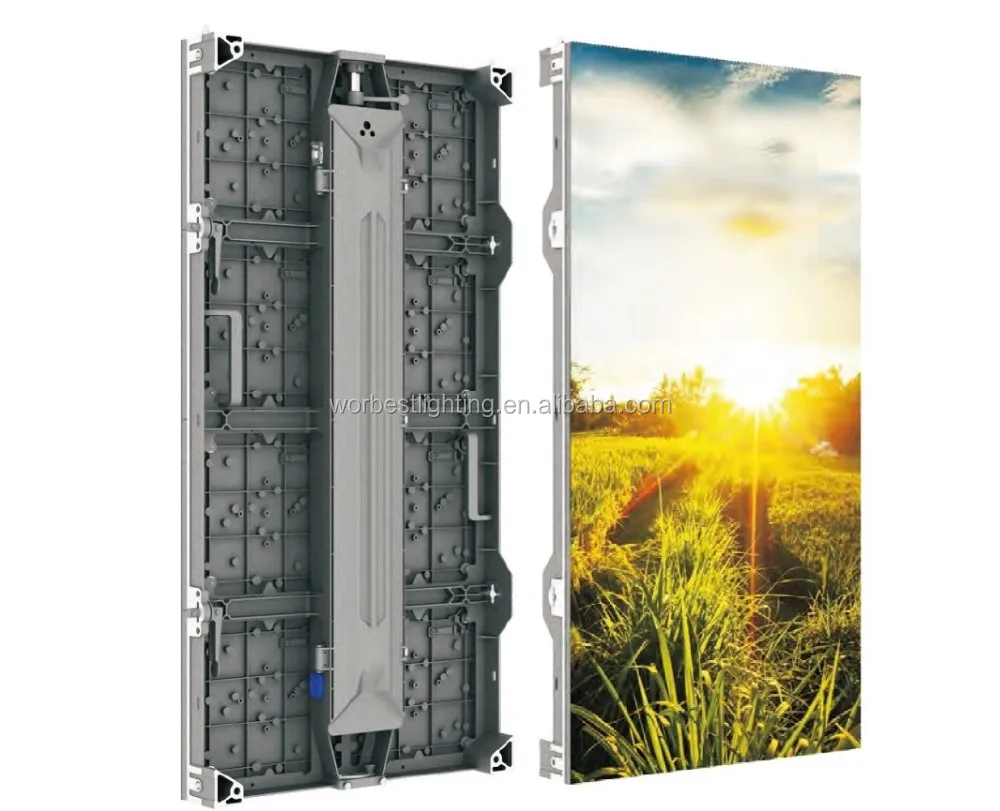

Super Light and Slim

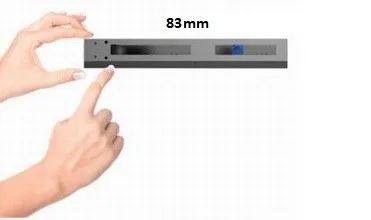

Thickness only 83mm

Quick Installation & fully front maintenance


Wall mounting is available

Magnetic Module


Magnetic module contributed to quick installation and fully front maintenance.



Low Power Consumption


Max: 250W/panel

Typical: 82W/panel




Parameter Name
Value
Pixel Configuration
SMD2020
Pixel Pitch (mm)
3.9
Pixel matrix per panel
128x128
Pixel density(pixels/sq.m.)
65536
Cabinet Dimensions (LxWxH)/(mm)
500X500X83
Module Dimensions (LxWxH)/(mm)
250X250
Panel material
Die Casting Aluminum
Cabinet weight (kg/panel)
7.5
Module weight (kg/panel)
0.6
Color Grayscale (Bit)
13bit
Gray Scale per Color (level)
8192
Refresh Rate(Hz)
1920--3840
Driving Type
1/16
Signal Transmission Distance (m)
CAT5 cable:<100 m; Single mode fiber:<10 km
Brightness(nit)
1000
Optimal Horizontal Viewing Angle(°)
160
Optimal Vertical Viewing Angle(°)
160
AC Input Voltage(V)
AC: 220V±10%
AC Input Frequency(Hz)
50
AC Input Power Maximum Value(W/m²)
456
AC Input Power Typical Value(W/m²)
152
Storage Temperature(℃)
-40 -60
Working Temperature (℃)
0-45
IP rating (Front/Rear)
IP40/IP21
Storage Humidity (RH)
10%~90% non-condensing
Working Humidity (RH)
10%~60% non-condensing
Lifetime Typical Value(hrs)
100000
Certification
CCC/CE/RoHS
Warranty
2 Years
Note: Specifications are subjected to change without notice.

If you want more information about different type of indoor/outdoor module, you can click the following items.

Indoor: P2, P2.5, P3, P4, P5, P7.62 and P10

Outdoor: P5, P6, P8 and P10


P3.9 Indoor

P6 outdoor module

P10 red single color module

Item
P3.9 Indoor module
P6 outdoor module
P10 red single color module
Type
3.9 mm pixel pitch
6 mm pixel pitch
10 mm pixel ptich
Application
Indoor use
Outdoor use
Outdoor or Semi-outdoor
Brightness
1000 cd/sqm
7500 cd/sqm
1500 cd/sqm
Module Size
250x250 mm
192x192 mm
320x160 mm
Specification

Worbest produce both led module & led display. Welcome contractors purchase from us, we always provide prompt delivery and best product quality.

* Ultra light weight

* Thickness 83mm.

* Wire structure simple,
   easy to maintenance.

* Module design with magnetic structure.

* Save installation and maintenance time.
Maintenance
Our Advantage
Project
Certifications
Company Information
FAQ

Q1. Can I have a sample order for led moduel?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 7-12 working days, mass production time needs 12-20 working days for order quantity more than

Q3. Do you have any MOQ limit for led module order?

A: Low MOQ, 1pc for sample checking is available

Q4. How to proceed an order for led module?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5. Is it OK to print my logo on led modue product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
