China high precision wood acrylic mdf cnc machine for engraving ZK-9015 3.2kw water cooling spindle mach3 controller

FOB Reference Price:Get Latest Price
US $2,000-4,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Zhuoke
Model Number:
ZK-9015
Voltage:
220V, AC 220V, 50/60Hz, signle phase
Power(W):
3.2KW
Dimension(L*W*H):
150*120*163cm
Weight:
370KG
Certification:
CE
Working area:
900*1500*200mm
Spindle power:
3.2kw water cooling spindle
Working table:
Aircraft aluminium T slot
Guide way:
Linear square guide rail
Transmission:
Ball screw transmission
Driving mode:
Stepper motor
Control system:
Mach3
Design software:
Artcam 2008
Running environment temperature:
0-45
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
one plywood case, 3 CBM
Port
Shanghai/Qingdao/Shenzhen as you need
Lead Time :
7-15 working days

China high precision wood acrylic mdf cnc machine for engraving ZK-9015 3.2kw water cooling spindle mach3 controller

Product Description

 ZK-9015 advertising cnc router.jpg

Machine specification:(can be changed according to your need)

Model

ZK-9015 cnc router machine
CerificationCE
Working size900*1500mm
Z-axis200mm
Working tableAircraft aluminium T slot
Moving type Gantry moving
TransmissionBall screw
Driving modeStepper motor
Spindle motor3.2kw water cooling
Collet typeER 20
Suitable tools diameter3.175/4/6/8/10/12.7mm
VoltageAC 220V, 50/60Hz, single phase
Spindle speed0-24000rpm/min
Empty traveling speed0-8000mm/min
Engraving speed0-6000mm/min
Machine accuracy0.05mm
Resetting accuracy0.05m
Diagonal error0.5mm
Control systemMach3
Carving InstructionsG code *U00*mmg *plt HPGL
Design softwareArtcam 2008
Running environment0-45oc

Machine features:

1. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

2. Adopt 3.2KW China air cooling spindle

3. The machine adopts gantry movement, it can process any kinds of materials freely.

4. Three axis adopt imported ball screw and cirle orbit, stable working, high precision and long life time.

5. X axis is dustproof.It makes sure the steady working performance of the machine for long-term using.

6. Well compatibility:CAD/CAM designing software, e.g.Type3/Artcam/Castmate/Wentai etc.

7. Has the function of forecasting process time.

8. High precision, the curving and linear speeds are consistent.Adopting execellent parts makes the fault rate to be the lowest one.

Machine details:

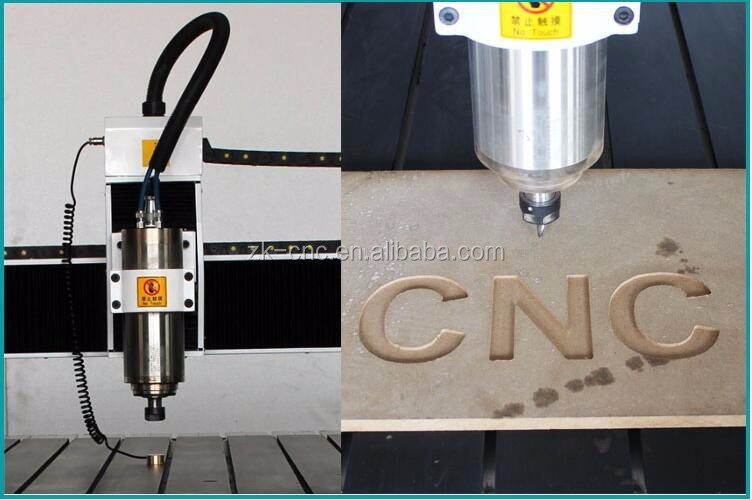

Cast aluminium gantry,cast iron machine bed. 2.2kw China air cooling spindle more powerful, economical price. Auto tool calibration for Z-axis.

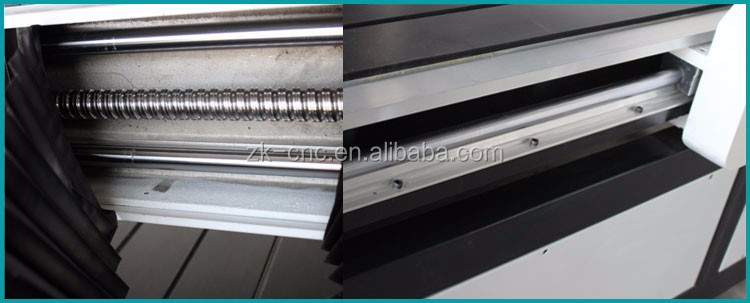

Linear square guide rail,ensure machine frame much stability and durability,ball screw transmission, precision segmentation, to achieve the high precision engraving.

guide way&transmission.jpg

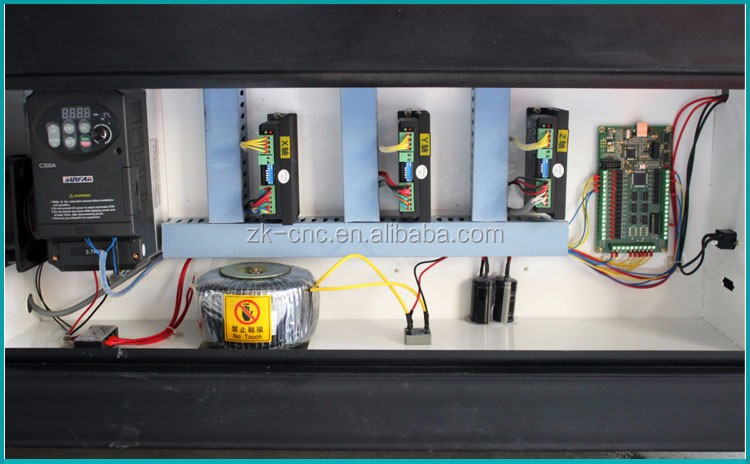

Control cabiet inside machine, all adopt famous parts, ensure the machine's life. Stepper  motor, mach3 control system.

control cabinet.jpg

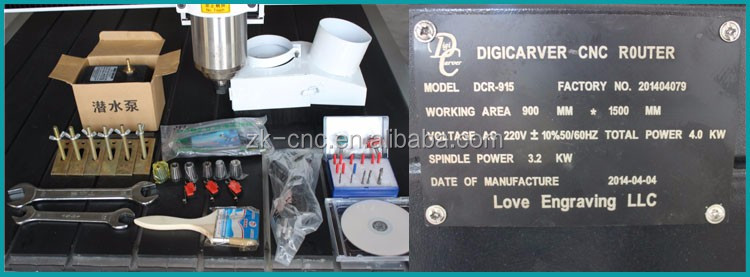

Comprehensive accessorise, ensure you can use the machine successfully!

more details.jpg

Smaples Dispay:

Samples display.jpg

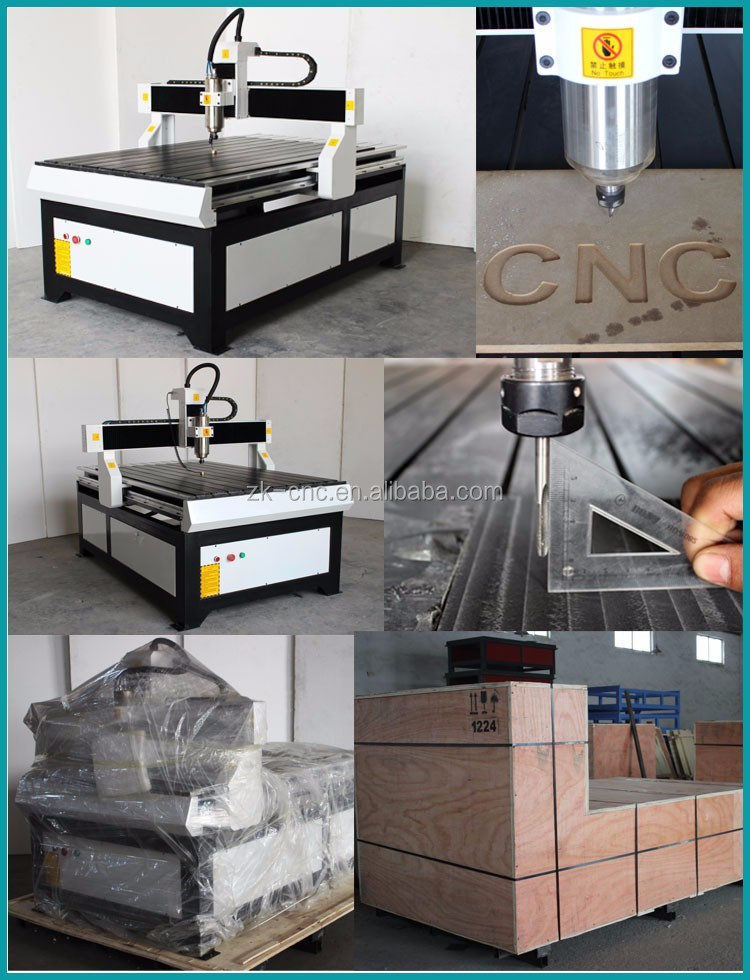

Packaging & Shipping

 package 6090.jpg



Company Information

 factory show.jpg

contact me

 Welcome to contact me anytime if you any questions!contact me.jpg
