China manufacturer 17-7PH Disc Spring Washers

FOB Reference Price:Get Latest Price
$0.01 - $9.90 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces)
specification (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Standard:
DIN
Name:
17-7PH Disc Spring Washers
Surface treatment:
mechanical zinc plating/phosphating
Size:
20*8.2*0.5*1.15mm
Application:
Hardware
Material:
17-7PH
Packing:
Carton Box Outer Packing: Cartons and pallet
Delivery time:
7~15 Work Days
Transportation:
by sea/air/courier
Supply Ability
Supply Ability:
1500000 Piece/Pieces per Month 17-7PH Disc Spring Washers
Packaging & Delivery
Packaging Details
17-7PH Disc Spring Washers are wrapped by polybags, packed by carton boxes,s, and load on pallets.
Port
Shanghai/Ningbo/Hangzhou/Shenzhen/Guangzhou/Qingdao/Tianjin
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 25 To be negotiated
Product Description

17-7PH Disc Spring Washers are manufactured according to DIN 2093, designed for critical loading or dynamic applications.

17-7PH Disc Spring Washers  have following characteristics:

1: Different assemblies can achieve special load characteristics.

2: High load capacity with a small spring deflection.

3: Better space utilization compared to other spring.

4: Standard dimensions can reduce cost.

5: High fatigue life.

6: Excellent performance on dampening effect especially when stacked.


Corrosion Protective

1. Phosphating

2. Mechanical Zinc Plating

3. Chemical Nickel Plating

4. Docromet / Geomet Coating


Diameter Tolerance

D or d mm
Permissible deviation in mm
D mm
d mm
Concentricity
over 3 to 6
0 / -0.12
+0.12 / 0
0.15
over 6 to 10
0 / -0.15
+0.15 / 0
0.18
over 10 to 18
0 / -0.18
+0.18 / 0
0.22
over 18 to 30
0 / -0.21
+0.21 / 0
0.26
over 30 to 50
0 / -0.25
+0.25 / 0
0.32
over 50 to 80
0 / -0.30
+0.30 / 0
0.60
over 80 to 120
0 / -0.35
+0.35 / 0
0.70
over 120 to 180
0 / -0.40
+0.40 / 0
0.80
over 180 to 250
0 / -0.46
+0.46 / 0
0.92
over 250 to 315
0 / -0.52
+0.52 / 0
1.04
over 315 to 400
0 / -0.57
+0.57 / 0
1.14
over 400 to 500
0 / -0.63
+0.63 / 0
1.26

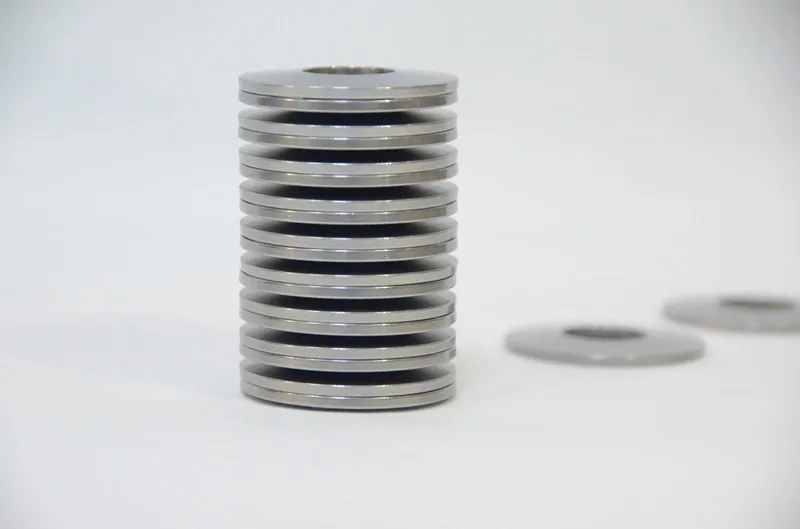

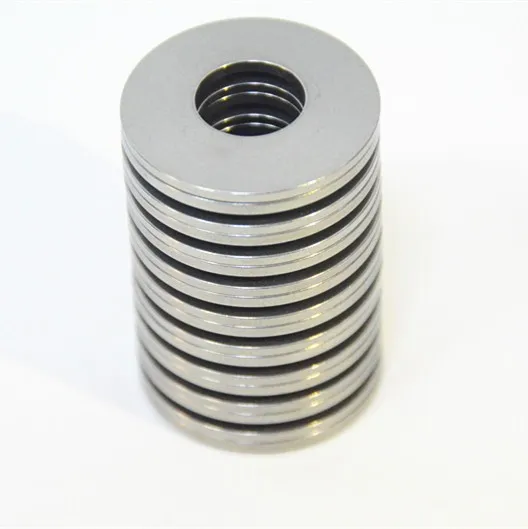

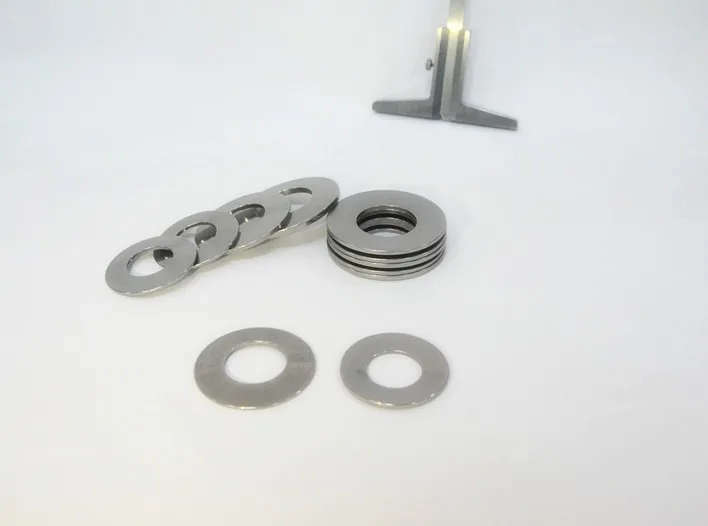

Products Show
Quality  Control







Our Company

Factory

Our Factory

Workshop

Our Workshop

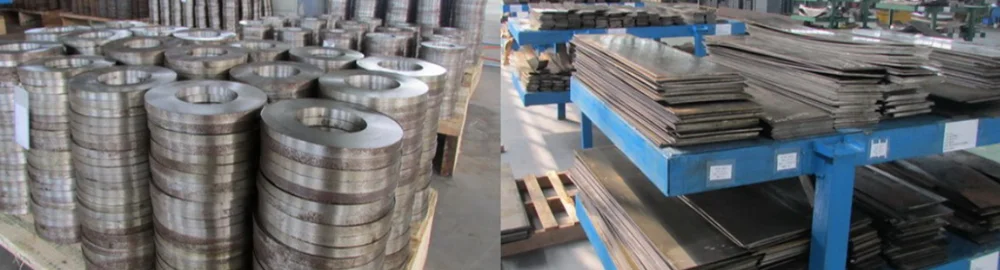

Warehouse

Our Warehouse

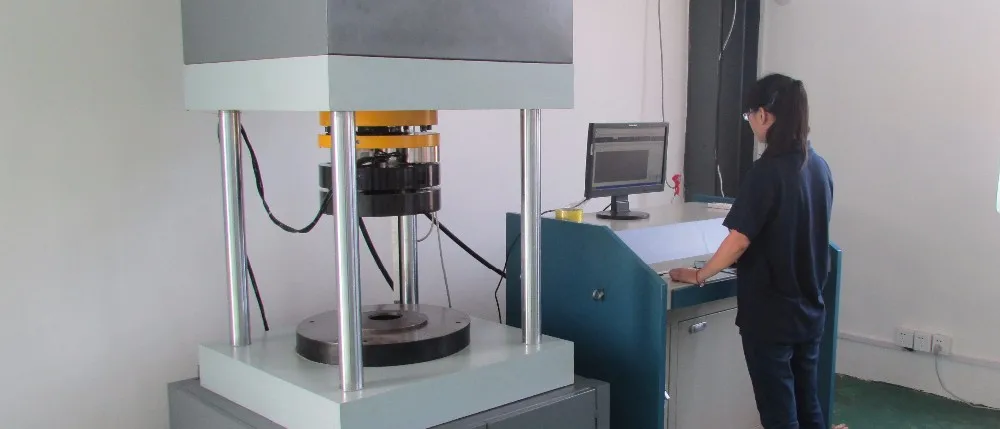

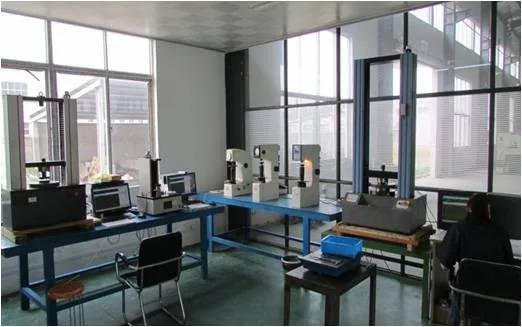

Testing Room

Our Testing Room

Company introduction

Vinsco is a professional manufacturer of Conical spring washer, they are known as Belleville Springs, Disc springs, Safety Washers, Spring Washers, which are widely used in variety industrial applications, such as Control Valve, Safety Valve, Flange Bolting, Torque Converter, Clutches Manual Transmission, High Voltage Breaker, Pipe Supporting, Shock Absorber, etc.


Vinsco Disc Springs are designed as per DIN2092 standard, and manufactured as per DIN2093 standard. Outer diameter range from 6mm to 1000mm. Material Including spring steel 51CrV4, ASTM1074, SK85, 60Si2Mn, Corrosion resistant steel ASTM301, 304, 316, 17-7PH, 17-4PH, 15-7Mo; Heat resistant steel H13, X30WCrV53, X22CrMoV12-1, X39CrMo17-1; Nickel and cobalt alloys steel Inconel X750, Inconel X718, Nimonic90, Antimagnetic and corrosion resistant steel CuSn8, CuBe2 etc


For meeting prompt delivery, Vinsco has large stocks for standard sizes disc springs, and all the tooling are designed, manufactured and maintained in-house. Also, customized disc springs are welcomed without MOQ request.

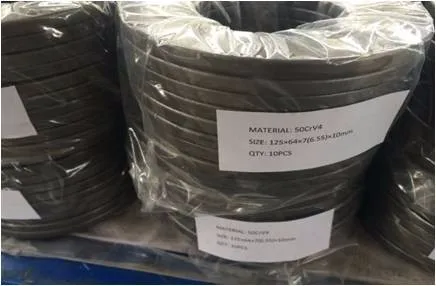

Packing

Packing Details  : Packing, bulk in carton,then in pallet

Delivery Details : 7-15 working days after order comfirmation

1. Special logistics packaging

2. Suitable carton size

3. Solid packed in pallet

Transportation
Exhibition Photo


Hannover Mess 2017 was hold on 24-28 April, 2017 in Honnover Germany, Booth number is H4, A66-9


 M-Tech Tokyo 2016 was  hold on 22-24 June, 2016 in Tokyo Japan. Booth number is W5-42,


The National Industrial Fastener Mill Supply Expo from Oct 18 to 19, 2017 in Las Vegas Convention Center,United States, our booth No 669 in HALLS C4-C5

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 7-15 working days if the goods are not in stock, it is also according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.Also can be negotiable.
