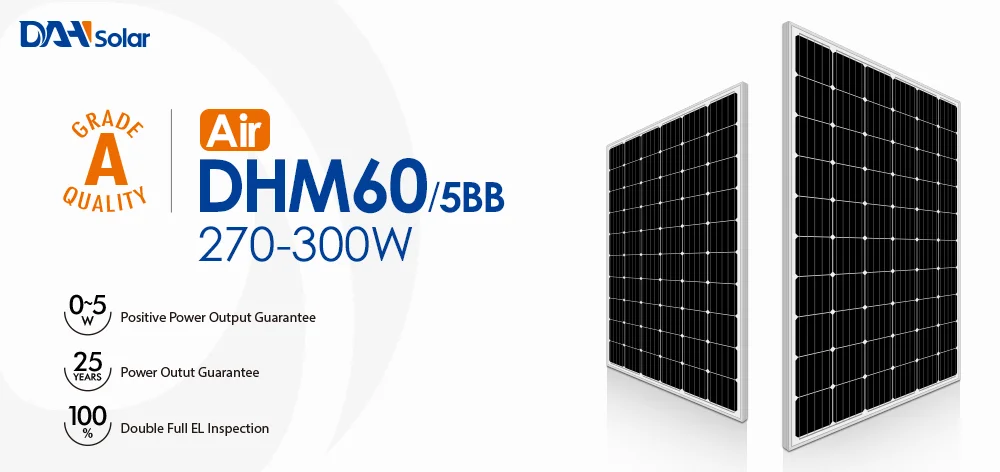

China top manufacturer 300w 305w mono perc solar panel price

FOB Reference Price:Get Latest Price
$0.29 - $0.40 / Watts | 1 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
DH-SOLAR
Model Number:
Air DHM60-300W
Material:
Monocrystalline Silicon
Max. Power:
305W
Number of Cells:
60(6*10)pcs
Size:
1640*990*25mm
Certificate:
TUV/IEC/CEC/ISO/INMETRO
Product name:
PV Solar Module Panels
Solar cell:
Mono 156*156 Cell
Junction Box:
IP67 Waterproof
Frame:
Aluminum Alloy
Connector:
MC4 Compatiable Connector
Weight:
15.6Kg
Use:
Residential Commercial
Warranty:
25 Years Output Power Guarantee
OEM/ODM:
Acceptable
Supply Ability
Supply Ability:
1000000 Watt/Watts per Week
Packaging & Delivery
Packaging Details
530pcs in a 20 ft container
1232pcs in a 40 ft container
40pcs in a pallet
Port
Shanghai or Ningbo
Lead Time :
7-15 working days
Product Description
Module Type
DHM60-290
DHM60-295
DHM60-300
Maximum Power(Pmax)
290W
295W
300W
Open-circuit Voltage (Voc)
39.5V
39.7V
39.9V
Maximum  Power Voltage(Vmp)
32.2V
32.5V
32.6V
Short-circuit Current (Isc)
9.50A
9.55A
9.64A
Maximum Power Current (Imp)
9.01A
9.08A
9.20A
Module Efficiency (%)
17.86%
18.17%
18.48%
Power Tolerance
  0~+5W
Standard Test Environment
  Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
Product Details

Glass


*  High-transmittance and low reflection
*  Inspection:GB15763.2-2005.ISO9050
*  High solar transmittance
*  High mechanical strength

*  High flatness

Solar Cell


*  High output-power: conversation efficiency is 18%-22%
*  High shunt-resistance: adapt the several environmental conditions.
*  Bypass diode minimizes the power drop by shade
*  Excellent low light effect
*  Low breakage rate

Frame

*  Aluminium extrusion profile with prompt delivery
*  Available in customized surface finish
*  Excellent material for smooth and subtle edges
*  Extrusion for construction and other industrial purposes

*  Thickness variable according special request

Junction Box

*  High current and voltage carrying capacity
*  Simple, quick and safe effective field assembly
*  IP 67 it can be used in the outdoor iron environment
*  Expansion connector are available for future requirement
*  Double permanent connection are adapted for all of the connecting.

Line & Packing
(60 cells panels )Container
20GP
40GP
40HC
Pcs/Pallet
30
30
30
Pallets/Container
14
28
28
Pcs/Container
400
840
924
(72 cells panels )Container
20GP
40GP
40HC
Pcs/Pallet
27
27
27
Pallets/Container
10
24
24
Pcs/Container
270
648
696
Project Cases
Company & Exhibition
Related Products







Payment



Payment Term


T/T
EXW

 30% T/T in advance, balance paid before dispatch
FOB
CNF(CFR)
30% T/T in advance,
balance paid againist copy of B/L
CIF
L/C , Money Gram ,   Western Union ,   Paypal
Delivery Time
7-10 working days after down payment received
