Chinese Supplier Tinned copper pv cable 4mm2 for solar energy system

Feedback Ratings
  • 250-2499 Meters
    $0.40
  • 2500-24999 Meters
    $0.38
  • >=25000 Meters
    $0.36
1 batch = 250 Meters
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $0.10 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SUNKEAN
Model Number:
SKE-EN
Type:
Insulated
Application:
Solar System
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
XLPE
Product name:
Chinese Supplier Tinned copper pv cable 4mm2 for solar energy system

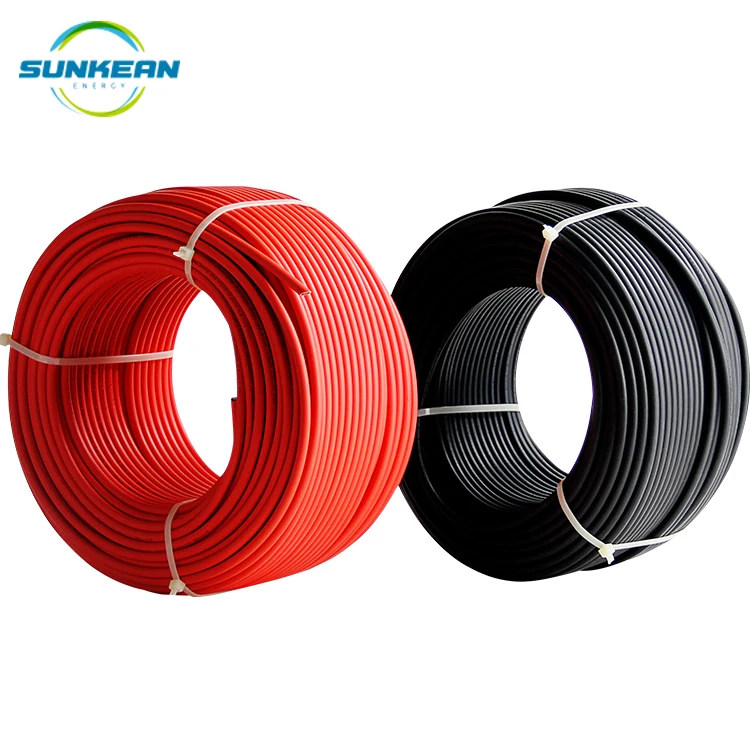

Color:
Red or Black
Certification:
EN50618 H1Z2Z2-K
Cross Section:
4.0mm2 /6.0mm2
Rated Voltage:
1500V
Fire Performance:
EN60322-1-2 10000VAC
Ambient Temperature:
-40℃ ~+90℃

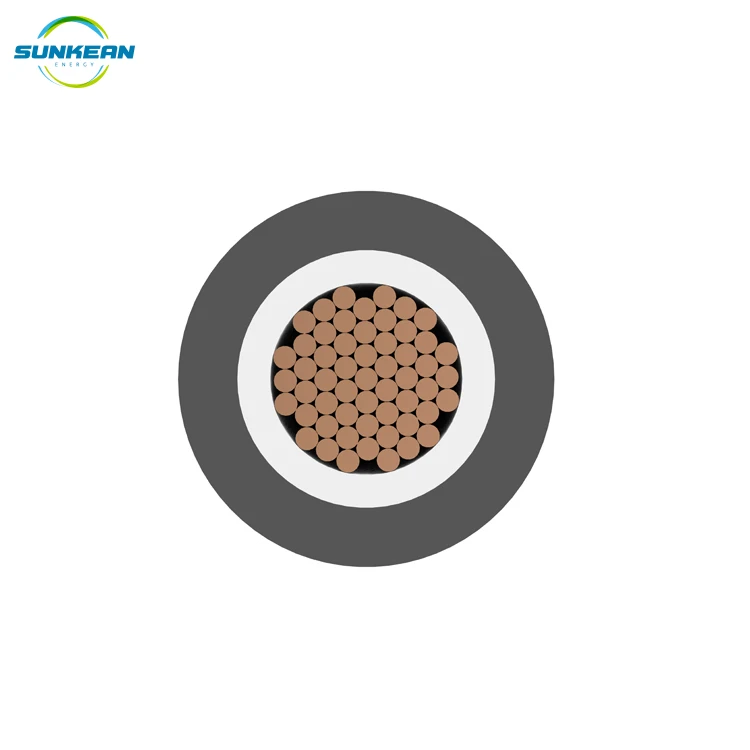

Conductor Structure(n/mm):
56/0.285 84/0.285
Service Year:
25 years
Keywords:
PV cable,pv cable 4mm2,pv cable 4mm

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
33X33X11 cm
Gross weight per batch:
14.0 kg
Package Type:
250m/roll, 500m/roll, 1000m/drum or customized packaging.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meter) 1 - 2500 2501 - 25000 25001 - 250000 >250000
Est. Time(days) 7 15 30 To be negotiated
Product Description

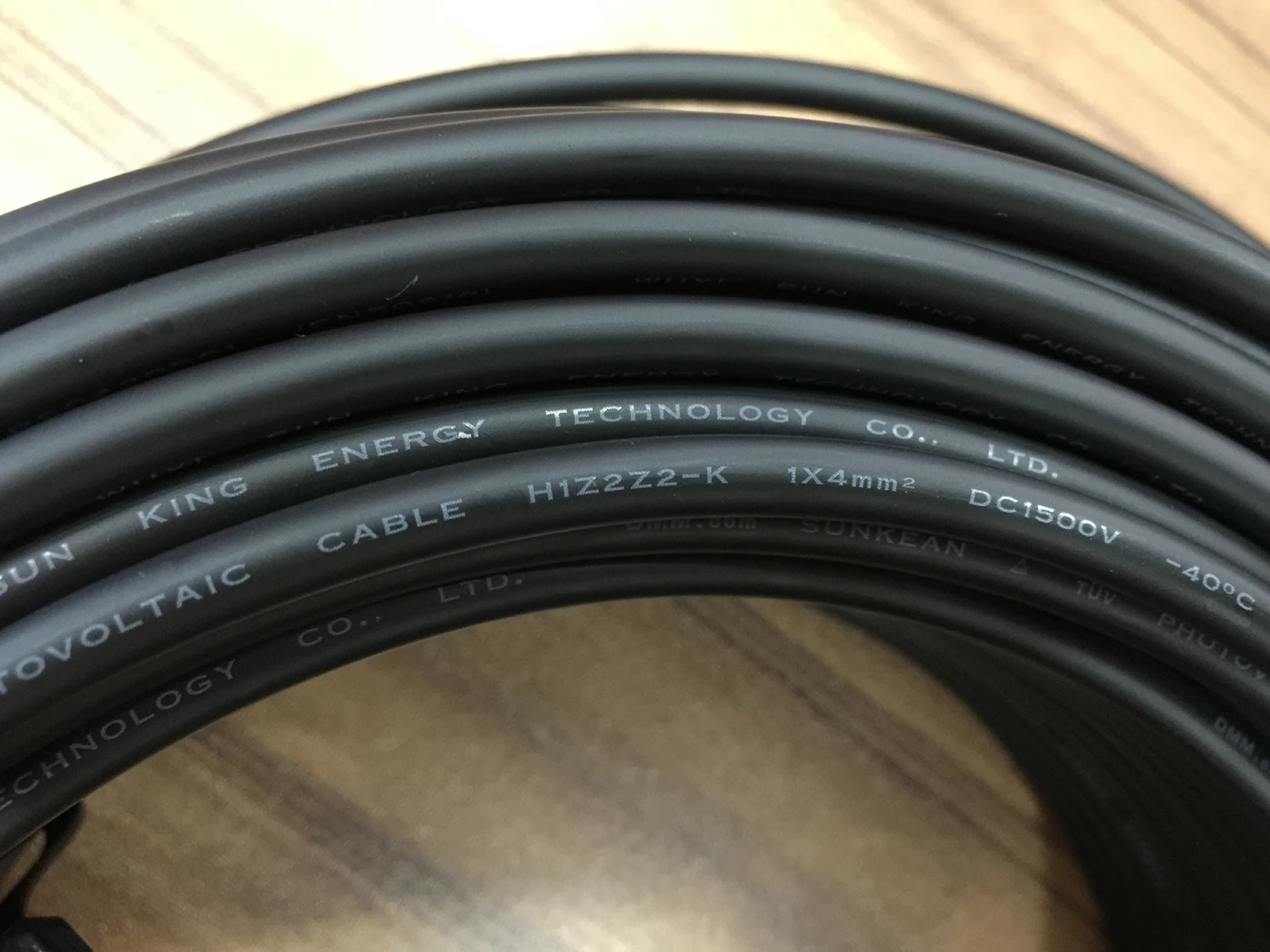

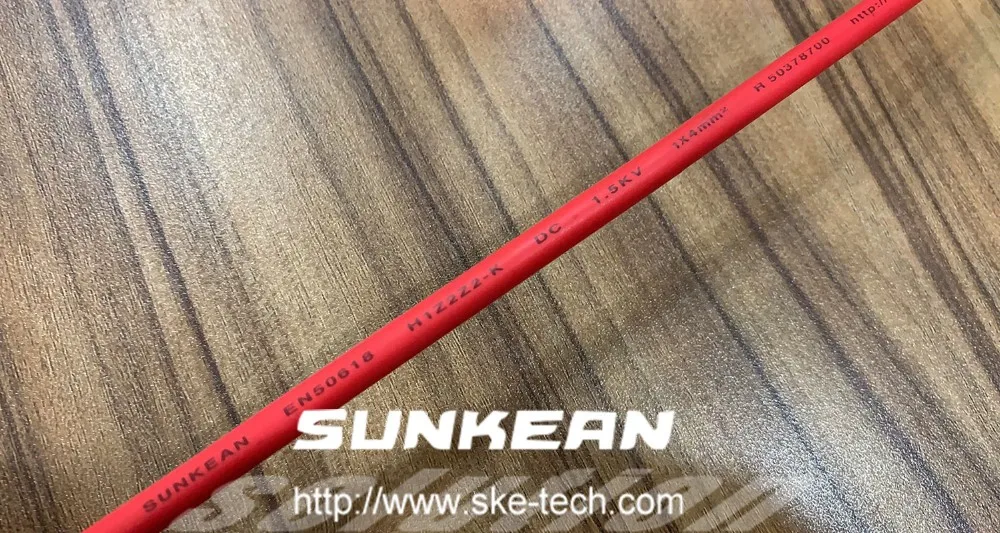

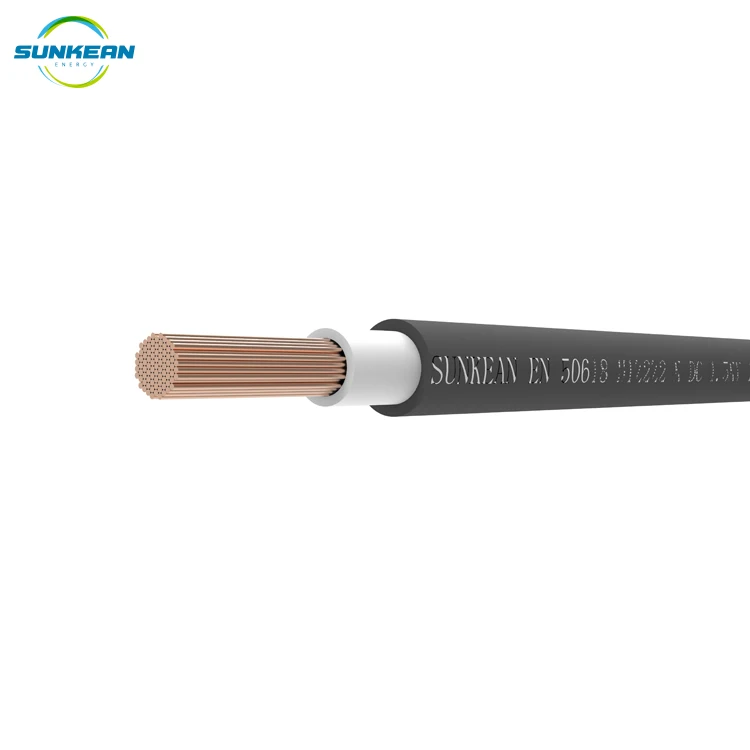

Chinese Supplier Tinned copper pv cable 4mm2 for solar energy system


Obtain high fire performance TÜV EN Certificate

Ambient temperature: -40℃~+90℃

Intergrated with heat and cold resistance service life>25 years
Good performance at mechanical strength, rub resistance and waterproof
Eco-Friendly

Soft and easy to strip
Max. Temperature at short circuit 200℃ 5 second




Chinese Supplier Tinned copper pv cable 4mm2 for solar energy system

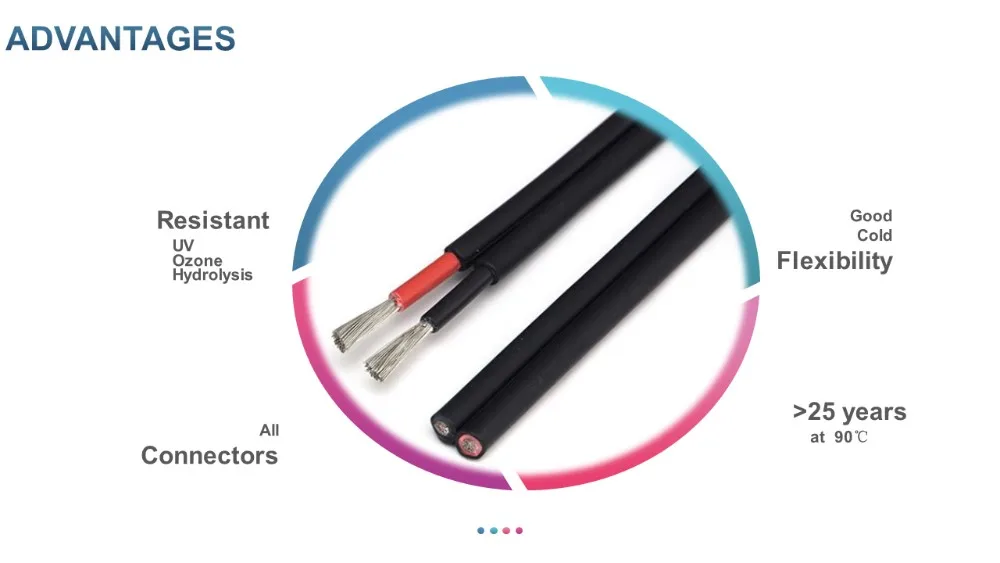

1.Electron-beam cross-linked compounds
2.UV, ozone and hydrolysis resistant

3.High temperature resistant, the materials do not melt or flow
4.Good cold flexibility
5.Very long service life > 25 years at 90°C
6.Compatible to all popular connectors


Brand Name
SUNKEAN
Model Number
SKE-EN
Test Voltage
6500VAC/5 min
Insulation Material
XLPE
Minimum Bending Radius
Ø≤12mm 4 x overall diameter
Ø>12mm 10 x overall diameter
Smoke Density Test
Transmittance≥60% EN50618
Max. Conductor Temp
+120℃
Jacket
XLPE
Voltage Rating
1500V
Cold Bending Test
-40°C±2°C no crack EN60811-504
Certification
EN50618  H1Z2Z2-K
Short Circuit
+250℃



                     MC4 solar Connector                                              Solar Panel Extension Cable

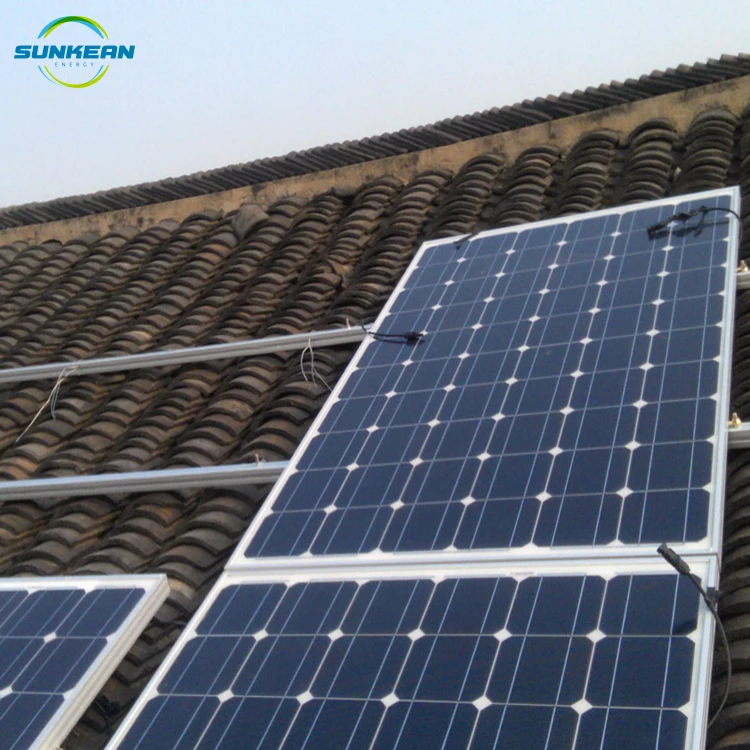

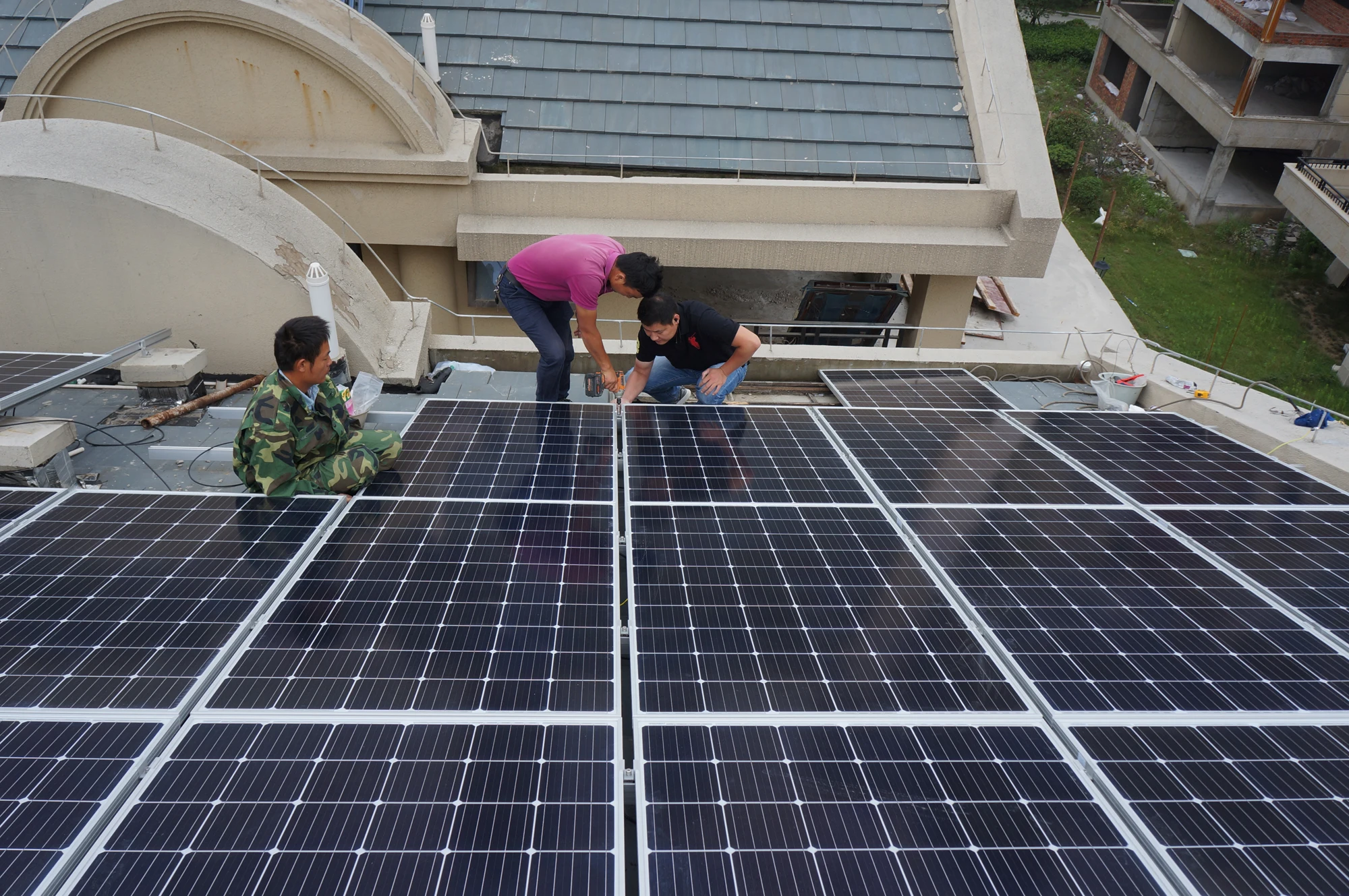

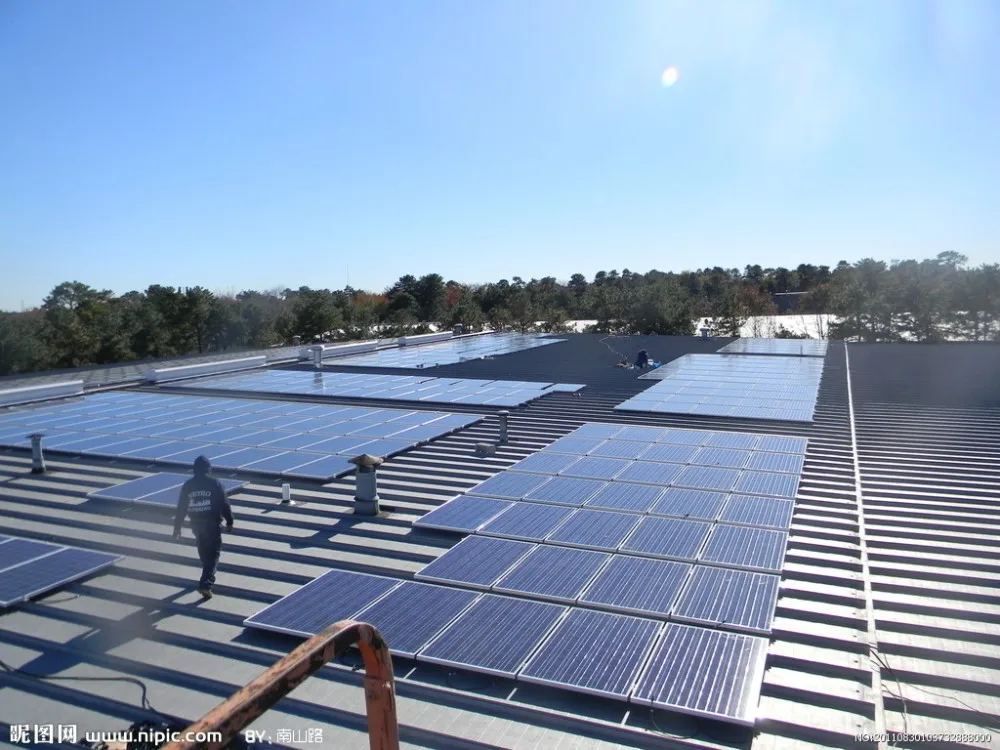

Application

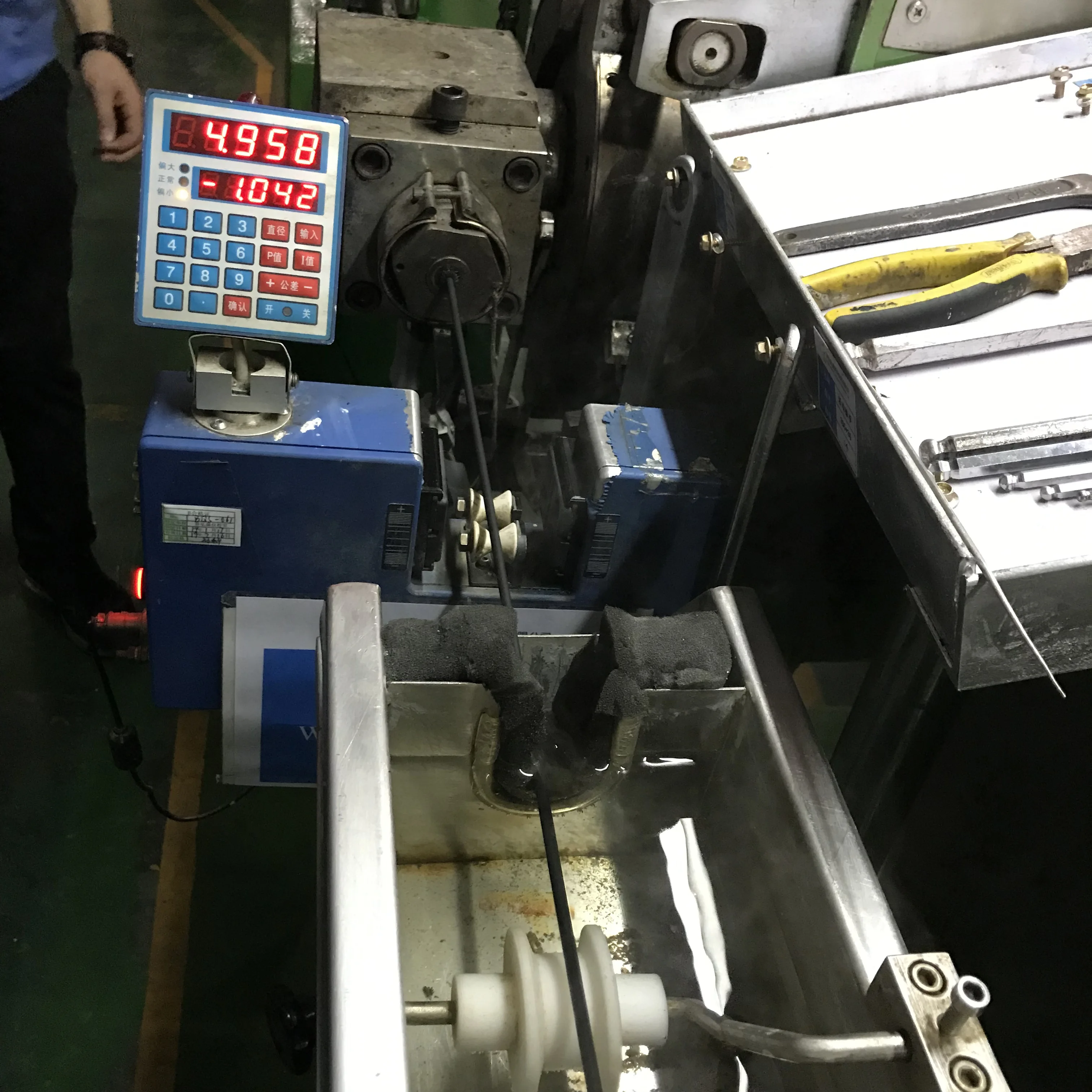

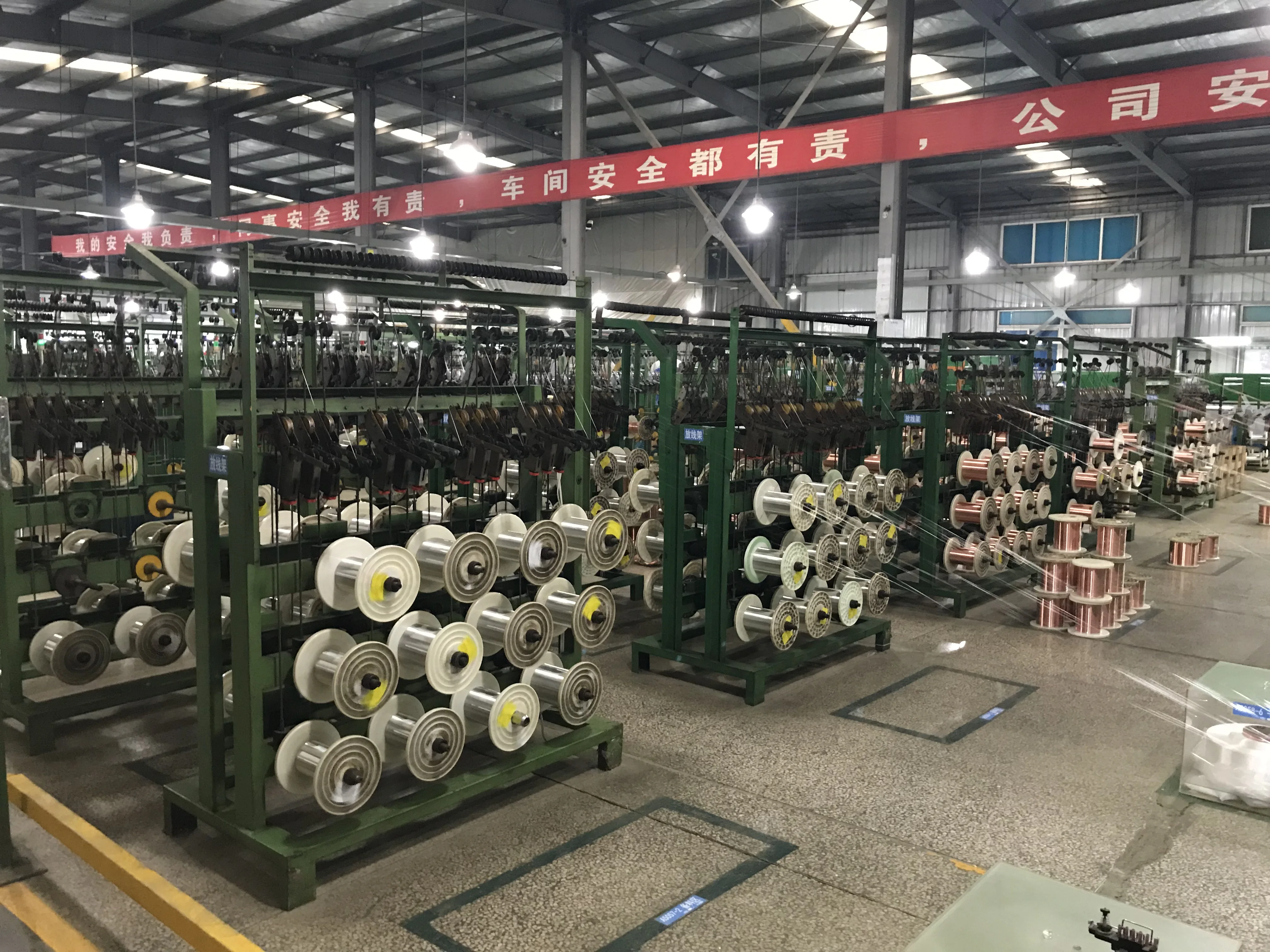

Product Processing
Company Profile

SKE-TECH exists to be inclusive.

WUXI SUNKEAN ENERGY TECHNOLOGY CO., LTD is located in WUXI City, JIANGSU Province. We work closely with the world's leading manufacturers who produce the silicon solar module, solar cable, brackets, inverters and batteries.

SKE-TECH is committed to providing the best solution for users, installers, investors and all stakeholders. We always take the responsibility on customer's demands. We make our effort for innovations and breakthroughs. We actively integrate high-quality res to provide you much more professional solutions. We strive to deliver the cleanest and most abundant energy to you and make you more economic and social benefits.

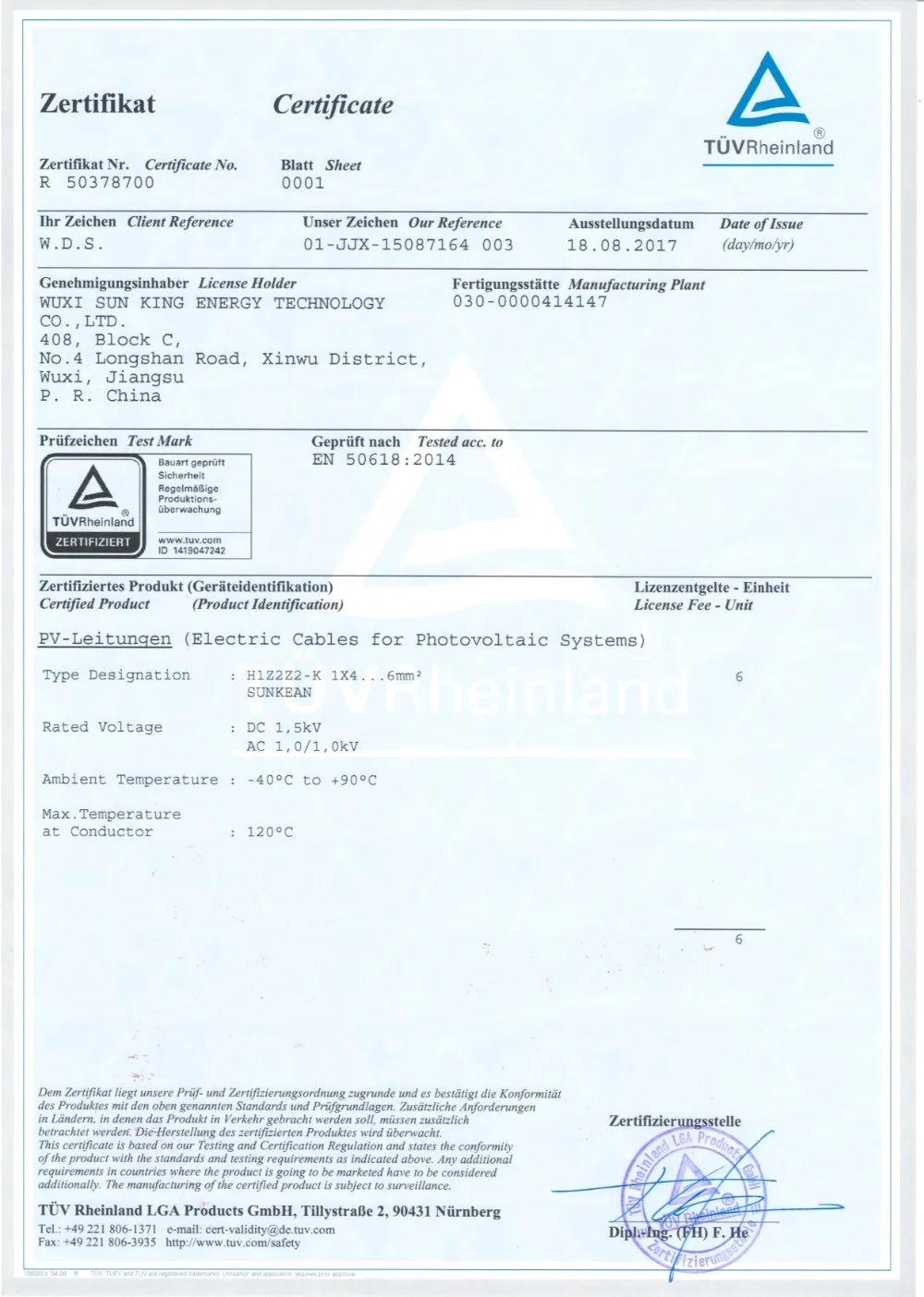

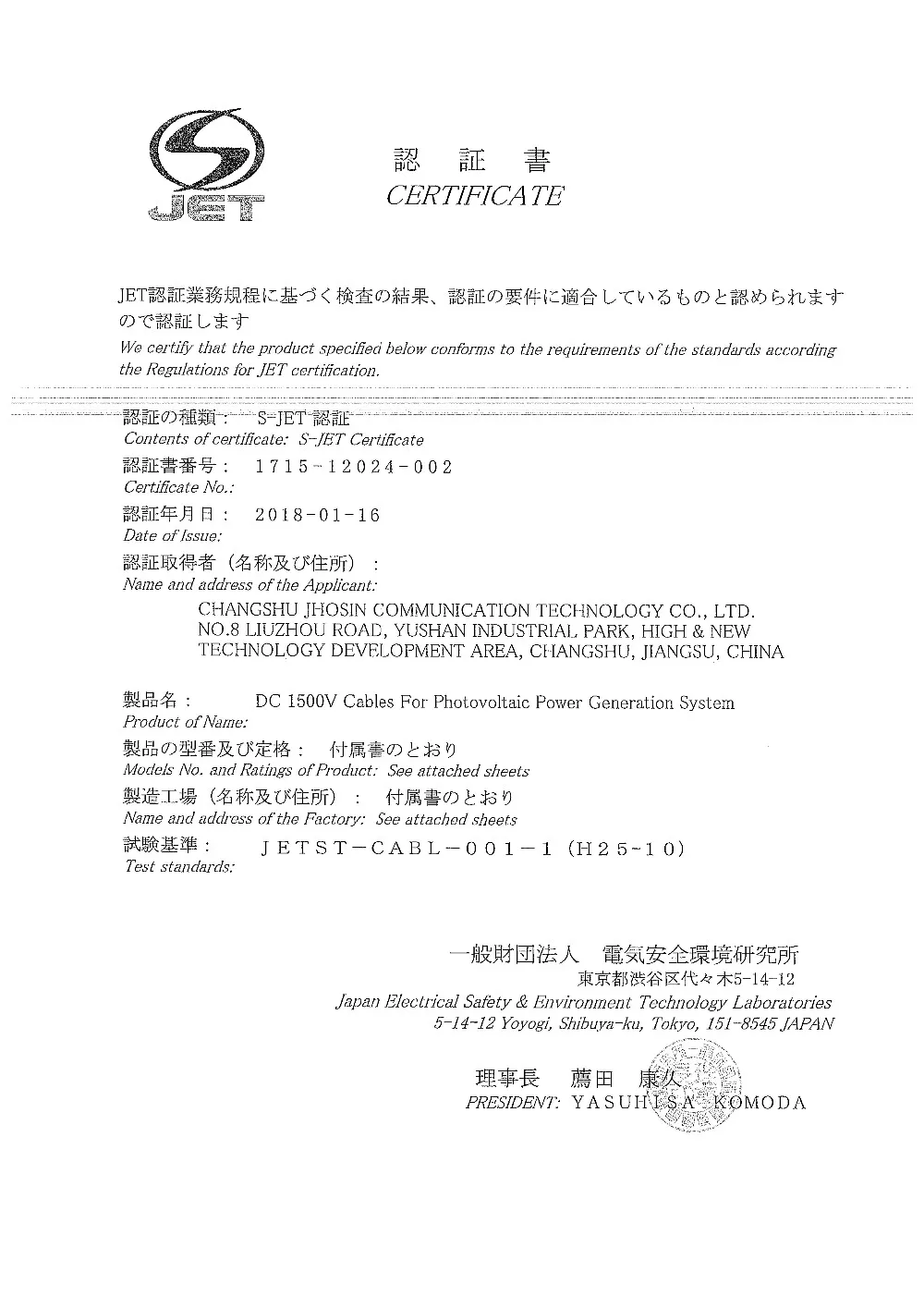

Certifications
Our Team

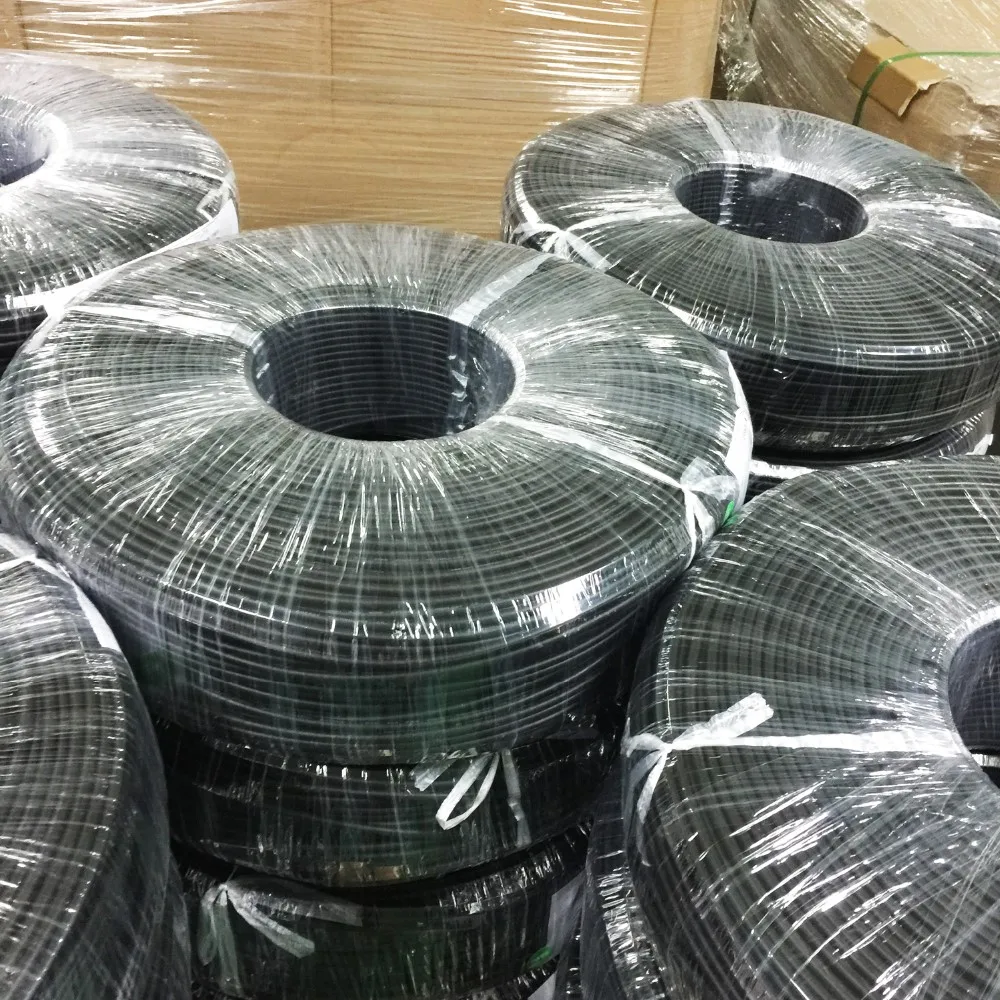

Packing & Delivery

Chinese Supplier Tinned copper pv cable 4mm2 for solar energy system

We provide the following packaging such as 250m/roll, 500m/roll, 1000m/drum or customized packaging.

FAQ
Q: How could I get the Sample?
A: We have different kinds of PV cable,pv cable 4mm2,pv cable 4mm in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fee.

Q: How can I place Order?
A: We're pleased that you can place order on line though Trade Assurance Order which can protect your order from payment to delivery.

Q: How long is the delivery time?
A1)For Sample: 1-3 Days ;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
