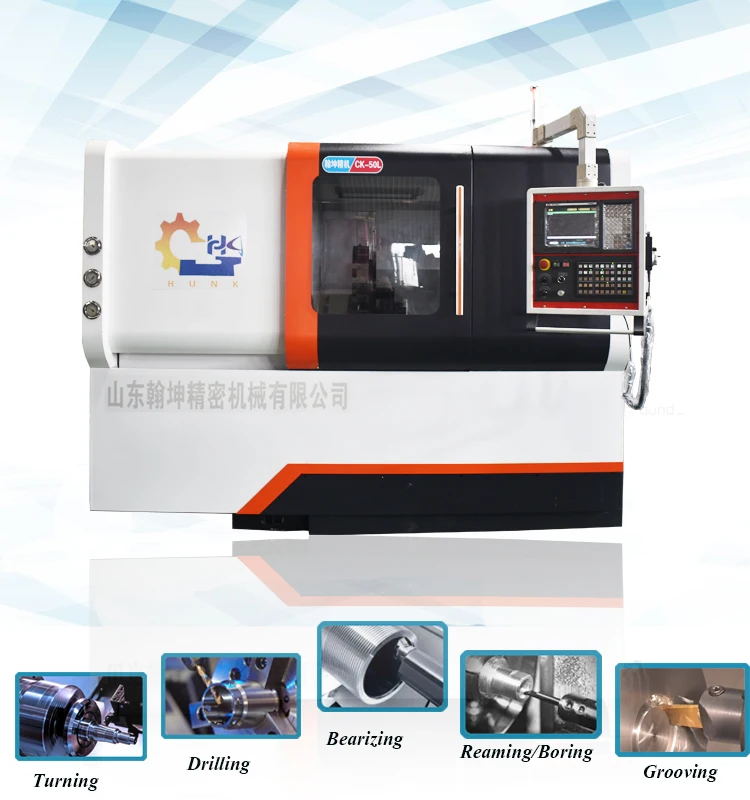

Ck50L High Quality Hot Sales Inclined Guide Rail Slant Bed CNC

  • >=1 Sets
    $29,800.00
Max. Swing Diameter (mm):
500
Spindle bore:
105mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Condition:
New
Max. Spindle Speed (r.p.m):
3500rpm
Positioning Accuracy (mm):
0.002
Repeatability (X/Y/Z) (mm):
0.001
Place of Origin:
Shandong, China
Dimension(L*W*H):
2.2*2*2.1m
Brand Name:
HUNK
Model Number:
CK
Voltage:
380V/220V/400V
Certification:
CE,ISO,SGS
Weight (KG):
10
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High-accuracy
CNC or Not:
CNC
Automatic Grade:
Automatic
Max. Swing Diameter:
800
Power:
50HZ
Name:
Ck50L High Quality Hot Sales Inclined Guide Rail Slant Bed CNC
Control system:
SIEMENS KND FANUC (optional)
Turret Type:

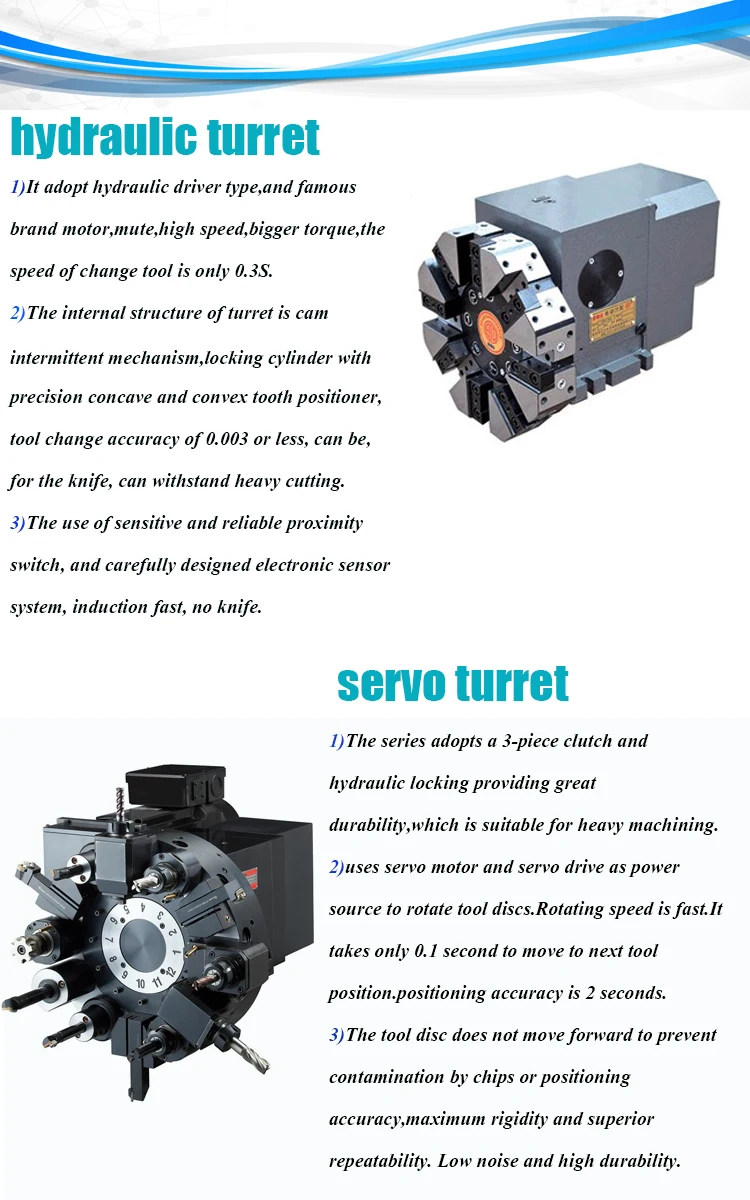

Hydraulic Tool Turret
Chuck:
Hydraulic Chuck
Application:
Parts Processing
Processing Length:
customized
Spindle bore:
112mm
Configuration:
Automatic lubrication system
Standard parts:
Warning light
Machine Type:
30 degrees structure body
Supply Ability
Supply Ability:
10 Set/Sets per Month Ck50L High Quality Hot Sales Inclined Guide Rail Slant Bed CNC
Packaging & Delivery
Packaging Details
Standard safe packages
Ck50L High Quality Hot Sales Inclined Guide Rail Slant Bed CNC
Port
Qingdao Port,China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

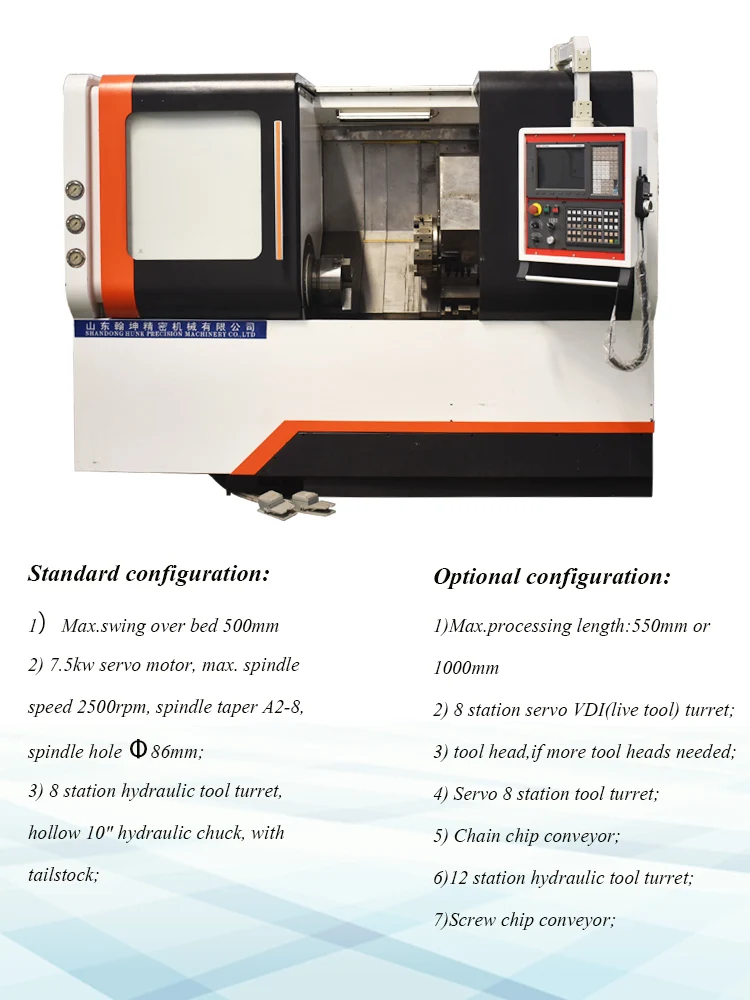

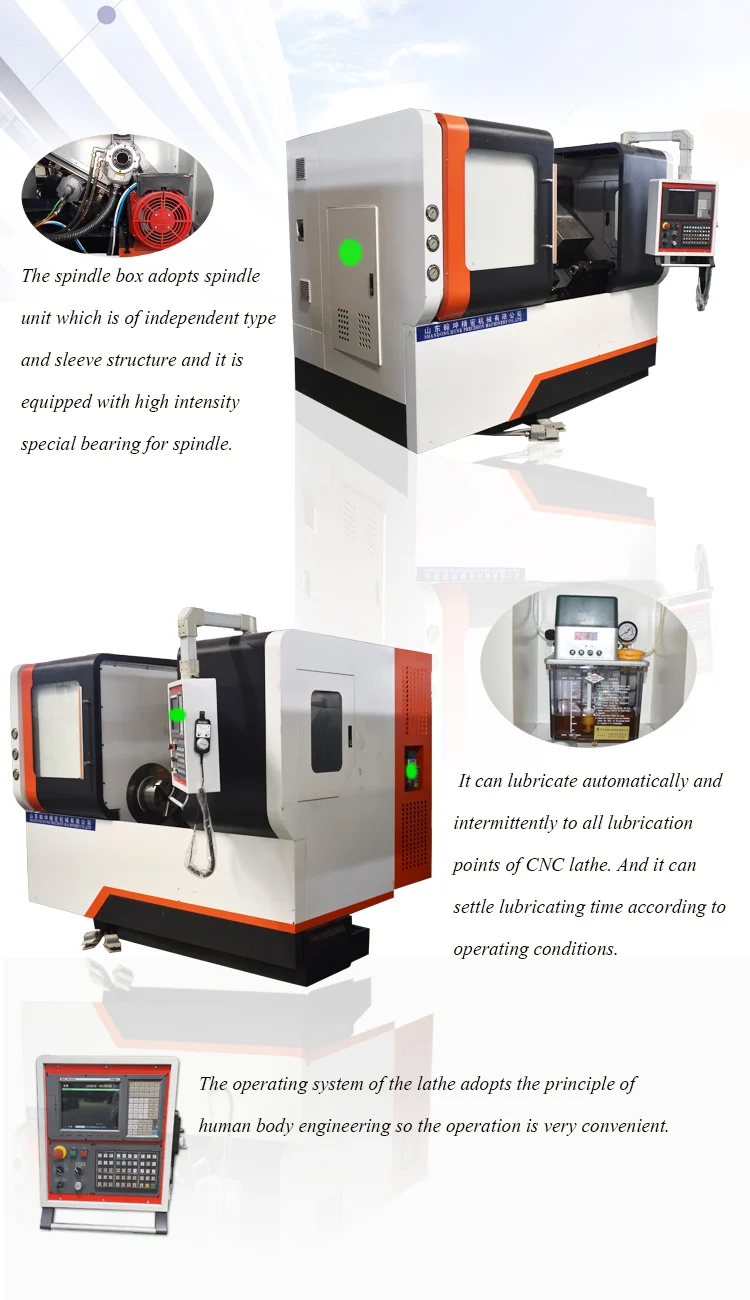

Product Description

Main Feature

1. Rigid base with integral structure
2. Good durability with cast iron machine bed
3. Good dynamic performance with advanced guide rail
4. High precision, high-rigidity spindle, high speed
5. Suficient precise lubrication
6. Variety of knife tools can be installed on the machine tool
7. Spring chuck with high accuracy and high efficiency
8. Fully-closed safe glass window
9. Modular design and optional accessories

Voltage

380V/220V/420V/480V 3phase
Important Notice:Before place order, please confirm with our sales about your local electrical voltage.
Technical parameter
ITEM
CK-32L
CK-36L
CK-40L
CK-50L
CK-63L
CK-80L
Processing range
Max.swing over bed(mm)
320
360
400
500
660
800
Max.swing over slide(mm)
160
160
220
320
500
640
Max. processing length(mm)
350
350
450
550
890
890
Max. cutting dia.(disc type)(mm)
200
254
360
420
630
800
Max. bar dia.(mm)
40
55
55
80
80
90
spindle
Spindle speed(rpm)
4000
4000
3500
2500
2200
1500
Spindle nose ISO form
A2-5
A2-5
A2-5
A2-8
A2-8
A2-11
Thru-hole dia.(mm)
41
58
58
86
86
112
Chunk dia.(mm)
160(6")
200(8")
200(8")
250(10")
320(12")
380(15")
Motor power(kw)
3.7(servo)
3.7/5.5(servo)
5.5/7.5/11(servo)
11/15
(servo)
18~22
(servo)
Body structure
Body structure
45°integrated
30°integrated
30°integrated
30°integrated
30°integrated
30°integrated
X axis travel(mm)
200
200
210
260
410
410
Z axis travel(mm)
350
350
450
550
860
860
X/Z axis rapid speed(m/min)
24/24
24/24
24/24
24/24
18/18
18/18
Tool holder
type
63-8T
80-8T
100-8T
160-8T
160-8T
Tool size(mm)
20*20
20*20
20*20
25*25
25*25
25*25
tailstock
Tailstock sleeve dia.(mm)
/
52
52
75
150
150
Tailstock sleeve travel(mm)
/
60
60
100
150
150
Tailstock sleeve taper
/
MT4
MT4
MT5
MT5
MT5
precision
Processing precision

IT6
Repositioning precision(mm)
X:0.006
Z:0.008
X:0.006
Z:0.008
X:0.006
Z:0.008
X:0.006
Z:0.01
X:0.006
Z:0.01
X:0.006
Z:0.01
roughness
Ra.≤0.8
Ra.≤0.8
Ra.≤0.8
Ra.≤1.25
Ra.≤1.25
Ra.≤1.25

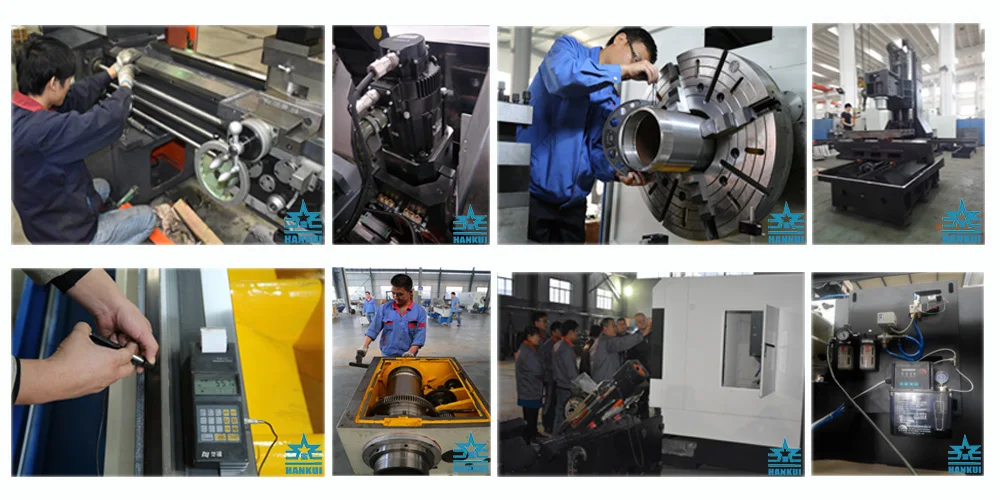

Quality Control

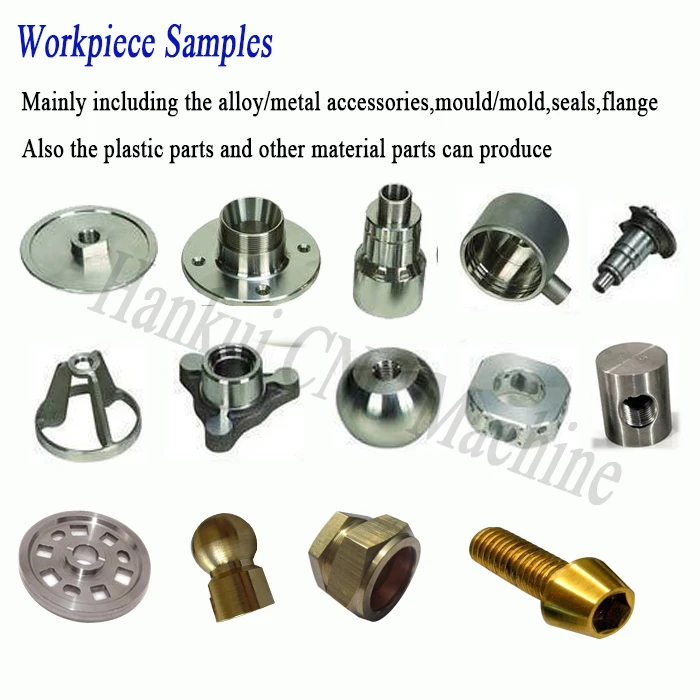

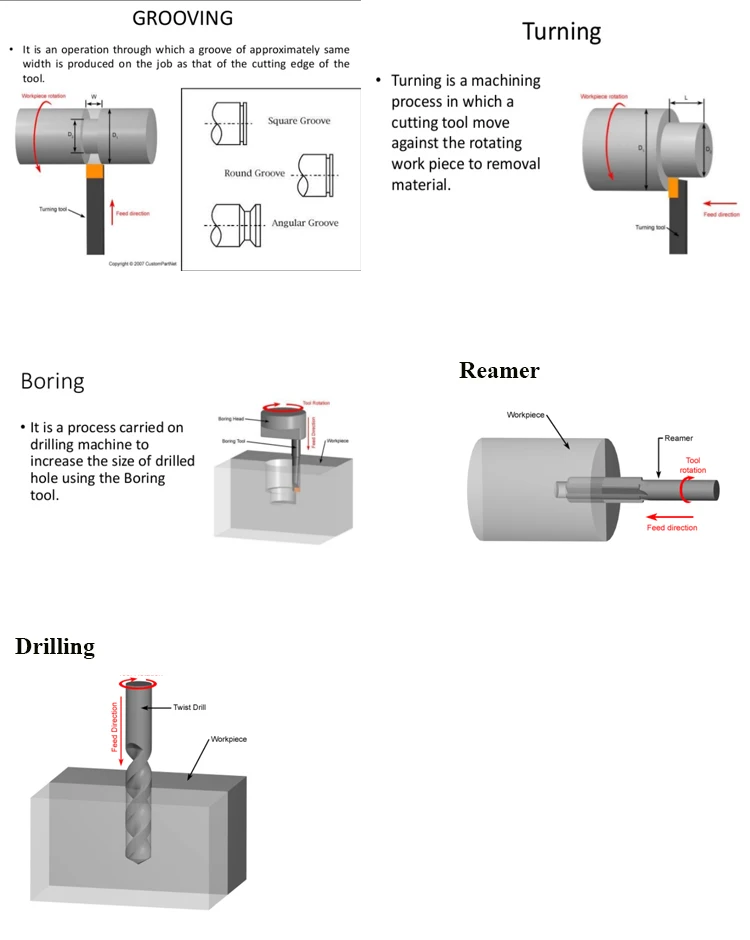

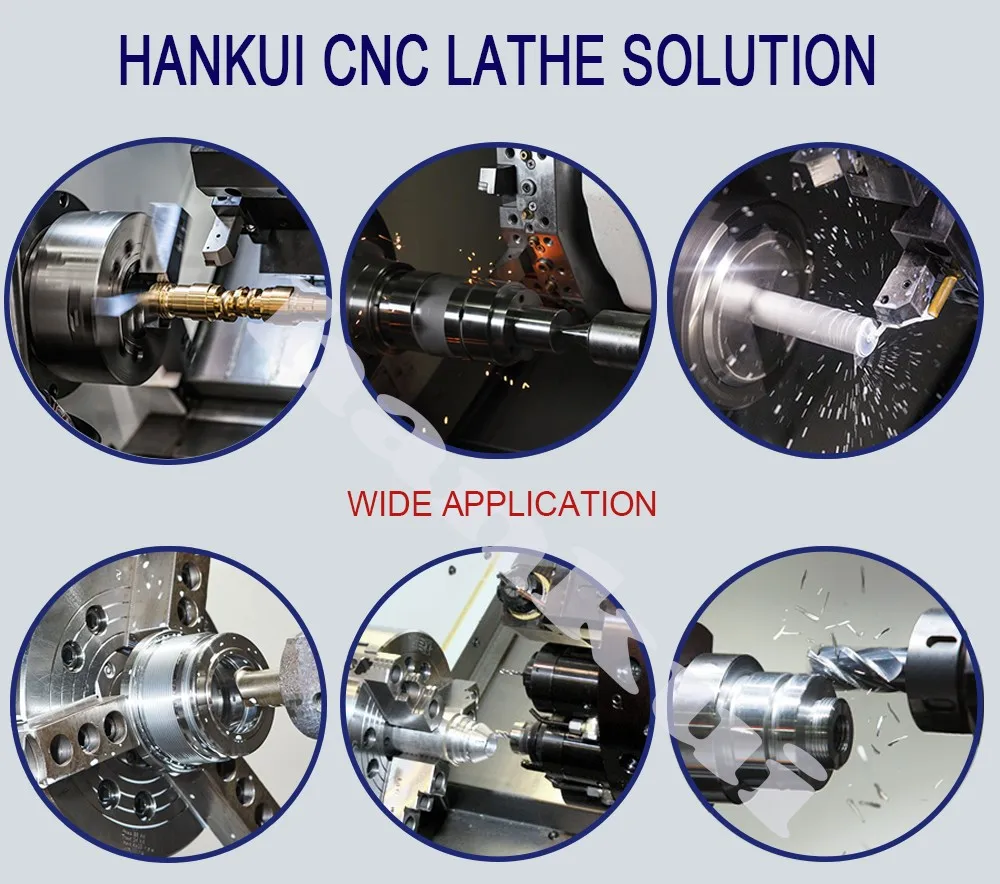

Application Of Lathe
Packing & Delivery
Company Information


.



FAQ


Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype,Immo).

Q2.Where is your factory located? How can I visit there?
Our factory is located in Jinan City, Shan Dong Province, China. There has flight and High speed train directly to our city. Welcome to visit our factory.

Q3.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.

Q3.Payment term
30% by T/T as deposit, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

Q4.Can I trust you?
Sure, we're Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.

Q5.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact me for details.

Q6.How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.Also we supply all-life free on-line technology support.

Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.

Q8. If i can't know how to operate. Can your engineer help me programme well on machine ?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
