Clamp-on Flow Meter Sensor Liquid Ultrasonic Flowmeter Wall-mounted Ultrasonic Flowmeter BTU

$50.00 - $120.00 / Piece | 1 Piece (Min. Order)
Material:
ABS
Accuracy:
±1%
Size:
Host (ONLY)
$120.00
- +
available
clamp type S1 sensor
$50.00
- +
available
clamp type M1 sensor
$50.00
- +
available
All 8 Options
Samples:
$200.00 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Contact Supplier
Samples - $200.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
DLTEREN
Model Number:
DTI-200B
Type:
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Display:
LCD with backlight 2*20leters
Repeatability:
Better than 1%
Accuracy:
Better than ±1%for velocity above 0.6ft/s
Velocity:
0.5s
Signal Outputs:
Current output: 4-20mA or 0-20mA. Impedance 0-1k. Accuracy 0.1%
Units:
English(U.S) or metric
Communication Interface:
RS-232,RS-485(optional); GPRS/GSM module
Signal Inputs:
5 channel analog signal inputs
Pipe Size:
DN15~DN6000mm
Liquid Types:
Virtually all commonly used liquids(full pipe)

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X1X1 cm
Single gross weight:
8.000 kg
Package Type:
carton or wooden carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Product Description

Fire pump flow meter factory price 1/2"


flowmeter beverage flow rate instruments


♦ GENERAL
of wall mount ultrasonic flow meter

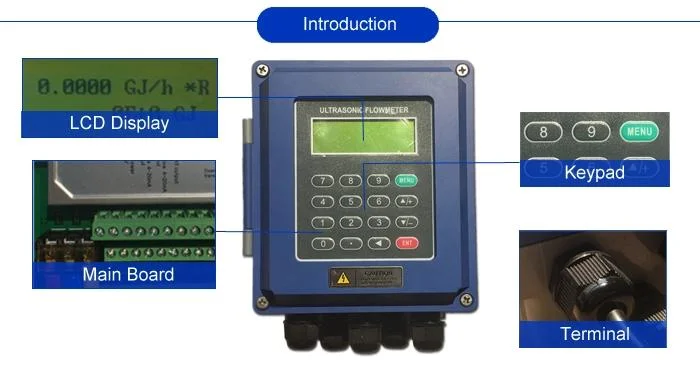

The Teren-UFM-100F Wall-Mount Clamp-on ultrasonic flow meter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe.It utilized state-of-the-art technologies pm ultrasonic transmission / receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and selfadapting techniques allow the system to optimally adapt to different pipe materials automatically.

The flow meters of the Teren-UFM-100F is carefully designed so that their operation is simple and easy. The unique lamp-on fixture design makes the installation very simple and no special skills or tools are required.


Due to the non-intrusive nature of the clamp-on technology, there is no pressure drop, no moving parts, no leaks, no risk of contamination, no risk of corrosion, no pressure dependency.

Repeatability
Better than 1%
Accuracy
Better than ±1%for velocity above 0.6ft/s
Velocity
0.5s
Display
LCD with backlight 2*20leters
Signal Outputs
Current output: 4-20mA or 0-20mA. Impedance 0-1k. Accuracy 0.1%;
RS485 / RS232 / Pulse output
Signal Inputs
5 channel analog signal inputs
Communication Interface
RS-232,RS-485(optional);
GPRS/GSM module for networking, remote monitoring and remote control
Liquid Types
Virtually all commonly used liquids(full pipe)
Pipe Size
DN15~DN6000mm
Pipe Material
All metals, most plastics, fiber glass, etc. Allow pipe liner
Cable
Shielded transducer cable. Standard length 15'(5m). Can be extended to 1640' (500m)
Power
AC: 110V/220V or DC: 8VDC-36VDC
Enclosure
Protection Class: IP65(NEMA 4X);
Explosive Proof Class: ExdⅡBT4
Recording
Automatically record the following information:
The totalizer data of the last 64days/64month/64years;
The time and corresponding flow rate of the last 64 times of power on and off events.
Allow manual or automatic flow loss compensation;the instrument working status of the last 64days

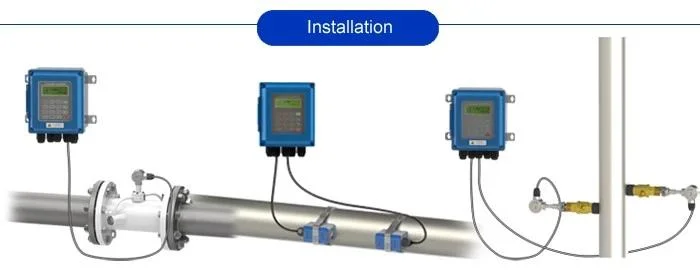

Three types of transducers to choose:

Clamp on type transducer / Insertion type transducer / In line type transducer

If you connect temperature sensors and flow sensors , this water meter also can monitor flow, temperature and energy at the same time.Material

Type
Model
Diameter
Material
Temperature
Clamp-on type
S1
DN15~100mm
ABS
-30 ~ 90℃
M1
DN50~700mm
L1
DN300~6000mm
S2
DN15~100mm
High temperature material
-40~160℃
M2
DN50~700mm
L2
DN300~6000mm
Insertion type
B-insertion
>DN80mm
316L
C-insertion
>DN80mm
Cement-insertion
>DN80mm
In line type
Articulate
DN25~80mm
PI
DN15~40mm
In line
DN15~6000mm
Cast Iron
Related Products

Item name: clamp-on flow meter
Flow rate: 0 ~ 6m/s
Accuracy level: 1.5%(FS)

Teren-TDS-100M Modular ultrasonic flowmeter

Accuracy: ±1%
Pipe Size: 15mm - 6,000mm

Flow rate: 0 ~ 32m/s

1. Transducer Type: Insertion wetted transducer / In line type transducer / Clamp on type transducer

2. Display: 96 segments LCD ,display 44 different Menu windows

3. If you connect temperature sensors and flow sensors , this water meter also can monitor flow, temperature and energy at the same time.

Double beam ultrasonic sensors for high accuracy and reliable operation

Teren-TUF-2000W Sandwich insertion water meter

Water, sewage, seawater (Other liquid need to customize), liquid should be full with pipe.

Packing & Delivery

Whtever you want to use DHL, FEDEX, TNT, AIR FREIGHT OR SEA FREIGHT, we can get a cheaper unit price for you. And we promise to pack products seriously to ensure there will be no damage when it arrive at your door.

Our Service

1. Free OEM service,makes the products to be yours only.
2. R&D, customers provide their own idea or option, we could change the appearance,logo,color,program, output.etc
3. Technical support, we offer free support whatever you know them well or not, we will solve your measuring problem all products' life.
4. Better After Sale,we promise to repair and maintain the products for free in 2 years if there is any natural damage.
5. Online service and inquiry, we promise to reply any of your information within 12 hours.
6. Design and printing, we offer you product's designing and handbook's revising.

Our Company

Teren instruments was established in 2007, located in the beautiful coastal city –Dalian, China.
We main focus on running of instruments, main cover ultrasonic flow meter, ultrasonic level meter, ultrasonic water meter, electromagnetic, turbine, vortex, oval gear flow meter, radar Level meter and other series industry instruments.
