Cnc acrylic cutting machine / used woodworking machinery for sale 1325

FOB Reference Price:Get Latest Price
$3,000.00 - $10,000.00 / Sets | 1 Set/Sets wood cnc router (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
PHILICAM
Model Number:
FLD1325
Voltage:
110v 220v or 380v
Power(W):
3.0kw
Dimension(L*W*H):
1300*2500*200mm
Weight:
1300kg
Certification:
CE
Product name:
Cnc acrylic cutting machine / used woodworking machinery for sale
Control system:
DSP Control System
Spindle:
3.0 kw water cooling spindle
Transmission:
XY-axis:rack; Z-axis: ball screw
Motor:
Leadshine Stepper Motor
Inverter:
Sunfar Inverter
Interface:
USB
Table Surface:
T-slot / Vacuum / T-slot + Vacuum Table
Working Voltage:
AC220V/AC380/50HZ/60HZ
Color:
Customer need
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
18 Months
Supply Ability
Supply Ability:
500 Set/Sets per Month wood cnc router
Packaging & Delivery
Packaging Details
wood cnc router with strong plywood package
Port
Qingdao
Lead Time :
15 days after payment
Related Products

           Multi spindle cnc                                        ATC cnc                            Drilling cnc with two spindle                PTP drilling machine

Product Description

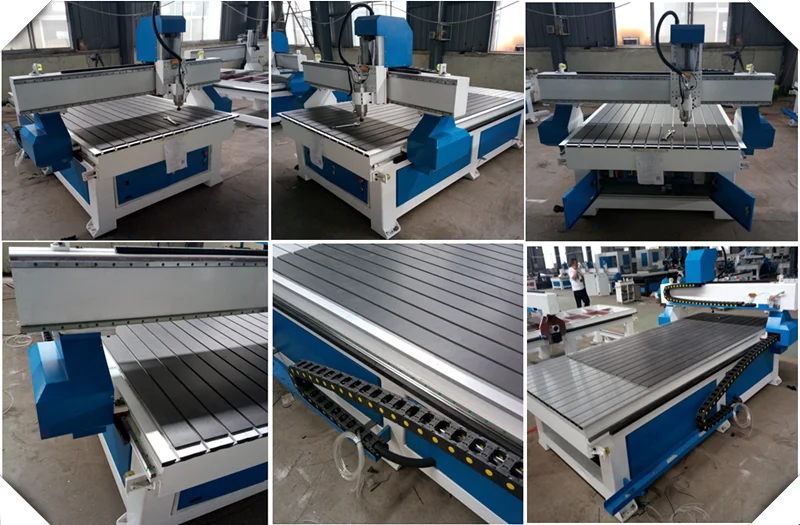

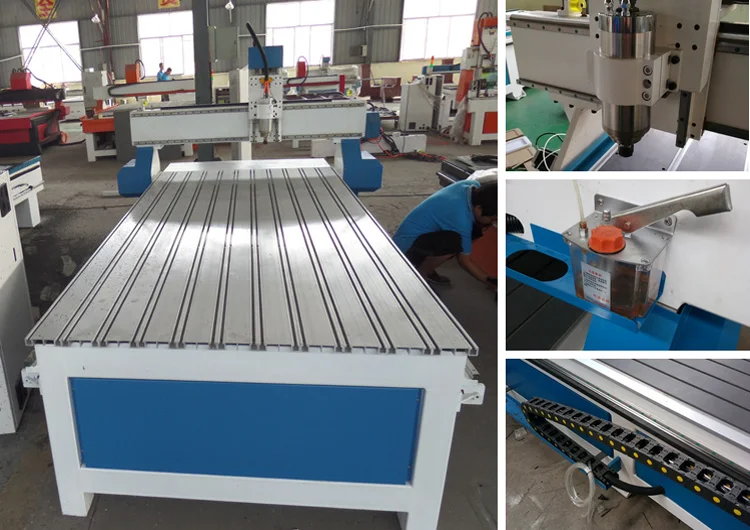

T slot table water colling spindle Cnc acrylic cutting machine / used woodworking machinery for sale

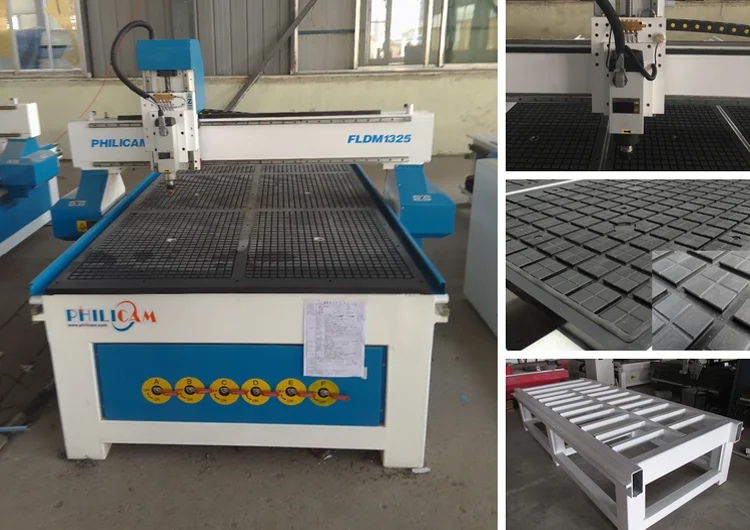

Vacuum table with air cooling spindle Cnc acrylic cutting machine / used woodworking machinery for sale

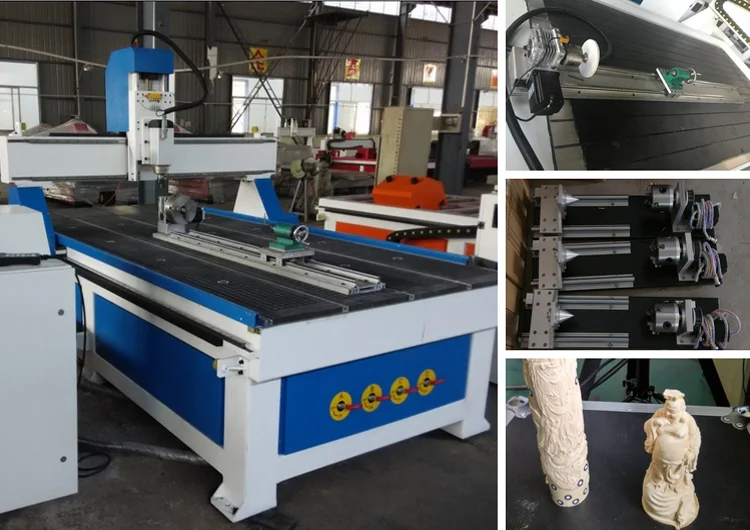

Cnc acrylic cutting machine / used woodworking machinery for sale Add rotary axis--four axis

Cnc acrylic cutting machine / used woodworking machinery for sale Main Features

1. The machine adopt steel structure ,seamless welding,according to the standard industry to produce.

2. X Y adopt the straight line square guide rail,high precision ,good dust.

3. X and Y Z axis adopt rack and pinion transmission.faster working,higher efficiency and low cost.

4. High performance subdivision stepper motor operates smoothly at maximum speed.

5. Air cooled spindle 3.0kw,low noise,long tine mass processing.

6. Perfect oil lubricating system make the maintenance more convenient.

7. It is able to go on engraving when the electricity is cut or the tool is broken.

8. Compatible CAD/CAM designing software eg :Type3/Artcam/castmate/wentai/UG etc.

9. OEM and customize different kinds of size

10. Rotary device,DSP system w/portable control pad(128MB),Vacuum holding, Dust collector, Oil lubrication system


Details
No.
wood cnc router machine Description
wood cnc router machine Parameter
1
X,Y,Z working area
1300x2500x200mm
2
X,Y,Z Traveling positioning accuracy
±0.03/300mm
3
X,Y,Z Repositioning positioning accuracy
±0.03mm
4
Lathe bed frame
Steel square tubes
5
X,Y Structure
Rack drive, Taiwan HIWIN guide
6
Z Structure
Germany Ball screw and Taiwan HIWIN guide
7
Drive motors
Stepper system
8
Table surface
T-slot or vacuum table(T-slot vacuum table)
9
Max power comsumption
(without spindle)2.0KW
10
Max rapid travel rate
22000mm/min
11
Max working speed
15000mm/min
12
Spindle power
3.0KW(option)
13
Spindle speed
0-24000RPM
14
Spindle inverter
Fuling inverter
15
Working voltage
AC220V/50/60Hz,3PH(Option:380V)
16
Command language
G Code
17
Operatiing system
DSP system (Nc studio/Mach3 PC software)
18
Computer interface
USB
19
Flash memory
128M(U Disk)
20
Collet
ER25(3.175/4/6/12.7mm. Optional )
21
X,Y Resolution
<0.02mm
22
Software compatiliby
Type3/Artcam/Ncstudio/Ucancam/JDpaint etc software
23
Running environment temperature
0-45 centigrade
24
Relative humidity
30%-75%
25
Mini order quantity
1 set
26
warranty
1 year
27
Delivery time and payment
7-30 days after get 30% payment by T/T(option:the third party alibaba ESCROW)






28

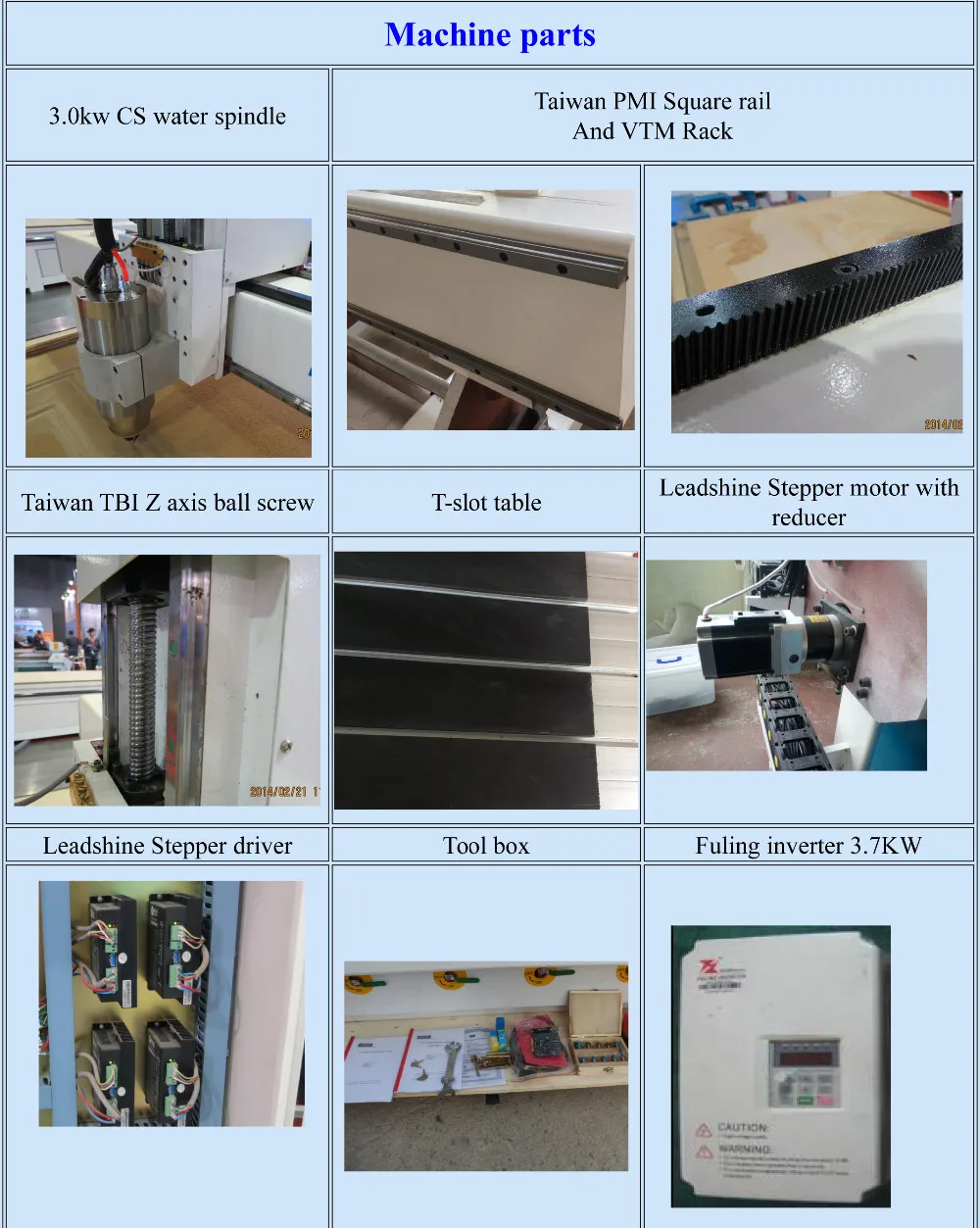

Optional parts
1.Air cooling spindle (HSD) or water cooling spindle

2.Taiwan Syntec system and Delta inverter

3.Japan Yaskawa/800w or Panasonic/750w servo motors

4.Vacuum pump(Germany Becker or chinese water and free oil pump)

5.Rotary system

6.Dust collector

7.Sink and water cooling system


29
Quality Control
1.Strect control machine assembly each link,ensure the machine clean and beautiful.

2.48 hours continuous work before the machine leave the factory, ensure high quality of the machine.
30
After sales service
1.24 hour technical support by email,calling or MSN
Sample
Cnc acrylic cutting machine / used woodworking machinery for sale Application :

Material:

MDF, acrylic, green board, soft metal, PVC, aluminum-plastic panel, particle board, insulation board, particle board,
solid wood, multilayer board, marble.

Product:
Furniture industry: cabinet door, kitchen,door,cabinet,wardrobe, study, chair, table, picture frame, handicraft.
Advertise industry: Advertising board, Label design, Acrylic cutting, model of the multi material decoration products.

Quality Assurance


Service & Delivery

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.


wood cnc router machine Packaging
Size
324(L) * 225 (W) * 188 (D)
Weight
1370 KG



Packaging Details
First use the spiecial materials for to
cover the machine,to protect the machine
 from the duct and water.

Then strong stell wooden package.
Philicam factory




This is our website at Alibaba.

This cnc router machine is our one of a machine,


we have many other machines for your choice.
