Colorful digital phone case small A4 size UV printing machine

FOB Reference Price:Get Latest Price
$1,650.00 - $1,859.00 / Set | 1 Set/Sets of Colorful digital phone case small A4 size UV printing machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Color & Page:
Multicolor
Place of Origin:
Shandong, China
Brand Name:
YICAI
Model Number:
Sapphire-Jet Pro
Condition:
New
Dimensions(L*W*H):
550mm x 480mm x 400mm
Gross Power:
280W
Plate Type:
Flatbed Printer
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
30KG
Automatic Grade:
Automatic
Certification:
CE SGS
Usage:
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Colorful digital phone case small A4 size UV printing machine
Voltage:
110V/220V 50Hz-60Hz
Type:
Digital Printer
Ink type:
Uv curing ink, soft uv curing ink, eco solvent ink, pigment ink,
Product name:
Colorful digital phone case small A4 size UV printing machine
Printing Material:
glass, metal, wood,plastic, leather, PVC, ceramic, stone,Rubber
Cooling system:
Water circulation cooling system
Color:
CMYKWW
Printer type:
UV phone case printer
Rip software:
Focus RIP/ Custom RIP
Printing size:
21cm *30cm
Print speed:
A4size/90s
Max printing height:
10cm
Supply Ability
Supply Ability:
285 Set/Sets per Month of Colorful digital phone case small A4 size UV printing machine
Packaging & Delivery
Packaging Details
Sapphire-Jet Pro Colorful digital phone case small A4 size UV printing machine packed as below:
1. 65CM*58CM*47CM packing size.
2. International standard inport& export wooden package.
3. By sea, Airbus, Express available.
Port
Shanghai
Lead Time :
2-7 days after payment
Product Description

Colorful digital phone case small A4 size UV printing machine

Product Application

Colorful digital phone case small A4 size UV printing machine belongs to Sapphire-Jet Pro, which is a multi functional LED UV flatbed printer that created by Linyi Yi Cai Digital Machinery CO.,Ltd. Sapphire-Jet Pro was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system...8 color and max. 2880DPI*1440DPI printing resolution, Max. 8cm media height. This portable plastic card printer can print on rigid PVC board, glass, plastic, organic board, leather, pen, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard, canvas, film, PP, bend, balls etc. Output with good 3D texture printing result...

Specification of Colorful digital phone case small A4 size UV printing machine
Printing method
Drop on Demand ( non-contact micro piezoelectric ink-jet printing technology; micropiezoelectric printing technology; VSDT; intellingent nozzle cloggingsensor system ). 180nozzle/color*6; VSDT.
Head type
EP L800 printhead
Max Printing size
210mm*300mm ( 8.3"11.8" )
Material's Height
10CM max.
Printing resolution
2880*1440dpi, 1440*1440dpi, 1440*720dpi
Ink Type
Rigid Uv curing ink, soft uv curing ink, eco solvent ink, pigment ink
Ink color
CMYKWW
Ink Supply Method
Independent continuous ink supply systerm
Printing interface
USB 2.0 high speed interface & 100 Base-T Ethernet interface
Printing direction
Smart Bi-directional Printing Mode
Lamp type
LED UV curing lamp( with water cooling circulation)
Applicable Industry
Rigid PVC board, glass, plastic, organic board, leather, pen, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc
Power consumption
75W/Hour.
Auto adjustment function
Nozzle automatic detection;print head automatic aligning
Normal working environment
Temperature 10-35Celsius Humidity 20-80RH
Power/ Voltage
About 280W / 110V/220V 50-60HZ
Operational software
FocusRIP Software and Ultraprint for Windows XP/7/8/10
Operation system
Windows 2000 / XP / WIN7 /8/10, etc.
Printing Speed
A4size/90s
Net weight/Gross weight
35KGS/45KGS
Printer size
55CM*48CM*40CM
Packing size
65CM*58CM*47CM
Detailed Images

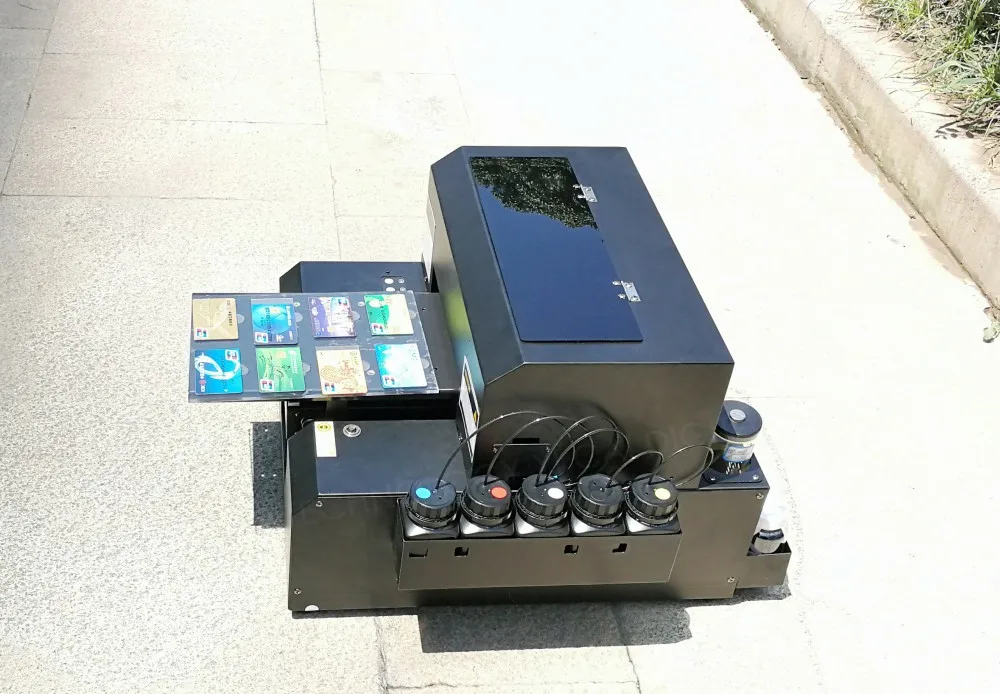

This kind of Fast Speed Digital Photo Metal Label UV Printing Machine entry level printer can help new clients start their new business much easier.



Sapphire-Jet Pro Fast Speed Digital Photo Metal Label UV Printing Machine was built with industrial configuration as thicken aluminum profile, support max. material thickness 8cm, very firm and stable.


Water cooling circulation system for this Colorful digital phone case small A4 size UV printing machine to low down the temperature of the UV light to make sure the UV LED lamp can work normally.



6 colors and max. 1440*720 DPI printing resolution, fast printing speed: print on A4 size 21*30cm with full color only need 80 seconds; Colorful digital phone case small A4 size UV printing machine equip with Ball screw rail make sure the high precision.



This Colorful digital phone case small A4 size UV printing machine apply Outside 150ml ink tank can make sure it is easy for clients to refill inks.


Our Colorful digital phone case small A4 size UV printing machine equip with Intelligent Anti-Scratch-Protection system can detect the media by both red ray sensors to prevent the print head from scratching.



This Control board on our Colorful digital phone case small A4 size UV printing machine can control the flatbed X, Y ,Z axis motion, online offline easier.

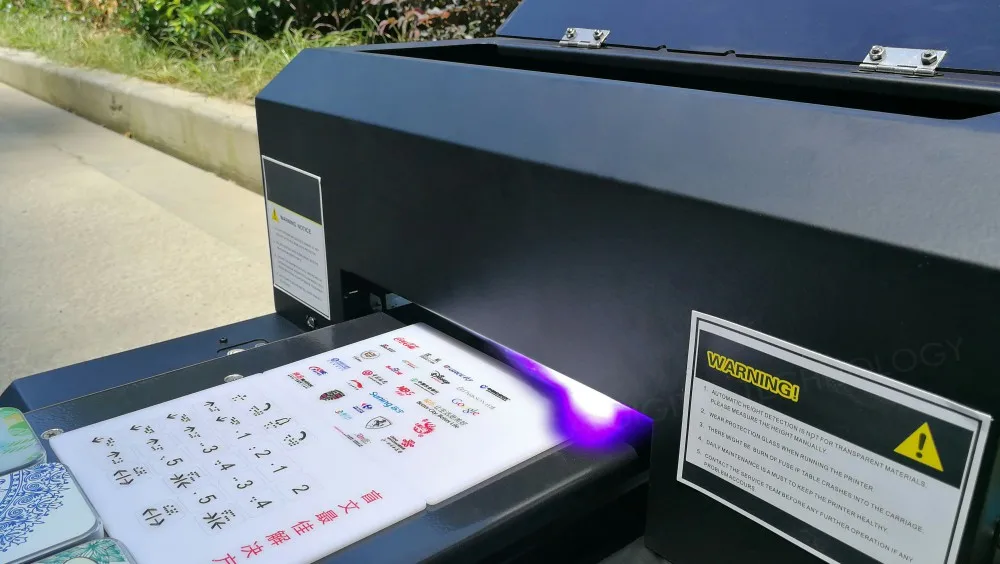

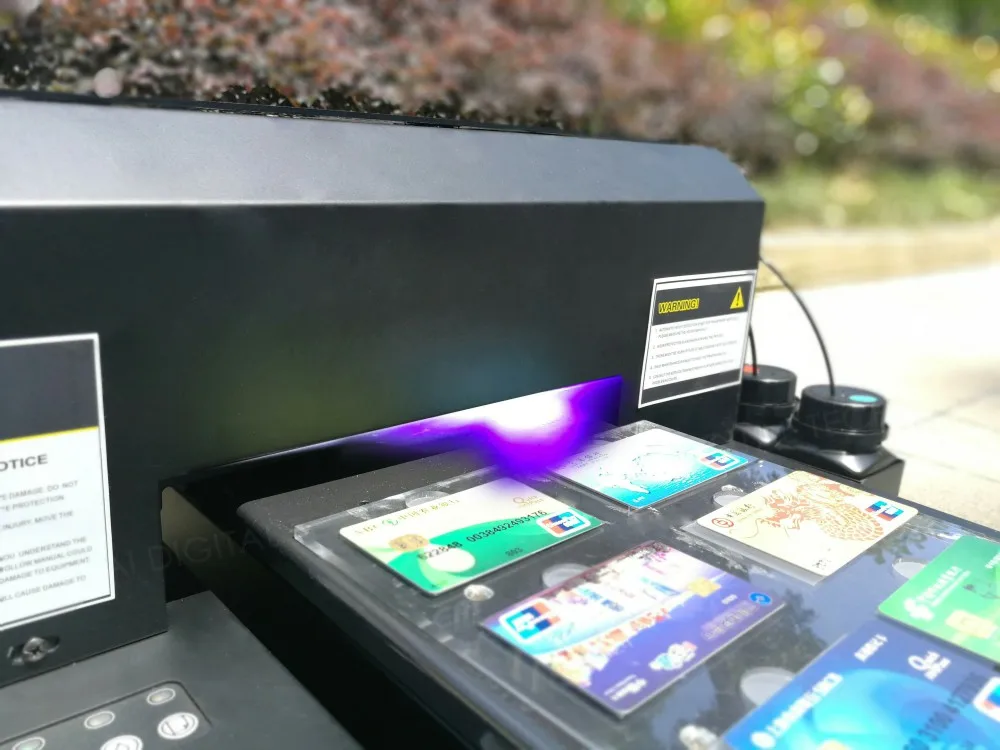

UV LED lamp on this Colorful digital phone case small A4 size UV printing machine can make sure the printing result dry as soon as the picture be printed.





3D texture effect can be printed by this Fast Speed Digital Photo Metal Label UV Printing Machine.

Printing Samples

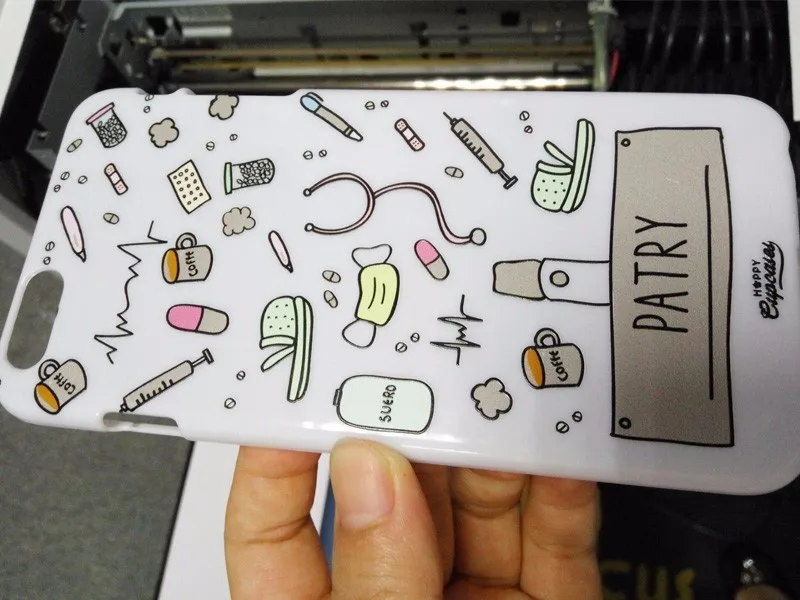

Phone case embossed effect test from Colorful digital phone case small A4 size UV printing machine.

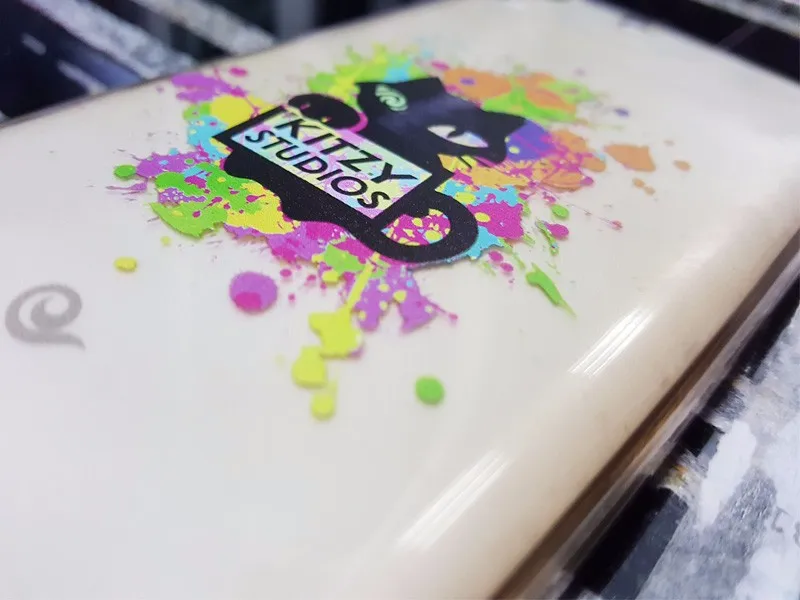

Power Bank printing sample by Colorful digital phone case small A4 size UV printing machine.

CD/DVD printing sample test from Colorful digital phone case small A4 size UV printing machine.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 24 hours online professional technical support in English.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

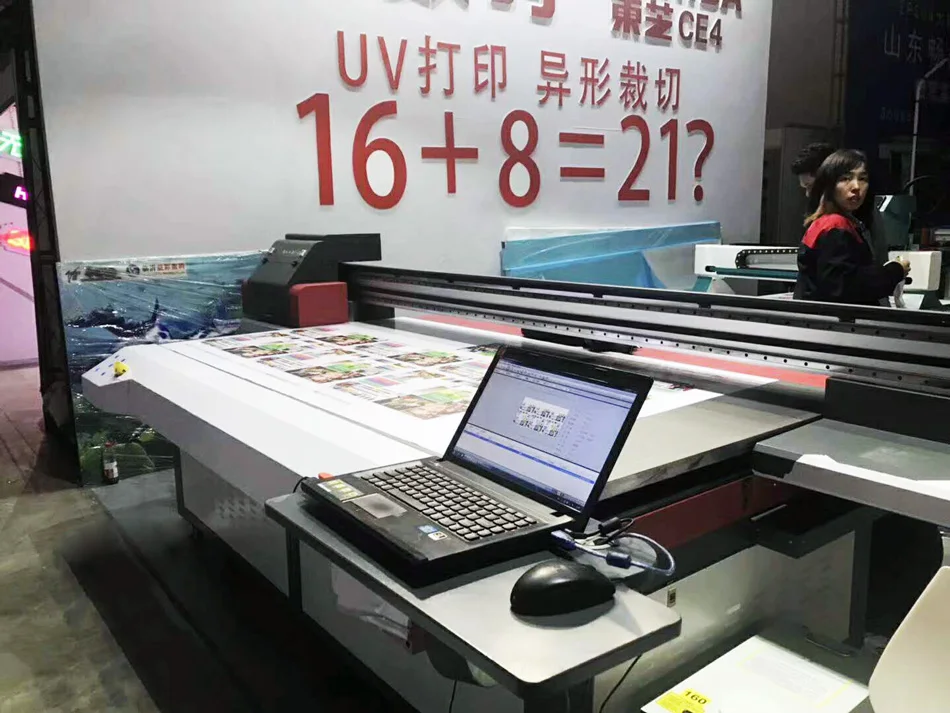

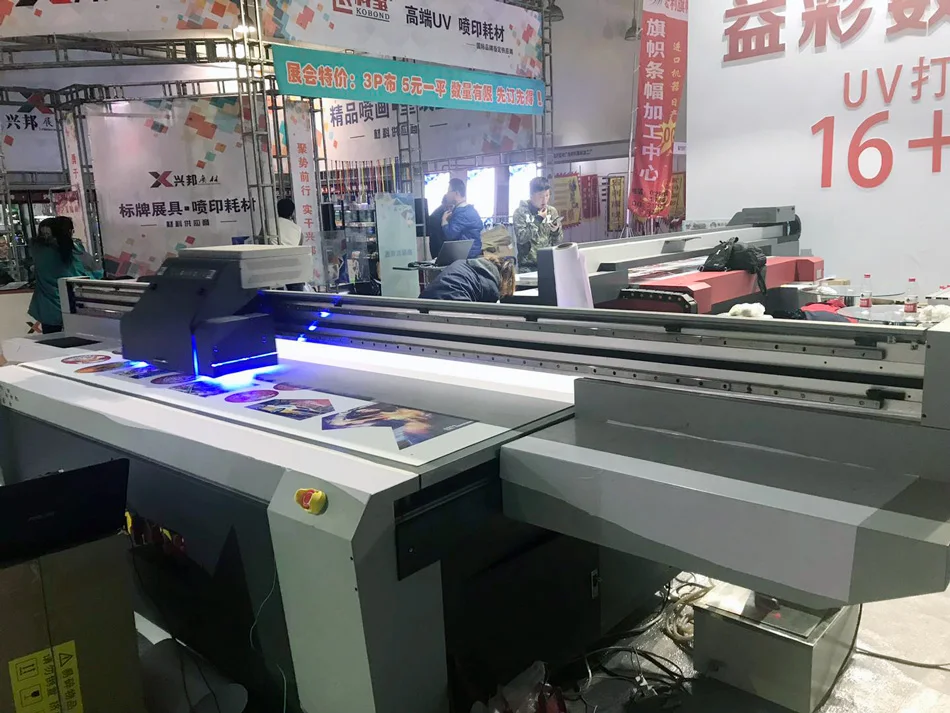

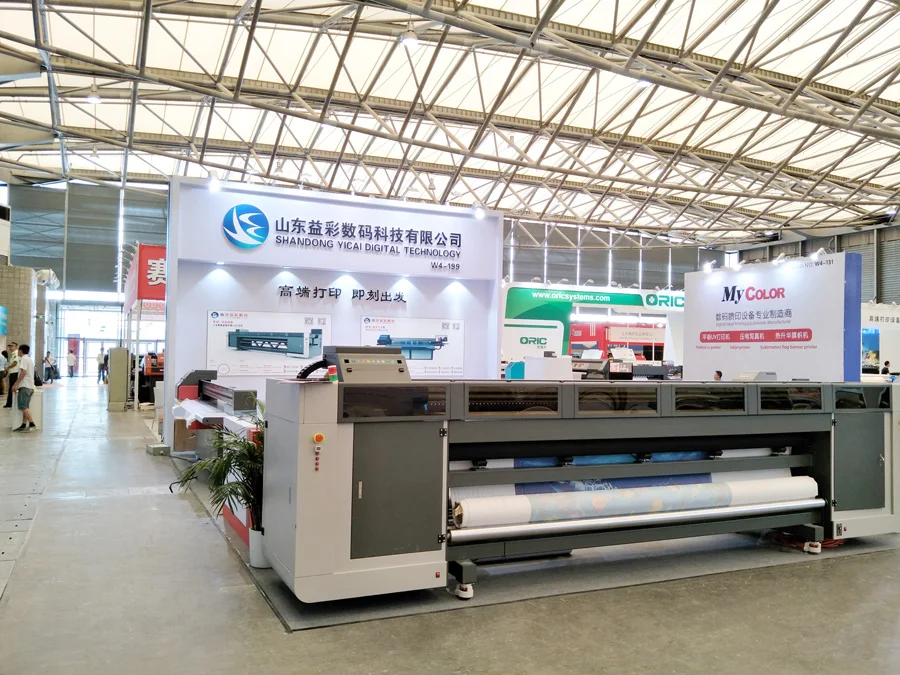

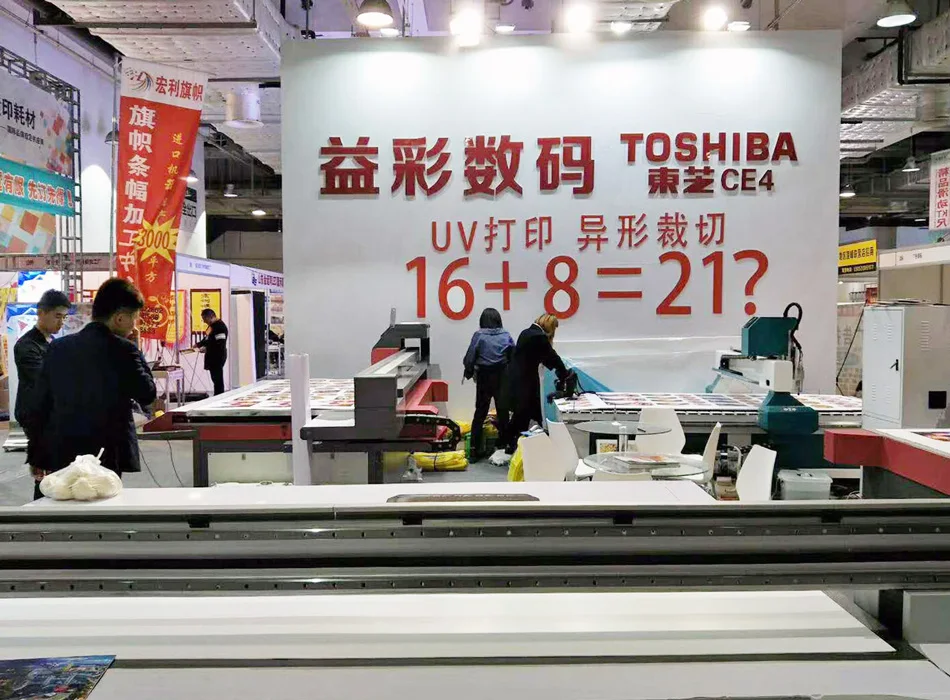

Exhibition View

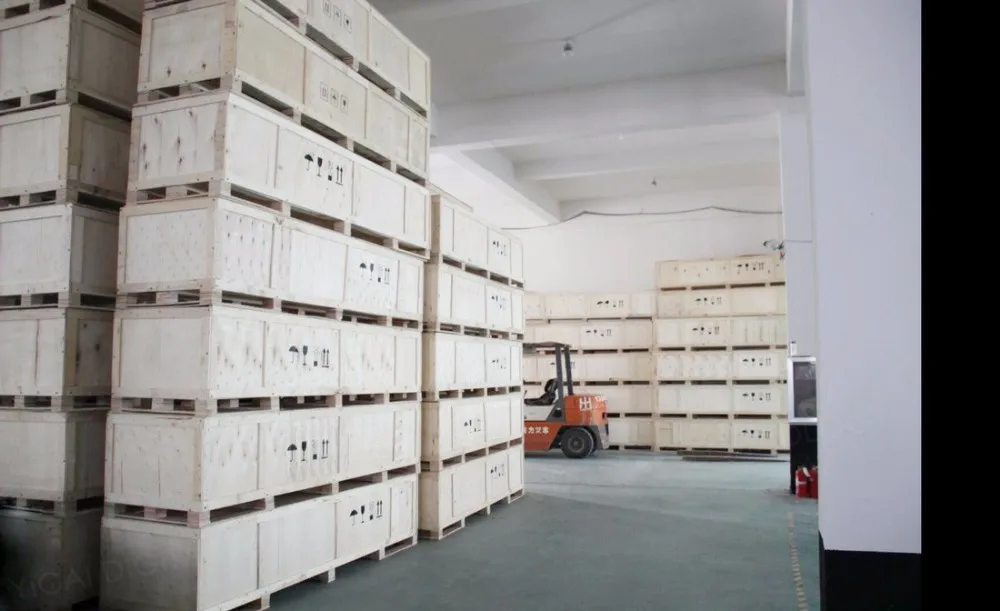

Packing & Delivery
Packaging
Size
65 cm(L) * 58 cm (W) * 47 cm (D)
Weight
45KGS



Packaging Details
1. The normal package is International standard Import & export wooden box.
2.The wooden box will be fumigated. If container is too tighter, we will use pet film for packing or pack it according to customers special request

Contact us:)
My Dear Friend:
QUALITY IS OUR CULTURE
Our mission is making the best solution for international printing industry!
Welcome to visit our company and willing to contact us if you need any further support before or after sales.
------Yuki Cao:
Tel: +86 21 67765258
Mobile: +86 17740808637
Whatsapp: +86 17740808637
Wechat: +86 17740808637
Email: sales8@yicaidigi.com
Website: www.focus-printer.com www.focusdgt.com www.focusdigi.com

Related Products

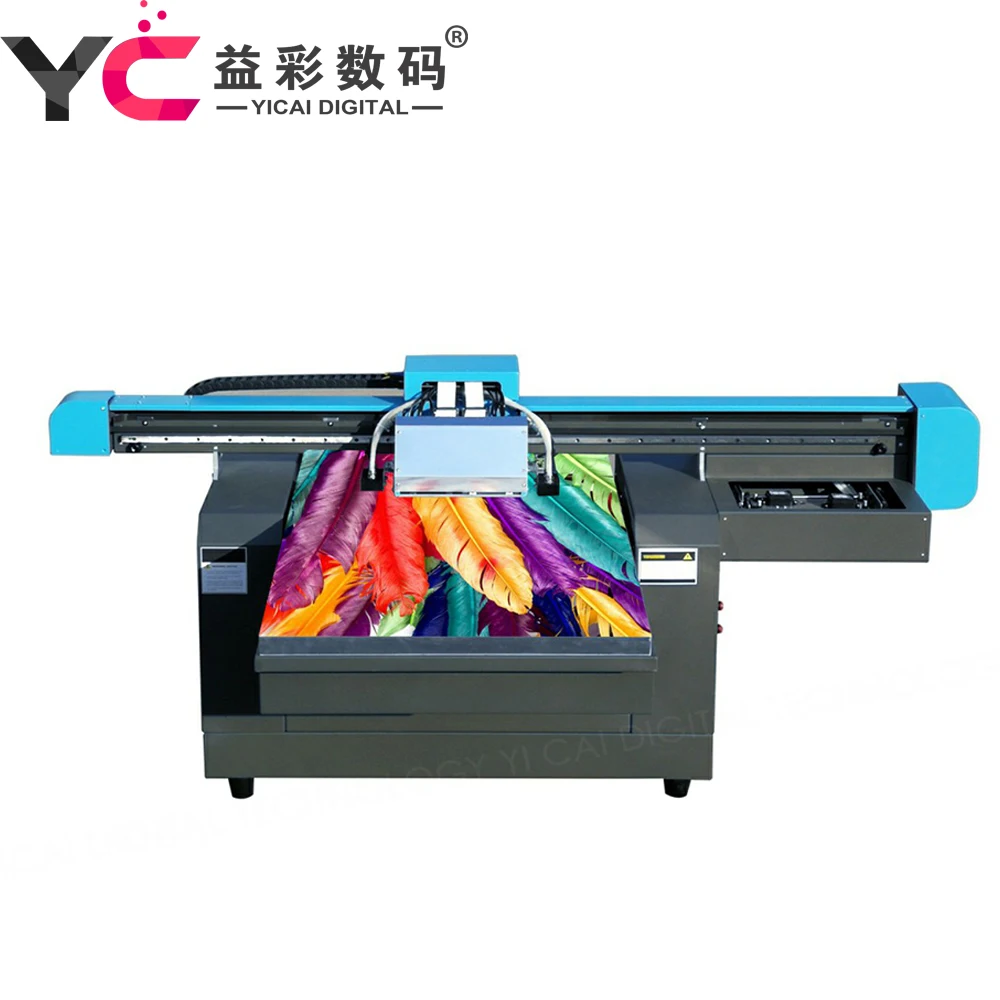

Galaxy-jet Pro 6090 uv printer
