Combination Bench Lathe Milling Machine Mill Drill mini Lathe

FOB Reference Price:Get Latest Price
$1,600.00 - $1,700.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
Manual, Semi-Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CIMT
Model Number:
290VF
Voltage:
380V, 220V/380V
Dimension(L*W*H):
1250*550*670mm
Certification:
CE ISO, CE ISO
Color:
Customized Option
Name:
Lathe Machine
Usage:
General
Warranty:
One Year
Product type:
Mini lathe
Machine Type:
Horizontal CNC Lathe
Power(W):
550/750W, 1.3KW
Weight:
120kg
After-sales Service Provided:
Engineers available to service machinery overseas
Max. Swing Diameter:
180MM
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exporting Standard Fumigation Wooden Case for mini lathe machine
Port
Shanghai
Lead Time :
5-10 days after getting confirmed order
Product Description

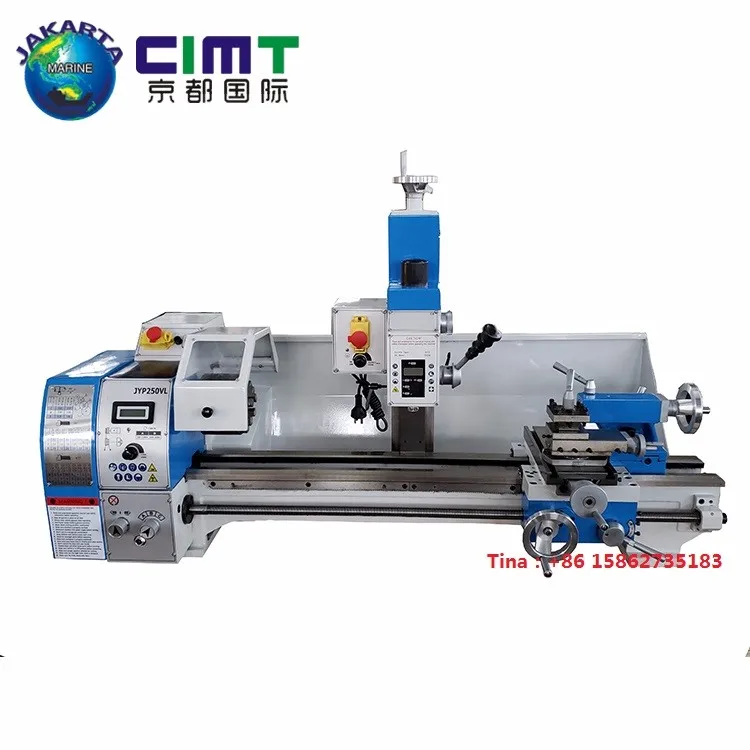

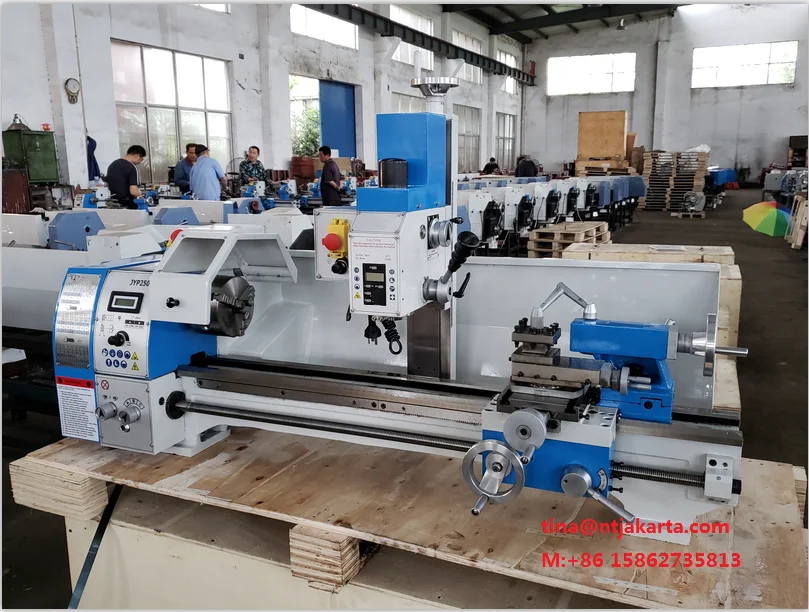

Detailed Images

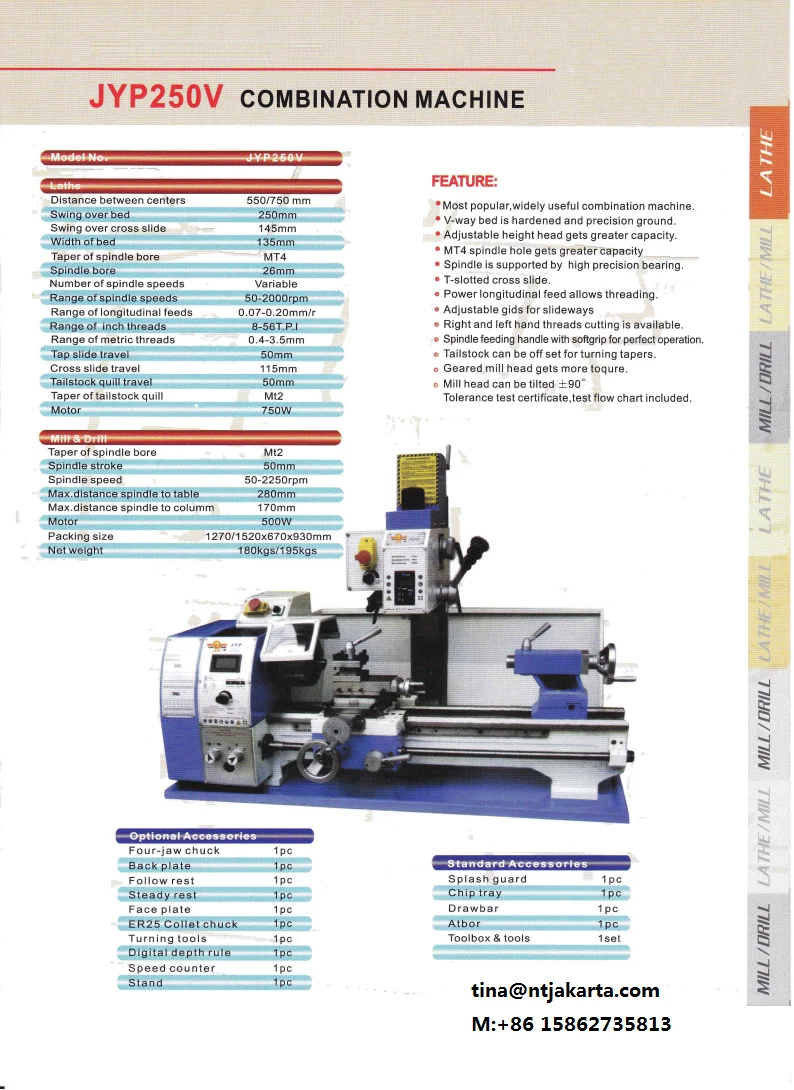

Specifications for JYP250V Bench Lathe


Model
JYP250V
  Distance between centers
700mm
  Swing over bed
250mm
  Swing over cross slide
165mm
  Taper of spindle bore
MT4
  Spindle bore
26mm
  Number of spindle speeds
6/variable speed
  Range of spindle speeds
125-2000/50-2000rpm
  Range of cross feeds
0.02 -0.28mm /r
  Range of longitudinal feeds
0.07 -0.40mm /r
  Range of inch threads
8-56T.P.I
  Range of metric threads
0.2 -3.5mm
  Top slide travel
50mm
  Cross slide travel
140mm
  Tailstock quill travel
80mm
  Taper of tailstock quill
MT2
  Motor
0.75/1.1KW
  Packing size
1400 × 700 × 680mm
  Net weight
210kg / 230kg

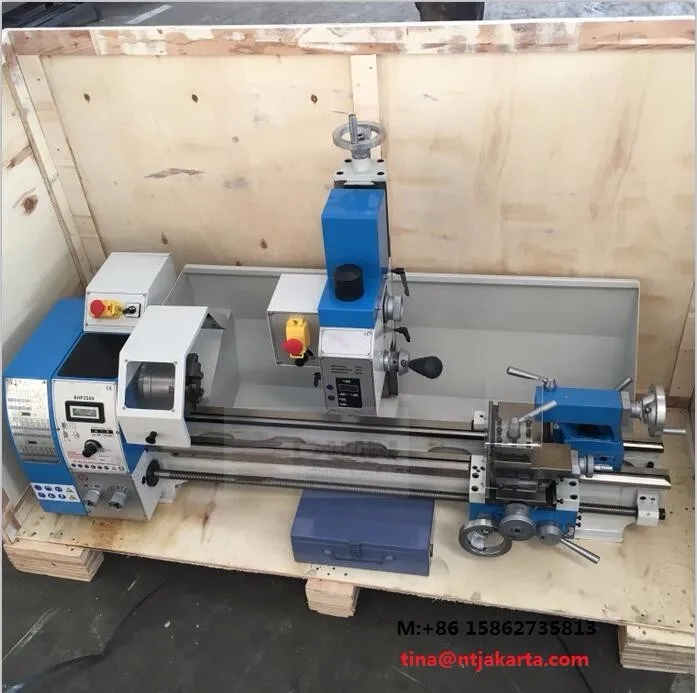

Packing & Delivery
Our Company
FAQ

1.What is your advantage?
1)Supply chain management
2)One stop solution
3)Professional exporter


2.What is the Mode of transportation ?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air

3.How long is the guarantee?
we promise guarantee as one year for non-human damage factor.

4.How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.

5.What about Payment term?
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected .
