Competitive price widely used internal thread rolling machine

FOB Reference Price:Get Latest Price
$10,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
thread rolling
Production Capacity:
100%
Place of Origin:
Hebei, China (Mainland)
Brand Name:
YINGYEE
Model Number:
YY-80
Voltage:
3phase,380V,50Hz
Power(W):
4KW
Dimension(L*W*H):
1500*1450*1600mm
Weight:
1900kg
Certification:
ISO, CE
Max rolling pressure:
150KN
Working Dia:
4-48mm
OD of Roller:
120-170mm
BD of Roller:
54mm
Hydraulic Power:
4kw
Thread Length:
no limits
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 months
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden package
Port
TIANJIN

Automatic High Speed Screw Threading rolling machine

Thread Rolling Machine Model YY28-80

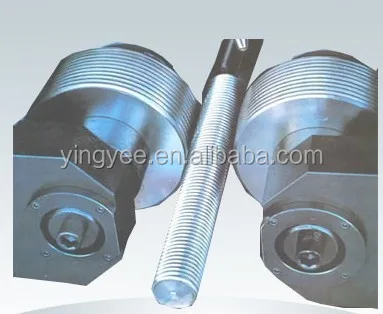

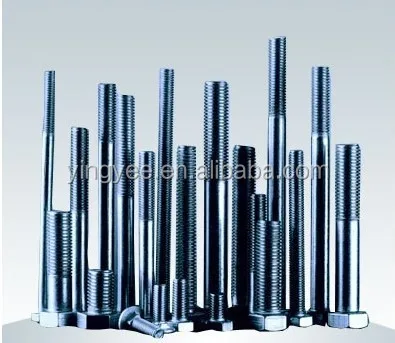

This model is widely praised for its rational price, easy maintenance and high quality. Besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller. The through screw made with this machine in ZheJiang Standard parts base has been exported to US, Canada and Europe.



Technical Parameters

Pressure of Roller max.

150KN

Rotary Speed of Main Shaft

36,47,60,78(r/min)

Working Dia

4-48mm

Feed Speed of Movable shaft

5mm/s

OD of Roller

120-170mm

Thread Length

(no limits)

BD of Roller

54mm

Main Power

4kw

Roller Width max

100mm

Hydraulic Power

2.2kw

Dip Angle of Main Shaft

±5°

Weight

1700kg

Center Distance of Main shaft

120-240mm

Size

1480×1330×1440mm

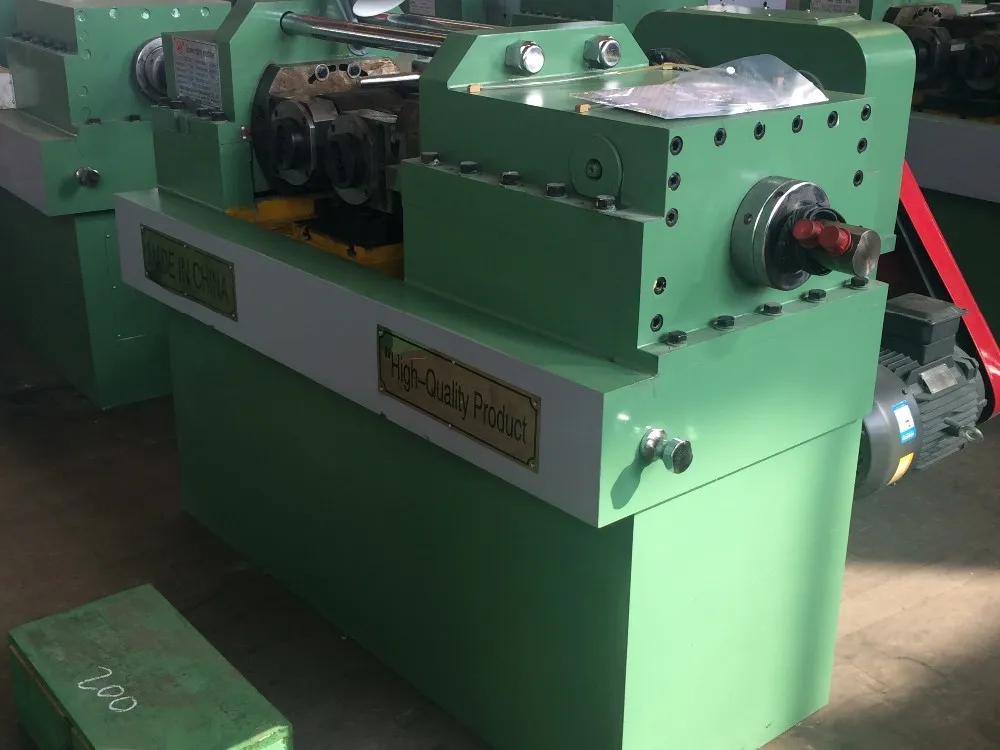

Pictures of machine:



Packaging & Shipping





Company Information

Shijiazhuang Yingyee Import&Export Co., Ltd.

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor fromall the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.



Our products were sold to more than 20 countries already. Also included US and Germany.

Main product :

  •  Roof roll forming machine
  •  Roller shutter door roll forming machine
  •  C and Z purlin roll forming machine
  •  Downpipe roll forming machine
  •  Light keel roll forming machine
  •  Shearing machine
  •  Hydraulic decoiler
  •  Bending machine
  •  Slitting machine
FAQ
Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Contact us

Welcome to contact us , we are sure you will get good machine quality and best service. Hope to cooperate with you!
