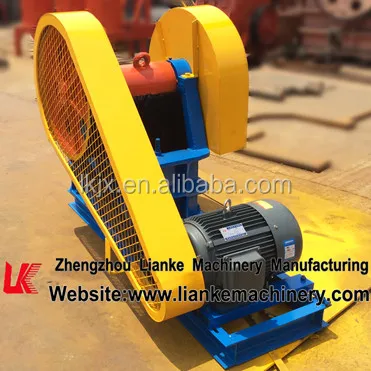

Complete set jaw crusher with screening machine,jaw crusher and screening machine

FOB Reference Price:Get Latest Price
$1,000.00 - $9,999.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Jaw Crusher
Application:
Mining
Motor Type:
AC Motor
Power(W):
5.5-220kw
Capacity(t/h):
1-1000tph
Place of Origin:
Henan, China (Mainland)
Brand Name:
LianKe
Model Number:
PE250*400
Dimension(L*W*H):
Based on the Jaw
Weight:
0.81-100.9T
Certification:
CE
Name:
jaw crusher and screening machine
Price:
Negotiable
Spare parts supply:
Lifelong Time
Keyword:
Small PE Jaw Crusher Plant Price Quarry
Color:
Customizable
Test&Installation:
Rofessional Engineer Assigned
Max feeding size:
Depends on Jaw Crusher model
The Machines classification:
Crushing Line
After sale Service:
Overseas
Details:
Contact
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Completely in wooden case or according to the customer requirements.
Port
China Main Port
Lead Time :
10-15 working days if in stock
Product Description
Introduction
Jaw crusher and screening machine is the most commonly used gravel equipment in the world. It is mainly used for the medium-sized crushing of various ores and bulk materials. The material to be crushed has a maximum compressive strength of 320 MPa.

Application

Our company design and produce large and medium-sized jaw crusher in the country at an absolute leading level, the research and development of large and medium-sized jaw crusher, jaw crusher and screening machine with a big broken ratio, product size uniformity, simple structure, reliable performance, easy maintenance, operation low cost, etc. It can be widely used in many industries such as mining, smelting, building material, highway, railway, water conservancy and chemical industry.

Working Principle

Jaw crusher and screening machine is powered by a motor, through the motor pulley, driven by the V-belt and sheave eccentric shaft, so that the moving jaw in a predetermined trajectory for reciprocating motion. The material entering the crushing chamber which is composed of fixed jaw, movable jaw and edge guard is crushed, and the finished material is discharged.

Performance Characteristics


1. Simple structure, easy maintenance
2. Stable performance, low operating costs
3. Product size uniform, broken than large.

Technical Data

Model
Feed Open
(mm)
Max.   Feed   Size
(mm)
Outlet
adjustable
range(mm)
Capacity
(t/h)
Power
(kw)
Weight
(t)
Dimension
(mm)
PE-150x250
150x250
125
10-40
1-3
5.5
0.81
875x758x850
PE-200x300
200x300
180
15-50
2-6
7.5
1
950x820x1000
PE-250x350
250x350
180
18-70
3-10
11
1.3
1100x950x1150
PE-250x400
250x400
210
20-60
5-20
15
2.8
1450x1315x1296
PE-400x600
400x600
340
40-100
25-65
30
6.5
1565x1732x1586
PE-500x750
500x750
425
50-100
45-80
55
10.1
1892x2054x1853
PE-600x900
600x900
500
65-160
70-150
55-75
15.5
2520x1840x2303
PE-750x1060
750x1060
630
80-140
130-260
110
28
2620x2302x3110
PE-900x1200
900x1200
750
98-165
220-500
110-132
50
3789x2826x3025
PE-1000x1200
1000x1200
850
195-265
250-700
132
57
3889x2826x3025
PE-1200x1500
1200x1500
1020
150-300
400-1000
160-220
100.9
4200x3750x3820

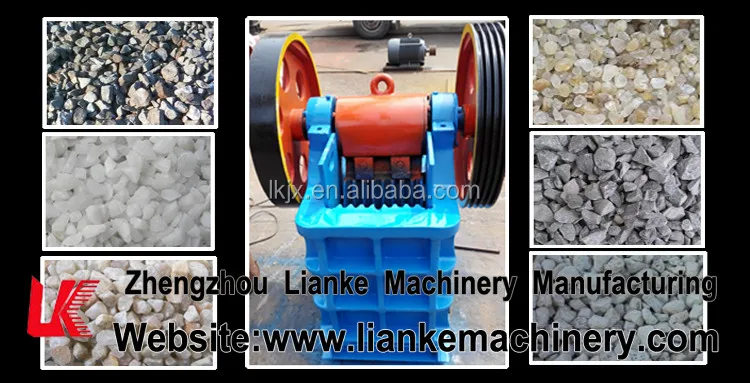

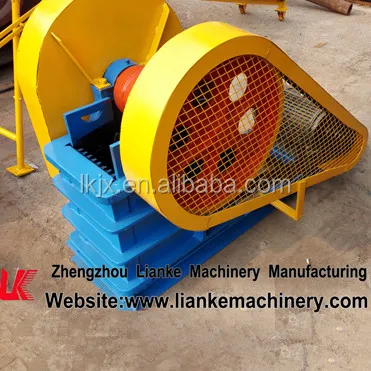

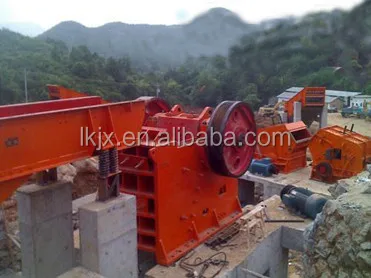

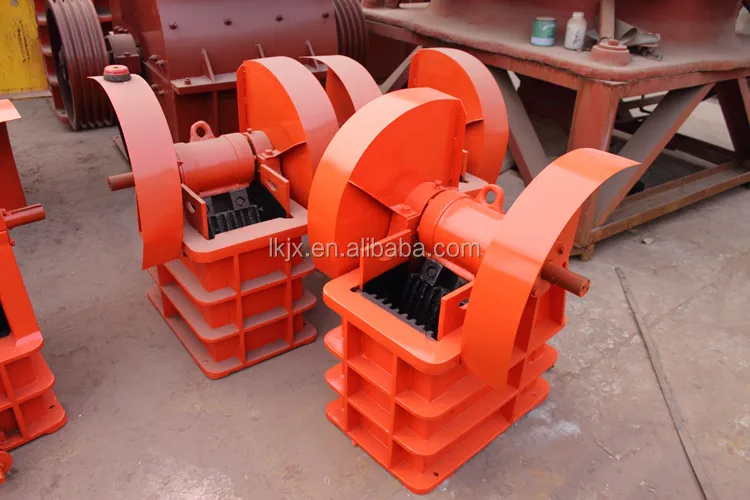

Products Show
Our Service

Pre-sales Service

* Inquiry and consulting support.
* Sample testing support.
* Welcome to view our Factory.

After-sales Service

* Training how to instal the machine in flow chart.
* Spare parts supply in life-long time.

Our Company

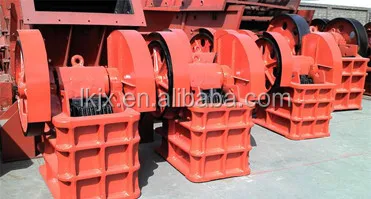

Warehouse

Team

Packing & Delivery

Packing Details  : Packing, wooden case, 1 set/case or depens on customer requirements

Delivery Details : 10-15 days after order of jaw crusher

Contact Information
Name: Lily Zhang
Tel:008615515991837
Phone/Whatsapp: +8615515991837
QQ: 3241601726
Skype ID: lilyzhang9312
Trade manager:cn1519860110rckc
Web: www.liankemachine.com
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
