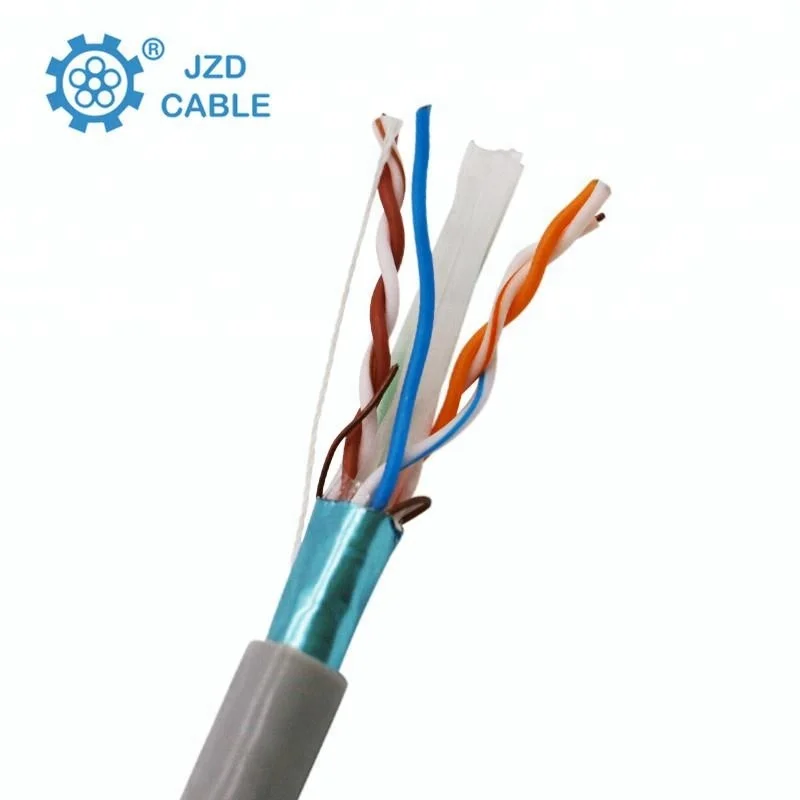

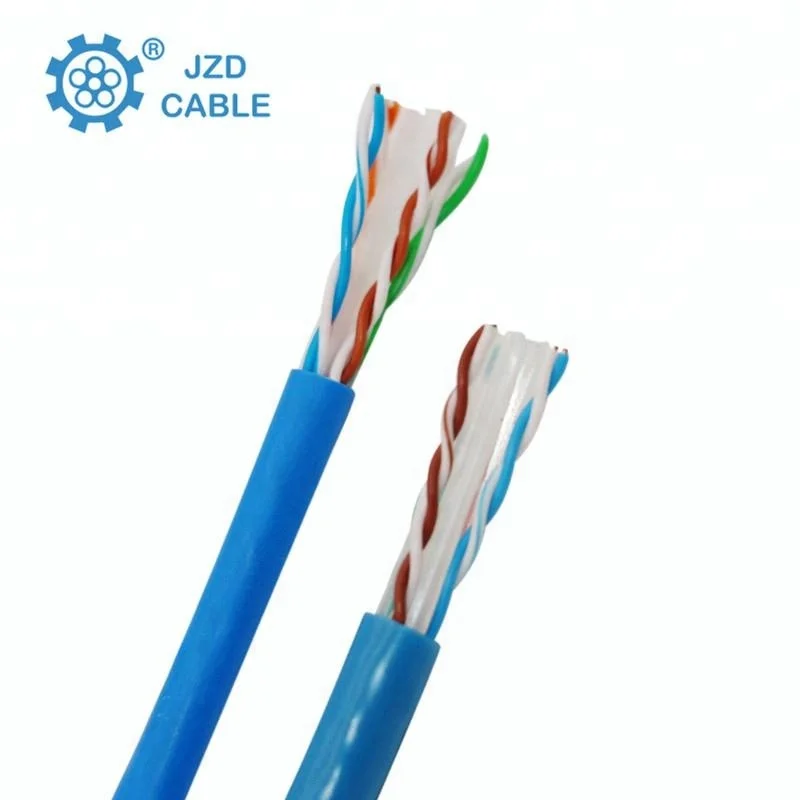

Computer use RJ45 connector PVC jacket copper wire cat 5e 6 cat5e cat6 UTP FTP indoor network cable patch cord

FOB Reference Price:Get Latest Price
$0.05 - $0.15 / Meter | 500 Meter/Meters (Min. Order)
Customization:
Customized logo (Min. Order: 5000 Meters)
Customized packaging (Min. Order: 5000 Meters)

More

Graphic customization (Min. Order: 5000 Meters) Less
Samples:
$0.01 /Meter | 1 Meter (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
JZD
Number of Conductors:
4
Type:
Cat 5
U/U0:
300/500V
Color:
As your request
Standard:
ul3135
Temperature:
-60C/+200C
Application:
Lighting/electric appliance/instrument
Conductor:
Copper
Jacket:
PVC
Certification:
CE/ROHS/ISO9001
Product name:
cat 5e 6 cat5e cat6 UTP FTP indoor network cable patch cord
Supply Ability
Supply Ability:
10000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Inner packing:Wooden reel,Plastic reel,Paper reel
Ourter pakcing:Carton box,Pull outbox,Palleta available.
Port
shenzhen

Computer use RJ45 connector PVC jacket copper wire cat 5e 6 cat5e cat6 UTP FTP indoor network cable patch cord

yjv5core--821_01photobank (2)_



Product Description



  •  Product standard:
    The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
  • Main of cables features
    1,Uo/U is 450/750V,300/500,
    2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
  • Application:

          Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power



          plant, householdelectrical applance,insurment and telecommunication equipment.





                                         U/UTP Cat 6(lndoor)

Anti-Crosstalk DividerLDPE:4.5*0.3
Cable Shield(Aluminum Foil)Tick:0.060mm,Extent:25mm
ESD Drain Wire O.5TC
Nilon Rip cord150D
Max.capacitance unbalance(pF/100m)≤330pF /100M(Per TIA/EIA-5688.2)
60pF/100(Per IEC 61156)
Nominal Velocity of Propagation72%
Max.Delay Skew(ns/100m)≤45ns/100m
Max.Conductor DC Resistance 20Deg.C9.38Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C5% (per TIA/EIA-5688.2)
2% (per IEC 61156)
Characteristic lmpedance(O) 4~100MHz100±15
Operating Temp.Range-20~70 ℃
Max.Recommended Pulling Tension110N
Min.Bend Radius(lnstall) 8XO.D.
Flame TestCM







                                              F/UTP Cat 6e(lndoor)

Anti-Crosstalk DividerLDPE:4.5*0.3
cable Shield(Aluminum Foil)Tick:0.060mm,Extent:25mm
ESD Drain Wire 0.5TC
Ni Ion Rip cord150D
Max.capacitance unbalance(pF/100m)330pF/100M(Per TIA/EIA-568B.2)
60pF/100{Per IEC 61156}
Nominal Velocity of Propagation69%
Max.Delay Skew(ns/100m}45ns/100m
Max.Conductor DC Resistance20Deg.c9.38Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C5% (perTIA/EIA-568B.2)
2% (per IEC 61156)
Characteristic lmpedance(O) 4"1.00MHz100±15
Operating Temp.Range -20~70
Max.Recommended Pulling Tension110N
Min.Bend Radius(lnstall)8xO.D.
Flame Test CM

IMG_7023-1IMG_7040-1












More products



Packaging & Shipping



_09

Company Information



_10

Certifications



_11_12_13

Our customers are located all over the world including China, Singapore, Malaysia, Indonesia, Korea, India, USA and many countries in Europe as well as Africa and South America.



FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
