Construction equipment used rebar rib peeling thread rolling machine

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JHB400
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Construction
Production Capacity:
100%
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
JBCZ
Voltage:
380V
Power(W):
4KW
Dimension(L*W*H):
1500*700*1350mm
Weight:
450kg
Certification:
CE Certification
Warranty:
12 Months
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Model:
JHB400
Voltage/Power:
3.0kw,also can be customized according to your order
Net.weight:
557kg
Dimension:
1580X700X1350(mm)
Tensile strength:
linked rebar can be equal to the original rebar
Quality:
high, with International Cetification
Sales area:
5 continents, 31countries
Operation:
easily handy
Product name:
Construction equipment used rebar rib peeling thread rolling machine
Supply Ability
Supply Ability:
600 Set/Sets per Year Construction equipment rebar rib peeling thread rolling machine
Packaging & Delivery
Packaging Details
normal wooden cases with dimension of 1700X900X1700mm or according to your request;
Construction equipment used rebar rib peeling thread rolling machine
Port
shanghai
Video Description
Product Description

Steel Rib Peeling Thread Rolling


System


1.Description of JBCZ rebar couplers and threading machines:

1). Brand: JBCZ

2). Size: 12-40MM

3). Standard: JHB400, THE VOLTAGE IS ALSO CUSTOMIZED;

4). Certification: ISO9001, SGS, CE, DCL, etc.

Product Name
Construction equipment used rebar rib peeling thread rolling machine
Material
carbon steel
Color
Green, blue, etc.
Voltage/Power
3.0kw, also can be customized according to your order
Net.weight
557kg
Standard
JHB400, THE VOLTAGE IS ALSO CUSTOMIZED;
Grade
The UK standard , American standard (UBC1997) , ISO9001, , ACI 318, BS4449, British Standard ( BSB110), French Standard ( NF25-20-1), German Standard ( DIN1045), etc.
Brand
JBCZ
Thread
Parallel thread
Used
construction/building industry machinery
Products Show

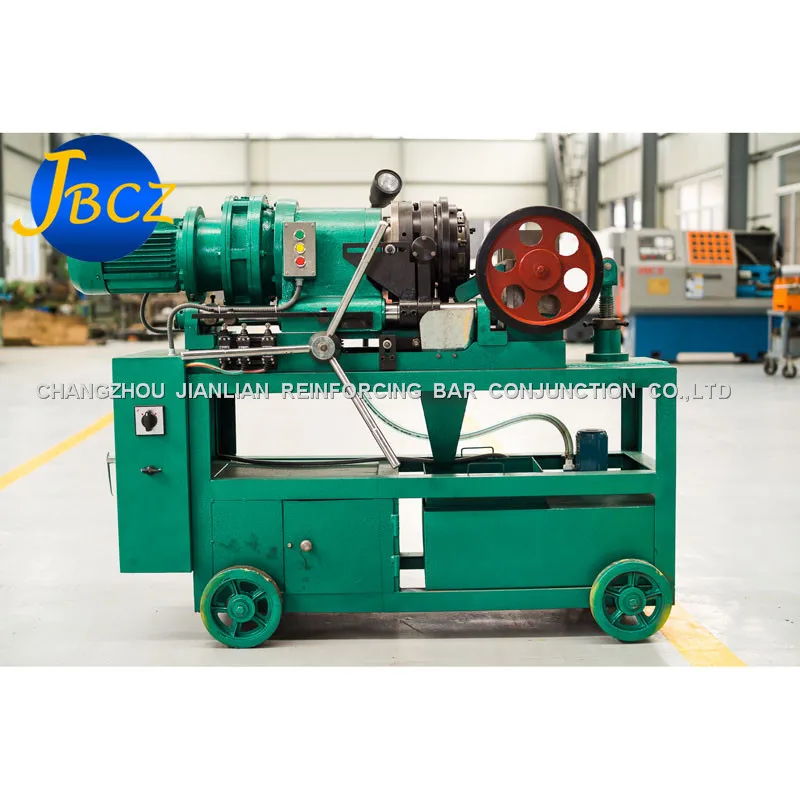

Rib peeling thread rolling machine

This rib peeling roll thread machine can process steel bar whose diameter is from 16mm to 40mm, and it can customized rebar diameter 14mm according to our client's requirements.

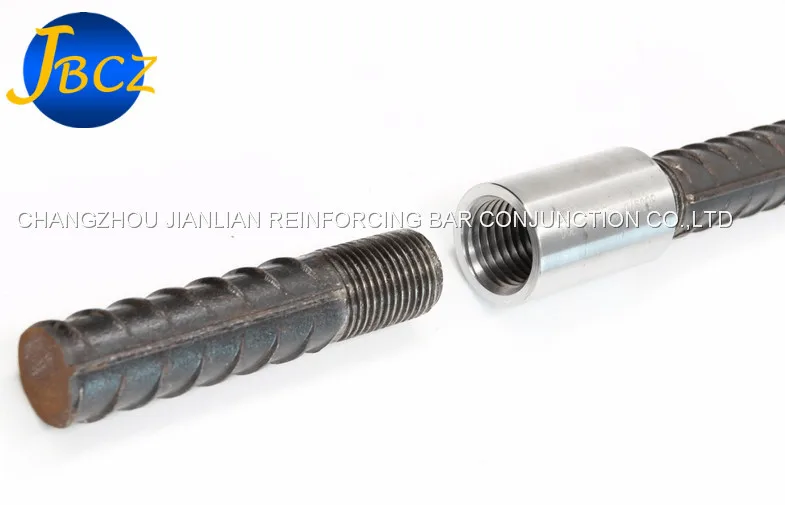

Rib peeling thread rebar couplers

Working principle:
1. Slice up the end of the rebar;
2. Peel the rib of the end of rebar with specialty rib peeling roll stamping machine;
3. Abutting joint two ends of rebar with coupler;

2.The advantages of rebar couplers and machinery:

It belongs to Grade2 connection
1. Handy operation, no need skilled operator and quick link;
2. High production efficiency, it can produce 300-500 stringings per machine during working hours, prefabricated in advance, don't occupy construction period;
3. Environment protection and safty;

This system contains one set of JHB400 Rib Peeling Roll Stamping machine and couplers. It can process steel bar whose diameter is from 16mm to 14mm, and it can customized rebar diameter 14mm according to our client's requirements.

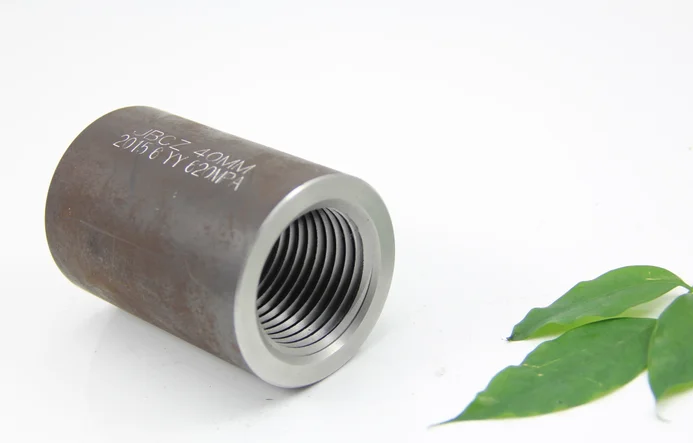

3.The parameter of standard rib peeling thread rebar couplers:

Steel bar diameter(MM)
Outer diameter of coupler (MM)
Length of coupler (MM)
Size of thread (MM)
16
25
45
M16.3*2.5
18
28
50
M18.3*2.5
20
30
55
M20.5*2.5
22
32
60
M22.5*2.5
25
38
65
M25.5*3.0
28
42
70
M28.5*3.0
32
48
80
M32.5*3.0
36
54
90
M36.5*3.0
40
59
95
M40.5*3.0

(1) TEST: 100% BAR BREAK;


(2) THE REBAR COUPLERS PARAMETER IS ALSO CUSTOMIZED;

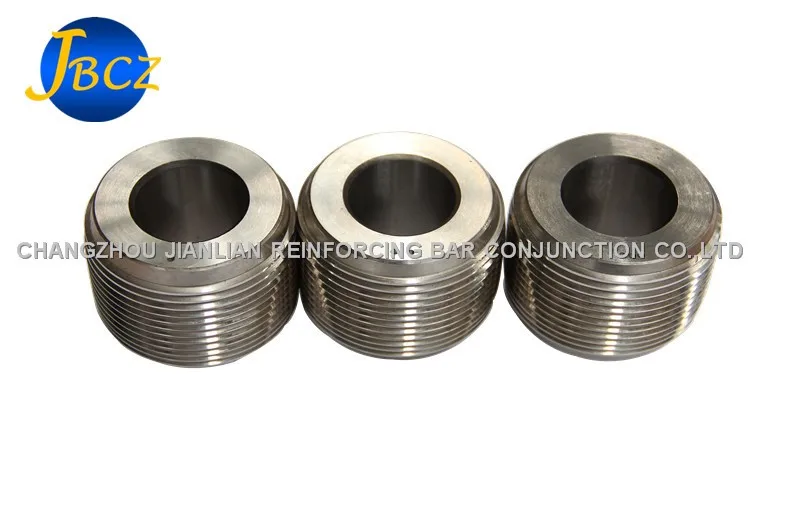

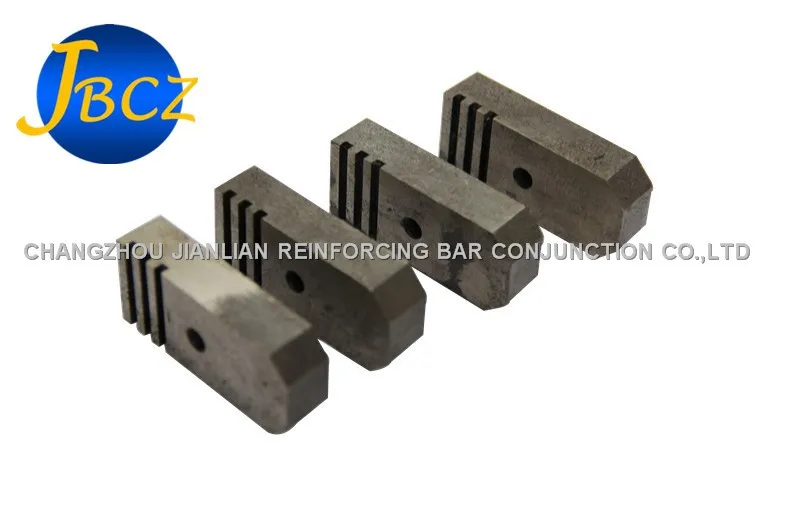

Threading chaser

Our Service
4.Application of rebar couplers and machinery:

Bridge Project


Hangzhou Bay Crossing Sea Bridge,
Jiangyin Yangzi River Bridge, Jiangsu Runyang Bridge,etc.


Commercial Building Project


Burj Khalifa Tower, Oriental Pearl tower,
Saraya Tower, Jinmao Tower,ect.



Public Project



Beijing Capital Airport, Qinshan Nuclear Power Plant,
GaziBarotha Hydropower Station In Pakistan,
North Jeddah Water Pump Station, Dubai Metro,
Suzhou Gymnasium,etc.
Our Company

JBCZ factory:

Our company was established in 1987. We are a professional manufacture of steel bar connection machines and couple rs, including three series: upset forging parallel thread system, rib peeling roll stamping system, and cold stamping system. For 29 years, depending on aspiring efforts of all employees and painstaking management, the company now has more size and strength.

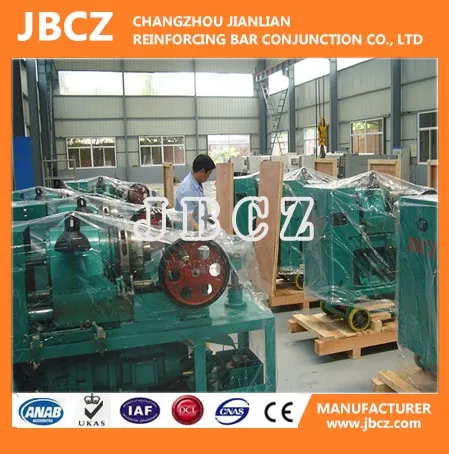

Warehouse

Our Warehouse

Team

Our Team

5.Why choose JBCZ

1), High strength: The strength reach Grade I, stronger than the reinforcement bar and guarantees bar break under tensile stress (tensile strength of connection point =1.1 times of connected bar). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005

2), Wide working range: Adaptable for 12mm-50mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard.

3), High efficiency: Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.

4), Environmental protection and economy profit: No Environment pollution, can work all day, not affected by weather, economize energy source and bar material.

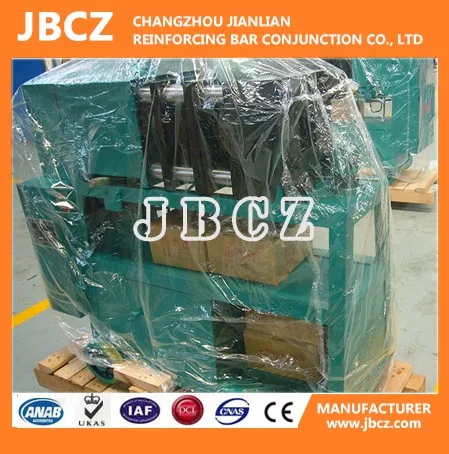

Packing & Delivery

Packing Details  : Rib peeling roll thread machines are packed into wooden cases, or according your requirements; rebar couplers are packed in carton box with plastic bag;


Delivery Details : within 7-25 days after receiving the payment.

1. With plastic bag
2. Wooden cases
3. Then put into container

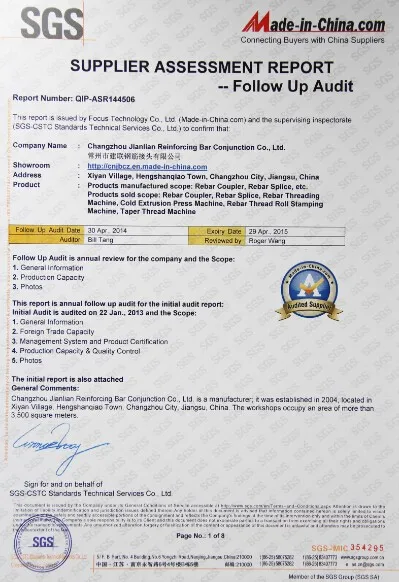

Our Certifications

6.JBCZ Rebar couplers and machinery

With excellent production environment, good technical power and completed devices, the company has an annual production capacity of 6 million Ф12-Ф40 parallel thread rebar couplers and 500 sets of machinary, which could well meet major and key construction project need.

Customer Photo

7.Rebar Coupler Clients


JBCZ  products have been to 31 countries(regions) over the world :


Saudi Arabia, Mexico, Poland,Colombia, Pakistan, Qatar, UAE , Japan ,France ,New Zealand ,India , Ukraine, Sudan, Brazl, Lebanon ,South Korea, Iran, Thailand , Argentina, Kuwait,Taiwan,Russia, Dominica , Turkey, Malaysia ,Jamaica,Ethiopia ,Zambia,Philippines, China,etc.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer, you are welcome to visit our factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 100% in advance. Can communicate.


B: All the payment go through Aliababa Onetouch or Alibaba assurance payment.
