Conveying System Compact Dryer For Plastic Industry Desiccant Dehumidifier Dryer

  • 1 - 1 Sets
    $6,800.00
  • 2 - 4 Sets
    $6,500.00
  • >=5 Sets
    $6,200.00
Model Number:
XC-D120L/80H
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Electric Heating Power(kW):
6 kW
Capacity (kg):
120 kg
Blower Power(W):
750 W
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 Year
Core Components:
PLC, Motor
Place of Origin:
Guangdong, China
Brand Name:
XIECHENG
Certification:
CE
Weight (KG):
320 KG
After Warranty Service:
Video technical support, Online support
Applicable Industries:
Manufacturing Plant
Local Service Location:
Viet Nam, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Uzbekistan
Showroom Location:
Viet Nam, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Uzbekistan, Malaysia
Dryer hopper:
120L
Dry -Air Dew Point:
-40 degree
Dry temperature:
80-160 degree
Vacuum hopper:
6L
Drying heater:
6kw
Blower Power:
0.75kw
Regeneration blower:
0.25kw
Conveying Blower:
0.75kw
Dimension:
1670*1040*875mm
warranty:
1 year
Marketing Type:
Hot Product
Warranty:
1 year
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case/Wood frame/Polythene film (Best protection to the goods)
Port
Jiangmen
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description

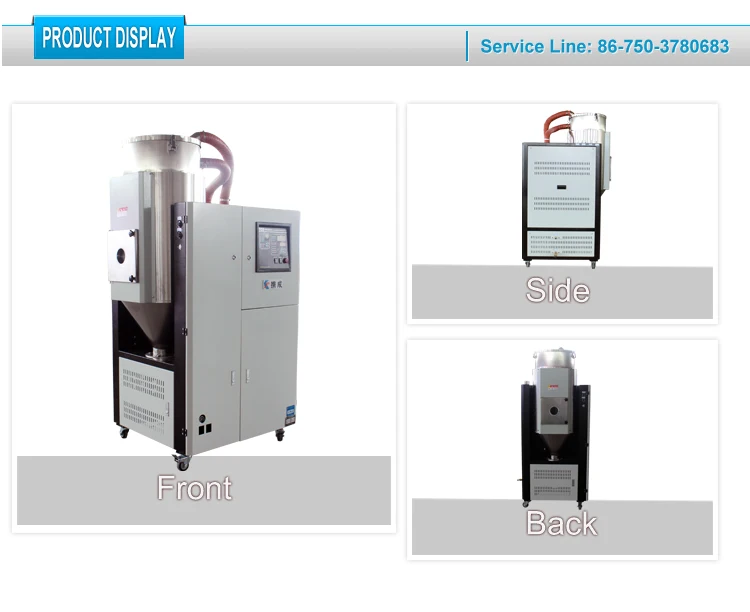

Conveying System Compact Dryer For Plastic Industry Desiccant Dehumidifier Dryer

Features of dehumidifier air dryer

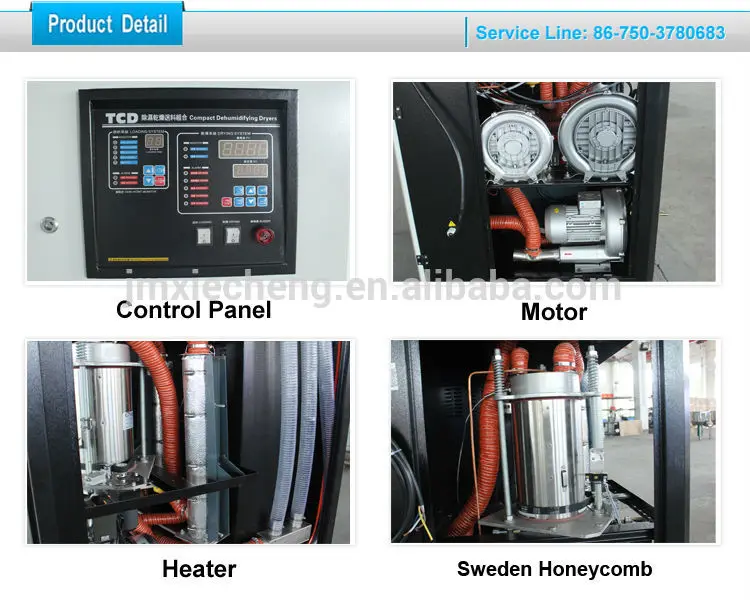

1) Microcomputer controller adopted.

2) This HDC integrated conveying dehumidifier is equipped with imported honeycomb dehumidifying rotor from Proflute, a Swedish company.

3) Micro-motor designed with the latest pendulum structure for easier achievement of dew-point.

4) Suitable for use on engineering plastic materials with strong absorption ability such as PA, PC, PBT, PET, etc.

5) Integration of three functions in one machine, namely dehumidifying, drying and two-section material conveying. Three-section or four-section material conveying is also optional.

6) Air blowing tube designed under the heat-preserving drying barrel to effectively avoid heat dissipation and improve drying efficiency.

7) Using dual-fin cooler design to ensure a lower return air temperature and dew-point.

8) Equipped with material conveying, recycling and regenerating filter to keep the key components such as the fan and honeycomb from dust contamination.

9) The conveying system contains a material cut-off valve to make sure no remains in the tube.

10) Optional dew-point meter with real-time display of dew-point detected.

11)With recyclable and resettable filter to make sure the honeycomb is not contaminated.

12) A thoughtful multiple security device built in.

13) Clear fault code display.




Product specification:
Model XCD-120L/80A
Material hopper Capacity(L) 120
Heat protection material Fiber glass+stainless steel
Dry air dew point(oC) -40
Temperature(oC) 80~160
Air flow(m3/h) 80
Blower power(kw) 0.75
Regeneration blower(kw) 0.25
Drying heater(kw) 5.4
Regeneration heater(kw) 3.9
Pipe size drying(mm) 51
Cooling(inch) 3/4"
Regeneration(mm) 38
Conveying blower(kw) 1.1
Conveying distance(m)          Stage1:10m;     Stage2:10m
Hose size(inch) 1.5
Sensor hopper(L) 6
Vacuum hopper capacity(L) 6
Dimension(cm) 100*87*180
Net weight(kg) 340



More model specification:

Model XCD-90L/80A XCD-120L/80A XCD-160L/130A XCD-230L/160A XCD-300L/220A XCD-450L/300A XCD-750L/400A
Material hopper Capacity(L) 90 120 160 230 300 450 750
Heat protection material Fiber glass
Dry air dew point(oC) -40 -40 -40 -40 -40 -40 -40
Temperature(oC) 80~160 80~160 80~160 80~160 80~160 80~160 80~160
Air flow(m3/h) 80 80 130 160 220 300 400
Blower power(kw) 0.75 0.75 1.1 1.5 2.2 3 5.5

Regeneration blower

(kw)

0.25 0.25 0.25 0.55 0.55 0.75 0.75

Drying heater

(kw)

3.9 5.4 5.4 7.2 12 15 18

Regeneration heater

(kw)

3.9 3.9 3.9 5.4 5.4 7.2 7.2
Pipe size drying(mm) 51 51 51 63 63 76 76
Cooling(inch) 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4"

Regeneration

(mm)

38 38 38 51 51 51 51
Conveying blower(kw) 1.1 1.1 1.1 1.5 1.5 1.5 2.2
Conveying distance(m) Stage1:10m; Stage2:10m
Hose size(inch) 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Sensor hopper(L) 6 6 6 6 6 6 10
Vacuum hopper capacity(L) 6 6 6 6 6 6 10
Dimension(cm) 100*87*180 100*87*180 100*87*180 123*95*239 165*130*225 150*130*280 178*130*286
Net weight(kg) 310 340 360 420 550 600 750
