Copper Cladding Micro Beer Brewery Plant Craft Brewing Equipment Conical Fermenter

FOB Reference Price:Get Latest Price
$1,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
FV
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DYE
Processing Types:
Alcohol
Voltage:
Request
Power(W):
Varies Depending
Dimension(L*W*H):
Capacity Request
Weight:
Defferent Models
Certification:
CE ISO TUV
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Fermenter Material:
Stainless Steel SUS304
Conical Degree:
60~90
Function:
Liquild Fermenation
Jacket Type:
Dimple Jacket
Sprall Ball:
Tri-clamp, 360 degree full range of cleaning, top on the tank
Insulation Thickness:
50/80/100 mm
Cladding Shell:
2B plate, Mirror polished, matt polished or satin finished
LOGO Nameplate:
laser engraving
Accorssies:
Themometer, thermo-well, sampling valve, PVRV
Note:
can be customize per your request
Supply Ability
Supply Ability:
50 Set/Sets per Month Copper Cladding Micro Beer Brewery Plant Craft Brewing Equipment
Packaging & Delivery
Packaging Details
Wooden Case or per customer request (Copper Cladding Micro Beer Brewery Plant Craft Brewing Equipment Conical Fermenter)
Port
Ningbo Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

Fermenter |  Bright Beer Tank | IBC Totes | Brewery Equipment | Distillation Equipment

                                                                                           Whatever product you need, talk to the experts.

DYE Brewing Equipment

· Short lead time: the equipment will be delivered within 60 days after the deposit is received.
· Pipe welding: using automatic pipe welding machine, reduce dead corner of pipes.
· Ferrule treatment: adopting cold-drawing technique, makes sure of dimensional accuracy and surface quality. The surface of nozzles will be smooth, and it will avoid sharp edges.
·Best Service. From the time customer release the order till customer get the products, we will provide on-time service, and willing to solve any problem at the first time.

Custom is Available for all Tanks:

3~120BBL System

Certified 304 Stainless Steel

Single Layer or Insulated Serving Tanks

Custom Size  and Features Available

Pressure tanks with a dished bottom and tank lid

Working pressure in tank: 0+-1bar, option 0+-2,5bar

Equipped with a CIP system

The material used the surface finishing depend on the intended application and the customer's specifications

Insulated tanks make work more efficient and contribute to a more econormical use of energy

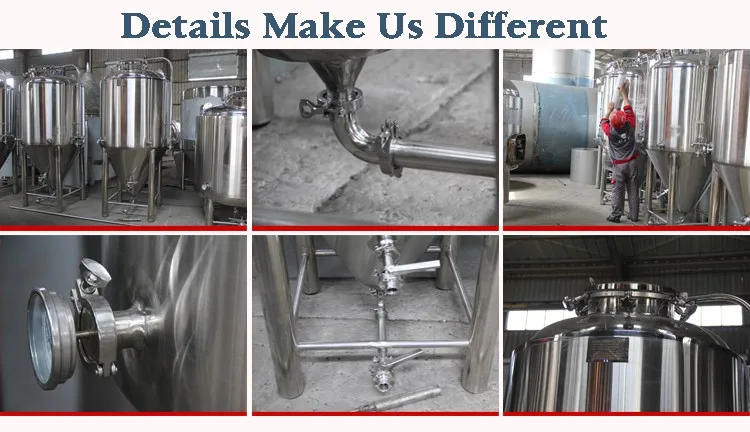

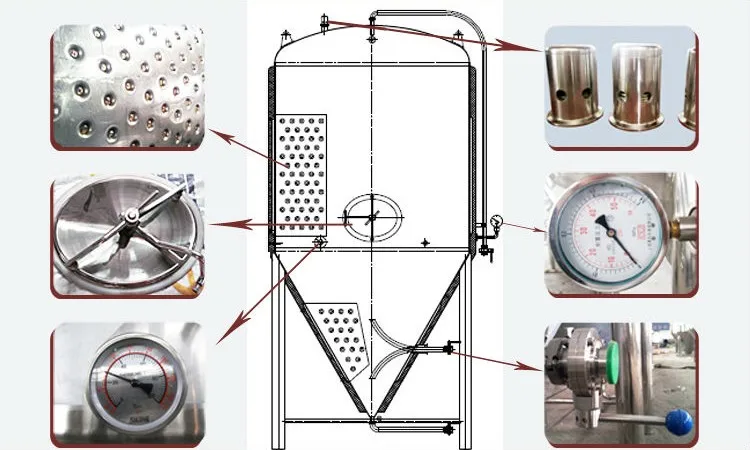

Detailed

01. Roughness is less than 0.22

Adopt international standards of high quality stainless steel tanks , high pressure polyurethane foam insulation, sheath according to customer requirments, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.

02. Designed as an arc shape without any corner

Perfect cleaning conditionand scientific design of the tank ensure beer CO2 supplying, beer cooling and tank cleaning, and also ensure the tank connecting and sharing with the CIP system, ice water, temperature control.

03. Many sections of the cooling jacket

Variety of jacket forms such as: laser welding honeycomb jacket single jacket, laser welding, laser welding arch corrugated single jacketed, half pipe jacket, etc., to meet the needs of different cooling medium for you to choose.

04.Rotatory feeder valve

Through the motor and reducer's drive, rotatory feeder valve makes the impeller with equal structure rotate inside the shell. The material in the bunker or the hopper feeding device in the upper part of the shell is filled into the cavity of impeller. Through impeller's rotating, the material unloads to the bottom of the shell. According to the conveying system requirements, the material can be discharged uniformly and continuous.

Main Size
2BBL, 7BBL,10BBL,15BBL,20BBL,25BBL,30BBL,40BBL,50BBL,60BBL
Material
All stainless Steel SUS304. (can choose copper outside )
External Diameter (mm)
The inner cylinder diameter + Insulation*2
The reference height (mm)
The whole system is designed on the basis of beautiful apperance
Conical Degree
60 to 90
Inner Surface Roughness
Mirror polish, Ra≤0.22μm
Head Surface Roughness
Mirror polish/ Matt wiredrawing processing
Top Head Type
DHA/DHB
Jacket Type
Dimple Jacket, high cooling efficiency.
Insulation
PU Foma Insulation     50/80/100mm Thickness
Out side Skin
stainless steel 2B board/ Mirro polish /Matt wiredrawing processing
Exhaust Funnel
Tri-clamp:Φ76,Φ89,Φ102,Φ133,Φ159,Φ219,Φ300,outlet condensate water
Top Manway
DN300,DN350,DN400,DN500,DN600 available
Side-manway
Ellipse manway:580*480, 530*430,500*400 are available
Adjustable Feet
3 or 4, Round legs, Adjustable height
Racking Arm Outlet
Tri-clamp, Φ51,Φ63,Φ76,Φ89 (rotating part), 360 rotating, easily operating
CIP Cleaning Piping
Tri-clamp, Φ32,Φ38,Φ51, arc direct transition, no weld, cleaning efficiency
Lifting Ears
According with HG/T 21574-2008
Level Gauge
Sanitary hose connected to cleaning pipe and bottom outlet
Spray Ball
Tri-clamp, Φ63,Φ76,Φ89, 360 degree full range of cleaning, install on the top
Inlet/ Outlet
Tri-clamp Φ25,Φ32,Φ38,Φ51,Φ63, can choose the bottom two deep pot of differ height
Carbonate Stone
Tri-clamp, Φ51,Φ63,Φ76,Φ89
Vent Hole
Tri-clamp,Φ25,Φ32,Φ38,Φ51
Logo Nameplate
Laser engraving, Detailed content
Jacket Inlet/ Outlet
Femal screw/ male screw
Accorssies
Themometer, thermo-well, sampling calve, pressure gauge, pressure/caccum relief valve,3*butterfly valves, CO2 port, PVRV, beer level indicator
Remark
If the guest put forward special requirements according to customer requirement tailored

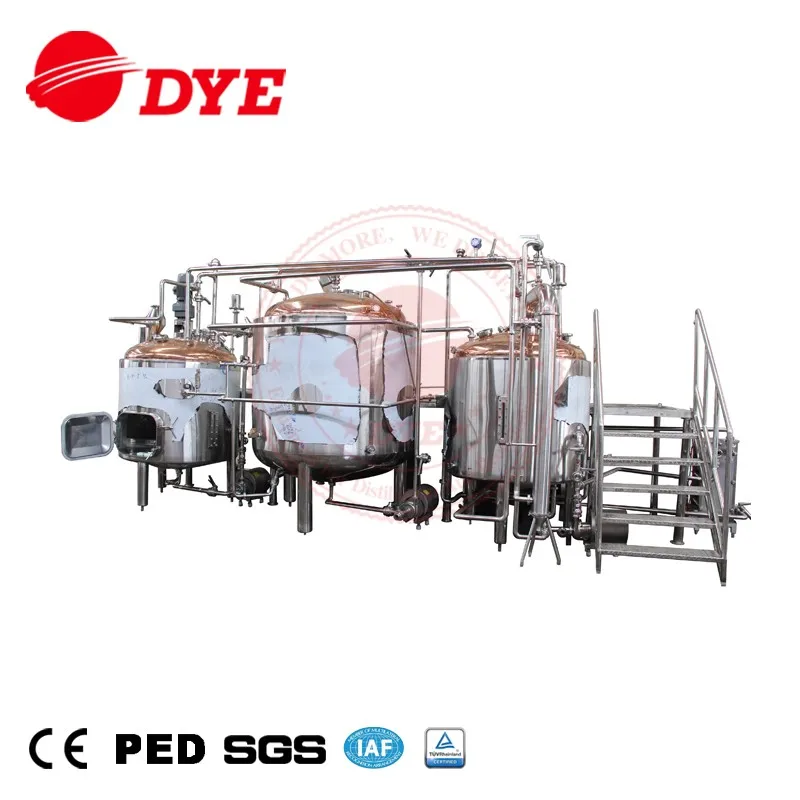

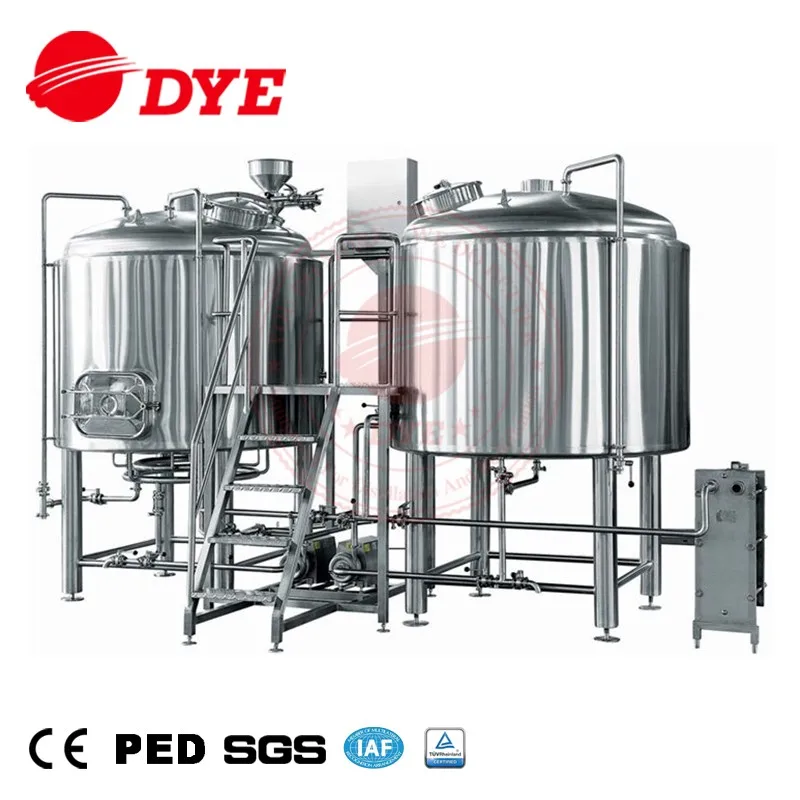

Related Product

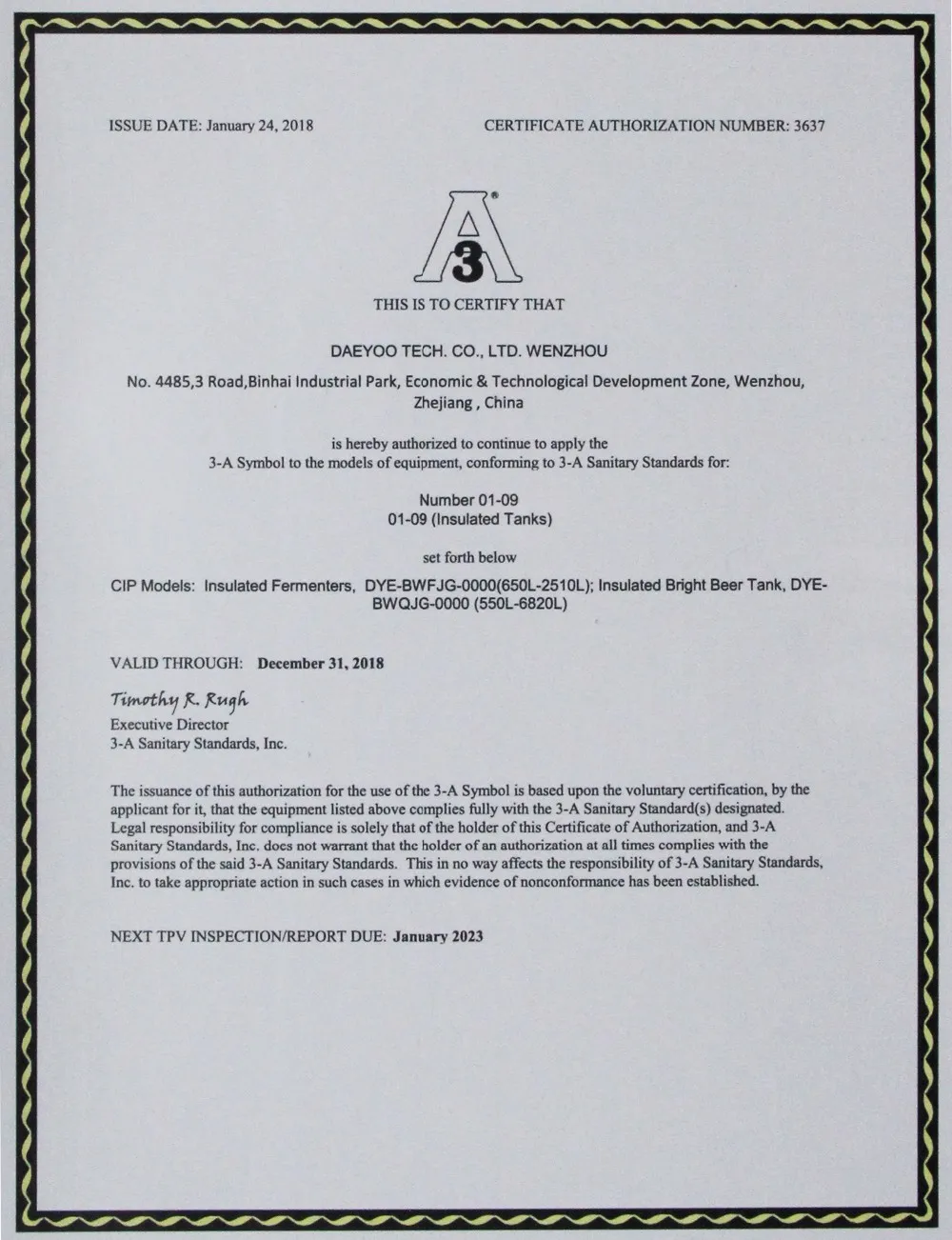

Certifications
Our Company

Daeyoo's advantages over other companies:

Have a modernized standard factory and employ more than 100 employees., DYE is a high-tech enterprise which combines design, developing, selling and after-sale service as a whole.

With 7 technicians from R&D department, can provide a special scheme for the customer and beer production line's design and developing. Have a professional technical team with more than 10 employees and 20 employees in our company hold passports, thus, they can visit customers and help customers install and debug machine at any time and solve after-sale problems timely.

Moreover, our company has a professional sales team with more than 20 employees and 15 of them specialize in foreign trades (English and Russian). Those foreign trade salesmen can go abroad to attend the exhibition and communicate with foreign customers successfully. We are specialized in brewing equipment and distillation equipment which are designed and put into use gradually.

Choose us and get more benefits:

1. Deliver innovative products in the market at a faster pace;

2. Enhance the reliability of product's quality;

3. Decrease the total cost of the product effectively;

4. Improve research personnel's ability of creative design;

5. Gain more leading technologies about product development and increase the competitive advantage of products.

Contact Us

Our service:


Free quote;

Free drawing;

30%deposit & 70%balance payment before shipment;

Plastic wrap, PE foam & wooden box package for shipment;

Online supporting for installation;

13 month warranty after installation in your factory.
