Copper tube air cooled condenser price

  • >=50 Pieces
    $30.00
Model Number:
Air-cooled condenser-TY series
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 Negotiable
Customization:
Production and processing according to drawings (Min. Order: 3 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
TianYang
Type:
Air-cooled condenser
Application:
Refrigeration Parts, Air-cooled condenser
Certification:
ROHS
Brand:
TianYang
Product Name:
Air-cooled condenser
Material:
Copper tube aluminum fin
Color:
Black
Model:
Customer drawings
Packing:
Carton box + wooden box + foam box.
Refrigerant:
R-410a
Use for:
Air-cooled equipment
Year:
2018 Year
Supply Ability
Supply Ability:
181102 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
The air-cooled condenser is packaged in the following way: carton box + wooden box + foam box.
The production cycle of the air-cooled condenser is: the production and delivery are arranged within 15 days after receiving the advance payment.
Port
Qingdao or Tianjin
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description
Product Introduction

        Copper tube air cooled condenser price

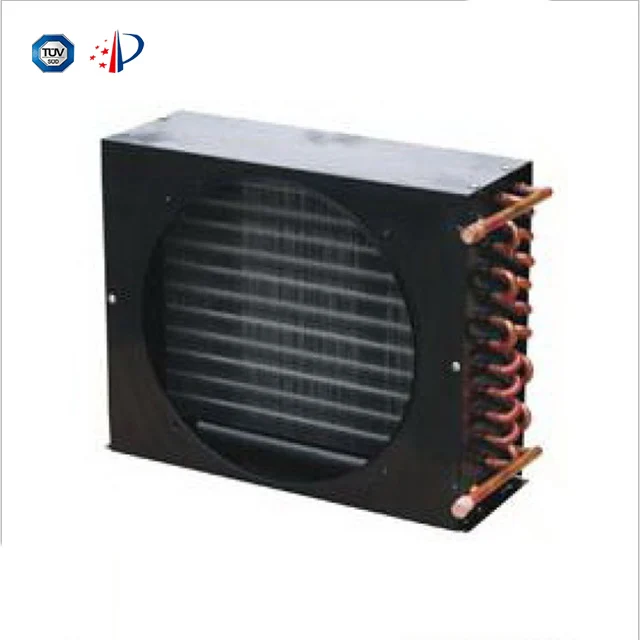

           Air-cooled condenser

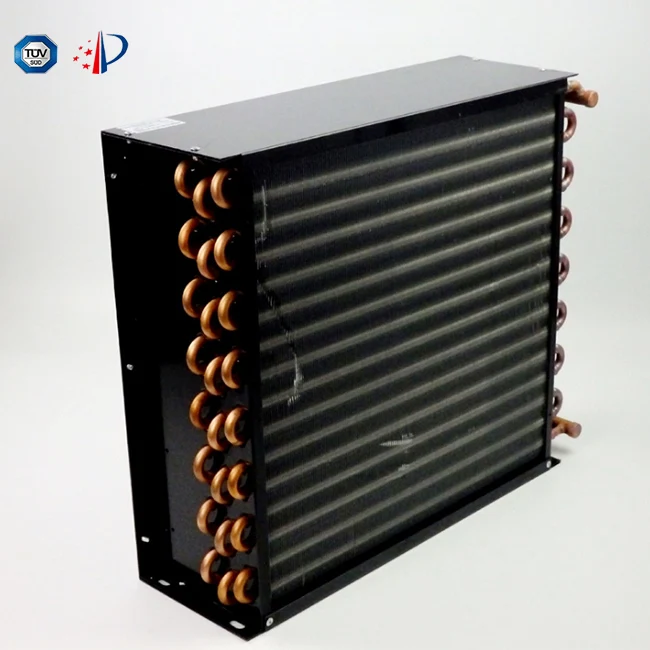

      Air-cooled condenser

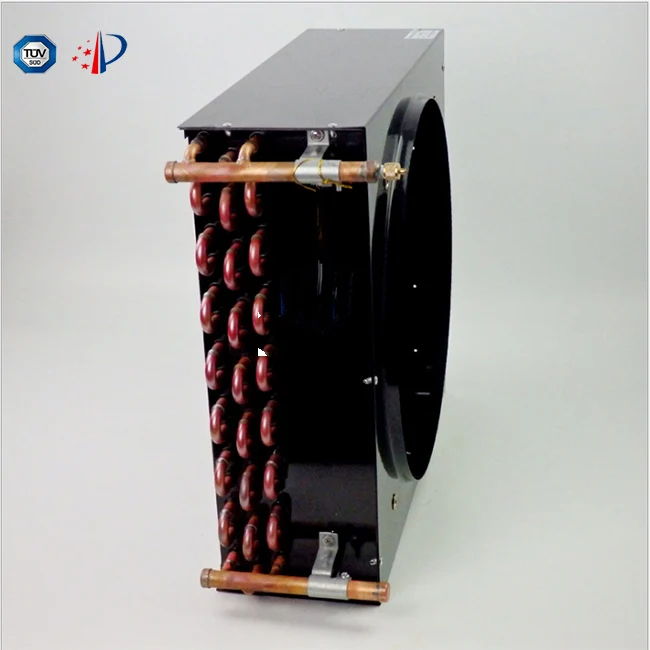

     Air-cooled condenser

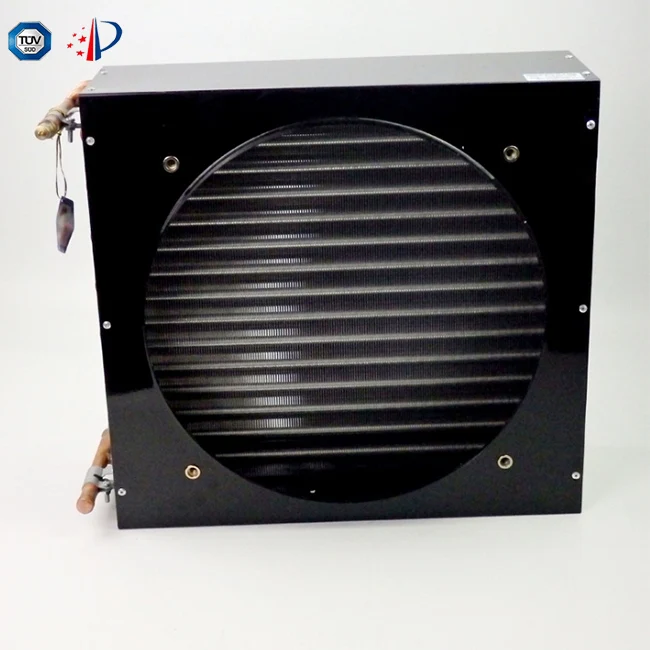

Product Details Show

Raw Material : copper tube , aluminium fin , galvanized plate and stainless steel plate
Size of copper pipe: diameter:7mm, 12.7mm, 9.52mm ,Inner Grooved Or smooth tube .
Aluminum foil : Hydrophilic or bare
Fin type :Louver Fin , Flat fin , corrugated fin
Pitch of fins can be adjusted between 1.5-8mm
Pitch of holes and pitch of rows:19.1*16mm,21*21.7mm,21*19mm.etc
No less than 3.0mpa air pressure (nitrogen)leak test
We can offer customized service as well
Suitable for R134a, R410a, refrigerant etc...

Main Products






.

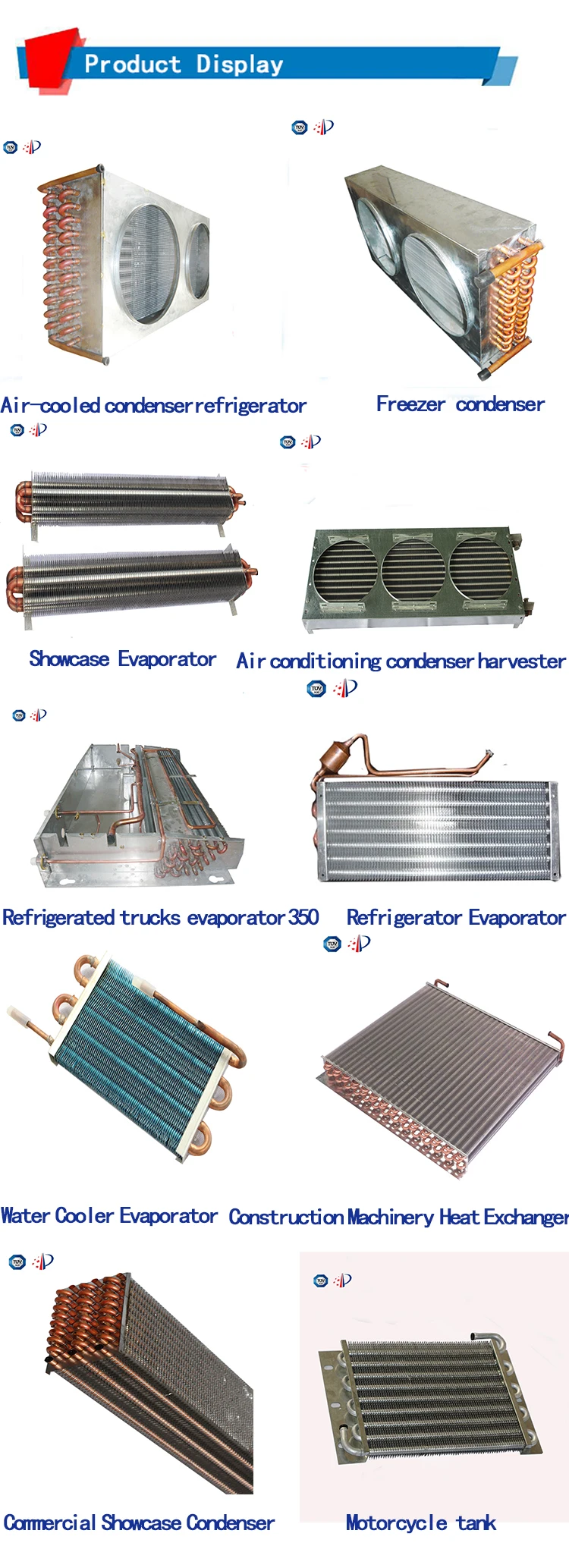

Products Display
Copper   tube           diameter (mm)
Hole distance(mm)
Row Space(mm)
Fin specifications
Pitch of fine(mm)
∅7(inside0.33, thread 26*17)
19.1
16(triangle)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
ф7 (flat tube 0.3mm)
21
12.7(Universal)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
1.5 - 2.5
∅7
21.8
20(triangles)
Aluminum-copper fins, hydrophilic foil, white aluminum foil, water ripple or flat sheet
4 about
ф9.52*0.28~0.35
25
21.65 (metric triangle)
Aluminum-copper
fins,hydrophilic foils, corrugated
2.2 - 5.5
∅9.52
25.4
22 (English triangular low flange)
Aluminum-copper
fins,hydrophilic foils, corrugated or windowed sheets
1.8 - 2.2-3
∅9.52
25
25(Square)
Aluminum copper fins, water ripple
3.5- 4.5
∅12
38
32.91
Aluminum-copper fins, hydrophilic foils, corrugated
5 - 8.5
∅12.7*0.39
31.75
27.5(Triangle)
Aluminum copper fins, water ripple
4.5 - 7
∅16*0.36
38
32.91(Triangle)
Aluminum copper fins, water ripples or flat films
5.5 - 8
∅16*0.36
55
27.5(Triangle)
Aluminum copper fins, water ripple
5.5 - 7.5
∅9.52 coil type
Mold diameter 9.52, outside garden 100mm.
  Material: copper tube copper fin, copper tube copper fin, aluminum tube aluminum fin (0.18mm-0.22mm), fins width 38
External brass diameter: 19mm, 22mm, 28mm. (Excluding special requirements)
The diameter of the hood: 210mm, 260mm 310 (300)mm, all of which are flanged, 240mm without flange.
End plate (1-1.2mm); Aluminum plate or galvanized plate, stainless steel plate
