Coreless Dsic Cascading Special generator 6000W 400rpm 230V

FOB Reference Price:Get Latest Price
$100.00 - $1,200.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Sicea
Model Number:
133DE1301-26F
Type:
Wind Power Generator
Power:
6000W (2*3KW)
Rated speed:
400rpm
Application:
Wind turbine & Hydro Power & Aerospace & Robotics
Generator type:
3Phase Permanent Magnent Generator
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box suitable for long-distance transport
Port
Shanghai
Lead Time :
Shipped in 20 days after payment
Product Description

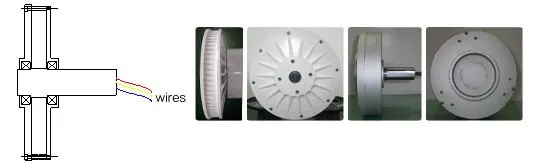

Coreless Disc Permanent Magnetic Generator 6000W 400rpm 230V Model: 133DE1301-26F

Introduction

1.1 Outer rotor coreless multimode generator
This generator features an outer rotor structure that allows rotation of a magnet and coreless design that eliminates an iron core. The generator achieves noise-free rotation, together with extreme smoothness. Since the generator is free of electrically contacted components, there is no cause of cogging or core damage. In addition, the multimode design can generate high voltage even at minimum rotating speeds and realize high-power output and improved efficiency in the range from low to high wind or flow velocities.

1.2 The generator ensures safe operation under strong wind or flow conditions
The generator is so safety-designed that it can endure continuous braking even during high-speed rotation under strong wind or flow conditions. The pole-top bearing made of corrosion resistant aluminum alloy is designed by utilizing the unique technology used which ruggedly supports the generator shaft, providing the highest levels of safety even under strong wind or flow conditions.

1.3 The generator has a powerful brake system
The electric (electromagnetic) brake system of the generator permits trouble and wear-free operation even during continuous operation and thus ensures the highest safety. The brake system can safely decelerate the generator even when it is necessary to rapidly stop the generator while rotating at more than rated speed.

1.4 Feature
(1)Voltage tuned on customer request
(2)25 years life design,long using life
(3)NdFeB Magnets
(4)Outer rotor disc
(5) IP55 protection grade, generator completely closed, high reliability
(6) Low friction bearings,low start torque
(7) Nominal speed ~300rpm, low speed, max. speed up to 3500 rpm
(8) No cogging torque
(9)Efficiency > 90%,Low-speed and high efficient
(10)Good heat dissipation effect
(11)Low noise level.

Specification
No.
Parameter
Symbol
Units
Data
1
Rectified DC Voltage
E
V
230
2
Gen. Output Voltage


AC ( 3 Pole )
3
Rotor


Permanent magnet type ( outer rotor )
4
Stator


Coreless type
5
Output Power
Po
W
6000  (2*3OOOW)
6
Rated Speed
ω
rpm
400
7
Speed Constant
KE
V/Krpm
575
8
Resistance (Line-Line)
RT
Ω
≤5.35
9
Max. Winding Temperature
CMax
°C
130
10
Efficiency
η

90%
11
Winding Type


Wye
12
Insulation Resistance


100Mohm Min.(500V DC)
13
Dielectric Strength


1500V AC 1minute
14
Rate Current
IR
A
13
15
Start Torque
M
Nm
Very small

mainly depends on the bearing friction
16
Gen.Weight
WM
Kg
55
17
Gen. Diameter
MD
mm
342
18
Gen.Lenth
ML
mm
237
19
Shaft. Diameter
MD
mm
60
20
Housing Material


Aluminum ( Alloy )
21
Shaft Material


Steel
22
Shaft Bearing


Ball
Application

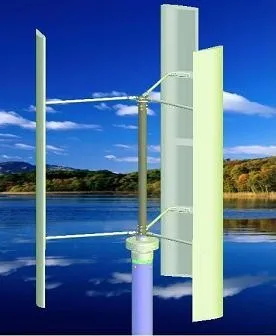

3.1 Wind turbine
The wind turbine using coreless disc generator is the most advanced, high-efficiency, low-noise and new style, which provides nature, clean and green power system to the city, village, road, tunnel, building, park, aquare, battalion and so on. The coreless disc generator c can make the turbine start to spin in the case of 1m/s wind speed, and almost no sound of silence. Its fully automated brakeing system can shut down the operation under strong winds to ensure the safty of the use of the product.

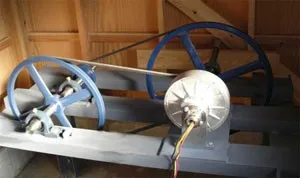

3.2 Hydroelectric power
In the rich of water resource area, if adopting high efficient,coreless disc generators shall make full use of local natural resources to solve people's lives, and without destroying the natural environment, meanwhile, but also beautify the environment, and become a beautiful landscape

3.3 Aerospace
3.4 Robotics
3.5 The Drilling Tool Systems

Series

Range of products
50W, 100W, 200W, 300W, 400W, 500W, 1000W, 1500W, 2000W,3000W, 5000W, 7500W, 10KW, 20KW.

No.
Model
Power
Rotate Speed
Voltage
Load Voltage
Start torque
W
rpm
Vdc
Vdc
N·m
1
63DM0
50
380
28
24(12)
<0.02
2
63DM1
100
380
28
24(12)
<0.02
3
95DM0
200
380
28
24
<0.02
4
95DM1
300
380
28
24
<0.02
5
95DM2
500
380
28
24
<0.02
6
133DM0
1000
300
56
48
<0.075
7
133DM1
2000
300
115
96
<0.15
8
133DM2
1500
300
115
96
<0.1
9
133DM3
3000
380
155
115
<0.3
11
178DM0
3000
300
115
96
<0.25
12
178DM1
5000
300
230
192
<0.3
13
237DM0
7500
300
230
192
<0.35
14
237DM0
5000
200
230
192
<0.35
15
237DM1
10K
300
230
192
<0.5
16
237DM1
7500
200
230
192
<0.5
17
237DM1
20K
500
400
360
<0.5
Our Advantage

We focused on the development and application of renewable energy products, having a first-class R&D team, through "people-oriented" design concept, to strive to innovate product performance and inprove product quality continuously to satisfy the demand of the market. We can develop and produce specific products to meet the needs of different industires according to the customer's specific requirement.
