Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM/ Cash Register Paper

FOB Reference Price:Get Latest Price
$10,000.00 - $35,000.00 / Sets | 1 Set/Sets Coreless Thermal Paper fax paper slitting and rewinding machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder, Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM Paper
Dimension(L*W*H):
2000*1700*1500MM
Weight:
1300KG, 1200kg
Condition:
New
Computerized:
Yes
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
JOTA MACHINERY
Model Number:
JT-SLT-700
Voltage:
380V, three-phase four-wire, 380V,50HZ
Power(W):
2.95 KW
Certification:
SGS/CE, CE,SGS, Gold Supplier, etc
Max. Machine Speed:
150m/min
Prompt Reply:
Within 24 hours.
Yearly Production Capacity:
More than 200 sets.
Unwinding Shaft:
3" Air Expanding Shaft
Rewinding Shaft:
0.5", 1", 1.5" 2" are available(or as request)
Overall Dimensions(L*W*H):
1800x1900x1500mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
30 Set/Sets per Month Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM
Packaging & Delivery
Packaging Details
Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM/ Cash Register Paper machine with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Port
Shanghai/Ningbo
Lead Time :
Within 15 days after receipt of 30% payment by T/T.
Video Description
Product Description

Product Application

Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM/ Cash Register Paper machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films etc.

Thermal Cash Paper fax paper slitting and rewinding machine
Model Type
JT-SLT-700
Max. Parent Web Width
700mm
Max. Parent Web Diameter
1000mm
Max. Rewinding Diameter
160mm
Min. Slit Width
25mm
Max. Machine Speed
110m/min
Unwinding Shaft
3” Air Expanding Shaft
Rewinding Shaft
0.5”, 1”, 1.5” 2” are available(or as request)
Voltage
three-phase four-wire, 380V,50HZ
Power
2.2kw
Weight
1500kg
Overall Dimensions(L*W*H)
2000x1700x1500mm

Main Features

1. Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM/ Cash Register Paper Machine adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will automatic work.
2. The main motor adopts Siemens inverter motor, and frequency inverter control.
3. Machine adopts automatic lift-up loading system, it controlled by a separated motor from Taiwan.
4. All transmission rollers have been dynamic/static balance treated.
5. Machine adopts red line marking system, printing red line at the end of paper rolls.
6. Machine adopts round blades to slit, it equipped with automatic wasting materials edge trimming system.
7. It adopts auto tucker, adjust the paper material loose or tight easily.
8. It adopts automatic tension control controller to keep constant tension.
9. It adopts auto meter counter, when it reach the setup length, the machine stop and alarm automatically.
10. It can avoid of overlap problem after paper reels are finished.
11. It equipped with emergency switch.

Configuration
Name
Model
Pieces
Remark
Computer System
PLC+HMI
1 set
Siemens from Germany
Main motor
1 set
Siemens from Germany
Frequency inverter
1 Piece
Innovance from China
Air Pressure Valve
1 set
SMC from Japan
Cylinder
2 Piece
AIRTAC from Taiwan
Air Expanding Shaft
1 Piece
Magnetic Brake
1 set
From Taiwan
Low Voltage Electrical Switch
CHINT
Relay
Omron from Japan
Detailed Images

Thermal Paper Slitting Machine Parts

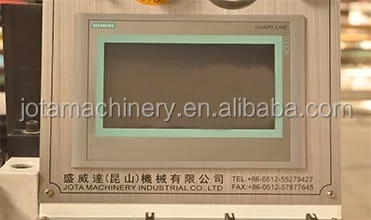

Name: PLC & Touch Screen

Brand: Siemens

Original: Germen

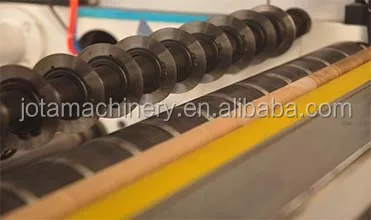

Thermal Paper Slitting Machine Parts

Name: Blades Shaft

Original: Domestic

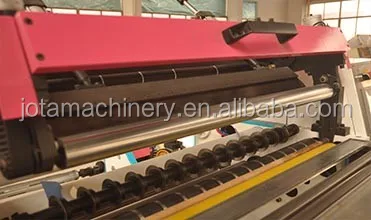

Thermal Paper Slitting Machine Parts

Name: Pressure Roller
Original: Domestic

Thermal Paper Slitting Machine Parts

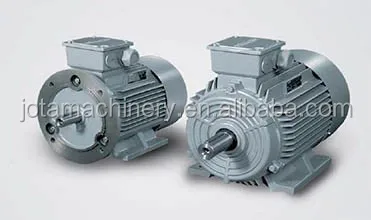

Name: Motor
Brand: Simens
Original: Germany

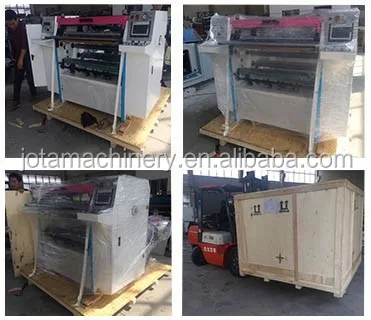

Packing & Delivery
Packaging
Size
180cm (L) * 190cm (W) * 155cm (D)
Weight
1.2 T



Packaging Details
The normal package is Pefilm and wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If the buyer have special request ,we will pack it according to customers request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Advantages
Advantages of Jota Machinery
Certification
CE,SGS, Gold Supplier, etc.
Testing
Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM/ Cash Register Paper machine will be tested before delivery by professional engineers.
Perfect After-sale System
Technicians can service overseas.
Prompt Reply
Within 24 hours.
Yearly Production Capacity
More than 100 sets.
MOQ
1 set. (More than 3 sets, offer a special discount)
Samples
For free
Packing Details
With flexible wrapping and export standard wooden case.
Delivery Time
Within 15 days after receipts of 30% payment, the rest 70% paid before shipping.
Terms of Payment
T/T, L/C
Delivery Clause
FOB Ningbo/Shanghai Port
Packaging Details
Coreless Jumbo Roll Paper Cutting Machines for Thermal/ POS/ ATM/ Cash Register Paper machine is with flexible wrapping and wooden case. It is included one year guarantee time, whole life technical support, a set of tools, a box of vulnerable parts and exporting standard wooden case.
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
3, If the machine will be tested before shipping?
Yes, the machine will be examined and tested before delivery by professional engineers.
