Corrugated farm steel grain silos from TSE

  • 1-2 Sets
    $62,000.00
  • >=3 Sets
    $58,000.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Capacity:
3610CBM
Dimension(L*W*H):
16.5mX16.5mX17.33m
Condition:
New
Material:
Steel
Place of Origin:
Shandong, China
Brand Name:
TSE SILO MASTER
Model Number:
TCK16512
Weight:
31MT
Usage:
Feed Storage
Application:
Poultry Farm Used grain Storage
Bottom Type:
flat bottom Grain Silo Storage
Auxillary System:
conveying and cleaning system
Silo Materials:
Hot Galvanized Steel Plate
Item:
Silo Project
Name:
Galvanized Steel Grain Storage Silo
Type:
Bolted Assembly Corrugated Steel Silo
Installation and Debugging:
Engineers Sevice Overseas
Certification:
CE ISO SGS

Packaging & Delivery

Selling Units:
Single item
Single package size:
150X20X20 cm
Single gross weight:
33000.0 kg
Package Type:
plast film
Picture Example:
package-img
package-img
Lead Time :
30
Video Description
Product Description

Product Application

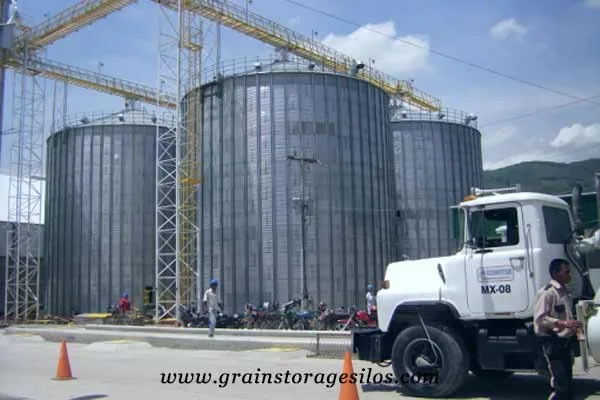

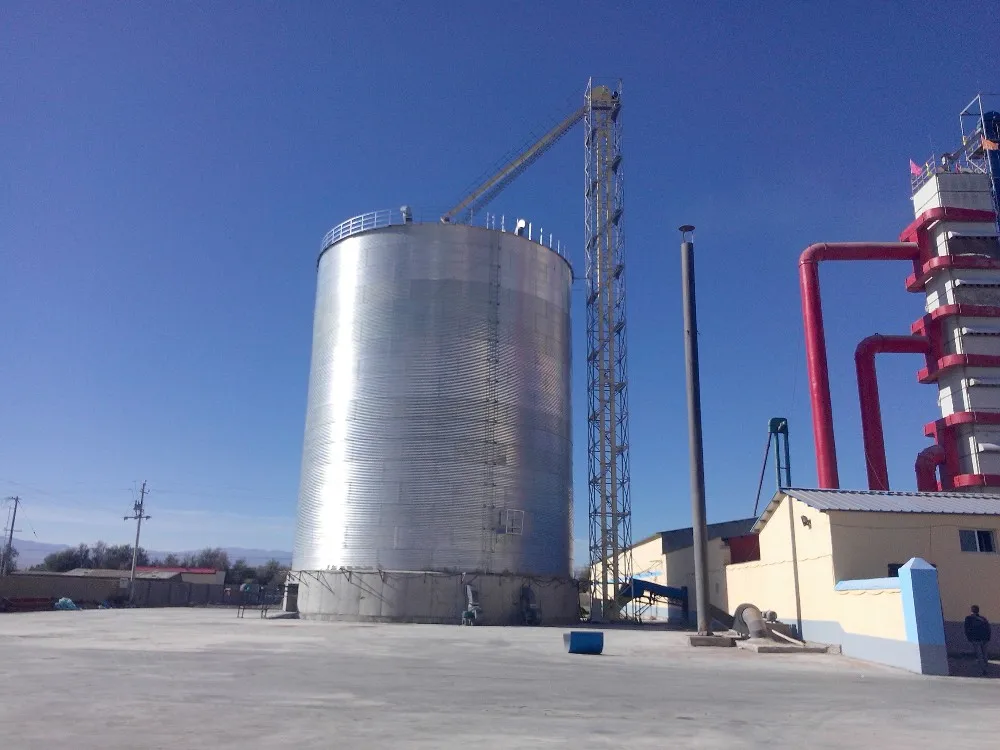

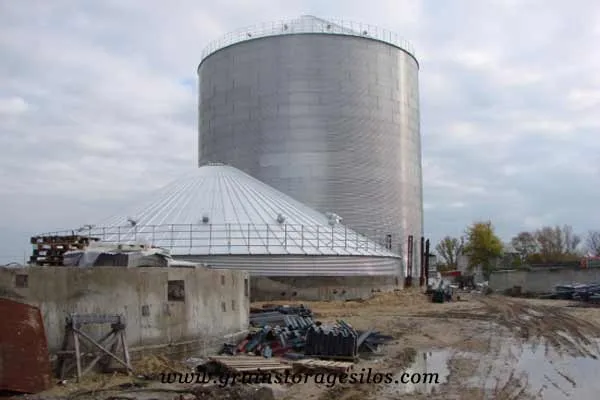

Flat bottom silos (also called flat bottom bins, flat bins) are commonly selected steel silos or steel bins to storage bulk grains and other materials. Large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³. These grain bins are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. All our flat silos or flat bins are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.
SPECIFICATIONS FOR  TCK16512 GRAIN SILOS SYSTEM

SIZE
DIAMETER
m
16.5
HEIGHT AT FILL
M
17.33
VOLUME
CBM
3610M3

Main performance
WIND LOAD
km/h
100--120
CAPACITY
mt
2700mt
Anti earthquake
grade
8 grade

Hydraulic system
Hydraulic system
KPa
no
Main pump
KN
no
Rate flow
KN
no

Main Features

The flat bottom bins are made of high quality 275g/m2, 300g/m2, 350g/m2 hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The flat bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings

Certifications
Detailed Images

Machine Parts

Name: SILO BODY

Brand: TSE SILO MASTER

Original: CHINA

Made of high quality hot dip galvanzing steel shees with 275g/m2 galvanzing coating mass;

Corrugated sheets made by fully automatic production line.

The silo ladders inside and outside the body sheets.

The silo door on the silo body with platform and safety cages;

Main Features

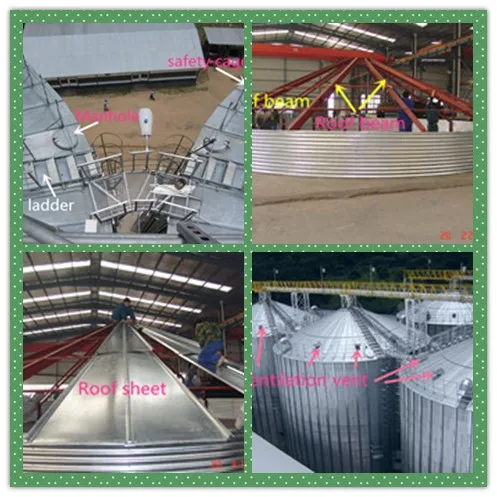

Name: SILO ROOF
Original: China ,shandong
The roof sheets are made of high quality hot dip galvanzing steel sheets 1.0mm thick;

There are roof beams under the roof sheets for supporting to make the structure stronger;

There is manhole on the roof;

there is ladders on the roof.

Ventilation vents on the roof.


Machine Parts

Name: Ventilation system  ---roof vents and suction fan
Brand: TSE GRAIN SILOS MASTER
Original: CHINA
There are ventilation vent on the the roof

there are suction fans on the silo roof

Main Features

Name:  ventilation system---blower
Brand: TSE GRAIN SILOS MASTER
Original: CHINA

There are blowers at the bottom of grain silos;

There are ventilation channels with aeration floor inside the

silo bottom;


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

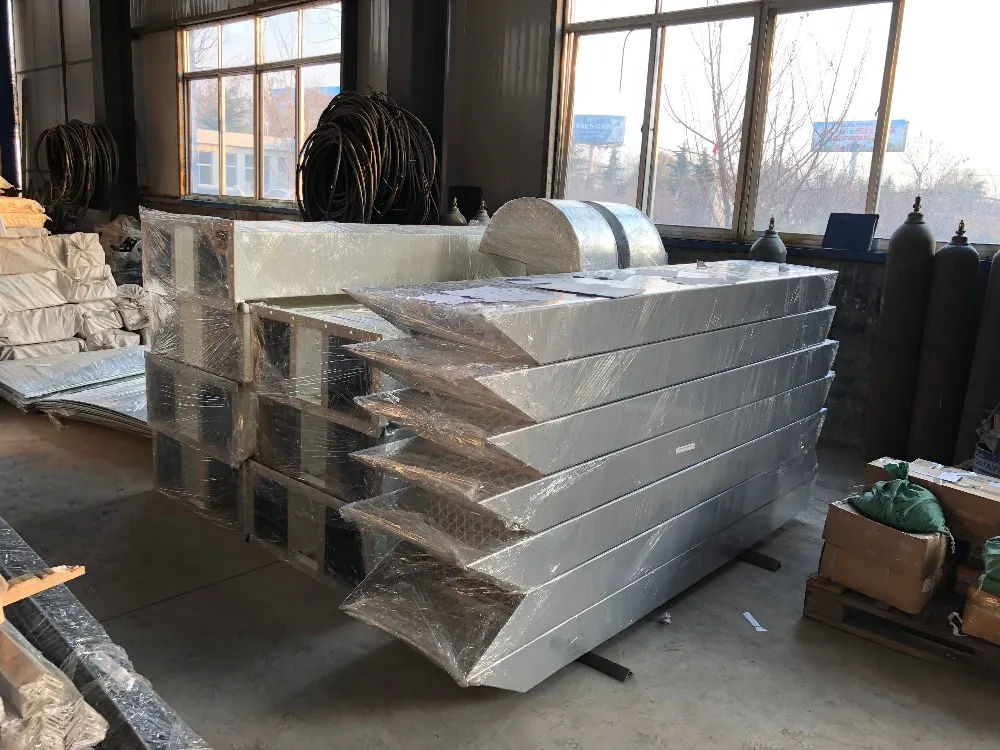

Packing & Delivery
Packaging
Size
2000 (L) * 800 (W) * 400(D)
Weight
200kg



Packaging Details

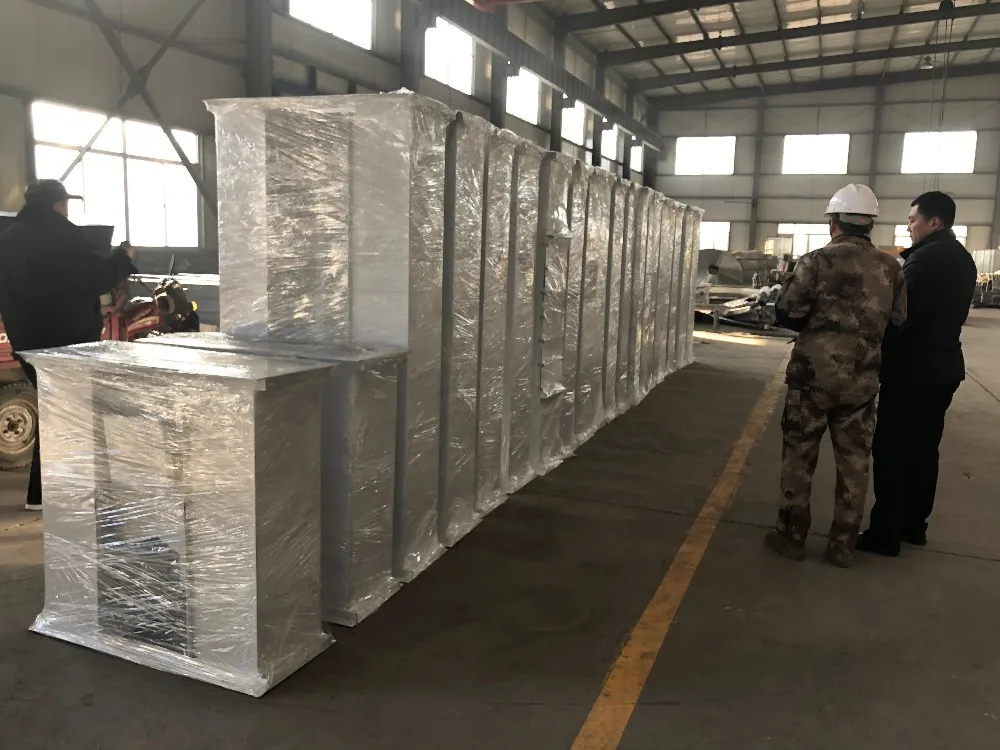

The goods are wrapped by plastic film(Size: L*W*H).

Packaging
Size
2000 x 500 x 200
Weight
500kg



Packaging Details
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
No matter which part of the grain silos
can be packed like this;
small parts will be put into the carbon boxes.
