Cost-Effective poultry animal broiler chicken feed making machine to manufacture pellet machine

  • 1 - 4 Sets
    $15,730.00
  • 5 - 9 Sets
    $15,680.00
  • >=10 Sets
    $15,600.00
Model Number:
SZLH 350
Power(W):
55kw
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Customization:
Voltage & Frequency (Min. Order: 1 Sets)
Compression ratio (Min. Order: 1 Sets)

More

Diameter of ring die hole (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
One Year
Type:
Feed Pellet Machine
Dimension(L*W*H):
3000*1260*1860mm
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Strongwin
Voltage:
380V/50Hz
Weight:
2100 kg
Certification:
CE ISO SGS
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Product name:
broiler chicken feed making machine
Other name:
animal feed making machine
Conditioner power:
2.2 Kw Poultry Feed
poultry feed pellet Yield:
2-6t/h broiler feed making machine
Speed of feeding screw(r/min):
12-120
Materials of conditioner:
304 stainless steel plates
Motor:
Siemens
Pellet mill bearing:
NSK or SKF
Amount of roller:
2
Speed of ring die(r/min):
336
Supply Ability
Supply Ability:
100 Set/Sets per Month for animal feed pellet machine
Packaging & Delivery
Packaging Details
Cost-Effective poultry animal broiler chicken feed making machine to manufacture pellet machine
single machine:wood case packing
whole production line:by container
Port
Qingdao,Shanghai,Tianjin or other main ports
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Product Description

Strongwin animal feed making machine Application

America CPM Model animal feed pellet machine,High-strength precision gear drive,Transmission efficiency can be as high as 99%,The normal belt transmission efficiency of 90% -95%, and easy to slip loose, life is short, when the belt becomes loose, transmission efficiency will drop a lot, in normal with the same power ,gear drive Pellet machine output should be increased by 20% -30% than the belt drive

Application of Strongwin broiler feed making machine

a. poultry feed pellet mill is Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
b. The raw material and finished pellet:

Advantages of Strongwin chicken feed making machine

1.Host bearings generally use the top ten brands in the world of NSK (Japan), SKF (Switzerland) bearings, reliable quality, long service life!
2. In.the rear of pellet machine has the protection switch device , when the spindle bearing and spindle lock, the power can be cut off in time, the spindle has an effective protection effect!
3. Feeder spindle, screw, sleeve, paddle are 304 stainless steel,bearing is SKF brand,longer life.
4. The gap between paddle and the bottom is less than 4mm, the material basically no residue, no manual cleaning residue,but other manufacturers is generally 8-10mm, more material leftovers, If the labor can not be timely clean-up, material cross-contamination, if for a long time production is also easy to pests!
5.Conditioner spindle, paddle, bolt ,wall tube are 304 stainless steel, Conditioner paddle stainless steel castings, bolts fixed installation, angle adjustable, but other factory is welding, the angle can not be adjusted. Conditioner can be adjusted by adjusting the paddle then adjust the material to stay time in conditioner. This is the welding pad can not do!
6.Pellet machine door with 304 stainless steel, other use ordinary carbon steel, pellets from the machine high temperature, moisture, ordinary carbon steel life is generally about six months, and The service life of stainless steel is long-term!
7.Door cutter with a graduated mark can be more accurate regulation of the pellet length, the other manufacturers generally do not have the mark of the cutter!
8.Holder, the ring die, roller high-strength alloy forged pieces, the CNC machining heat treatment, high precision, high strength and long service life!

Technical Parameters
Technical parameters of chicken feed making machine
Model
SZLH250
SZLH320
SZLH350
SZLH 400
SZLH 420
SZLH508
Main Motor Power (kw)
15/22
37
55
90
110
132
Conditioner Power (kw)
2.2
2.2
2.2
2.2
5.5
7.5
Feeder Power (kw)
 1.5
1.5
1.5
1.5
1.5
2.2
Capacity (t/h)
1-2
2-4
2-6
3-8
4-12
4-18
P.S. : Price is not fixed because of exchange rate,pls contact supplier to get the newest price.

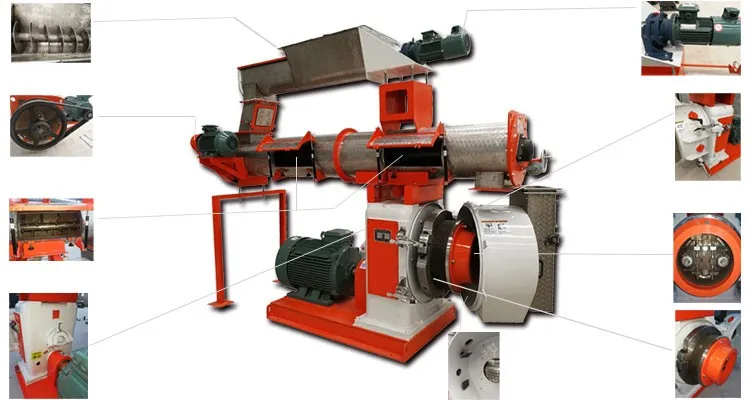

Detailed Images

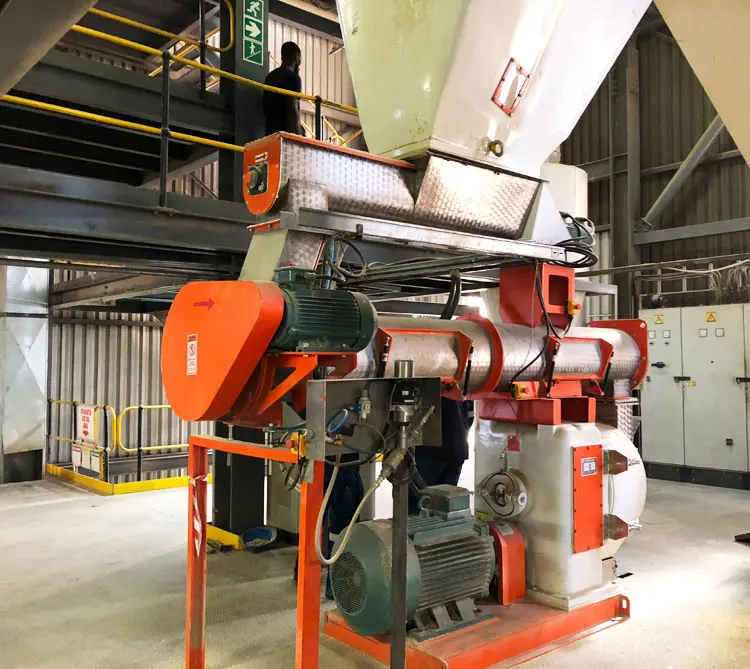

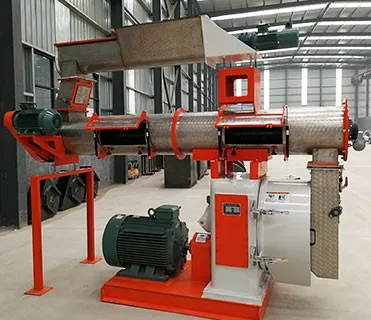

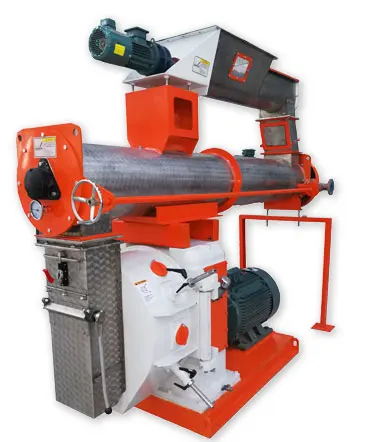

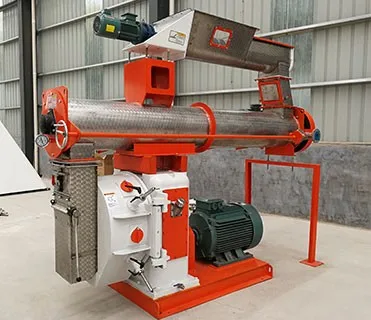

Strongwin feed making machine

Name: SZLH feed pellet machinery

Brand: Strongwin

Original: Henan,China

Our feed pelletizing solutions feature great flexibility. According to different feed types, different output configuration can be customized. There are great after-service and pelletizing solutions. If you are intended to start your business to make feed pellets in small or large scale, please do not hesitate to contact us for details.

Strongwin chicken feed making machine Parts

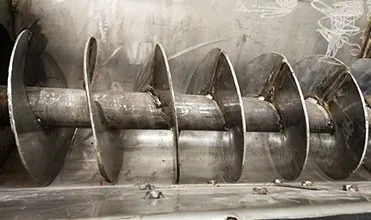

Name: Feeder
Feeder spindle, screw, sleeve, paddle are 304 stainless steel,bearing is Japan FYH brand,longer life.

Strongwin animal feed making machine Parts

Name: Feeding motor

Feeding motor we choose Inverter DZ motor, which is same with buhler (Buhler) brand pellet machine,the quality should be slightly better than the Siemens Motor and Wannan motor ,the motor noise lower, the operating current is more stable Overload capacity stronger!

Strongwin broiler feed making machine Parts

Name: Conditioner motor pulley

Conditioner motor pulley using high strength cast steel black pulley, higher strength, higher precision, higher strength after heat treatment, more wear-resistant, longer service life, pulley balancing experiments run more smoothly, using a locking sleeve Installation, installation and removal convenient and time-saving, and will not cause damage to the pulley!

Strongwin poultry feed making machine Parts

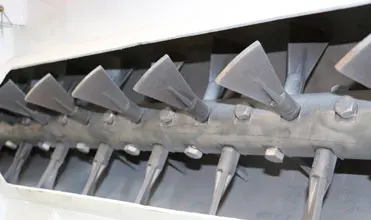

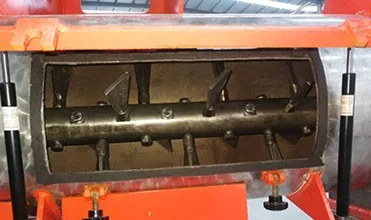

Name: Conditioner

1.Conditioner spindle, paddle, bolt ,wall tube are 304 stainless steel,Motor is DZ motor
2..Conditioner paddle stainless steel castings, bolts fixed installation, angle adjustable, but other factory is welding, the angle can not be adjusted. Conditioner can be adjusted by adjusting the paddle then adjust the material to stay time in conditioner. This is the welding pad can not do!

Strongwin broiler feed making machine Parts

Name: Conditioner

Pellet machine door with 304 stainless steel, other use ordinary carbon steel, pellets from the machine high temperature, moisture, ordinary carbon steel life is generally about six months, and The service life of stainless steel is long-term!


Strongwin animal feed making machine Parts

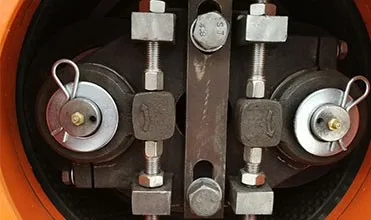

Holder, roller high-strength alloy forged pieces, the CNC machining heat treatment, high precision, high strength and long service life!

Strongwin chicken feed making machine Parts

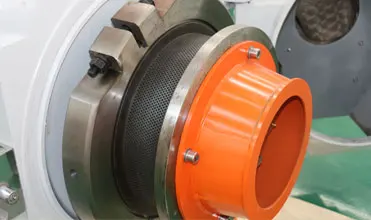

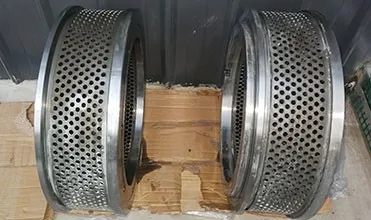

Name: Ring die
You can switch a different mold to produce animal feed particles of different sizes,for making animal feed for poultry, chicken, pig,cattle,sheep etc.

High-grade catfish, shrimps, crab, fish,pet feed pellet.

Strongwin feed making machine Parts

Name:Door cutter
Door cutter with a graduated mark can be more accurate regulation of the pellet length, the other manufacturers generally do not have the mark of the cutter!

Strongwin chicken feed making machine Parts

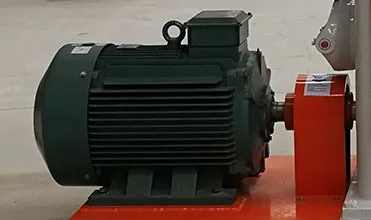

Name: main motor
we uses Siemens Motor or DZ motor,good performance and stability,longer life

Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production

Strongwin broiler feed making machine Parts

Name: Electronic Control System
The centralized control system use imported PLC, to control operation of all machines on panel, it is safe and reliable;

The raw material and finished pellet

The feed pellets are usually made of corn, brown rice, paddy, alfalfa ,elephant grass, Ryegrass,sorghum and soybean meal etc.

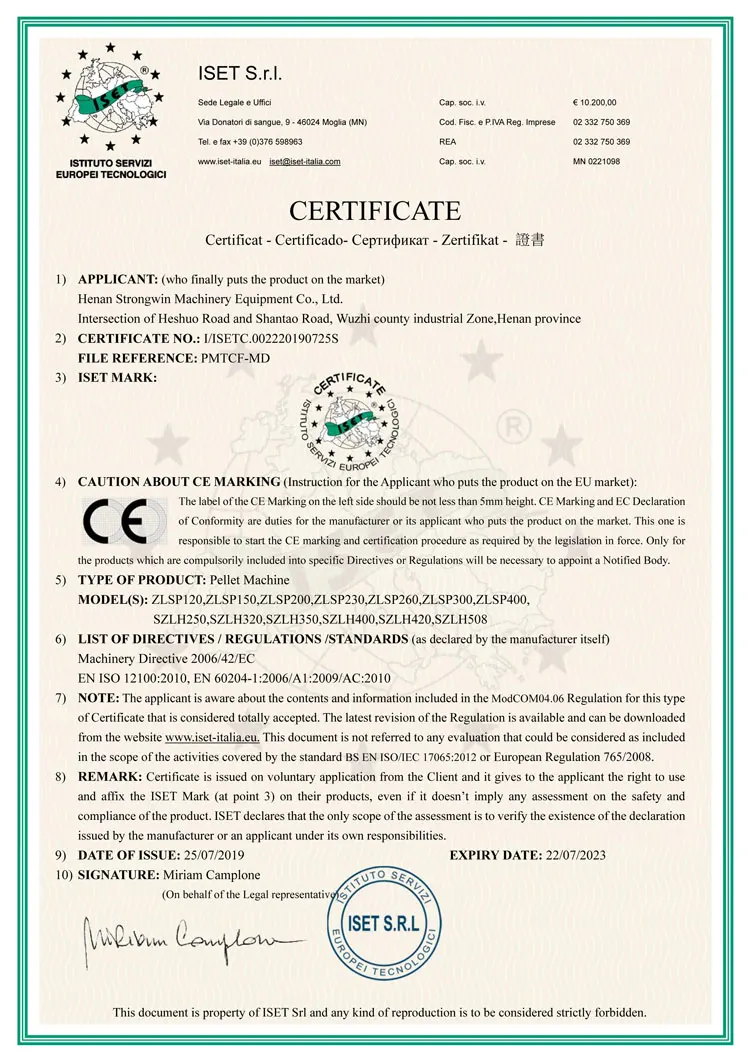

Certifications
Our Service

WHY CHOOSE US

ONE: Pursue the highest level of Feed Processing Machinery in China,encourage customer to inspect machineries by caliper and calculator. Select Siemens Motor,Choose Swedish SKF Bearing.

Strongwin Service

TWO: Transform factory into university,build the most professional training & trusteeship team in Chinese feed industry,Ensuring that Strongwin Machinery can be running in a healthy condition by remote supervisory control and nanny trusteeship service.

Strongwin Feed Machinery

THREE: Material thickness of main equipment is more than feed machinery standard 2mm,you can weigh and contrast -- Please pick up the caliper and calculator to inspect.

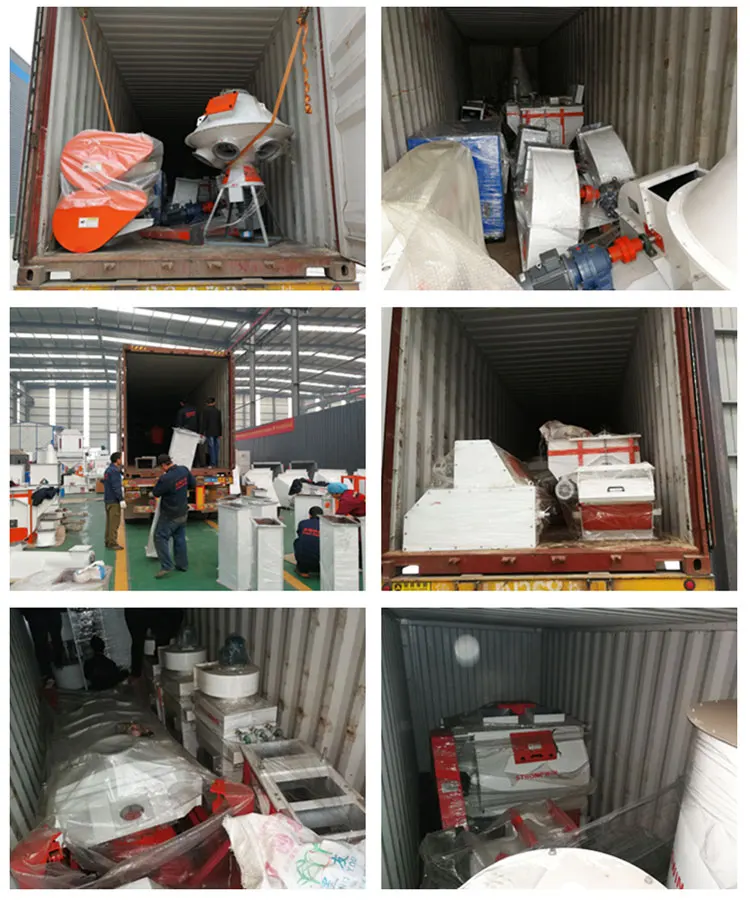

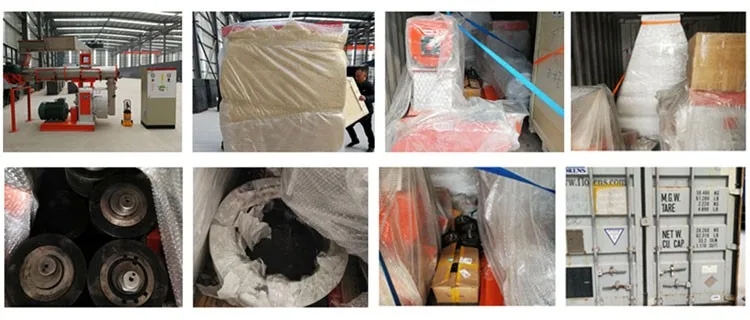

Packing & Delivery

Packing condition

Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
Tight the equipment in the truck without space to ensure no rubbing during the transportation.
