Cost efficient low bed truck with flexible hydraulic control system

FOB Reference Price:Get Latest Price
$35,000.00 - $40,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
QLG5311TDP
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Qi Lin
Size:
11100mmX2495mmX3450mm
Transmission Type:
Manual
Capacity (Load):
11 - 20t
Horsepower:
251 - 350hp
Engine Capacity:
> 8L
Drive Wheel:
8x4
Fuel Type:
Diesel
Gross Vehicle Weight:
30950
Name:
Cost efficient low bed truck with flexible hydraulic control system
Curb weight:
16000kg
Max payload:
14755kg
Payload platform length:
7200mm
Wheelbase:
1800mm+3800mm+1350mm
Axle:
4pcs
Tire:
10.00R20 18PR/12pcs
Max speed:
80km/h
Electrical system:
24 voltage,7 wire harness,LED lights.
Painting:
With shot blasting and 4 layers painting,color is optional.
Supply Ability
Supply Ability:
300 Unit/Units per Month Cost efficient low bed truck with hydraulic control system
Packaging & Delivery
Packaging Details
Nude, polish with water wax before shipment for Cost efficient low bed truck with flexible hydraulic control system
Port
Tianjin,Qingdao



Product Description



Cost efficient low bed truck with flexible hydraulic control system



Vehicle dimensions

Brand

QI LIN

Name

Low bed truck

Model

QLG5311TDP

Overall dimension

11100mmX2495mmX3450mm

Payload platform length

7200mm

Rear ramp length

1000mm

Gross weight

30950kg

Curb weight

16000kg

Max payload

14755kg



Chassis specifications

Chassis brand

Dongfeng/Foton/JAC/Hino(optional)

Drive type

Left/Right hand drive(optional)

Drive wheel

8X4

Transmission

Manual,9 forward gears,1 backward gear.

Cab

3 passengers

Tire

10.00R20 18PR/12pcs

Axle payload

6500kg/6500kg/17950kg

Axle number

4pcs

Front/rear tread

2040mm/1860mm

Front/rear suspension

1495mm/2655mm

Wheelbase

1800mm+3800mm+1350mm

Approach/departure angle

27°/12°

Leaf spring number

9/9/12

Engine

Commins/Yuchai/Chaocha/Hino(optional)

Emission

Euro 2/3/4/5(optional)

Displacement

9726ml

Horse power

300hp

Braking system

With ABS system

Max speed

80km/h

Fuel type

Diesel

Electrical system

24 voltage,7 wire harness,LED lights.

Painting

With shot blasting and 4 layers painting,color is optional.



Remark

1.The above mentioned data is for your reference only.

2.The detailed specification will be subject to our final confirmation.

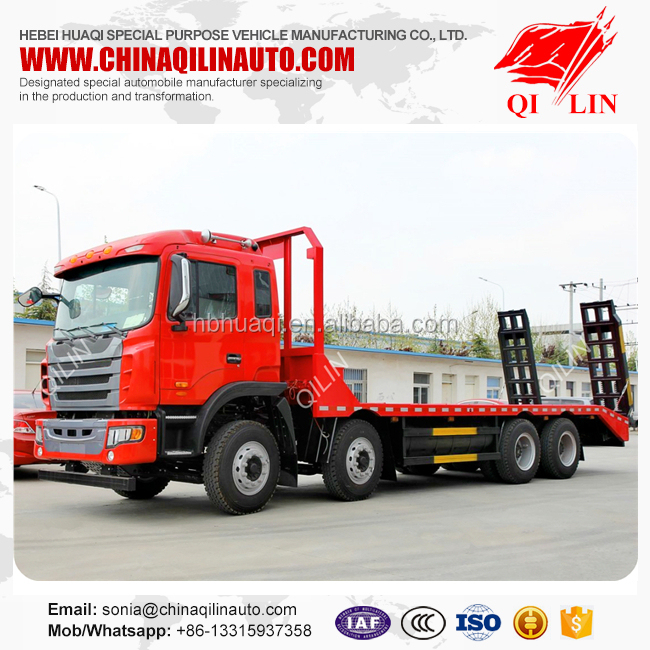

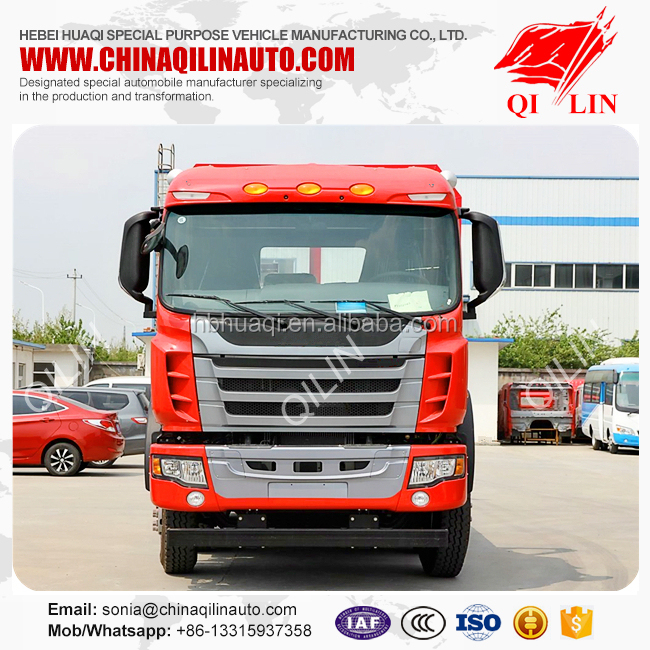

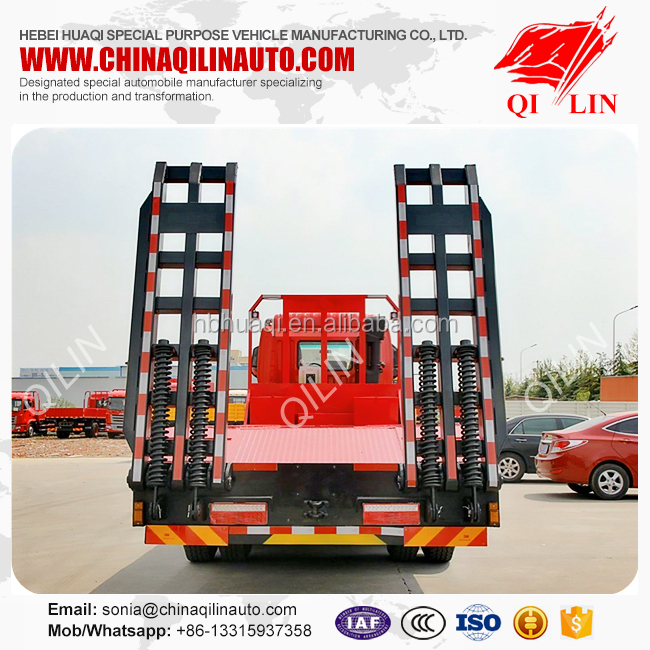

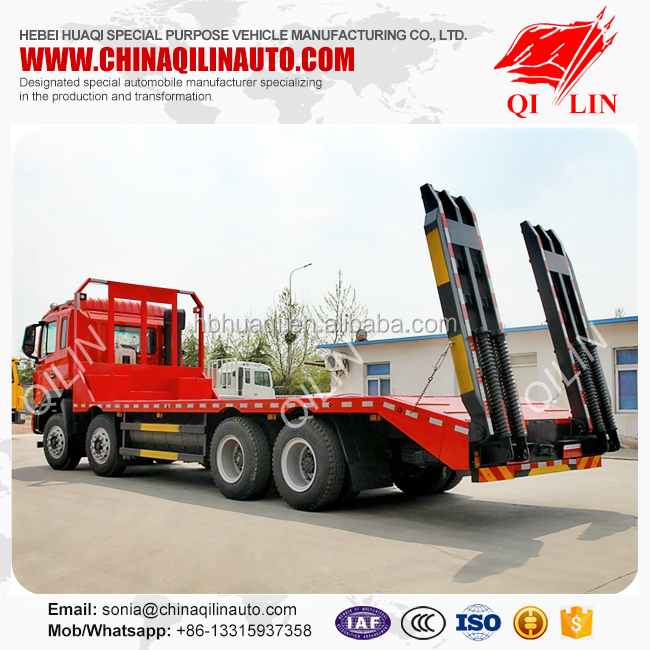

Product Image




Other Products



_01_02_03
_04_05_06



Company Information

conpany1_

company2_





Packaging & Shipping

packing





FAQ



1. Are you trading company or manufacturer ?

We are manufacturer.

2. Can I have samples of this type of product to test the quality?

Yes, you can buy any sample to test the quality,our MOQ is 1 unit.

3. What's the delivery time and can you lower the price?



It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.



4. Can you supply some quick-wear parts?

Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.

5. Do you have any used products for sale?

We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.

6. What's the payment terms?

TT 30% as deposit, balance before shipment by TT or L/C at sight.

7. How to guarantee customers get the goods smoothly after they payment?

Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.

8. How can you ensure the quality of the products?

Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
