Critical Purity Pressure Reducer Nitrogen 300 bar High Pressure Piston Regulator for Inert Gases

$180.00 - $196.00 / Piece | 1 Piece (Min. Order)
Material:
nickel plated brass stainless steel 316
Type:
fluid Regulators
$180.00
- +
available
Air Regulator
$180.00
- +
available
Nitrogen Regulator
$180.00
- +
available
All 9 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
AFK
Model Number:
R41
Material:
316L SS
Maximum inlet pressure:
3000, 6000psig
output pressure:
0~250, 0~500, 0~1500, 0~3000psig
working temperature:
-23~+74 deg C
Applied gas:
pure gases, standard gases, corrosive gases and so on
bonnet material:
ss316L
seat:
PCTFE
Spring:
ss316L
O-ring:
viton
strainer:
316L (um)

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X17X17 cm
Single gross weight:
2.000 kg
Package Type:
Each piece with a PP bag first, then put in a small box, outside is in carton.
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 3 To be negotiated
Product Description

1.Piston pressure reducing instructure.
2. Stable pressure.
3. Used for high input pressure demand. 6000PSI.
4. Apply for high purity gas, standard gas, corrosive gas etc.

Specification
Max. inlet pressure
3000, 6000psig
Outlet pressure
0-250, 0-500, 0-1500, 0-3000psig
Safety test pressure
1.5times max. inlet pressure
Appliable temperature
-10℉+165℉ (-23℃+74℃)
Leakage rate
Foam test
CV
0.06
Material
Body
ss316L, nickel plated brass
Bonnet
ss316L
Seat
PCTFE
Spring
ss316L
Stem
Ss316L
O-ring
Viton
Stainer
ss316L(10um)

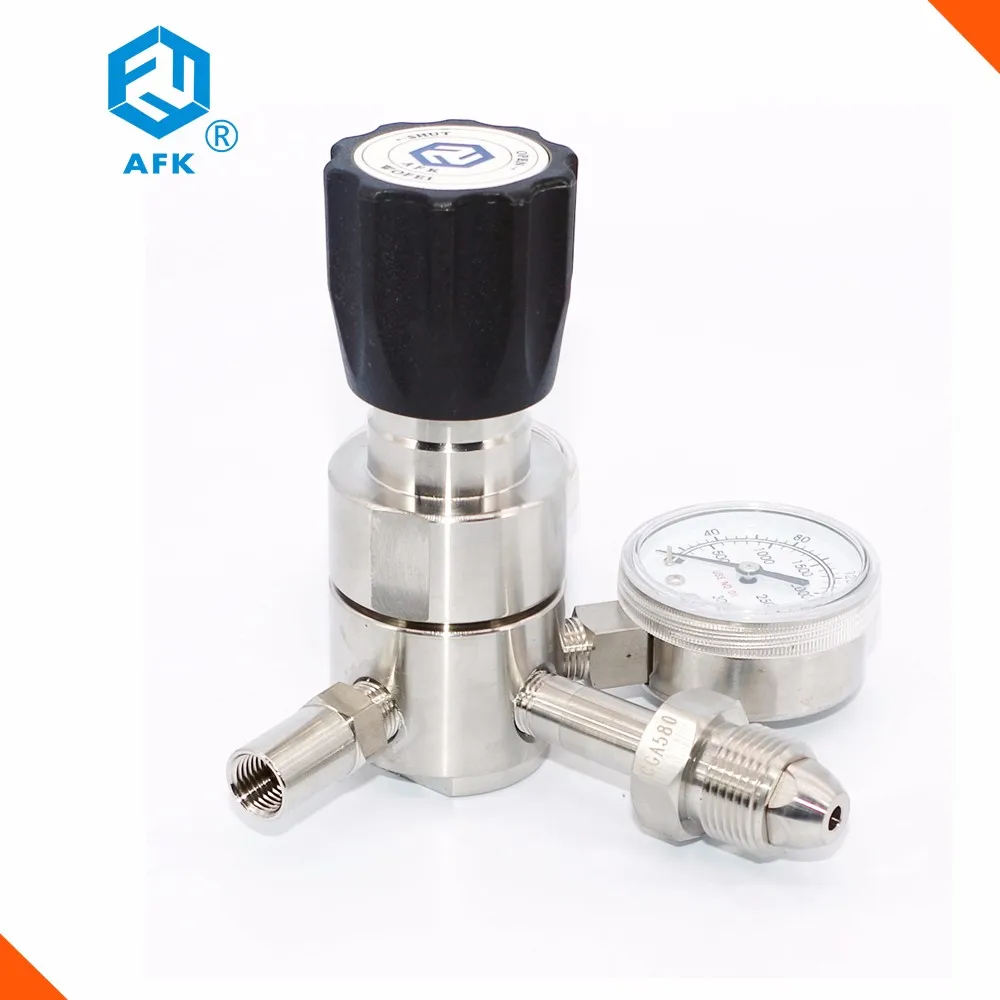

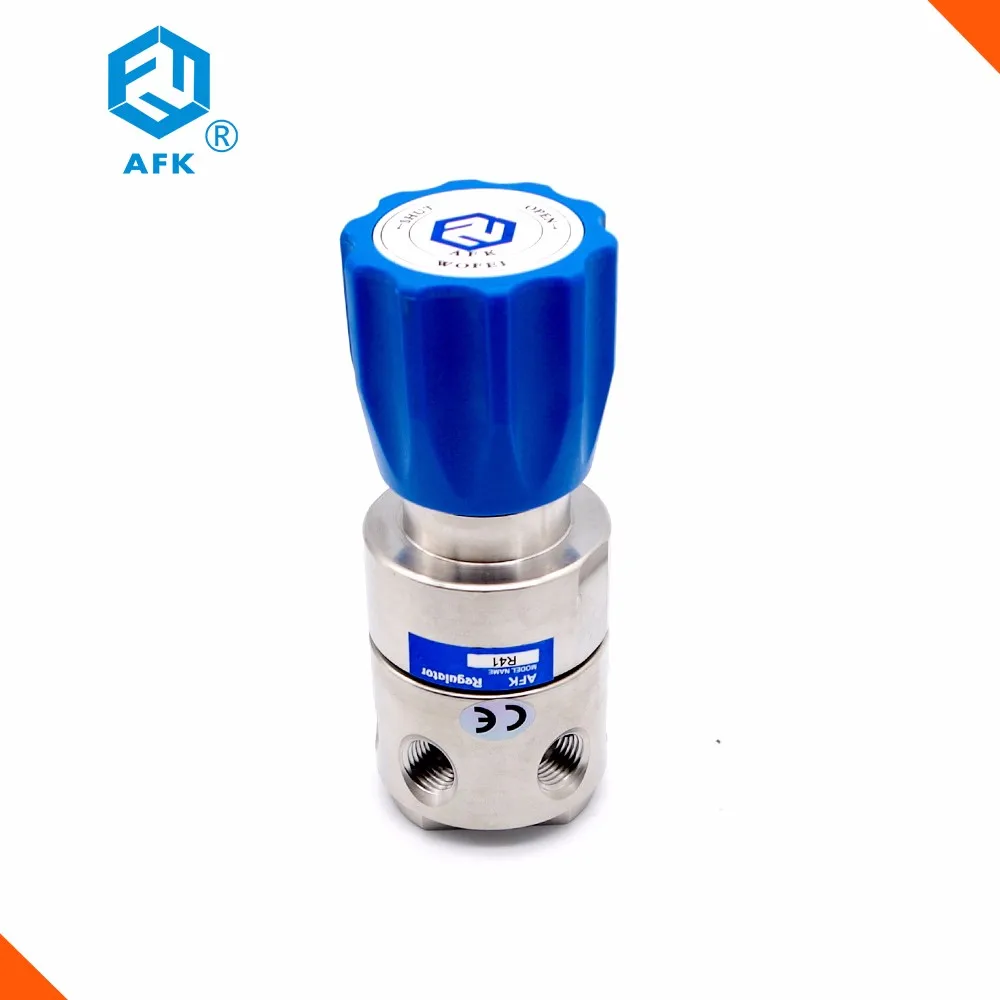

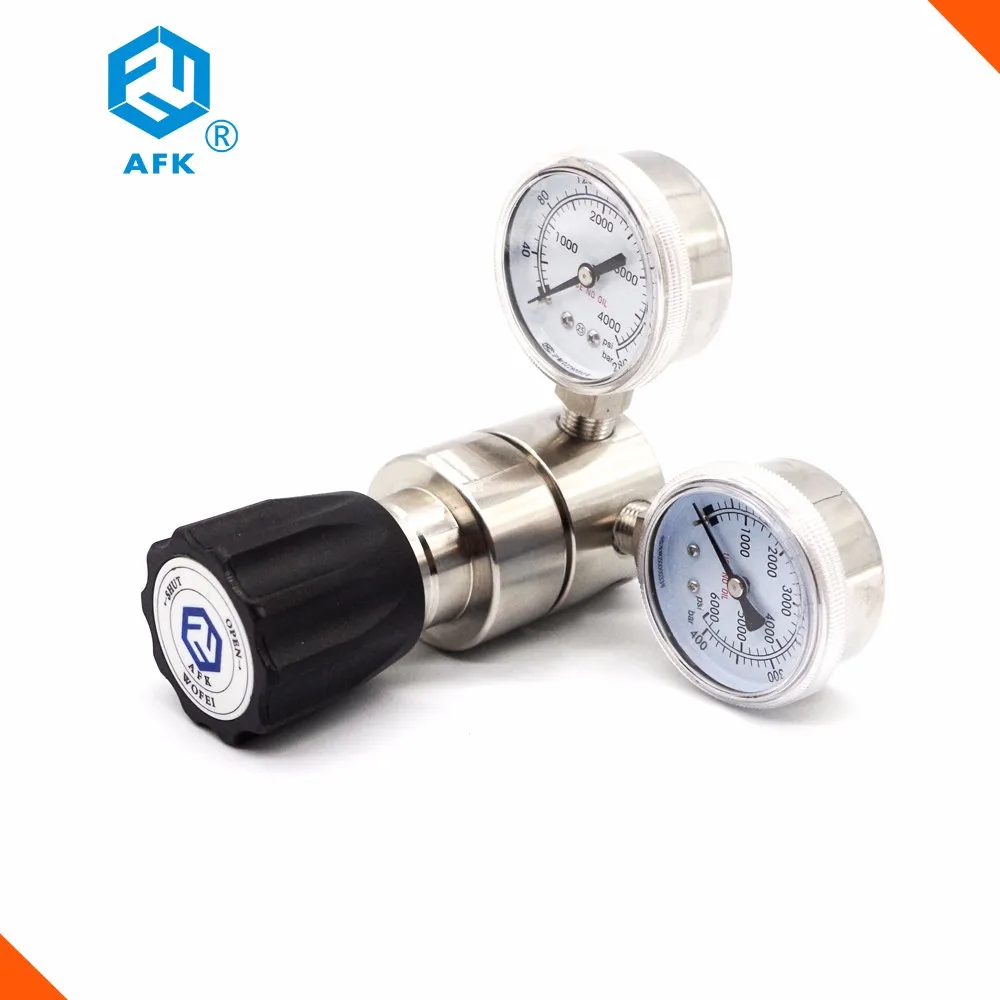

Products Show
Ordering Information
Item NO.
Body
Ports
Inlet pressure
outlet pressure
gauge
inlet connection
Outlet connection
Options
R41
L:316L
A
D:6000psi
D:0-3000psi
G:Mpa
00:1/4"NPT F
00:1/4"NPT F
P:Panel
B:brass
B
B:3000psi
E:0-1500psi
P:psi/bar
01:1/4NPT M
01:1/4NPT M
D
F:0-500psi
W:none
10:1/8O.D.
10:1/8O.D.
G
G:0-250psi
11:1/4O.D.
11:1/4O.D.
J
12:3/8O.D.
12:3/8O.D.
M
15:6mm O.D.
15:6mm O.D.
16:8mm O.D.
16:8mm O.D.
Other fittings are available, pls specify

Please provide the following parameters in your inquiry as many as possible:


1. Inlet actual working pressure
2. Outlet actual working pressure
3. Inlet conenction and size
4. Outlet conenction and size
5. Material: brass, nickel plated brass, stainless steel
6. If you have special flow rate requirements and a panel, please indicate it.
7. Quantity


Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according to your requirements. Please write the above descriptions as possible as you can. If you can not confirm it at the moment, just send us inquiry, we also can recommend our regular model for you.

Our Company

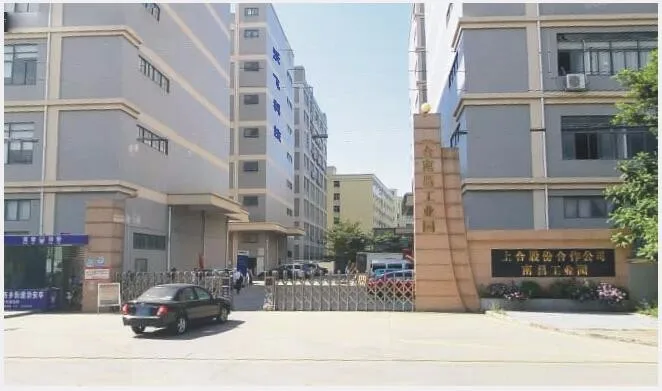

Factory

Our Factory

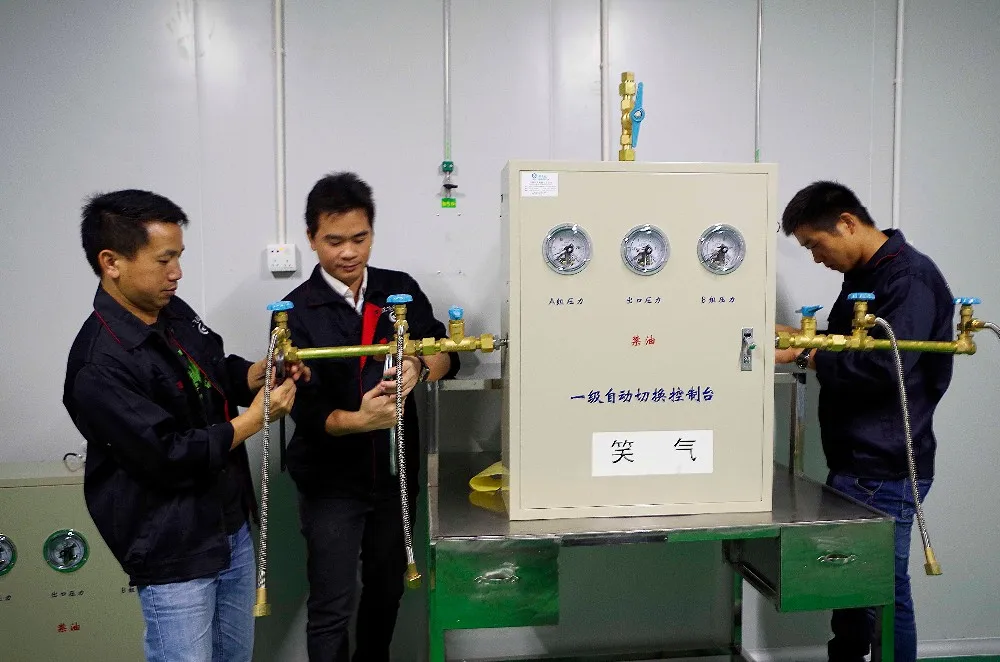

Workshop

Our Workshop

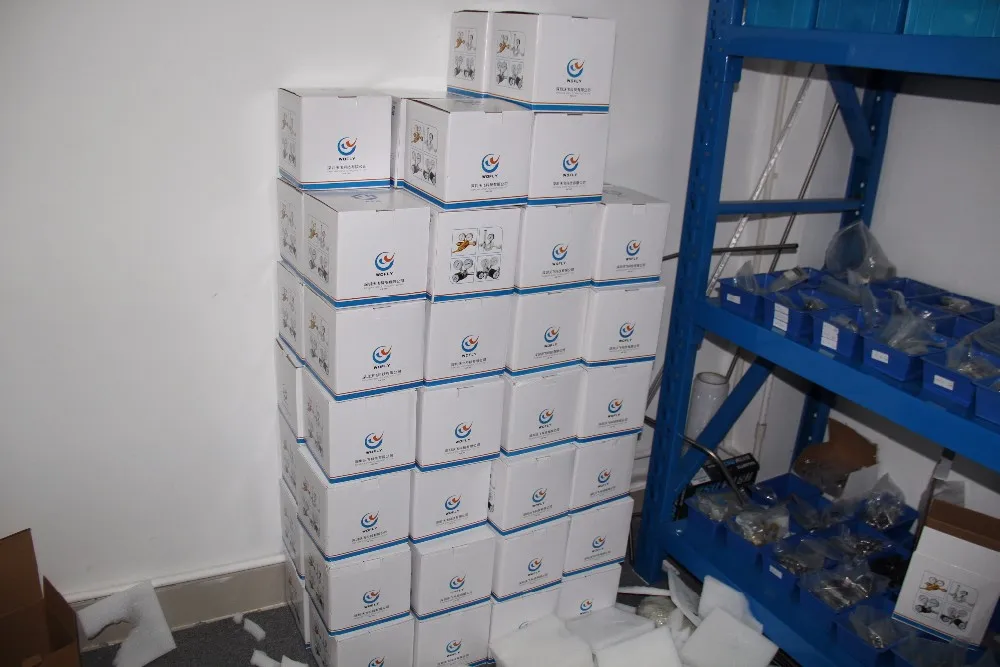

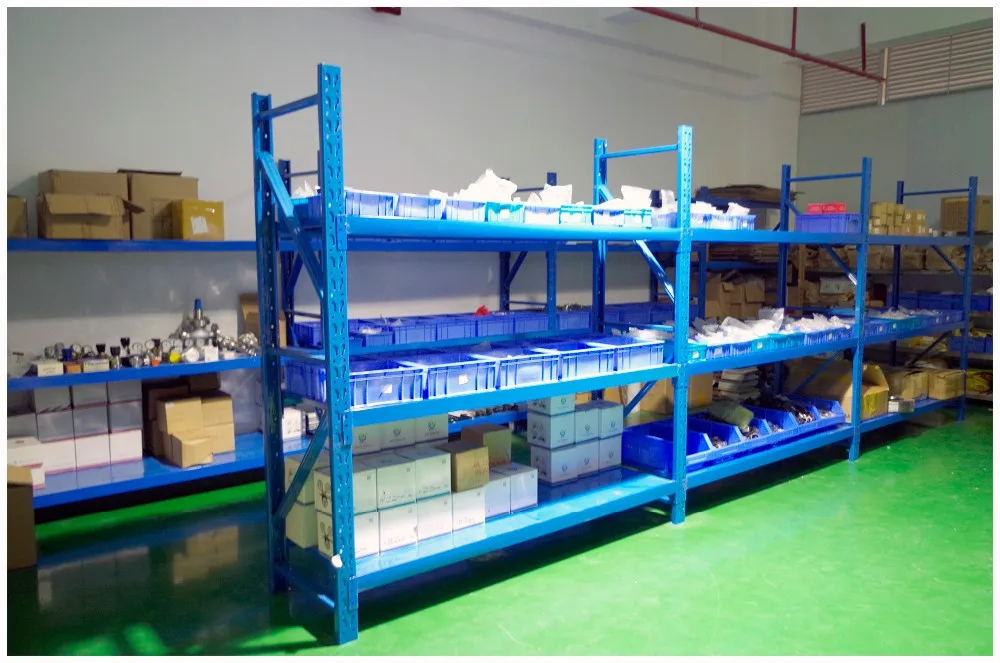

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  : 8pcs/carton

Delivery Details : 5-7days

1. inside

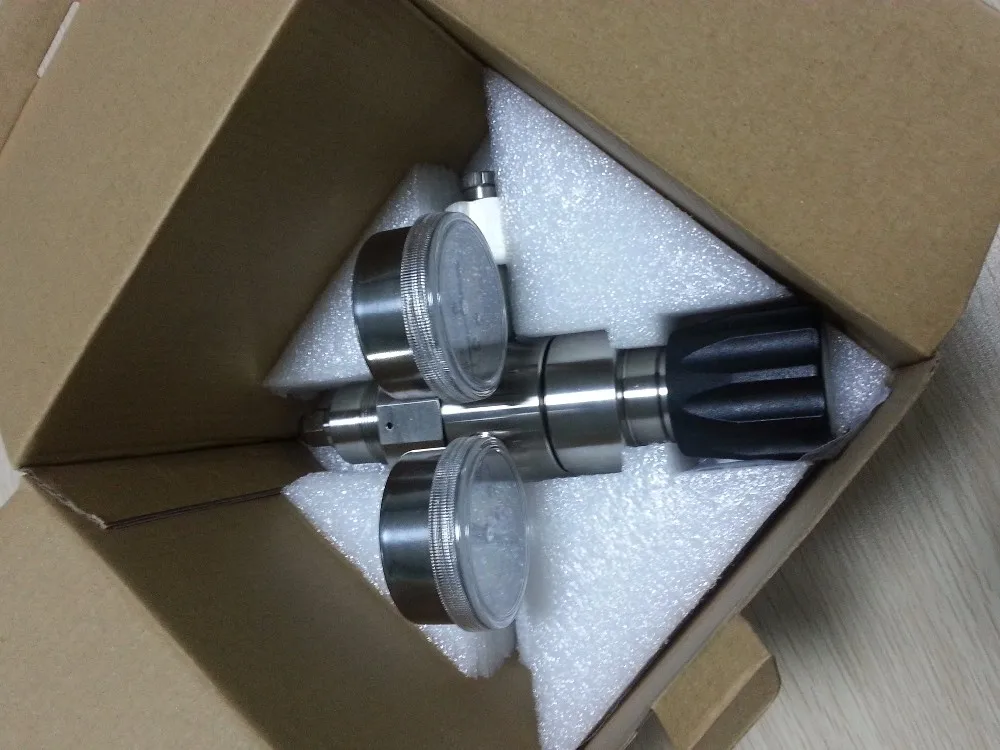

2. Foam inside
3. netural packing box
4. AFK packing box
5. Export carton
6. Complete package
Our Certifications


Related Rroducts

R11 single stage Pressure Regulator.


Inlet pressure:500, 3000psig.
Outlet pressre:0-25, 0-50, 0-100, 0-250, 0-500psi
CV:0.08

Body Ports:1/4"NPT F


R31 Double stage pressure regulator


Inlet pressure:500, 3000psig.
Outlet pressre:0-25, 0-50, 0-100, 0-250
CV:0.06

Body Ports:1/4"NPT F


R12 medium flow pressure regulator

Inlet pressure:500, 3000psig.
Outlet pressre:0-25, 0-50, 0-100, 0-250psig
CV:1.1


Body Ports:1/2"NPT F

Gauge and safety relief valve ports:1/4"NPT F
