Customized Beam Weld Warehouse Storage Plastic Pallet Rack

FOB Reference Price:Get Latest Price
  • 100 - 499 Sets
    $280.00
  • >=500 Sets
    $100.00
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Pymic
Model Number:
TPR-001
Type:
Selective Pallet Rack
Material:
Steel
Feature:
Corrosion Protection
Use:
Warehouse Rack
Certification:
CE
Depth:
2.0, 1000MM/900MM/1020MM
Weight Capacity:
more than 5,000kg/rack
Width:
1000mm, 2700MM/2300MM/2500MM/2432MM
Height:
5025mm, pitch is adjusted by increments of 75mm
Product name:
Customized Beam Weld Warehouse Storage Plastic Pallet Rack
Style:
Pallet storage warehouse rack
Selection:
Single Row, back-to-back Rows and multiple Rows
Standard Pallet:
1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220
Beam Range:
Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Color:
Customized
Supply Ability
Supply Ability:
50000 Metric Ton/Metric Tons per Month Customized Beam Weld Warehouse Storage Plastic Pallet Rack
Packaging & Delivery
Packaging Details
carton,poly sheets and straps and pallets of Customized Beam Weld Warehouse Storage Plastic Pallet Rack
Port
Nanjing/Shanghai
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Product Description

Customized Beam Weld Warehouse Storage Plastic Pallet Rack


Customized Beam Weld Warehouse Storage Plastic Pallet Rack is not only subject to storing various goods in small quantity, but storing uniform commodities in large quantity as well. It works eth forklift or stacker. Generally, rhere are 2 types of Pallet Rack, one is traditional aisle(3000mm) rock; another is narrow alisle91700mm) rack. Narrow Aisle Racking should work with appointed forklift.



Technical Parameters of Customized Beam Weld Warehouse Storage Plastic Pallet Rack

Style
 Pallet storage warehouse rack
Selection
Single Row, back-to-back Rows and multiple Rows

Dimension of  Standard Pallet( Also can be Customized)
Depth
1000MM/900MM/1020MM
Width
2700MM/2300MM/2500MM/2432MM
Height
pitch is adjusted by increments of 75mm
Beam Range
Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm

Upright Range
80*60; 90*60; 90*70; 90*75;
100*67; 100*70; 100*75;
120*75; 120*87mm
Thickness: 1.5~3.0mm
Color
Customized
Weight Capacity
5000KG per level max ; 1500KG per pallet max

Package
Full container
Nude Package; Manual Handling
Less than container
Steel Pallets + Steel Straps + Corrugated Paper
Lead time
15-20 days for one container

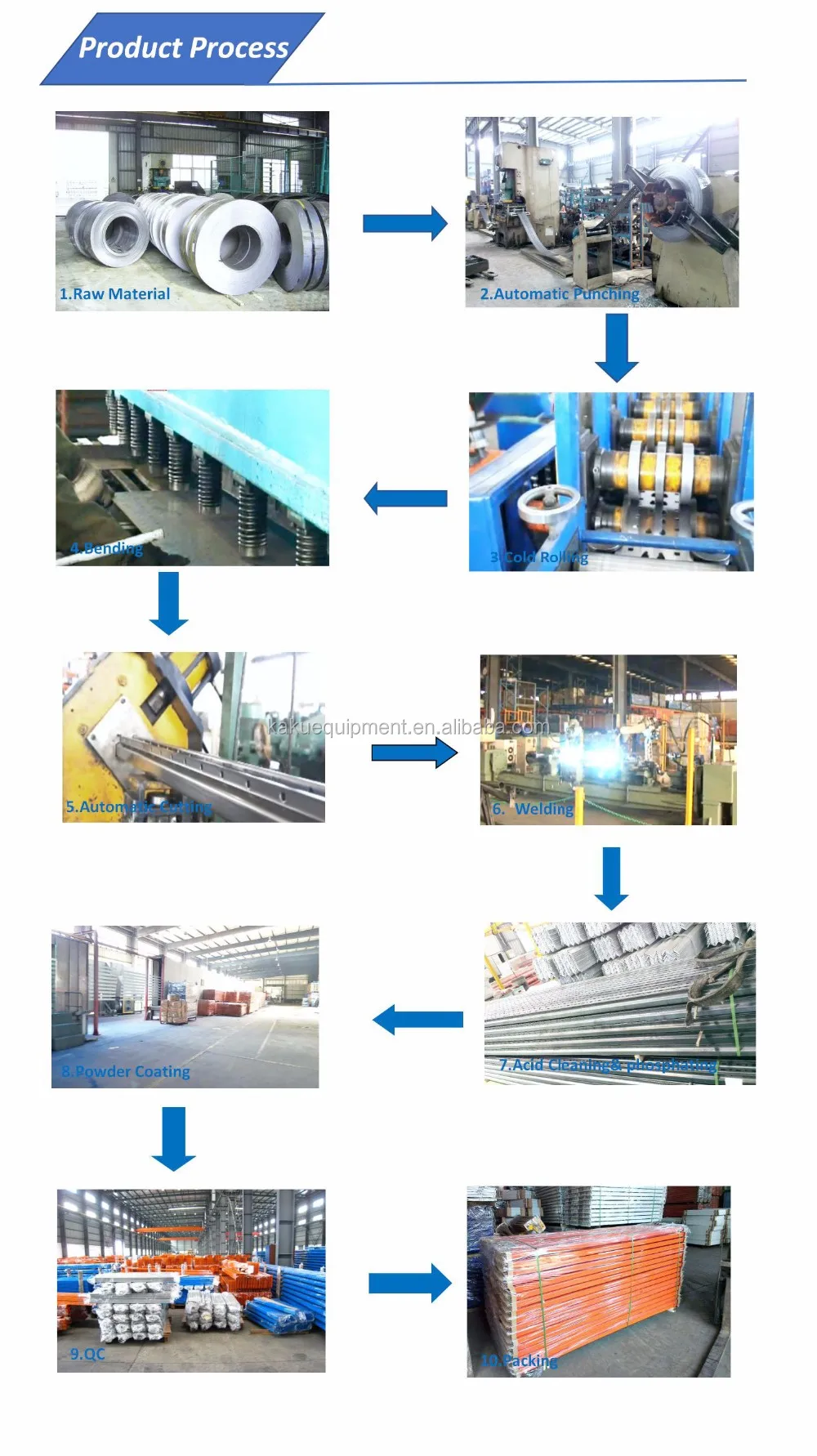

Features of Customized Beam Weld Warehouse Storage Plastic Pallet Rack

1. Taking use of cold-rolled steel uprights to improve the load capacity

2. Space between beams can be adjusted by 75mm pitch up and down

3. Assembled frame structure with safety facilities; easily assembled and disassembled; conveniently maintained and spare parts changed

4. Surface treated by epoxy powder coating with high corrosion resistance

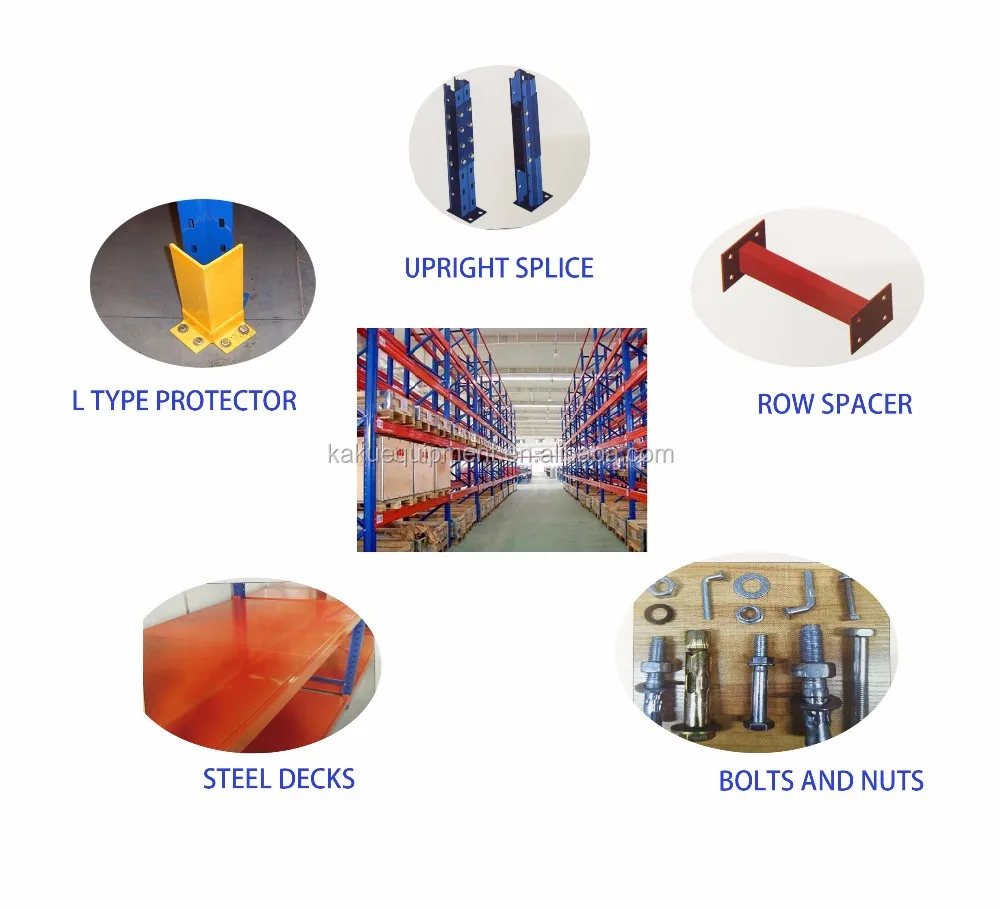

5. It can be worked with pallet supports, back spacers; panels; upright protectors; frame guards and back mesh according to requirements.

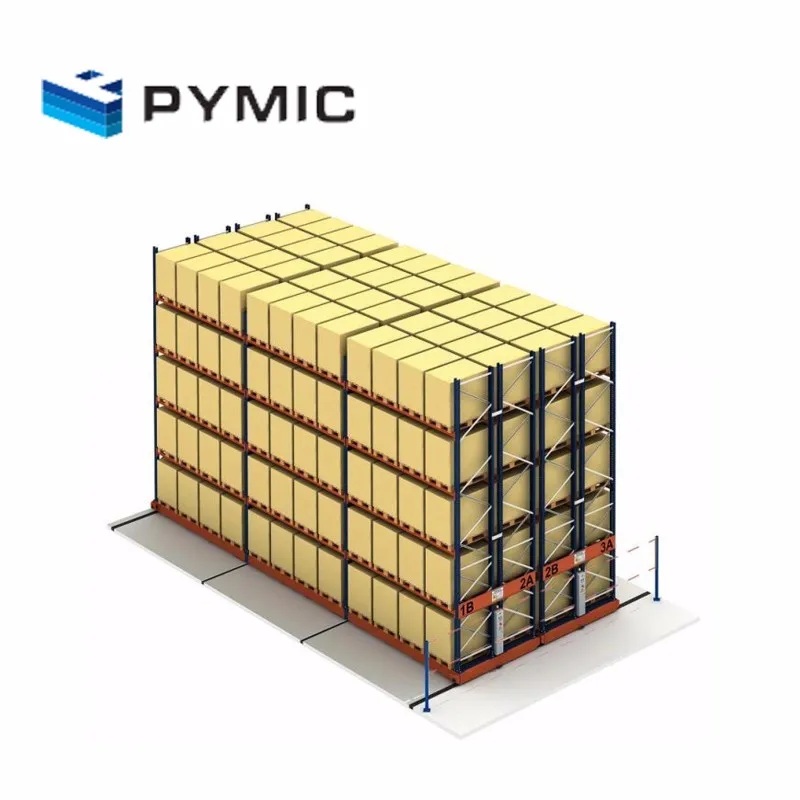

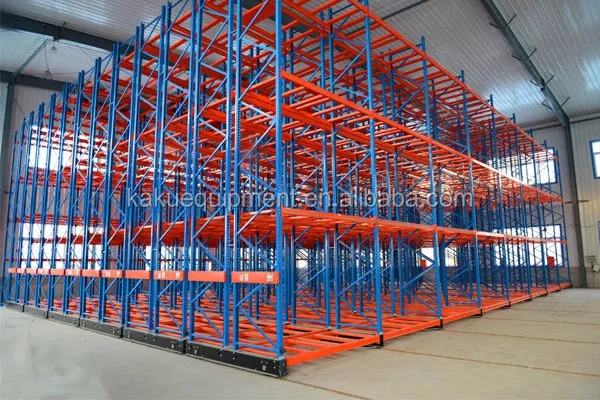

Detailed Images

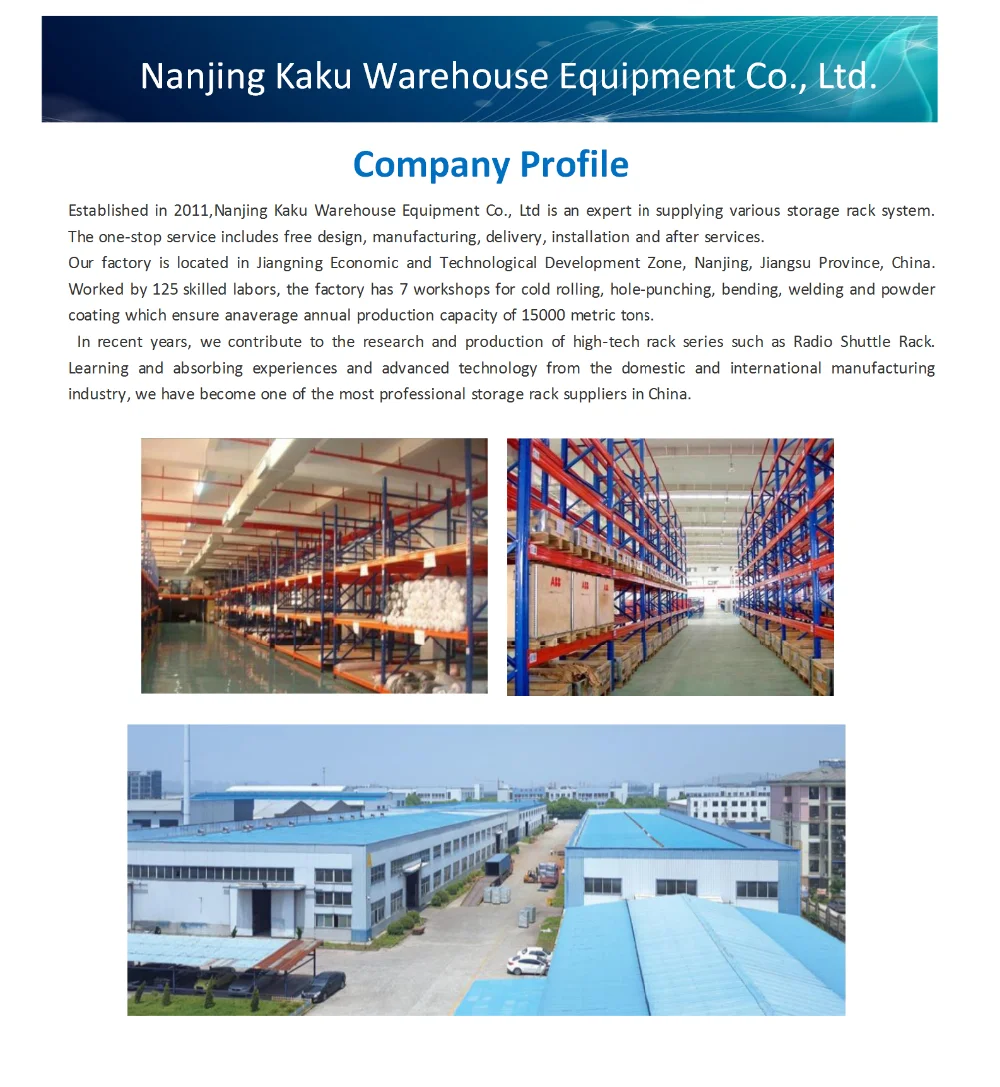

Our Company

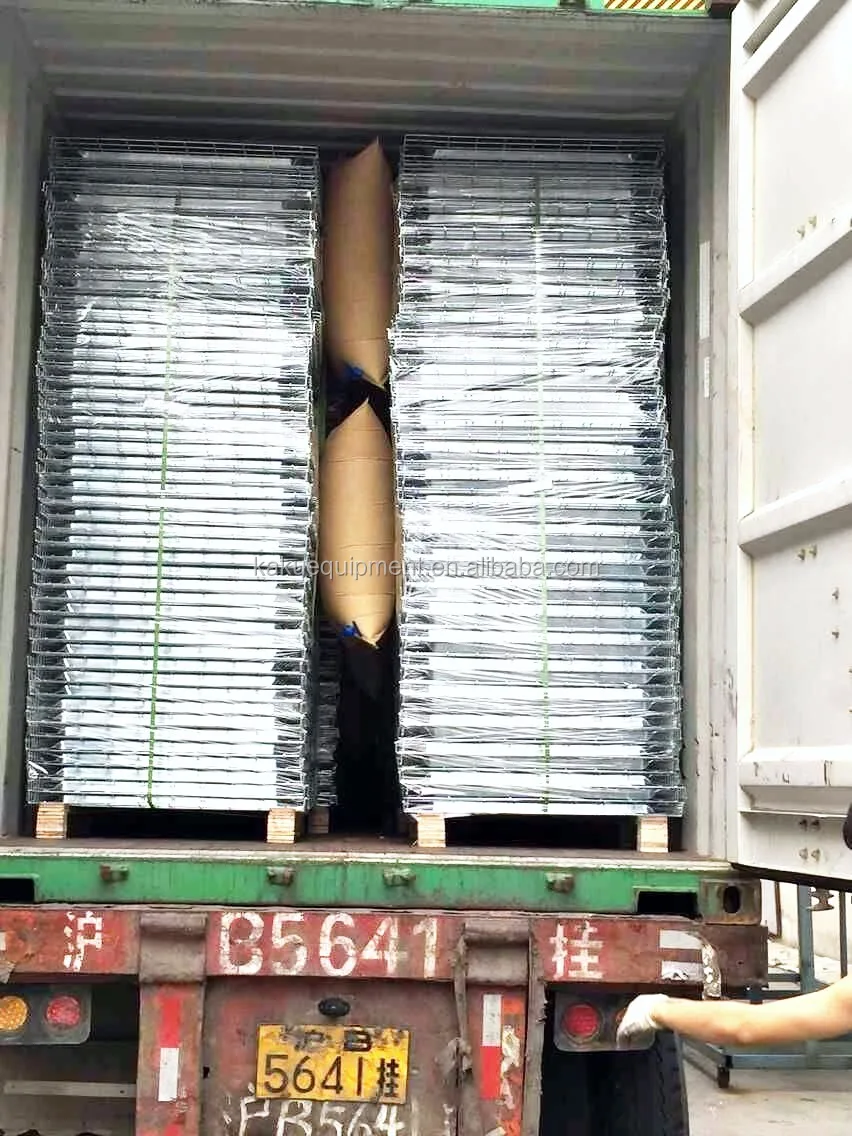

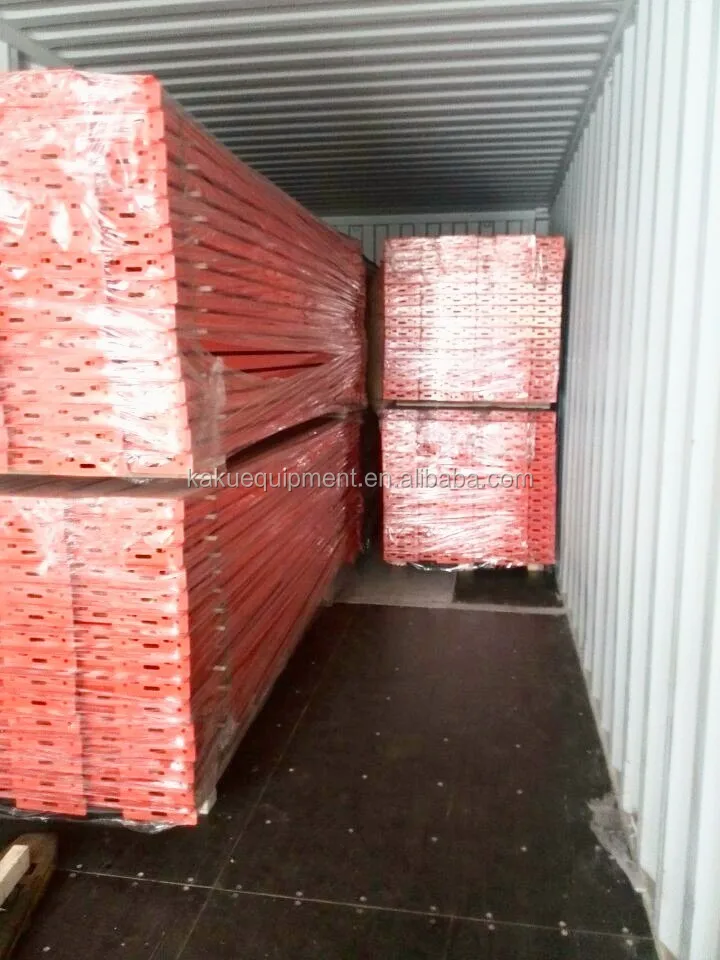

Packing & Delivery

Please provide information for quick quotation

1.  Pallet Size (Length*Width*Loading Height in mm)

2.  Layout or Dimension (Length*Width*Net Height in mm) of your warehouse

3.  Rack Size (Length*Width*Depth in mm) if you are available or we shall design for you

4.  How many bays and levels if available

5.  Loading Capacity(kg) of each level or each pallet


We shall make a design within 24 hours to you upon receiving your requirements.

Contact Us
FAQ

A: May I know the status of my order?

We will send you photos or video and help you to update.

B: Quick manufacturing time

 For Normal orders, we will promise to produce within 15 workdays.

 As a manufactory, we can essure the delivery time according to the formal contract.

C: What is delivery times?

 Normally, delivery time is within 20 workdays.

D: What is the term of payment?

T/T: 40% deposit in advance after confirmed order,

 70% balance payment before shipment ,WESTERN UNION, PAYPAL

Other Products

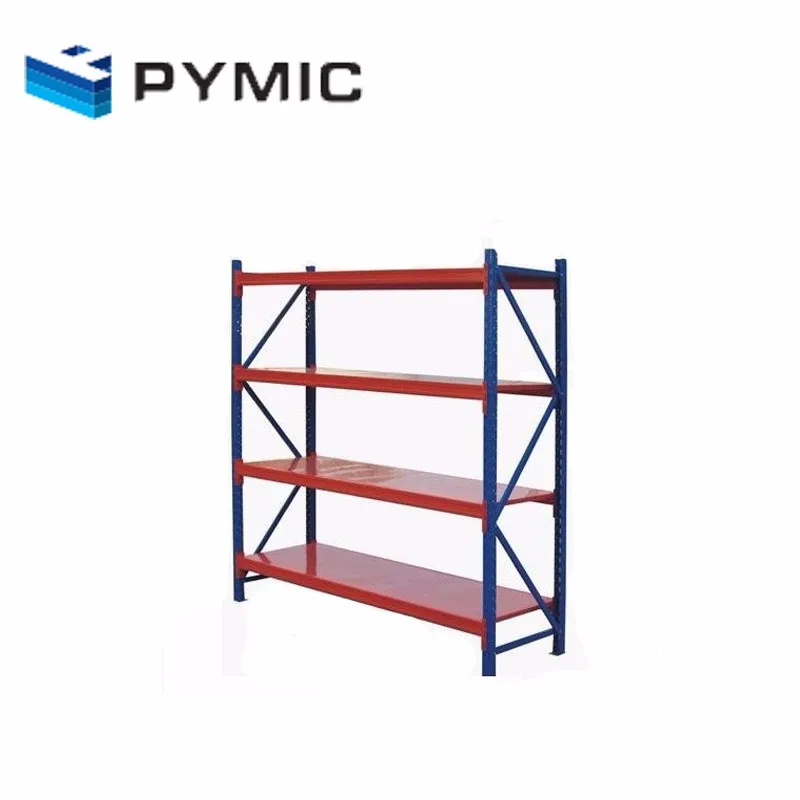

Medium&Light Duty Shelf


Commodity shelf

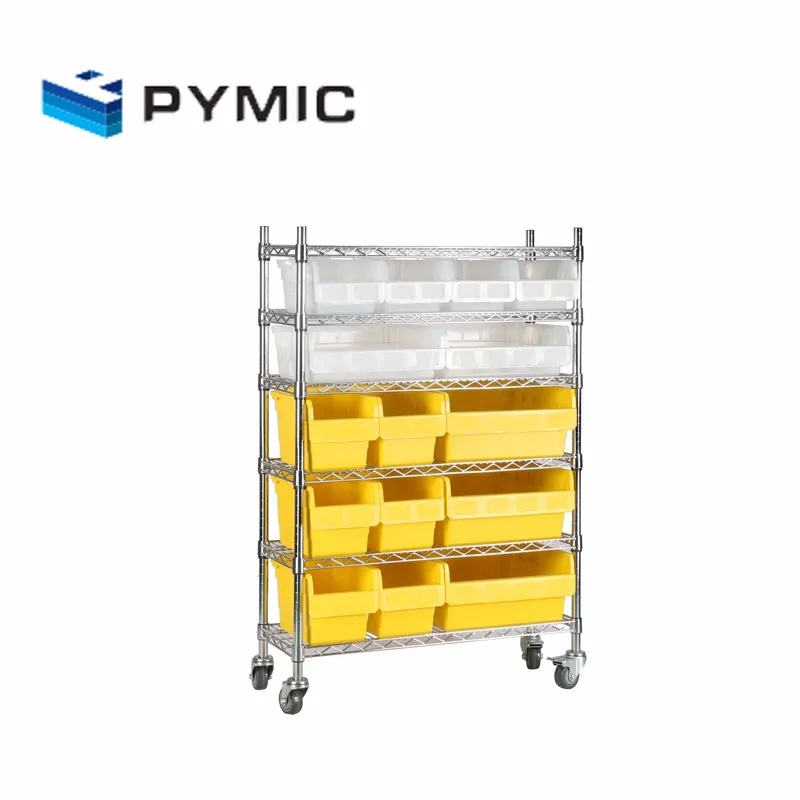

Movable Rack
