Cutting Machine Laser 50W CO2 Laser Engraving Cutting Machine with Auxiliary Rotary Device

FOB Reference Price:Get Latest Price
$1,018.00 - $1,300.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SH-G350DJGDKJ1
Power(W):
50W
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Cutting Area:
300*500MM
Cutting Speed:
0-500mm/s
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DXP, GIF,JPEG,PCX,TGA,TIFF,CDR,DMG,PAT,CDT,CLK,
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
0-10mm, 0-10mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
China
Brand Name:
VEVOR
Certification:
CE
Warranty:
2 Years
Laser Power:
50W
Motor Type:
Stepper Motor
Power Supply:
AC110 ± 10% 60 HZ
Engraving Area:
30*50cm
Max. Moving Speed:
500mm/s
Net weight:
65kg
Min. Character Size:
Character: 2 x 2 mm, Letter: 1 x 1 mm
Packing:
Plywood case
Key Words:
laser cutting machine;laser engraving machine;laser engraver
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
one set in a wooden case.
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Video Description
Product Description

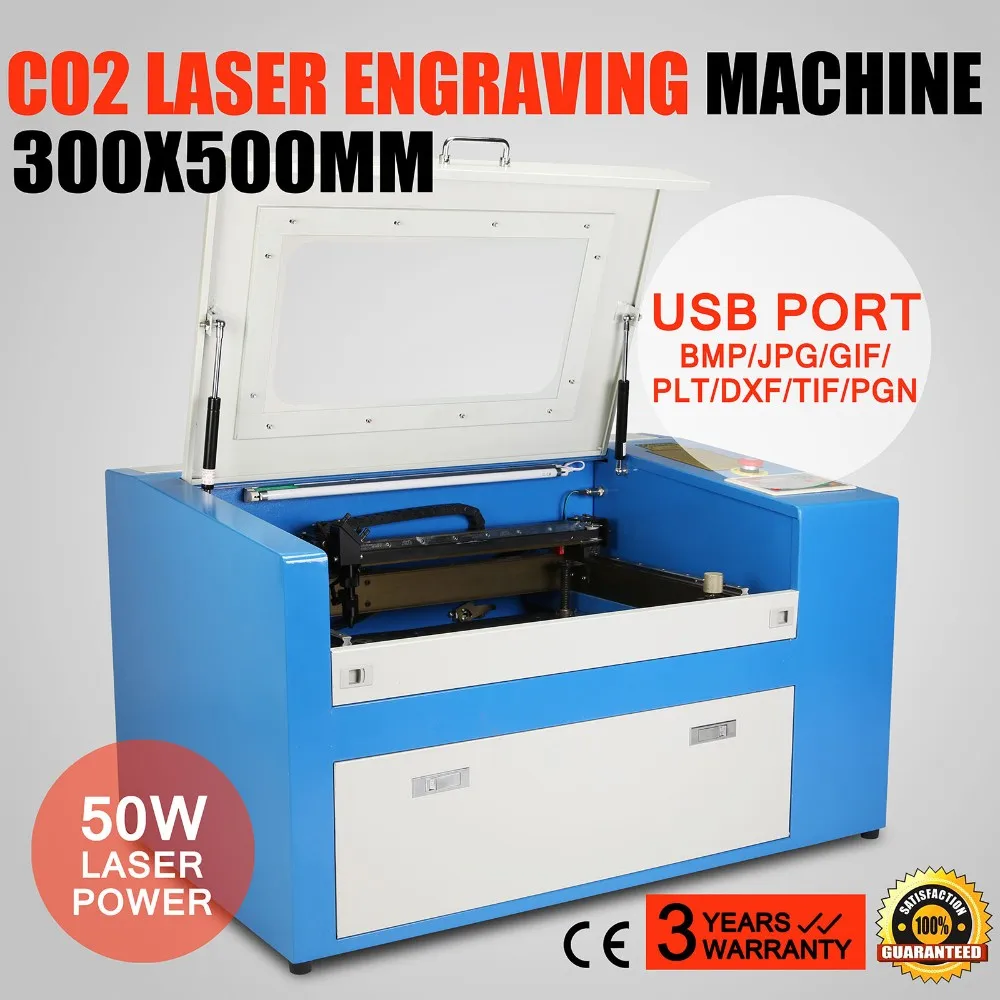

Cutting Machine Laser 50W laser engraving machine CO2 Laser Cutting Machine with Auxiliary Rotary Device Laser Engraver

New Laser Engraving and Cutting Machine.The machine is equipped with a precision 50W water cooled CO2 laser that will engrave almost anything on almost any surface.The machine can also be used for cutting many different materials.With the Cylinder Rotary Attachment,you can engrave any cylindrical object,such as cup,brush pot,musical instrument and so on.It supports multiple graphic formats,such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on. This machine is equipped with DSP Control System for CorelDraw/AutoCAD and other advance software.This machine is compatible with WIN7,Vista,XP and WIN2000.

Applicable Industry:

This machine is suitable for:woodworking,textile cutting,industrial prototyping,industrial marking,signmaking, medical part marking,aerospace,architectural modeling,specialty advertising,plastics fabricating,flexo,point of purchase, rubber stamps, picture framing,gift manufacturing,bar coding,engraving,gasket cutting, puzzles,cabinetry,awards & recognition,personalized pens,door pulls,cut scroll patterns,games & toys,finger joints,inlays & overlays,fraternity paddles,music boxes,light switch plates,jewelry boxes,parts marking,router templates,desk sets,scrap booking,photo albums,jewelry,crafts,Italian charms. All laser engraving machines can not carve and cut metals.

TECHNICAL:


Laser power: 50W
Laser type: Hermetic CO2 glass tube
Power supply: AC220±10% 50HZ/ AC110±10% 50HZ
Working area: 300mm X 500mm
Max moving speed: 500mm/s
Locating precision: <0.01mm
Min shaping character: Character: 2x2mm, Letter: 1x1mm
Operating temperature: 5℃-40℃
Resolution ratio: ≤4500dpi
Control configuration: DSP
Data transfer interface: USB(offline)
Worktable: DC-G350D –up&down table

System environment: WINDOWS 2000/WINDOWS XP/ WIN7/VISTA
Cooling way: Water Cooling and protection system
Graphic Format Supported: The Files which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)
Compatible software: RDdraw (also support CorelDraw & AutoCAD but Not Included in this item.)
Cutting thickness: 0-10mm (depends on different materials)
Color separation: Separation of cutting up to 256 colors
Sloping engraving: Yes,slope can be designed discretionarily
Cuts off the water supply the protection: Yes
Packing: Plywood case
Parts: Cylinder Rotary Attachment
Machine Dimension: 1020×650×630 mm

Detailed Images

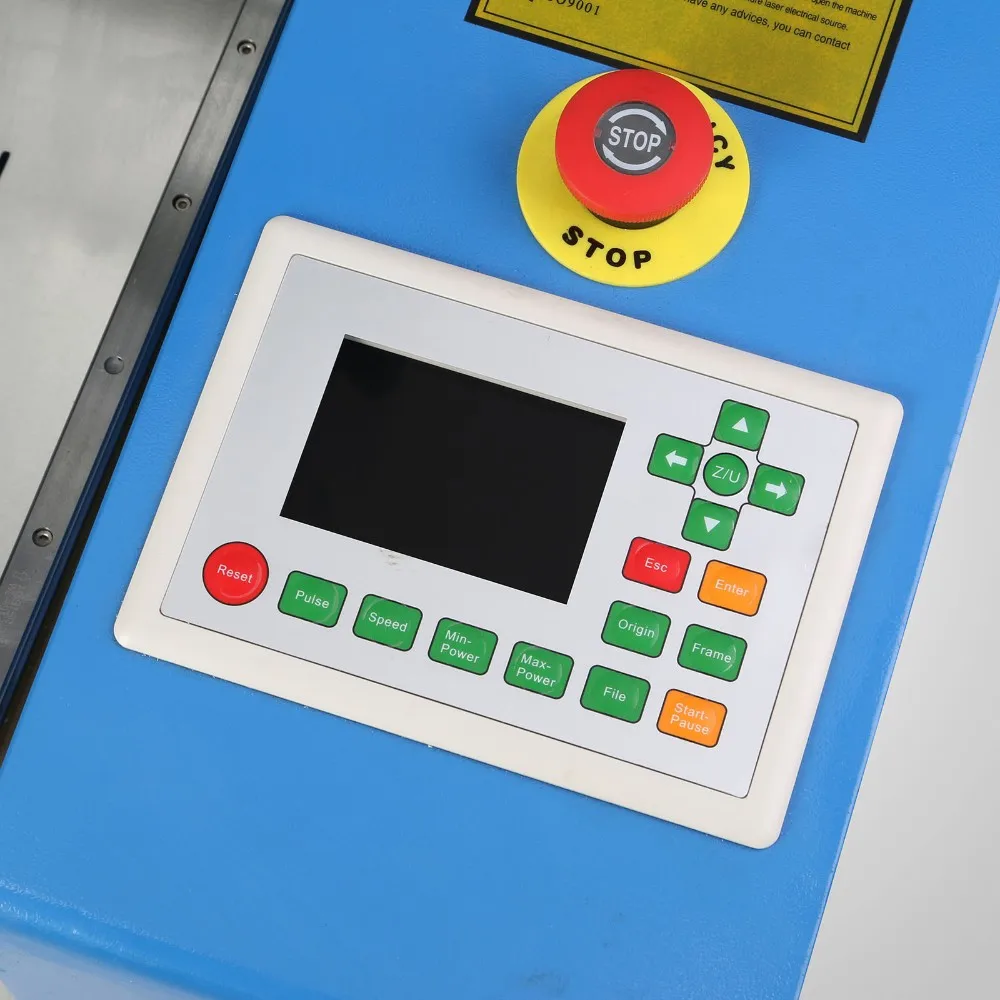

Adjustable Speed and Power.Intuitive Control Panel,Set Speed, power and more controls directly from the laser.

Raster/Vector Color Mapping.Change your engraving speeds and power by using color settings.

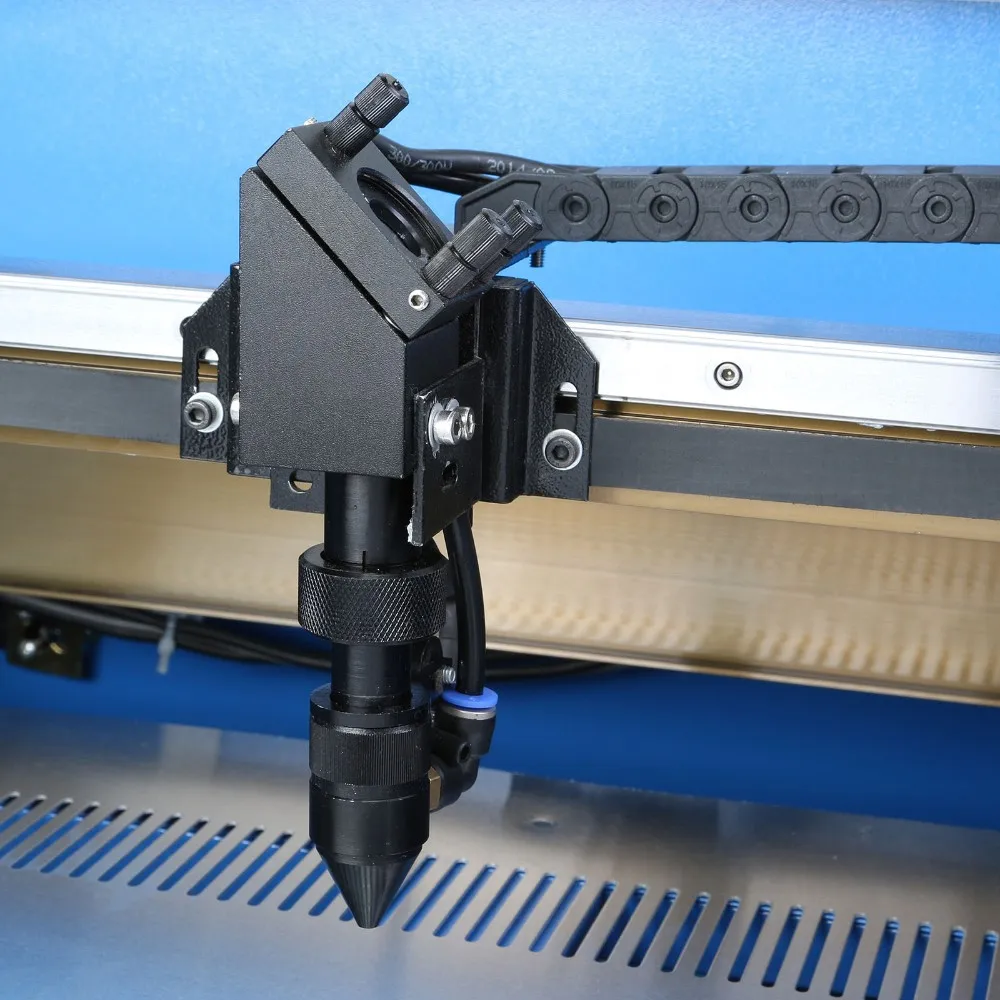

Air Assist,Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.

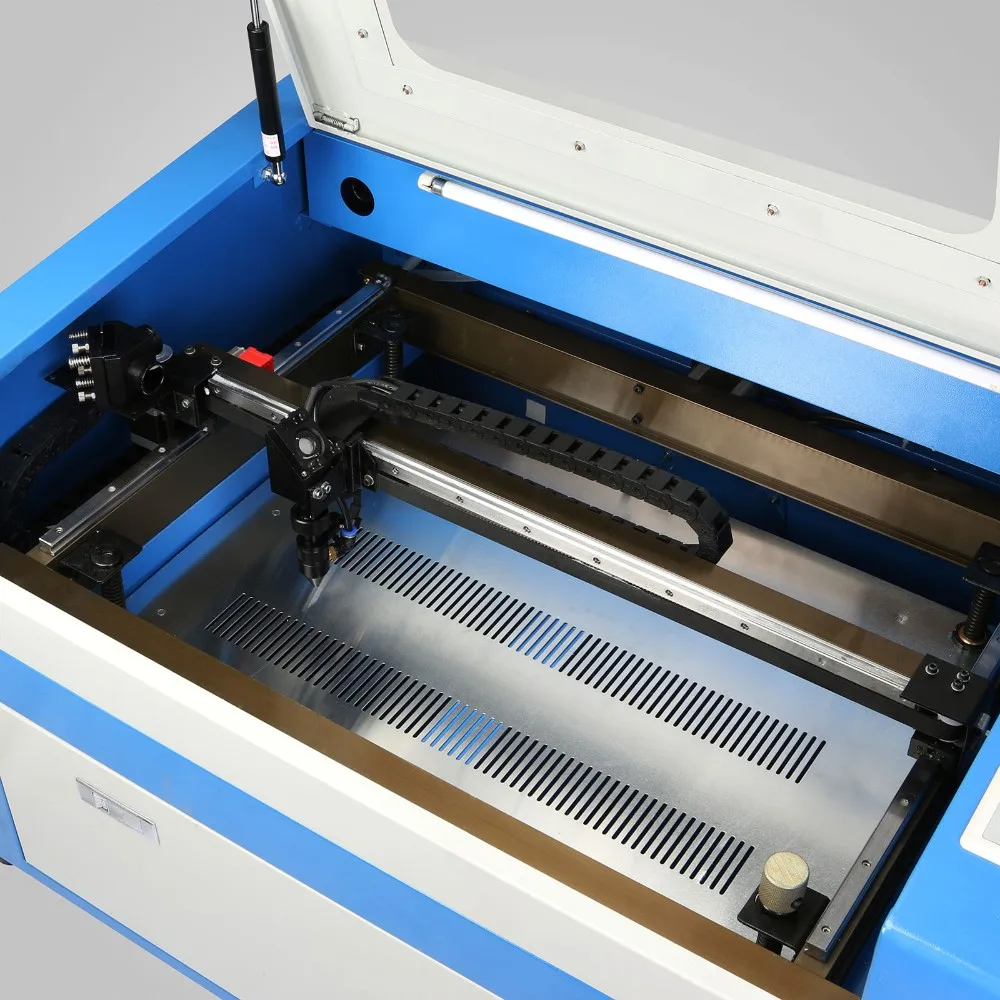

Manual up/down table.

Reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

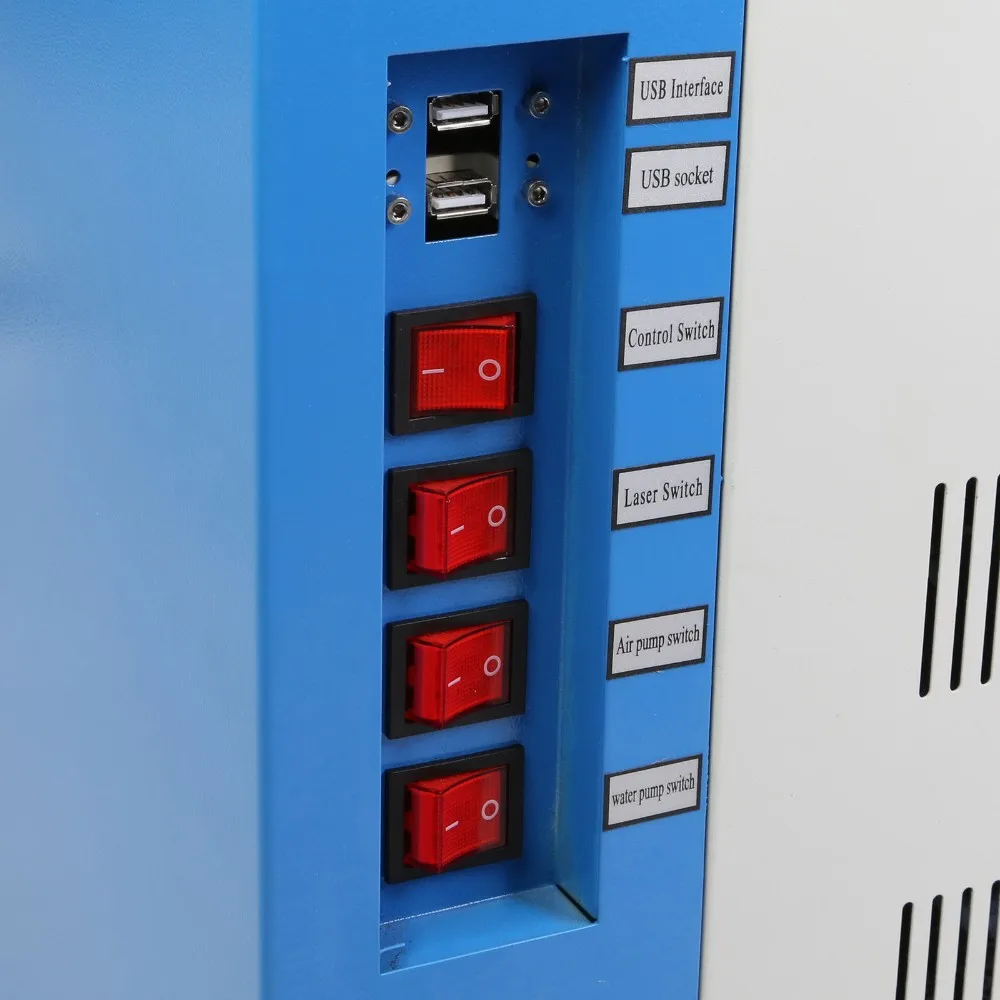

USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.




Smooth and Precise Engraving and Cutting.

Red Dot Pointer.Provides a visible means of determing engraving location.

Engrave almost anything on almost any surface.

FEATURES

FDA Compliant, CE Certification, ISO9001 Quality Certification.
Raster/Vector Color Mapping.Change your engraving speeds and power by using color settings.
Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
Adjustable Speed and Power. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
Exhaust Fan system included.
Cylinder Rotary Attachment, Engrave any cylindrical object.Process the cylinder object such as cup, brush pot, musical instrument and so on.
Engrave almost anything on almost any surface.

Packing & Delivery
Packaging
Size
114 (L) * 76(W) * 69 (D)
Weight
111kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
