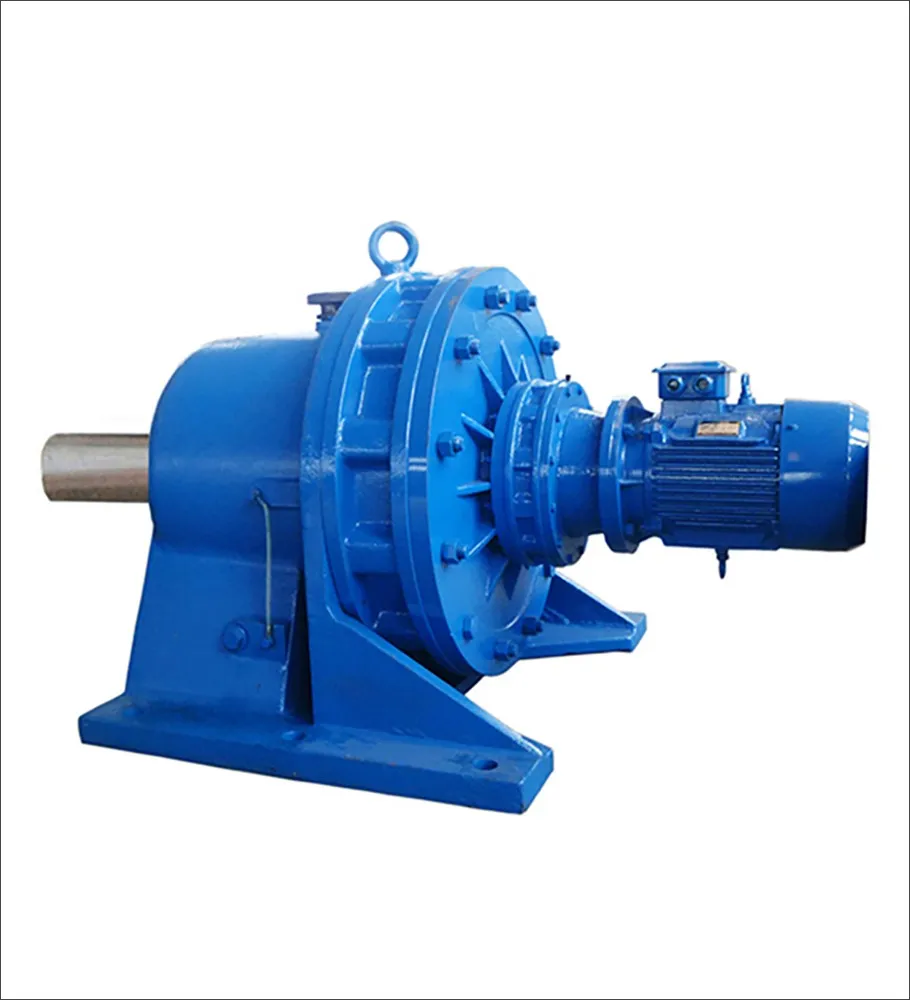

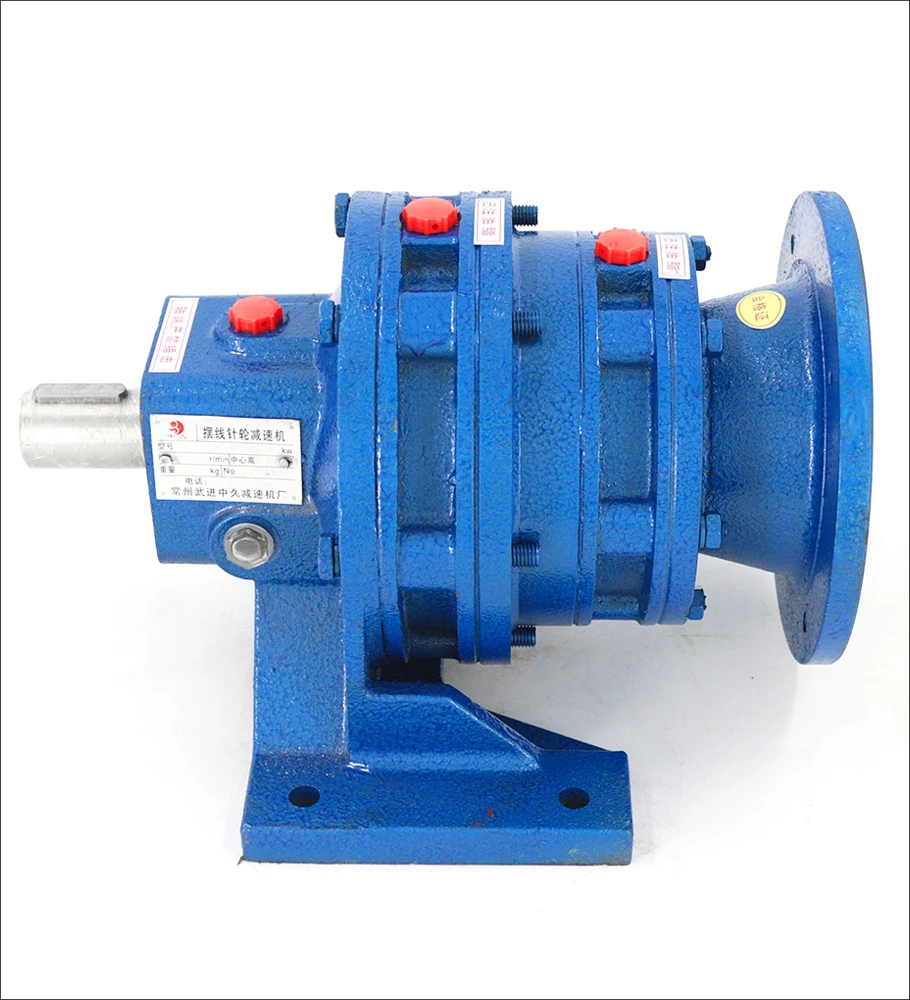

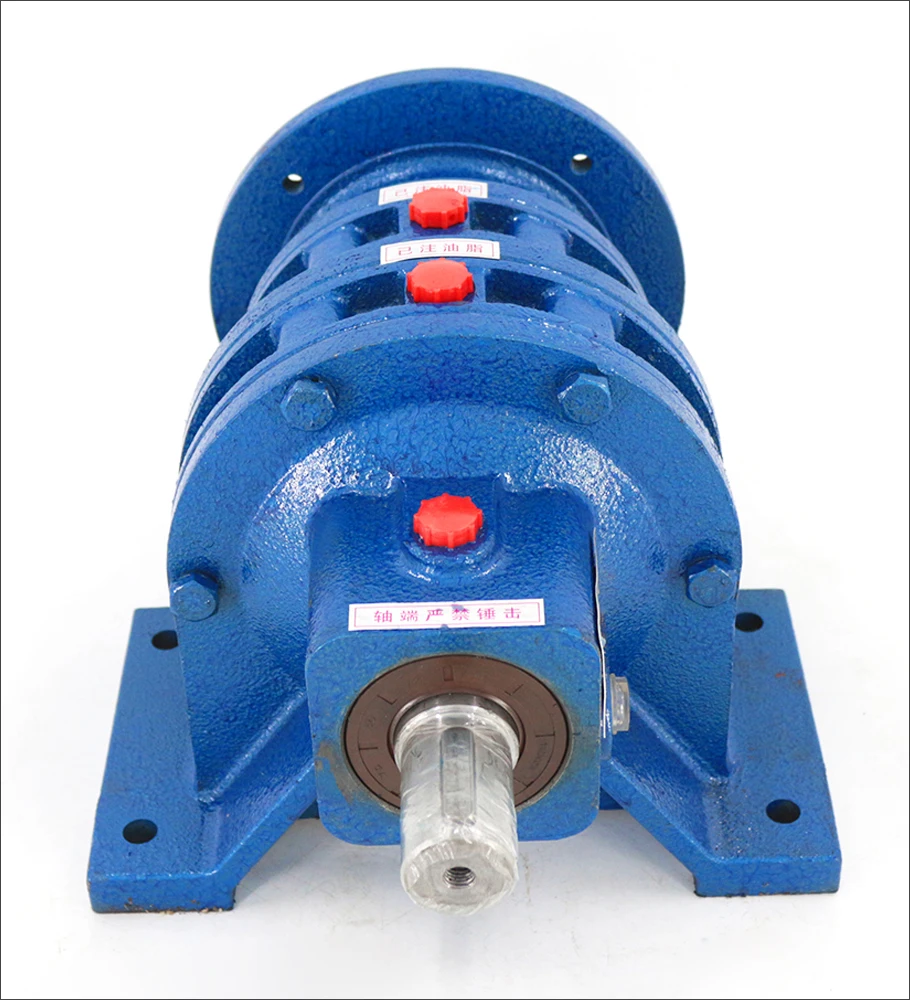

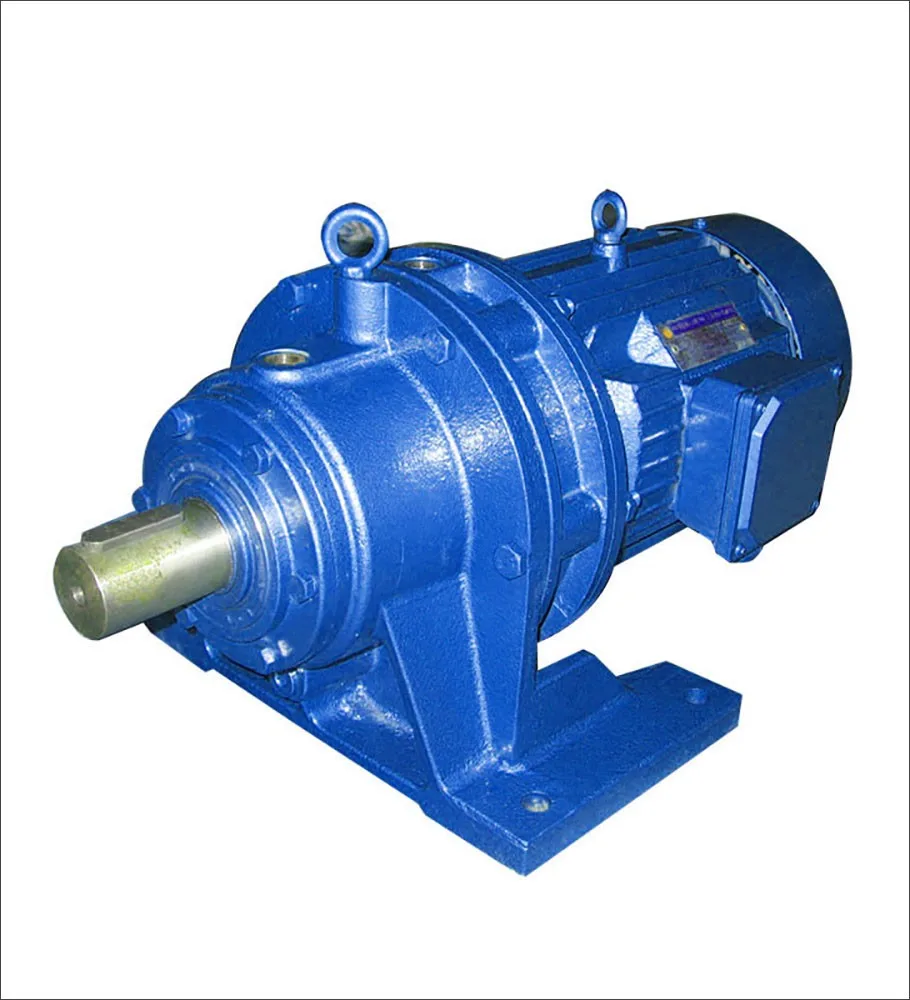

Cycloidal pinwheel gear speed reducer gearbox

  • 1-9 Sets
    $80.00
  • >=10 Sets
    $65.00
Rated Power:
0.12~160kw
Model Number:
R
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops
Gearing Arrangement:
Helical
Output Torque:
2.6-1195N.M
Input Speed:
300-1800Rpm
Output Speed:
0.16-1028r/min
Place of Origin:
Jiangsu, China
Brand Name:
YIN XIN
cycloidal gearbox:
Cycloidal Gearbox Reducer
Color:
Blue
Product name:
BLD Cycloid Speed Reducer
Application:
Machine Tool
Material:
Steel
Bearing:
NSK
Certificate:
ISO9001
Ratio:
9-28800
Mounting Position:
Horizontal (foot Mounted)
Input Form:
IEC Flange

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X50X40 cm
Single gross weight:
20.0 kg
Package Type:
wooden box
Lead Time :
Quantity(Set) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Video Description

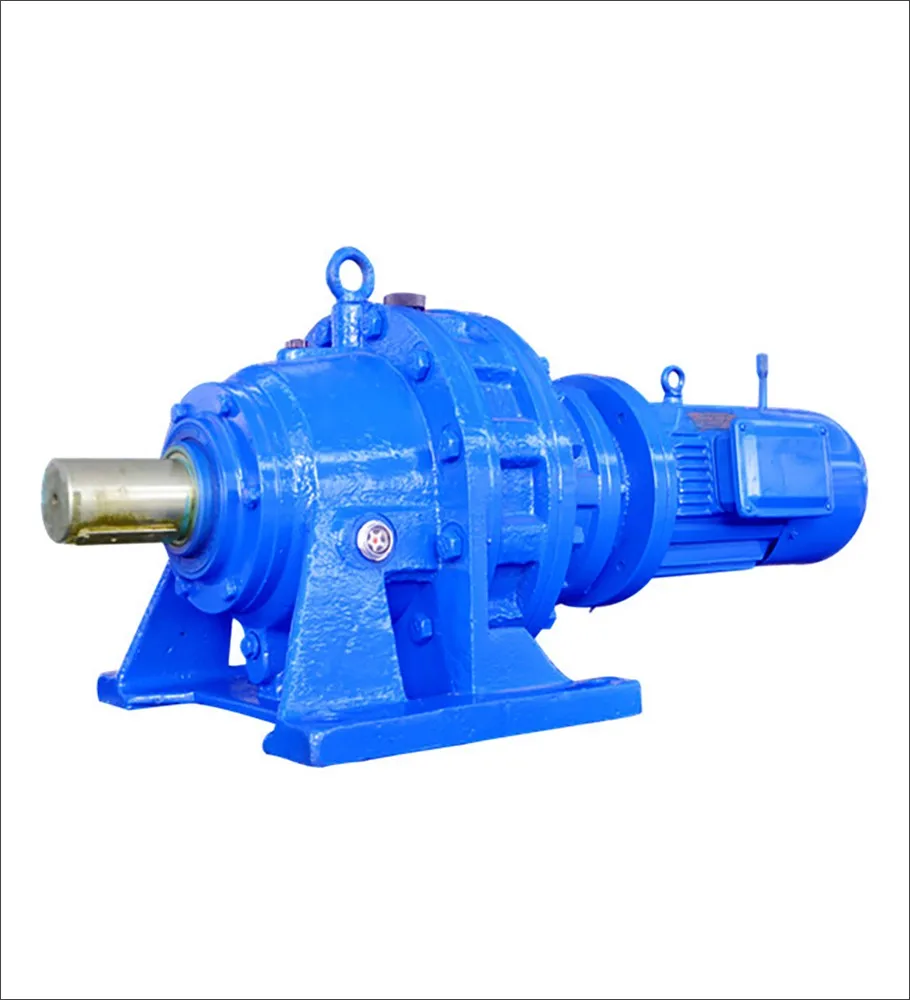

Product Description

Cycloidal gear reducer is a principle adopted K-H-V Planetary Gear less innovative gear. Its transmission process as follows : input shaft equipped with a 180-degree dislocation of the double eccentric sets, replaced with two eccentric turn as a roller bearing arm, the formation of H-, two cycloid round hole at the center shall uplink Eccentric Roller Bearings arm, which cycloidal gear needle round and meshing phase, comprising a difference of the teeth meshing with the gearbox.

Type
stage
Model
Ratio
Nominal Power (KW)
Nominal Torque(N.m)





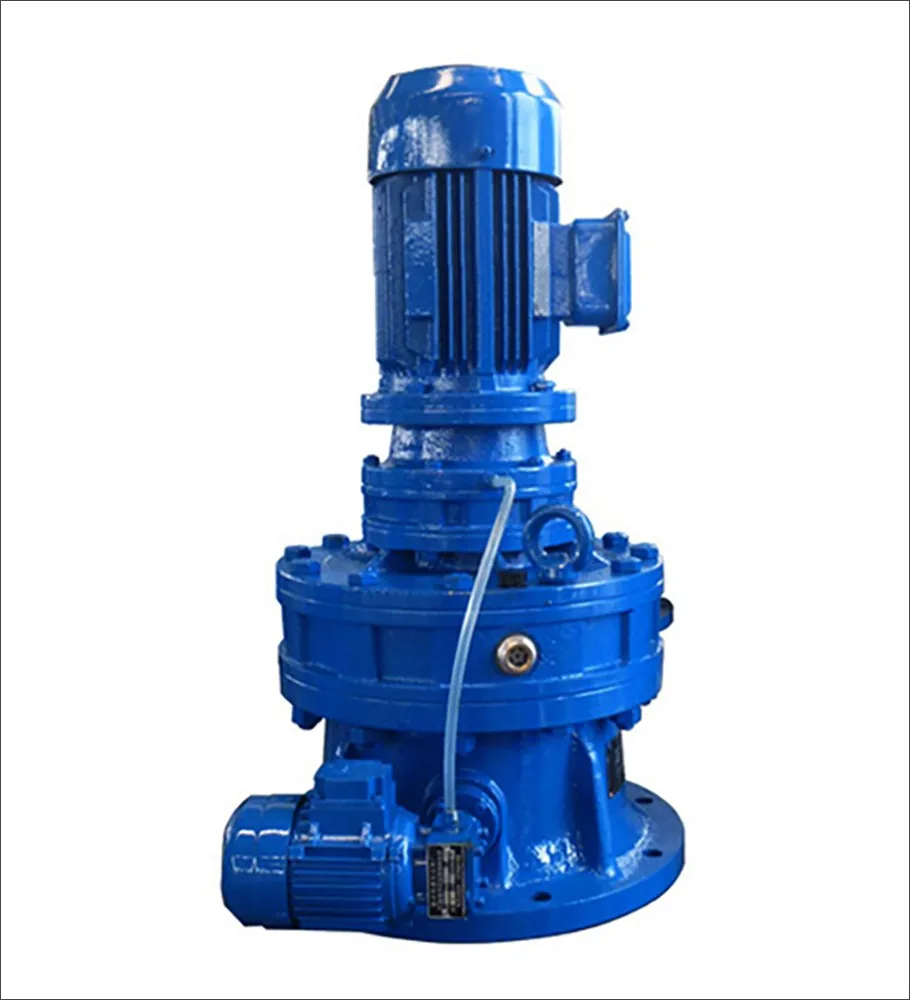

X/B Series Cycloidal Reducer






Single reducer
B09/X1






           9-87
0.55-0.18
26-50
B0/X2
1.1-0.18
58-112
B1/X3
0.55-0.18
117-230
B2/X4
4-0.55
210-400
B3/X5
11-0.55
580-1010
B4/X6/X7
11-2.2
580-1670
B5/X8
18.5-2.2
1191-3075
B6/X9
15-5.5
5183-5605
B7/X10
11-45
7643
Type
stage
Model
Ratio
Nominal Power (KW)
Nominal Torque(N.m)






X/B Series  Cycloidal reducer







Double reducer
B10/X32







         99-7569
0.37-0.18
175
B20/X42
1.1-0.18
600
B31/X53
2.2-0.25
1250
B41/X63
2.2-0.25
1179-2500
B42/X64
4-0.55
2143-2500
B52/X84
4-0.55
2143-5000
B53/X85
7.5-0.55
5000
B63/X95
7.5-0.55
5893-8820
B74/X106
11-2.2
11132-12000
B84/X117
11-2.2
11132-16000

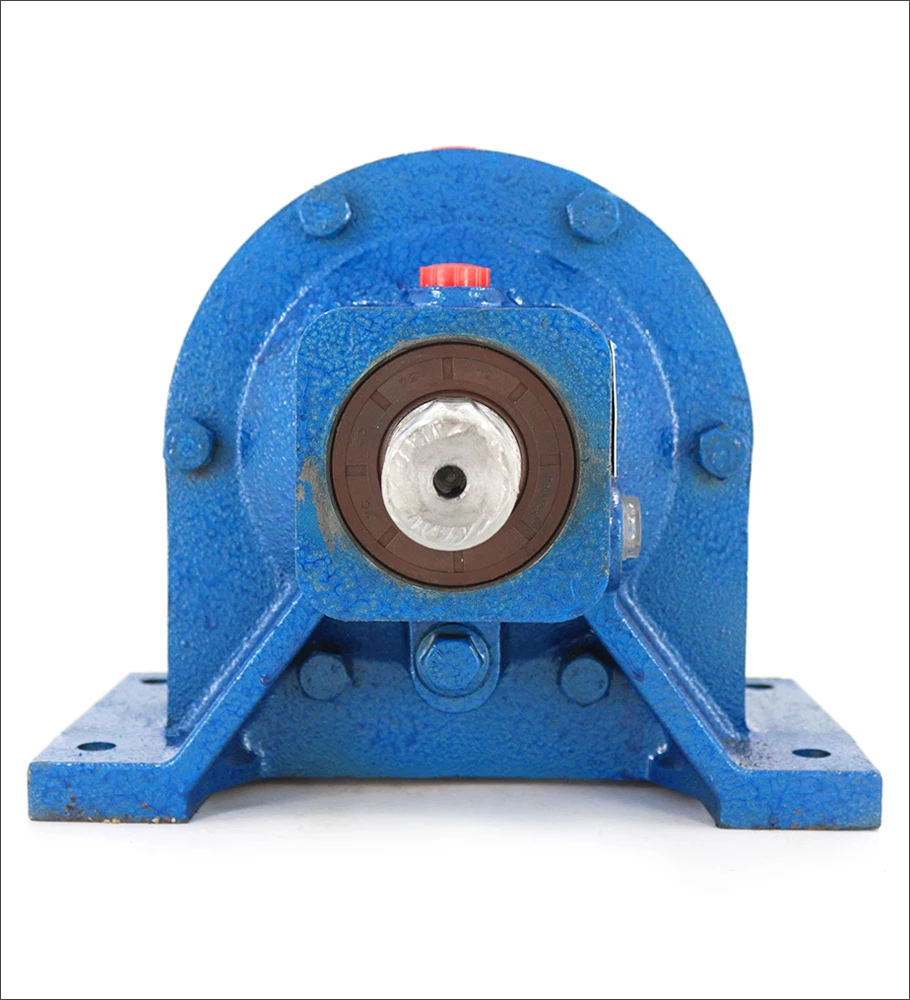

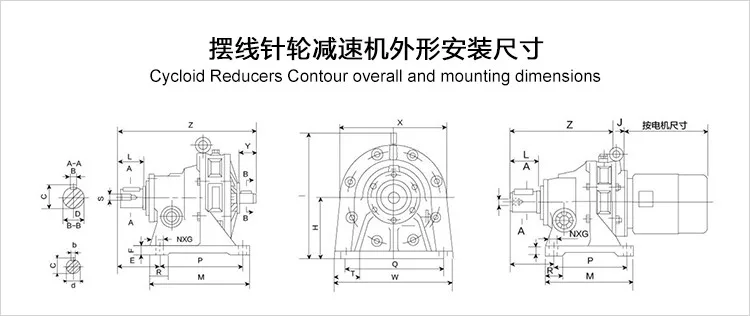

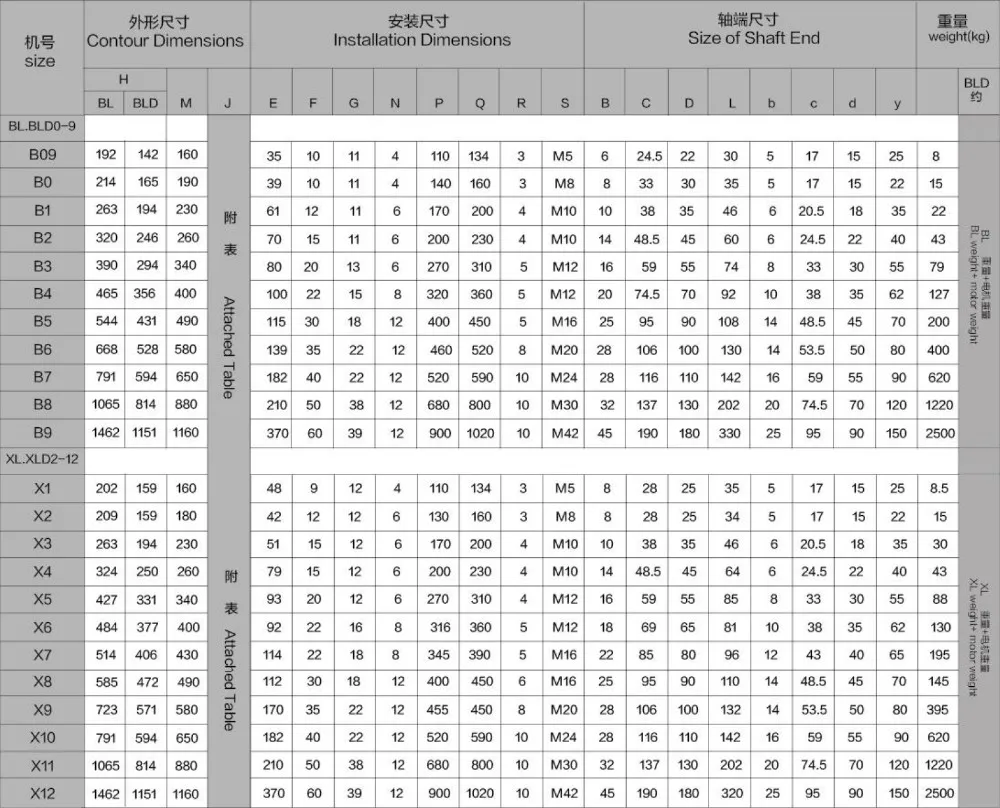

Main Features

All planetary cycloidal reducer rotating device can be divided into three parts:input part,deceleration part and output part.

Dislocation on the input shaft is equipped with a 180℃ of double eccentric sleeve,equipped with two ball bearings on the eccentric sleeve,the formation of H two cycloid gear center hole is the eccentric sleeve on the turning arm bearing raceway,and by a groud of cycloid gear and pin gear ring of gear meshing,less bad tooth meshing reduction mechanism to form,(in order to reduce friction,in small ratio of speed reducer,the needle with needle teeth on the gear set).
When the input shaft with eccentric sleeve rotation for a week,as a result of the cycloid gear tooth profile curve characteristics and restricted by needle on the gear teeth,the movement of the cycloid gear becoming both revolution and rotation of the plane movement,and input shaft are
made for a week,eccentric sleeve also turn the week,cycloid gear in the opposite direction around a big tooth difference reduction is obtained, then with the help pf W output mechanism,the cycloid gear rotates at low speed movement through the pin shaft,passed to the output shaft,low output speed can be achieved.

Characteristics:

1.Cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.
2.Pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.
3. The use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.
4. Compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.

Our Company

Xuzhou Yinxin Electromechanical Facilities Co. Ltd

Xuzhou Yinxin Electromechanical Equipment Co., Ltd.is a gift enterprise integrating development, design, production and sales,Main promoting products include reducer motor,water pump,construction machinery and parts,bearings,hardware and electrical equipment,plastic products,Labour protection appliance.Our company always follow the operation concept which contains people-oriented, innovation as the soul,be prepared for danger in times of peace, unremitting......

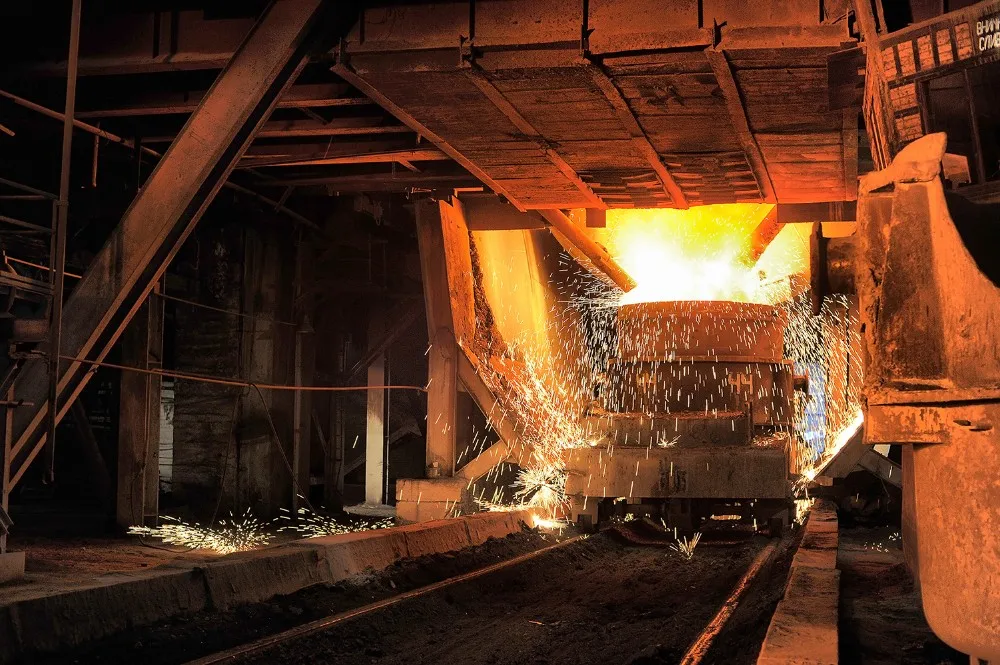

Application area
Certifications
Sales territory
Packing & Delivery
Packaging
Size
500 (L) * 500 (W) * 400 (D)
Weight
1.2 T

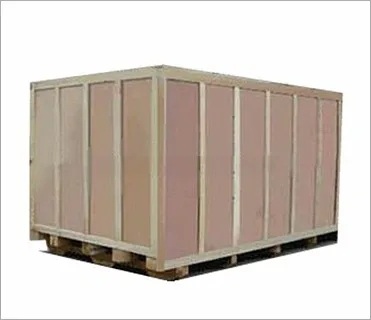

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
500 (L) * 500 (W) * 400 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

Q1: Are you trading company or manufacturer ?

A: We are a manufacturer in Jiangsu China.welcome to our factory to have a visit.

Q2: How we select models and specifications?

A:You can email us the series name & code (for example: WJ series worm reducer) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is better.

Q3: How is your price? Can you offer any discount?

A: We will give the best price we can base on your needs and the quantities.

Q4: How long should I wait for the feedback after I send the enquiry?

A: Within 12 hours.

Q5: What is your product warranty period?

A:We offer one year warranty since the vessel departure date left China.

Q6: What industries are your gearboxes being used?

A:Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment and so on.
