Cylinder Rubber Fender

FOB Reference Price:Get Latest Price
$20.00 - $2,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
cylindrical rubber fender
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Hi-sea
Part:
rubber fender
Height:
500 to 1800mm
Material:
Rubber
Function:
Energy absorb
Customized:
Available
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Port
Shanghai, Qingdao or Other Port
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 15 To be negotiated

Cone Fenders





Product Description

Cone Fenders are the latest generation of “Cell Fender” combining excellent energy capacity with low reaction force to give the most efficient performance of any fender. The conical shape keeps the body stable under all combinations of axial, shear and angular loading, making it ideal for berths where large berthing angles and heavy impacts need to be accommodated. Besides this,we can also provide you other marine equipment,if you are interested in any of our products,please feel free to contact us.

1. In the case of oblique berthing (less than an angle of 10°), the performance will not be reduced, which is superior to cell fender.

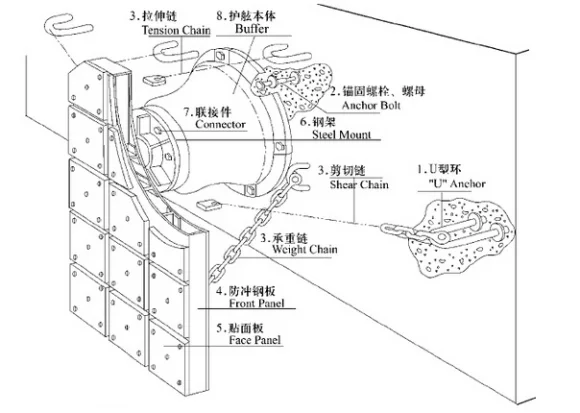

2. The frontal frame (steel frame) is installed in front of cone fenders, which can reduce the surface pressure against vessel hull. The surface pressure can be limited below 25t/m2, which is suitable to large vessel especially.

3. The super high density polyethylene pads are adhered to the frontal frame, which can reduce the friction factor between hull and cone fender to below 0.2, and can reduce the shear force (horizontal force) exerted on fenders when vessel berthing, which can prolong the service life of fenders.

4. The frontal frame adopts water-tight structure with high strength and better anti-rust performance.

5. The cone fender body is rarely damaged or impaired because it never contacts the hull directly.

Reasons for Choosing Hi-Sea Marine:

1. Experienced, Reputable Supplier;

2. Supply a Large Range of Marine Equipment;

3. High Quality Products;

4. Reasonable and Competitive Price;

5. Short Delivery;

6. Excellent One-Stop Service;

7. Meet All the Requirements of Customers;

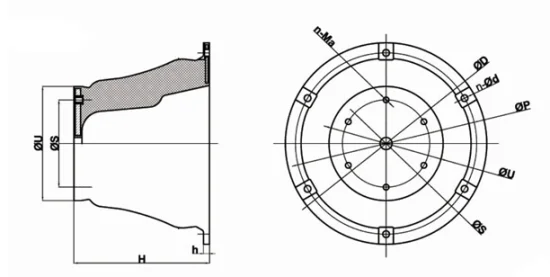

Drawing of cone type rubber fender:




Cone Type Rubber Fender Model

H(mm)

D(mm)

U(mm)

P(mm)

S(mm)

Hole

CO500H

500

800

490

730

425

4

CO600H

600

960

590

875

515

4

CO800H

800

1280

785

1165

685

6

CO1000H

1000

1600

980

1460

855

6

CO1100H

1100

1760

1080

1605

940

8

CO1200H

1200

1920

1175

1750

1025

8

CO1300H

1300

2080

1275

1900

1100

8

CO1400H

1400

2240

1370

2040

1195

8

CO1600H

1600

2560

1570

2335

1365

8

CO1800H

1800

2880

1765

2625

1540

10

IACS Certificates:

Our Services



1.Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.


2.Product Customization Service
Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.


3.Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CCS, ABS, BV, DNV, GL, LR, NK, KR, RINA, RS etc..

4.Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.
