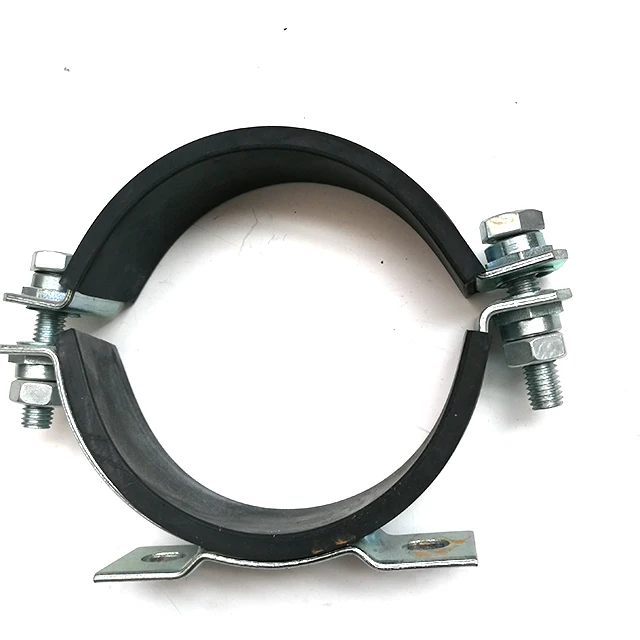

DBC- 45G DBC- Sanitary Hot Rubber Lined Hose Pipe Clamp Adapter

  • 2-99 Pieces
    $10.85
  • 100-499 Pieces
    $8.60
  • >=500 Pieces
    $7.70
Type:
Bolts Clamps
$
- +
available
Pipe Clamps
$
- +
available
Strut-Mounted Clamps
$
- +
available
All 7 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HHH-FEC
Model Number:
DBC- 45G
Usage:
Clamp, Pipe supporting
Material:
Carbon steel, Carbon steel
Structure:
saddle clamp
Standard or Nonstandard:
Standard
Product name:
DBC- Sanitary Hot Rubber Lined Hose Pipe Clamp Adapter
Application:
Petroleum,shipbuilding andindus
Surface treatment:
Galvenized
Diameter pipe clamp size D mm:
114mm
Process:
Punching and bending
Main using:
Hydraulic Accumulator
Packing size:
130*155*70mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X15.5X7 cm
Single gross weight:
1.2 kg
Package Type:
pipe clamp bracket Carton package Non-Wood package pallet
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 2 3 - 100 101 - 500 >500
Est. Time(days) 15 40 60 To be negotiated
Product Description
Our hoop type accumulator bracket uses polished plates,die stamping, automatic welding and environmentally friendly Zinc planting process.
The product is suitable for the installation of all accumulators that meet JB/T,ASME or CEN standerd. It can also be used to clamp various pipelines in industrial pipes and ships.
It can be produced according to design drawings or samples, or it can be designed and produced according to the customer's accumulator.
We can also provide stainless steel stent products if the user has special technical requirements
Accumulator Base uses polished plates, Laser cutting,CNC bending and environmentally friendly Zinc planting process.
Products are mainly sold to the United States and EU countries

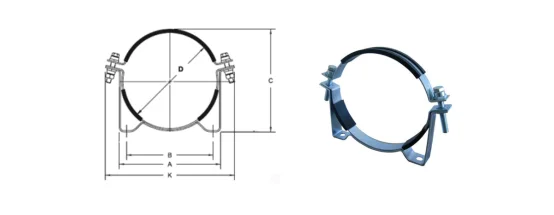

Double Bolt Clamp DBC

MODEL

A  mm

B  mm

C  mm

D  mm

K  mm

DBC--21.3G

90

65

74

54

106

DBC--22.4G

90

65

78

57

110

DBC--23.7G

90

65

81

60

113

DBC25G

90

65

84

63

116

DBC30G

100

75

97

76

129

DBC35G

100

75

110

89

142

DBC42G

110

80

129

108

165

DBC45G

110

80

135

114

171

DBC--52.4G

140

110

154

133

190

DBC55G

140

110

160

139

196

DBC--62.6G

140

110

179

159

216

DBC66G

206

160

189

168

253

DBC86G

268

216

242

219

300

DBC105G

316

254

287

267

351







We can supply:

1) Undercarriage spare parts: Track shoe, Track Link, Bolt, Track roller, Carrier Roller, Sprocket, Front Idler, Idler Cushion
2) Engine spare parts: Cylinder Head, Cylinder Block, Turbocharger, Piston, Piston Ring, Metal, Crankshaft, Oil Pump, Fuel injection Pump, Water Pump, Alternator, Starting Motor
3) Hydraulic spare parts: Main Valve, Main Pump, Solenoid Valve, Boom/Arm/Bucket Cylinder, Final Drive, Travel Motor, Swing Machinery, Swing Motor



FAQ



Q:What is your maining application?

A:Our clamps are used to hold and fix the accumulator,hydraulic cylinder and each pipe etc.



Q:Customized clamp is acceptable?

A:Yes,except our standard products,we can customize any type clamp with different material under your requests.



Q:What is the payment term?

A:For large amount orders,50%prepaid and the balance payed before shipment ;For small or sample ones,100%T/Tpayment in advance;



Q:What is your main customers?

A:Lots of accumulator manufacturers have used our clamps for many years,including some famous brand manufacturers,such as in America or Europe.
