DC 12V 24V 1.5L/min 15W Mini Sprinkler Irrigation System Diaphragm Mini Self-priming Water Pump

Feedback Ratings
  • 2-49 Pieces
  • 50-999 Pieces
  • >=1000 Pieces

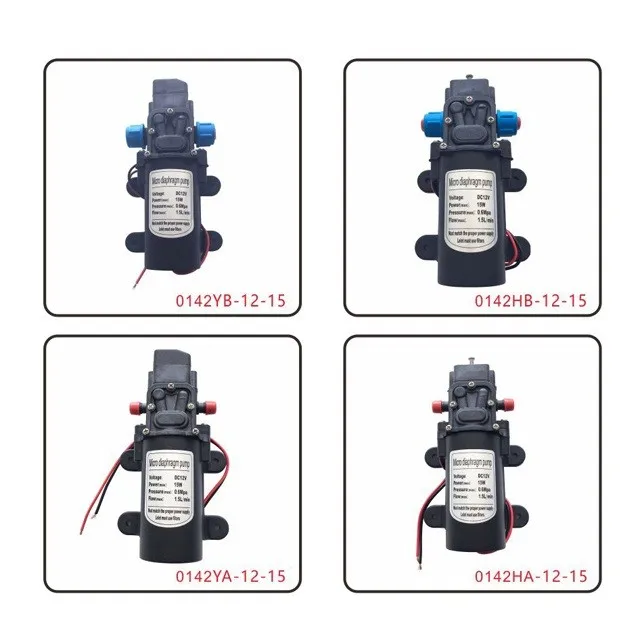

0142YB-12-15 0142YB-24-15 0142YA-12-15 0142YD-24-15 0142YD-12-15 0142YA-24-15 0142HA-12-15 0142HA-24-15 0142HB-24-15 0142HD-24-15 0142HB-12-15 0142HD-12-15
Maximum Flow Rate:
Maximum Head:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Contact Supplier
Samples - $20.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Diaphragm Pump
Agricultural purposes
Electric, 15W
High Pressure, 87PSI
Electromagnetic Pump
Life Time:
1000 hours
Working temperature:
0 ~ 60 degree Celsius
Agricultural, Sprinkler
Working Pressure:
Flow rate:
Item Name:
1.5L/min 15W Mini Washer Sprinkler Irrigation System Water Pump

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X12X10 cm
Single gross weight:
0.7 kg
Package Type:
Individual Foam Package
Picture Example:
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Product Description

High Pressure DC 12V 24V 1.5L/min 15W Electric Diaphragm Mini Water Pump with Warranty

Product Description:
Model Number: 0142-15
Working temperature: 0 ~ 60 degree Celsius
Multi-purpose: can be widely used for garden sprinklers, shower, water taps in the boat, caravan or motor home.
Agricultural purposes: spray for farm chemical, pesticide.
Corrosion resistant
Power: 15W
Max Pressure: approx. 87PSI
Working Pressure: approx. 51PSI
Flow rate: 1.5L/min

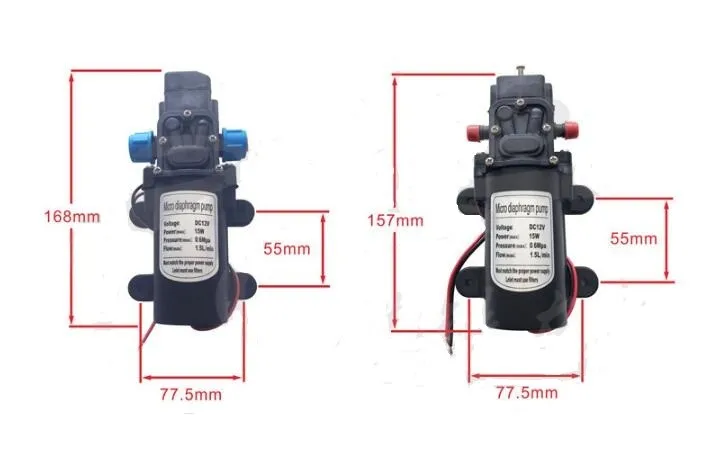

Size: 17 x 9.5 x 6cm (approx.)
Rubber bracket can absorb vibration from the pump when working.

Important note:
1.Reflux valve design. The motor still won't stop running even the water outlet is blocked but the reflux valve will be opened and water circulates in the pump in that situation. This type of product can be applied to occasions that have low level of demand for energy conservation.
2.Pressure switch design: It will be automatically cut off the power supply and the motor stops running when the water outlet is turned off. Once the water outlet is turned on, the motor starts running again. This type of product can be applied to occasions, which have demand for energy conservation and frequent switchin
g, such as machine washing, feeding water to a solar energy system, and remote automatic controlling system of conveying water and suspending water supply, etc.

Detailed Images
Packing & Delivery


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

Payment Terms

1. Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery.

2. MOQ: 2pcs

3. Package Informations: The volume of the box is 38*34*35cm. 26pcs/CTN.

Our Services

1.Wecan do customize if you need any special requirements.
2.We can make replacements or refunds to you if there is any problem about the items after 3 days you receive.
3. We can accept small order or big order, the more you buy, the more you save.
4. We can offer you reasonable price and various products.
5. We can get the newest information about the products, so you can also know the lastest news from us.
6. We offer P&P discount for multiple purchases. The more you buy, the more you will save!
