DC 2-wire NPN PNP NO / NC 5mm Proximity Sensor Switch LED for metal detection 12V - 24V DC

FOB Reference Price:Get Latest Price
  • 5 - 499 Pieces
    $4.00
  • >=500 Pieces
    $3.00
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
WiDScene
Model Number:
AH3B-F5LA/AH3B-F5NA/AH3B-F5PA
Usage:
Magnetic Sensor
Theory:
Hall Sensor
Output:
Analog Sensor, DC 2 wire
Operation status:
NO or NC
Operation voltage:
DC12~24V
Detection distance:
5mm
Detective object:
Magnetic metal object
Material:
Heat resistance ABS
Wire length:
Pre-wired 2m or customized
Position of detection:
Positive
Output mode:
NPN /PNP/DC 2-wire
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
PE bag and carton
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 5 To be negotiated

DC 2-wire NPN PNP NO / NC 5mm Proximity Sensor Switch LED for metal detection 12V - 24V DC



Specification

1.Small and low cost square proximity switch

2. Can be used for various purposes

3. Simple installation, can be used for high-speed pulse generator, high-speed rotation control

4. Equipped with bright and eye-catching indicator light, easy to view the installation environment

5. Can be installed directly, and has excellent performance

Model selection

AH3B-1234

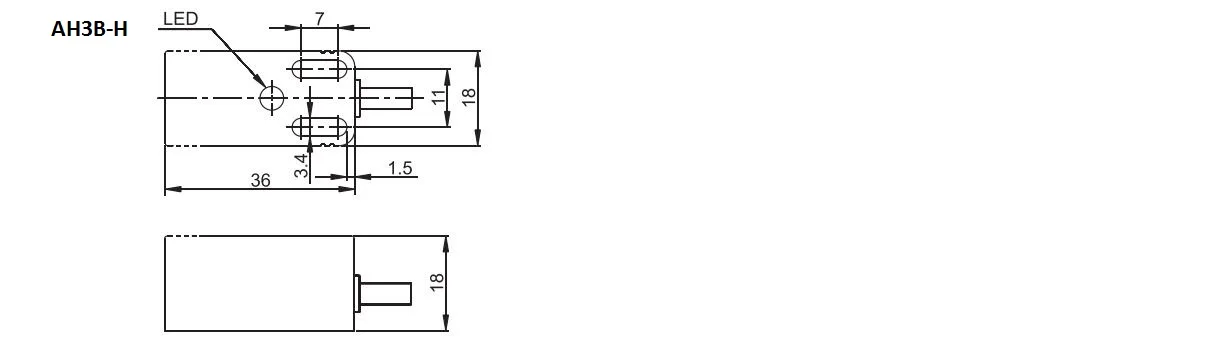

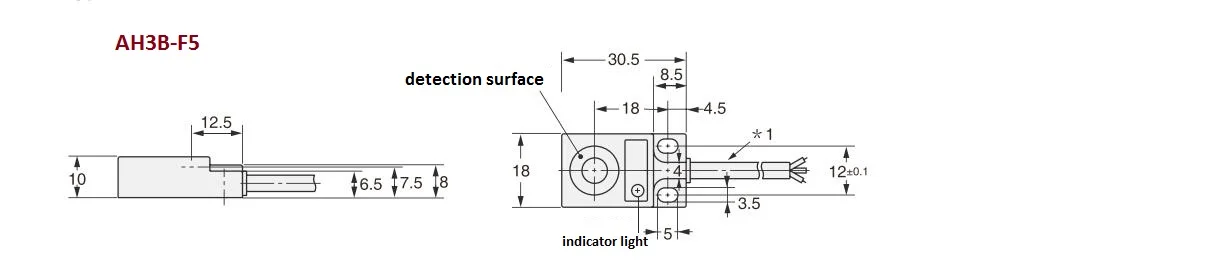

1. Position of Detection surface: F=front of sensor, H= head of sensor

2. Sening distance: 5=5mm

3. Connection method: N=NPN open collector transistor,   P=PNP open collector transistor L=DC 2-wire

4. Operation status: A=NO,  B=NC

Models
Position of detectionStability sensing distance



Output method

Outut status
NONC
5mmNPNAH3B-F5NAAH2N-F2NB
PNPAH3B-F5PAAH2N-F2PB
DC 2-wireAH3B-F5LAAH2N-F4NB
NPNAH3B-H5NAAH3B-H5NB
PNPAH3B-H5PAAH3B-H5PB
DC 2-wireAH3B-H5LAAH3B-H5LB
Rated value
Sensing distance5mm±10%
Setting distance0~4mm
Differential travelMax: 10% of sensing distance(standard detectable object)
Detection objectMagnetic metal(the detection distance of non-magnetic metal will reduce)
Standard detectable objectIron 15×15×1mm
Response time2ms max
Response frequency500HZ
Power supply voltage12~24V DC pipe(P-P)10% max DC10~30V
Current consumption  10mA max(DC24V)

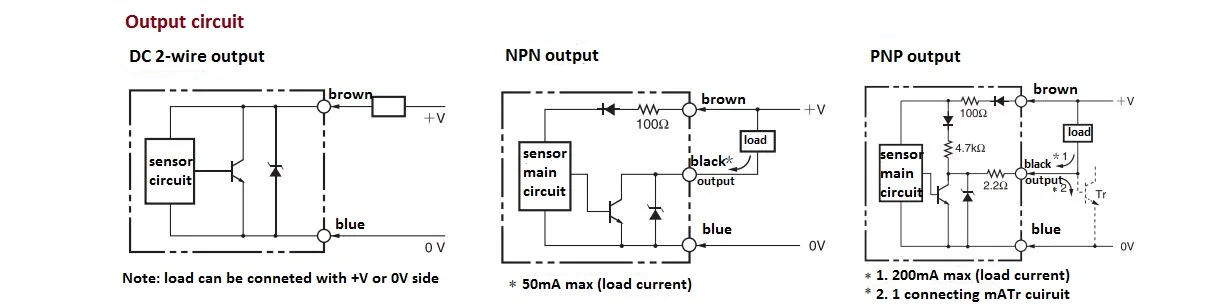

Control outputSwitch capacity NPN Open collector output 50mA max(DC30V)
  residual voltage 1V max(load current: 50mA, cable length: 2m)
Indicator light   operation indicator(red)
Action status(detection object closing to)   NA models:NO,       NB models:NC
Protection circuit   Load short-circuit protection, Surge suppressor
Ambient temperature range  Operating/Stroage:  -25 to 70°C(with no icing or condensation)
Ambient humidity range   Operating/Stroage: 35% to 95%RH (with no condensation)
Temperature influence  ±20% max. of sensing distance at ±23°C in the temperature range of −25 to 70°C
Voltage influence   ±2.5% max. of sensing distance at ±10% of rated voltage range
Insulation resistance   50MΩ min at DC500V megger(between of case and Current carrying unit)
Dielectric strength   500 VAC min, 50/60 Hz for 1 min (between of case and Current carrying unit)
 Vibration resistance  Destruction: 10 to 55 Hz, 1.5mm double amplitude for 2 hours each in X, Y, and Z directions
 Shock resistance acceleration 200 m/s2, 10 times each in X, Y, and Z directions
Degree of protection   IEC IP67
 Connection method  Pre-wired, length: 2m
 Weight(packedstate)  Approx.50g
  Material Heat resistant ABS
  Accessories instruction manual



Related model







    AH2B                   AH2N                      AH3B                      AH3B              AH3N               AH3W



    AH3X                 AH4B                      AH4R                     AH4W               AH5N                AH5W
