DC Link capacitor high frequency capacitors filtering polypropylene film capacitor 350~1100vdc

FOB Reference Price:Get Latest Price
$2.82 - $12.65 / Pieces | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CRC
Model Number:
MKP- FT Series
Type:
Polypropylene Film Capacitor
Application:
General Purpose
Package Type:
Surface Mount
Rated Voltage:
300VDC~1100VDC
Operating Temperature:
-40 ~ 85℃
Product name:
Film Capacitor- FT Series
Capacitance tolerance:
±5%(J); ±10%(K)
Terminal:
Copper nut/ screw leads
Certificate:
ISO14001,ISO9001, IATF16949, RoHS,UL, VDE, CQC
Color:
White
Material:
Metallized Polypropylene Film
Package:
Cartons
Size:
Custom Size
Case:
Metal tape
Reference standard:
IEC 61071;IEC60831
Capacitance:
10~200uF
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Plastic bag, inner carton, foam board, outer carton
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 30 To be negotiated
Specification data



   Product Name

   DC-LINK FT Series



  Constructions & Materials



Dielectric: Metallized polypropylene film

Filling: Flame-retardant epoxy resin
Encapsulation: Mylar tape

Terminal: Copper nut





  Rated Voltage range



  350 V.DC ~ 1100 V.DC



  Capacitance range



  10uF ~ 200uF



  Capacitance tolerances



  ± 5%(J), ± 10% (K) (1KHz)



  Withstanding voltage



  1.5UnDC/10s



  Dissipation factor



  tgδ≤0.0015 f=1KHZ



  Insulation Resistance



 Rs×C≥5000S (at 20℃ 100V.DC)



  Operating temperature range



  -40~105℃



  Reference Standard



  IEC61071



  Application



  Widely used in power electronic circuits for coupling, high frequency filtering and decoupling.



  Certification



  ISO9001, ISO14001, IATF16946, RoHS, UL, VDE, CQC; 6+utility model patents

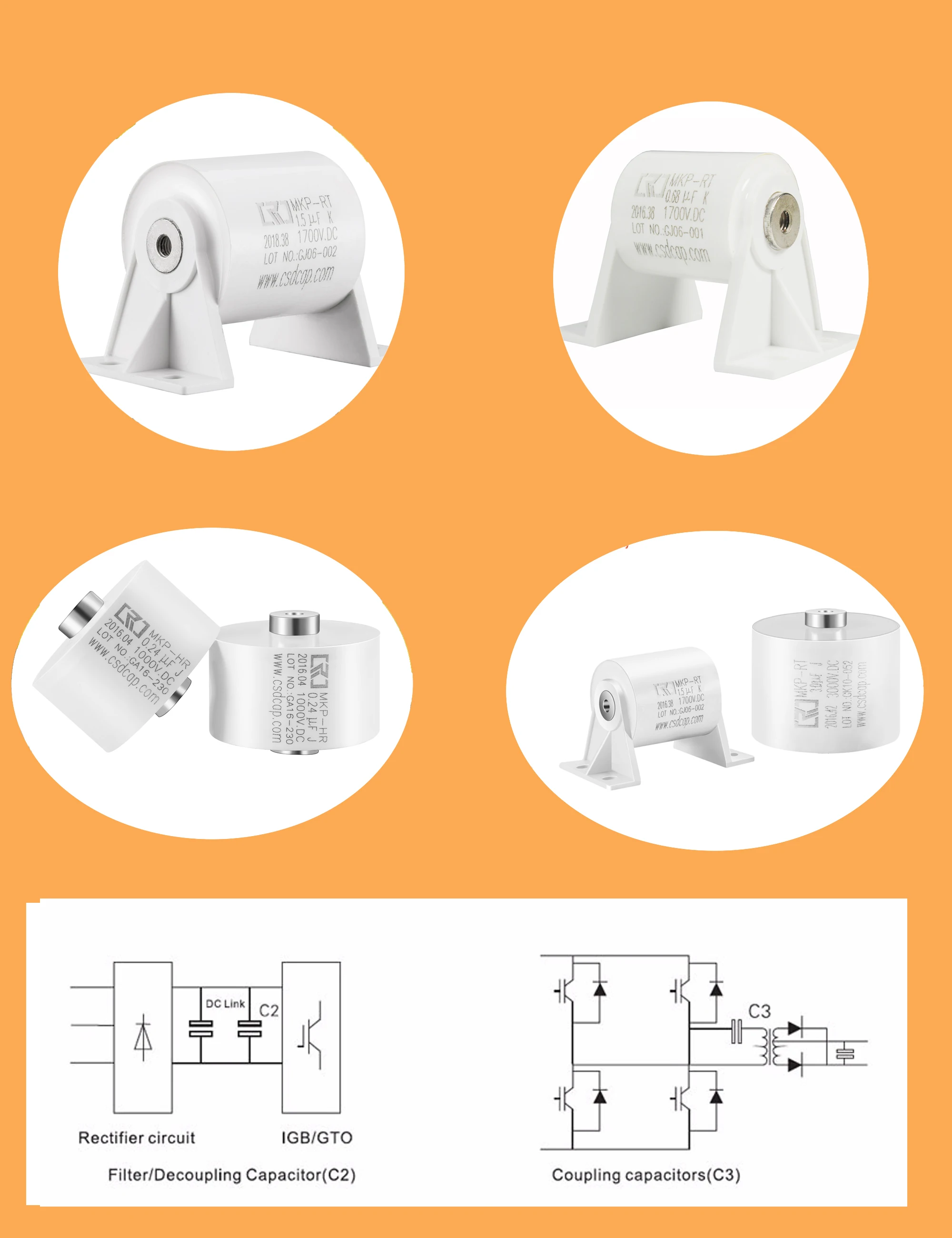

Detailed Images










X2 related products

















Certifications













For clear certificates, please click here





QA/QC & Production process













Company Informaiton





Established in 2001, Shenzhen CRC New Energy Co., Ltd is a professional manufacturer of metallized film capacitors with over 18 years of experience. CRC has its manufacturing plant located in Shenzhen, China with convenient transportation access.

As an ISO9001, ISO14001, IATF16949 certified manufacturer, CRC produces a wide range of film capacitors, including:

l  X2 capacitor

l  CBB21 Metallized polypropylene film capacitor

l  CL21 Metallized polyester film capacitor

l  DC-Link capacitor

l  Snubber capacitor

l  Automotive capacitor

l  High voltage pulse capacitor

l  AC-Filter capacitor

l  Resonance circuit capacitor.



We supply to the automotive, alternative energy, industrial and other professional markets, such as new energy car, solar inverter, wind power inverter, LED drivers, power meters, power suppliers, induction heating equipment, welding equipment, home appliances, UPS and SVG, etc.



We serve integrators, distributors and buying offices around the world.



We have exported to Germany, USA, Switzerland, Italy, Spain, Russia, Brazil, Turkey, Japan, South Korea, Thailand and Philippines, etc.



All of us at CRC are looking forward to quoting your needs and doing business with you in the near future.





Advantages





  • 17+ years of professional manufacturing experience in metallized film capacitors



  • Quality is our No.1 priority, a complete set of QC/QA procedures, quality pass rate 99.5%



  • Experienced engineers, strong R&D capability, can customize to meet your special requirements



  • Quick sales response, our professional team will be online 24/5 at your service



  • ISO9001, ISO14001, IATF16949, RoHS, UL, VDE, ENEC, CQC; 6+ utility model patents



  • MOQ 1pcs~5Kpcs; leadtime 2days~4weeks; competitive prices; free samples; any delivery methods you prefer



Exhibitoin





FAQ



Q1: Are you a trading company or a manufacturer?

A: We are a 18+ year old professional manufacturer of film capacitors. Our factory is located in Shenzhen, China.



Q2: Do you provide samples? Is it free or do I have to pay?

A: For some models, we could offer free samples but do not cover the freight cost.



Q3: Do you have any MOQ limit?

A: Low MOQ, 1 piece for sample checking is available.



Q4: What about your lead-time?

A: Generally it is 2-3 days if stock lasts, 2-3 weeks for new production, it depends on the items and your order quantity.



Q5: How do you ship the goods and how long does it take to arrive?

A: Usually it will take 4-7 days for Express, 7-15 days for Air, 20-35 days for Sea, it also depends on the destination area.



Q6: What are your payment terms?

A: Payment<=USD$3000, 100% T/T in advance. Payment>USD$3000, 30% T/T in advance, 70% T/T balance before shipment.



Q7: What are your price terms?

A: EXW, FOB, CFR, CIF, DDU, DDP or any other terms you preferred.


Q8. Do you check all your goods before delivery?
A: Yes, we perform 100% inspection to samples and finished goods prior to shipment.

Q9. How can I place an order?

A: 1st , please specify your requirements:

l  What's function of the capacitor in your circuit?

l  What machine/equipment will the capacitor be used on?

l  Capacitance?

l  DC/AC voltage?

l  Dimensions?

l  Order quantity?

l  Any other special requirements, e.g. Ipeak, Irms, ESR, ESL, operating temperature, etc.

2nd, if we can produce the capacitor you inquired, we’ll send you a quotation and technical datasheet for approval.
3rd, we can provide samples for your testing or further evaluation.

4th, you should confirm the samples and datasheet, and place deposit for formal order.
5th, after receiving your payment, we’ll arrange mass-production and ship to you.



If you have any more questions, please feel free to contact us.
