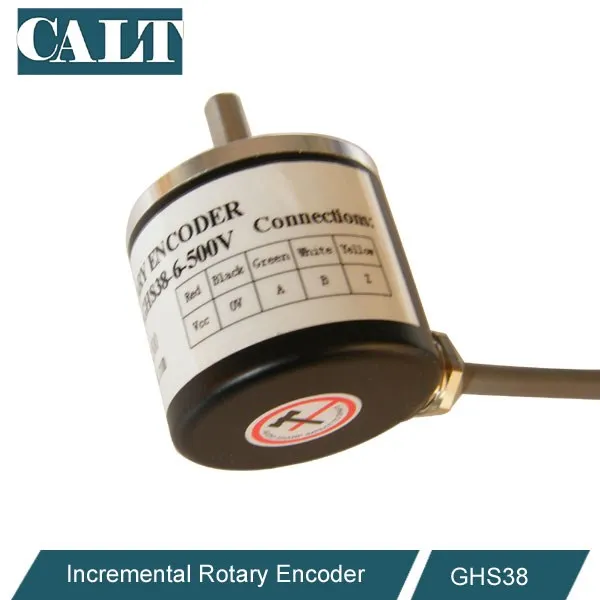

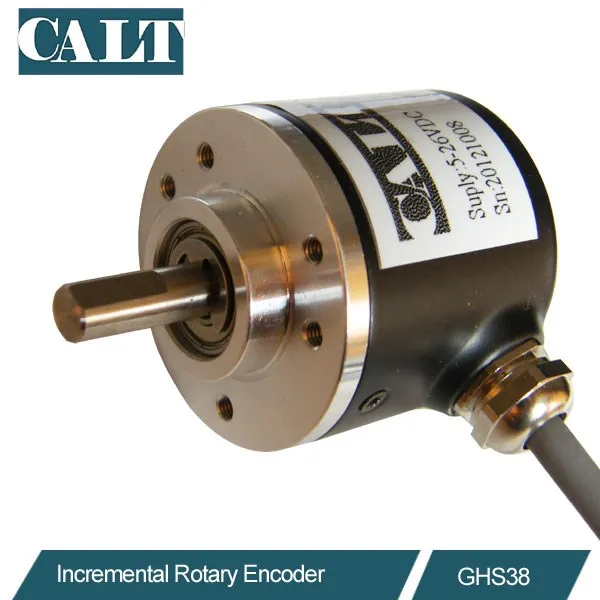

DC12V 24V 5-26V 2500ppr push pull ABZ signals optical incremental rotary encoder

Feedback Ratings
  • 1-99 Pieces
    $35.80
  • 100-999 Pieces
    $33.80
  • >=1000 Pieces
    $25.80
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
GHS38-6G2500BMP526
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Type:
Solid shaft type
Output form:
Push pull
Output signal:
A, B, Z
Outer dia:
38mm
shaft dia:
6mm
Resolution:
2500ppr/pulse
Grade of protection:
IP51
Supply Voltage:
DC 5-26V
Outlet type:
Wire from Side
Wire length:
1m

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X10X10 cm
Single gross weight:
2.0 kg
Package Type:
Standard strong export carton box
Lead Time :
Quantity(Piece) 1 - 50 51 - 200 >200
Est. Time(days) 2 5 To be negotiated
Product Description


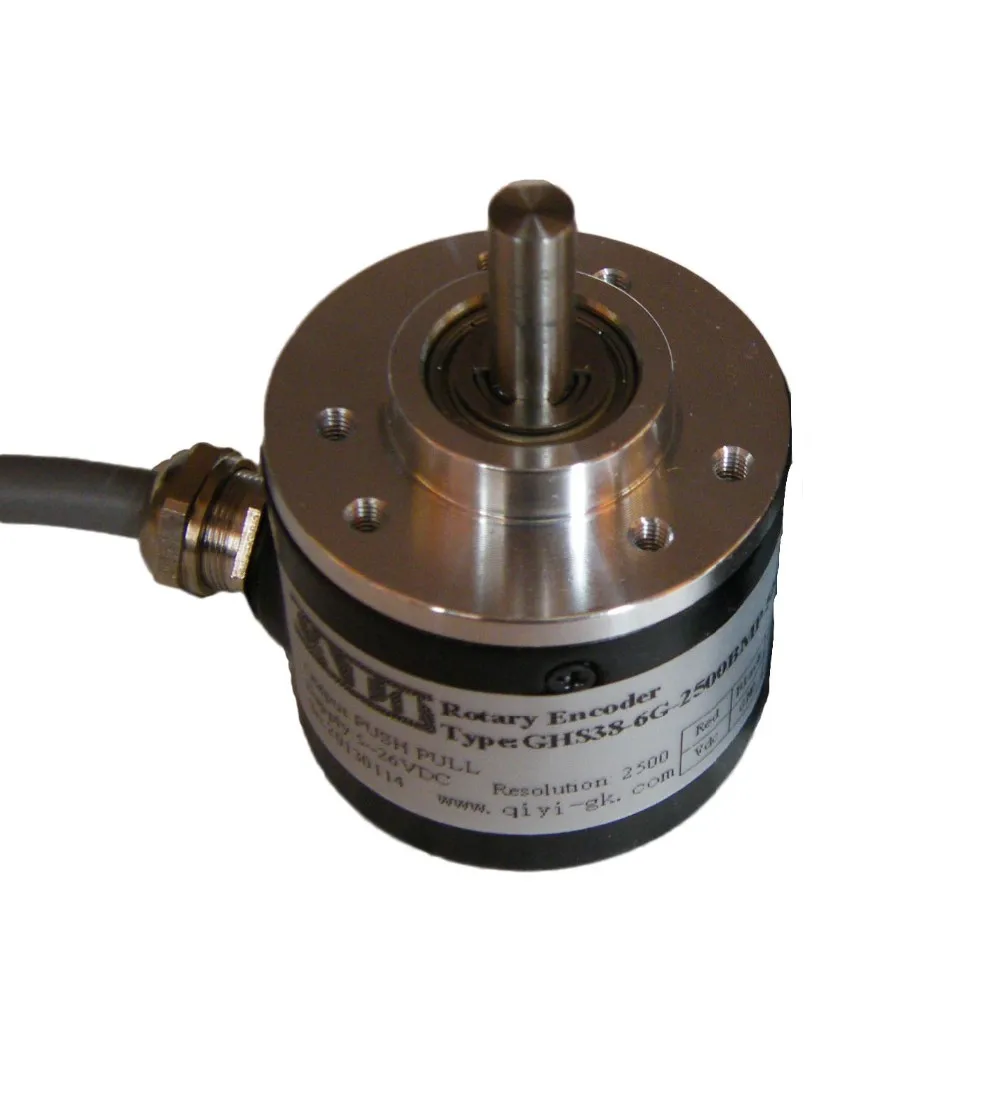

DC12V 24V 5-26V 2500ppr push pull ABZ signals optical incremental rotary encoder

Widely used in automatic control, automatic measurement, as the angle and speed sensors. ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water.

Model :

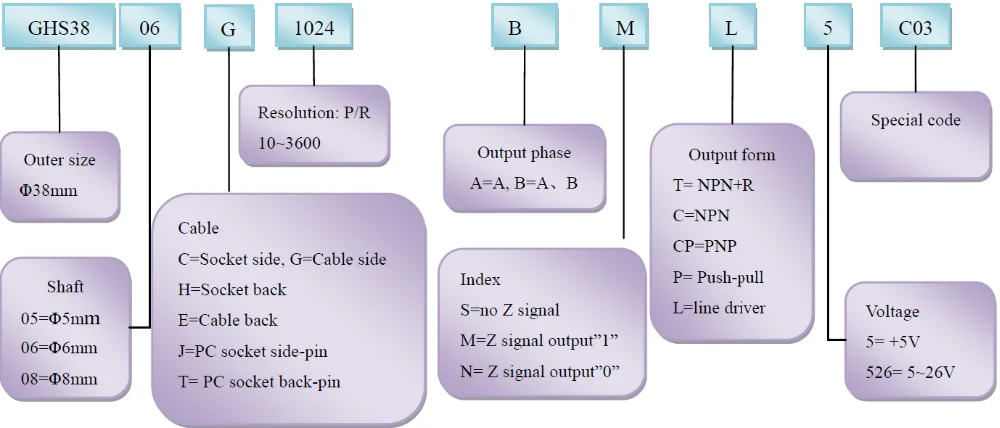

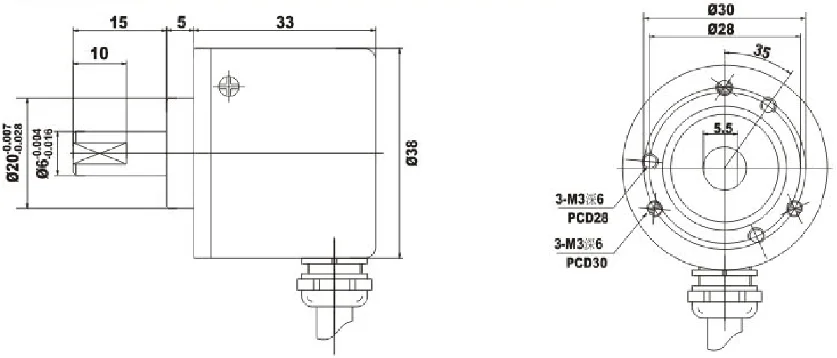

Dimensions:


Specifications:


Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~30V
5~30V
5±0.25 5~30V
5±0.25 5~30V
Current consumption
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
100kHz
100kHz
100kHz
100kHz
Max speed r/min
Starting torque
Axis maximum load
Impact
Anti-vibration
6000
<0.05Nm
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm²
-25~85ºC
-30~85ºC
IP51
120g
