DENAIR AC Power 915 cfm Electric Air Compressor Machine

  • >=1 Sets
    $37,090.00
Model Number:
DA-+Series
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
DENAIR
Dimension(L*W*H):
3700*2300*2450 mm
Warranty:
One Year for the Whole Machine
After-sales Service Provided:
Field maintenance and repair service
Product Name:
DENAIR AC Power 915 cfm Electric Air Compressor Machine
Air End:
DENAIR
Motor Power:
55-355 kW
Compression Stage:
2 Stage
Air Free Delivery:
340-2620 CFM
Color:
Blue & White or Customize
Cooling Method:
Air or Water Cooled
Weight:
1600-8500 kg
Certification:
CE; ISO 9001, GC
Voltage:
Customers' Requirements
Supply Ability
Supply Ability:
650 Set/Sets per Month DENAIR AC Power 915 cfm Electric Air Compressor Machine
Packaging & Delivery
Packaging Details
Standard Wooden Package for DENAIR AC Power 915 cfm Electric Air Compressor Machine
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 50 To be negotiated

Industrial Air Screw Type 2 Stage Electrical Air Compressor

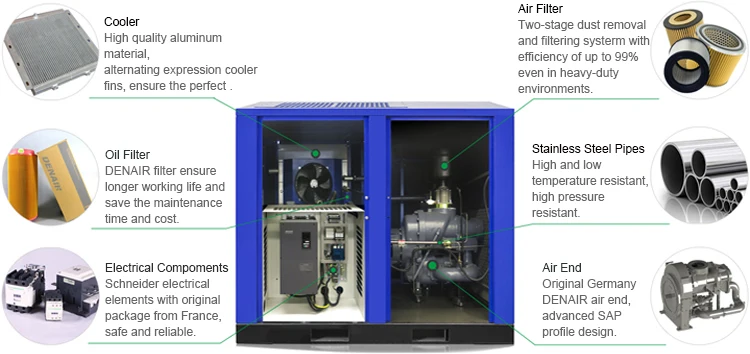

Product description
Product Advantages

1. 64 kinds of patented technology design.

2. Low specific power, energy saving.

3. Two-stage design, similar to iso-thermal compression, low compression ratio, and higher volumetric efficiency.

4. Multilingual Intelligent Control Panel.

5. Passed CE,ISO9001 and GB19153-2009 EEI1 Certification.

6. Lower 10%-15% energy consumption than EEI2.

Technical Parameters
Model

Maximum

Working Pressure

Capacity FAD*

Installed

Motor Power

Driving Mode&
Cooling Method

Dimensions

(mm)

Weight*
(kg)
50 Hz60 Hz
bar(e)psigm³/mincfmm³/mincfmkWhpL*W*H
DA-55+7.510911.05 390 11.76 415 5575Direct Driven
Air Cooling
W-Water Cooling
2200*1400*16001600
8.512310.82 382 11.45 404 55752200*1400*16001600
10.515210.61 375 9.89 349 55752200*1400*16001600
1318910.50 371 9.66 341 55752200*1400*16001600
DA-75+7.510914.83 524 15.02 530 751202200*1400*16001700
8.512314.52 513 14.86 525 751202200*1400*16001700
10.515210.82 382 11.66 412 751202200*1400*16001700
1318910.65 376 9.92 350 751202200*1400*16001700
DA-90(W)+7.510921.00 742 20.17 712 901202650*1800*19502500
8.512320.00 706 19.78 698 901202650*1800*19502500
10.515217.30 611 18.90 667 901202650*1800*19502500
1318914.50 512 16.32 576 901202650*1800*19502500
DA-110(W)+7.510924.00 847 23.31 823 1101502650*1800*19503500
8.512323.00 812 23.00 812 1101502650*1800*19503500
10.515219.70 696 20.16 712 1101502650*1800*19503500
1318917.00 600 16.63 587 1101502650*1800*19503500
DA-132(W)+7.510930.00 1059 27.72 979 1321752650*1800*19503950
8.512327.00 953 27.04 955 1321752650*1800*19503950
10.515223.00 812 23.06 814 1321752650*1800*19503950
1318920.00 706 22.68 801 1321752650*1800*19503950
DA-160(W)+7.510934.00 1201 32.99 1165 1602153000*1950*20505000
8.512333.00 1165 32.34 1142 1602153000*1950*20505000
10.515228.00 989 27.72 979 1602153000*1950*20505000
1318925.00 883 22.65 800 1602153000*1950*20505000
DA-185(W)+7.510940.92 1445 41.05 1450 1852503000*1950*20505500
8.512340.70 1437 40.96 1446 1852503000*1950*20505500
10.515233.22 1173 33.10 1169 1852503000*1950*20505500
1318926.60 939 27.19 960 1852503000*1950*20505500
DA-200(W)+7.510943.00 1518 43.26 1528 2002703500*2200*23006500
8.512342.00 1483 42.33 1495 2002703500*2200*23006500
10.515234.00 1201 33.74 1191 2002703500*2200*23006500
1318928.00 989 27.72 979 2002703500*2200*23006500
DA-220(W)+7.510949.00 1730 52.05 1838 2203003500*2200*23006700
8.512348.00 1695 51.95 1834 2203003500*2200*23006700
10.515239.00 1377 40.53 1431 2203003500*2200*23006700
1318933.50 1183 33.40 1179 2203003500*2200*23006700
DA-250(W)+7.510954.00 1907 57.35 2025 2503503500*2200*23006800
8.512352.00 1836 56.01 1978 2503503500*2200*23006800
10.515243.00 1518 46.78 1652 2503503500*2200*23006800
1318939.00 1377 40.13 1417 2503503500*2200*23006800
DA-280(W)+7.510956.55 1997 61.57 2174 2803754300*2400*23507500
8.512355.48 1959 60.39 2132 2803754300*2400*23507500
10.515247.66 1683 50.89 1797 2803754300*2400*23507500
1318941.99 1483 46.31 1635 2803754300*2400*23507500
DA-315(W)+7.510963.91 2257 67.86 2396 3154254300*2400*23507800
8.512362.70 2214 66.57 2351 3154254300*2400*23507800
10.515255.99 1977 57.19 2019 3154254300*2400*23507800
1318942.41 1497 49.91 1762 3154254300*2400*23507800
DA-355(W)+7.510974.11 2617 75.64 2671 3554754300*2400*23508500
8.512373.40 2592 74.05 2615 3554754300*2400*23508500
10.515263.28 2234 67.18 2372 3554754300*2400*23508500
1318947.66 1683 50.89 1797 3554754300*2400*23508500

*)FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)

***) EEI 1- Energy Efficiency Index 1, which refers to enhanced energy saving series

 *) Specifications are subject to change without prior notice
>> More models, pls chat with  us online!
Project Case

DENAIR Certificates

Packing & shipping



DA-75 Packaging
Size 2200*1400*1600(L*W*H)
Weight 170kg
Packaging Details 1. Sea worthy packing with export standard non-fumigation wooden case, moisture-proof and waterproof;
2. Painted with normative and customized marks;
3. Easy to disassembly, hoisting transportation is available.

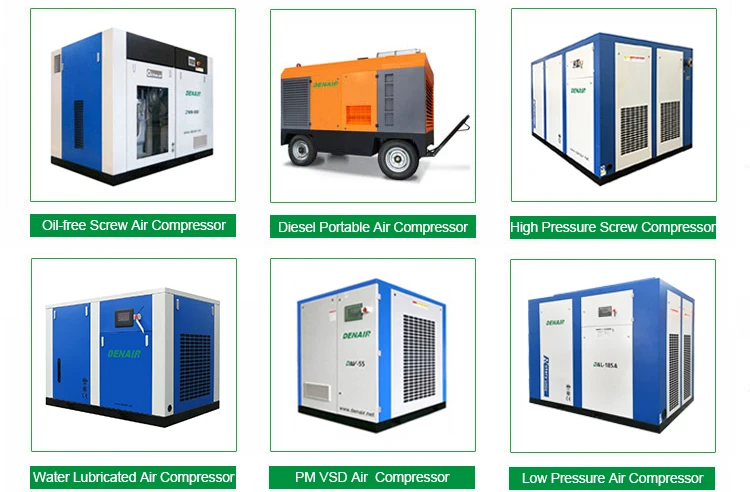

Recommended Products
FAQ

Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: NO.10, Xinghao Road,Jinshan District ,Shanghai City, China.
Q3: Warranty terms of your machine?
A3: 18 months warranty for the machine,technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes.
Q5: How long will you take to arrange production?
A5: Deliver standard goods within 30days, Other customized goods is TBD.
Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.
