DIGICAST Digital TV 16 in 1 IP QAM Modulator RF Modulator 16 Channels rf modulator 32 channels

FOB Reference Price:Get Latest Price
$599.00 - $1,999.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

software (Min. Order: 1 Pieces)
hardware (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DIGICAST
Model Number:
DMB-5120
Nature:
DVB-C QAM Modulator
Input:
16*ASI, 4*ASI or 8*Tuner signal
RF output frequency:
30~960MHz
Conforms 1:
ITU-T J.83A/B/C standard
Conforms 2:
DVB-C (EN300 429) standard
Conforms 3:
DVB Common Scrambling System ETR289
Conforms 4:
simul-crypt ETSI 101 197 &ETI 103 197
Network control:
by SNMP
Constellation:
6 QAM, 32 QAM, 64 QAM, 128 QAM, 256 QAM, 64B QAM, 256B QAM
Application:
IPTV, Digital TV head-end system, broadcasting and distribution
Supply Ability
Supply Ability:
500 Piece/Pieces per Month for rf modulator 16 channel
Packaging & Delivery
Packaging Details
DIGICAST Digital TV 16 in 1 IP QAM Modulator RF Modulator 16 Channels rf modulator 32 channels package by 1pc/carton
Port
Shanghai,Ningbo,hangzhou
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 To be negotiated
DVB ORDER GUIDE

DMB-90E FTA Channels Source

DMB-90E 4/8/12/16/20/24 Tuners to 256*SPTS/4*MPTS IP UDP/RTP Receiver

DMB-24E FTA 24*Tuners to RF Transmodulator

INPUT: 4/8/12/16/20/24 Tuners +32*IP SPTS input
Output :4*RF output (DVB-T/DVB-C/ISDB-T/ATSC/DTMB option)

DMB-9004CIA Encrypted Channels Source

DMB-9004CIA 4*Tuners to 48*SPTS/4*MPTS with 4*CI slot

DMB-2408 Encrypted Channels 8*Tuners Input

8*Tuners +128*IP in, 4*DVB-T/C out, 4*CI slot

DMB-9582-S2 SDI to DVB-S/S2 modulator

Inputs: 1*SDI+1*ASI; Outputs: ASI ,RF(DVB-S2) ,Built-in 10MHz reference clock and output; Support 1080P HD ,BISS Function, Adequate for DSNG system to encode SD/HD programs to DVB-S2 uplink

DMB-4000 Series IP to RF Modulator

Modulation model: MT200
Data input: 1024*IP(SPTS/MPTS) input over UDP/RTP, 2*GigE ports; Data output: 8*IP output over UDP/RTP/RTSP, 2*GigE ports; RF output (F type): 8*DVB-T/16*QAM/32*QAM/8*ATSC/6*ISDB-T non-adjacent carriers. Capable of Multiplexing.

CONTACT US
NEW PRODUCTS

Mini HD H.265 ProVideo Streaming Encoder

Input:HDMI in/loopout

Output:1080P@60fps

DMB-8902N Enhanced ProVideo Streaming Encoder

Input: 1*Channel SDI+1*Channel HDMI/VGA/YPbPr/AV
Output: IP Streaming output

DMB-8800BE Classic H.264/AVC Decoder

Input:  Up to 1080P@60fps

Output: Support HDMI/CVBS/VGA

DMB-8900NU UHD 4K HEVC ProVideo Streaming Encoder

Input: 1*channel HDMI in
IP Output: Full HD 4K@30fps

DMB-9060B Multi-Channel Professional IRD

Input: 4*Tuners input
IP Output: TRANSPORT STREAM OUTPUT

DMB-9016B 16 Channel professional Receiver

Input: 16*Tuners(DVB- S/S2/-C/-T/T2/ISDB-T/ATSC-T optional )

IP Output:Transport Stream Output


Product Description

OVERVIEW

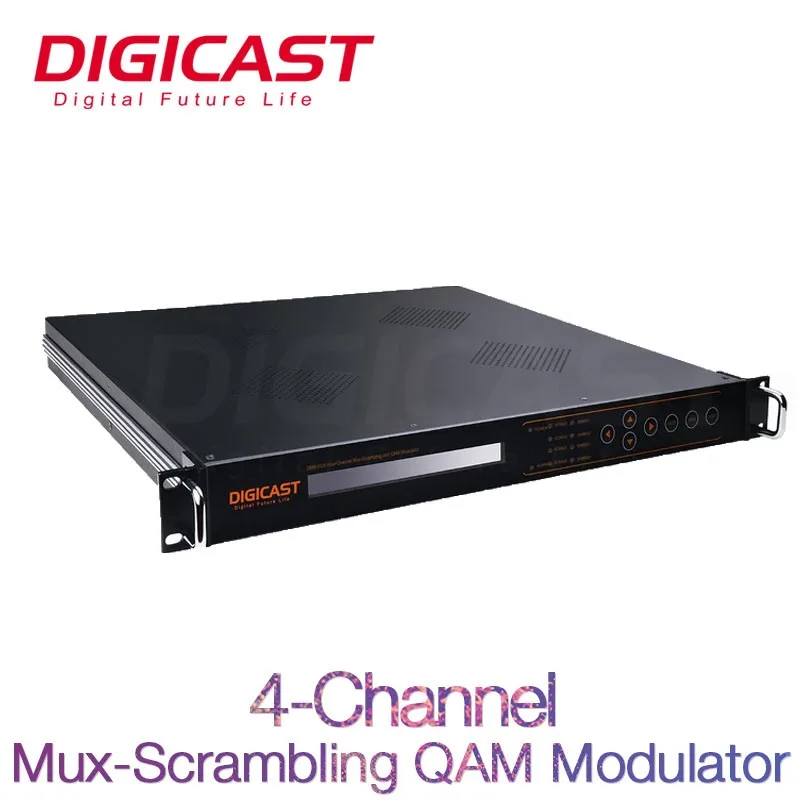

DMB-5120 Four-Channel Mux-Scrambling QAM Modulator functions as a high-integrated, high cost-performance and multi-functional device, extremely suitable to be applied to digital TV headend systems. The device incorporates all functions of multiplexing, scrambling, and QAM modulation, with four channels of multiplexing, four channels of independent scrambling, and four adjacent frequency QAM modulation outputs. Apart from all functions of multiplexing for programs and elementary streams, PSI/SI compilation and so on, the multiplexing module of DMB-5120 additionally has the industry leading function of EIT multiplexing. Its scrambling module supports up to 4 CA's simul-crypt, with each realizing scrambling independently and scrambling in far-distance.

FEATURES

* Conforms to ITU-T J.83A/B/C standard
* Conforms to DVB-C (EN300 429) standard
* Conforms to DVB Common Scrambling System ETR289, and simul-crypt standard ETSI 101 197 and ETI 103 197
* Support of 16*ASI, 4*ASI or 8*Tuner signal input
* DVB-S2 standard supported by Tuner input
* Support of 4* multiplexing, 4* scrambling, and 4* QAM modulation
* Support of 4 CA's simulcrypt
* 4* adjacent frequency QAM carrier output
* Excellent performance of RF output: MER≥40dB
* RF output frequency: 30~960MHz, in 1KHz steps successionally adjustable
* RF output level: -16dBm~0dBm, in 0.5dB steps successionally adjustable
* Constellation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
* Symbol rate: 5~9Mbps
* Support of PSI/SI compilation
* Support of PCR correction
* Simple and easy-operation, with LCD display on front panel
* Support of SNMP network control, convenient for long-distance maintenance

SPECIFICATIONS
TRANSPORT STREAM INPUT AND OUTPUT


              ASI input
Connector: 16* ASI (4* ASI or 8* Tuner DVB-S2 input optional)
ASI input interface standard: EN 50083-9 ASI
ASI mode: byte or burst
ASI interface: BNC, 75Ω
Tuner interface: F, 75Ω




             RF output
Frequency range: 30~960MHz, in 1KHz steps
RF output level: -16~0dBm each carrier, in 0.5dB steps
Output return loss: >10 dB
Phase jitter: < 0.5°RMS
Spurious rejection: >55dB
MER: ≥40dB
C/N: >45dB
Interface: F, 75Ω
           IP output
Capable of IP output for IPTV applications
Connector: RJ45, GigE(1000M) Ethernet interface.
TS PROCESSING


  Transport Stream Multiplexing
Multiplexing from any input channel to any output channel
PID remapping automatically or manually
Max. 256 PID remapping supported for each channel
Support of PCR correction
Support of generation and compilation of PSI/SI automatically
         Scrambling
Support of 4 CA's simulcrypt in maximum
Support of local and long-distance connections
MODULATION


      QAM Modulation
Quantity of QAM modulation channels: 4* adjacent frequency QAM carriers
Constellation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate: 5~9Ms/s successionally adjustable
Bandwidth: ≤8MHz
FEC: RS (204, 188)
GENERAL OPTIONS
    Control and monitoring modes
Front panel control
SNMP network control



     Physical and Power
Voltage: 90~260VAC ±10% 50/60 Hz
Consumption: 25W
Operating temperature: 0~50°C
Storage temperature: -20~80°C
Humidity: 10%~90% (non-condensing)
Dimensions: 430mm(W)*400mm(D)*45mm(H) (1U)
Weight: 5 KGS
