DIGICAST H.265 1080P H.264 16 Channels HD VGA HD MI CVBS to RTMP RTSP HTTP HLS IPTV Encoder for IPTV OTT System

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Digicast
Model Number:
DMB-8916
Nature:
IPTV HD Encoder
Video encoding:
H.264(MPEG-4/AVC)/H.265 HEVC
Audio encoding:
AAC,MP3
video Input:
16*HD 1080P HD MI/VGA/CVBS/YPbPr
Protocol:
HTTP/UDP/RTSP, RTMP, ONVIF,HLS
Resolution:
Up to 1080P Full HD
Bitrate:
VBR/CBR
Output:
TS over IP(1000M)
Configuration:
UI operation
Specification:
Multi-Screen Multi-Protocol Low bitrate
Supply Ability
Supply Ability:
5000 Set/Sets per Week
Packaging & Delivery
Packaging Details
package by carton box
Port
FOB ShangHai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Product Description

Overview

DMB-8916A support 16* HD Ml/CVBS/VGA/YPbPr  input working at the same time. Meanwhile, it outputs stream by TS over IP transmission in H.265,H.264 Compression(Video), AAC, MP3 Compression(audio) with different resolution and protocols for delivering services to multiple Internet connected devices at the same time, including smartphones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.

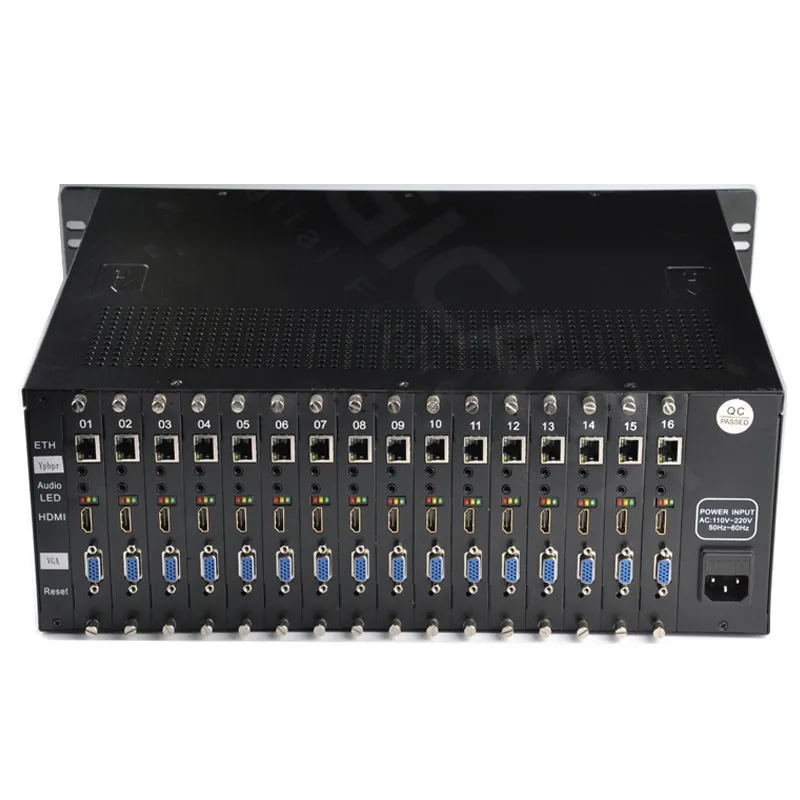

Detailed Images
Features

Support 16 channel HD Ml/CVBS/VGA/YPbPr input working option.
Support H.265 HEVC, H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR

Capable of image parameter settings
Switchable of audio output mode: Left, right and Stereo
Configurable of Multi-rate, Multi-resolution, Multi-protocol
Providing RTSP/HTTP/UDP /HLS or RTMP protocol
Compatible with HDCP
Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
Support ONVIF Network Video Protocol

System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
Web-based management
Full-duplex mode 1000M

SPECIFICATIONS

VIDEO Processing
Video compression: H.265 ,H.264/AVC High Profile Level 4.0
Video inputs: 16* HD Ml(Compatible with HDCP)/VGA/CVBS/YPbPr
Analog video input mode: PAL, NTSC

Resolution:
HD Ml main stream:
1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,
720x404,704x576,640x480,640x360,auto
HD Ml sub-stream:
1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,
640x300,352X 288,320X240,320X180 auto

Bit-rate: 16kbps~12Mbps, CBR/VBR
Video pre-processing: Noise reduction, Sharpen, Filtering

AUDIO Processing
Audio compression: AAC, MP3
Sampling rate: Adaptive, selectable of re-sample.
Sampling accuracy: 24-bit
Bit Rate: 48kbps,64kbps,96kbps,128kbps,160kbps,192kbps,256kbps
Re-sample:32KHz,44.1KHz

IP Output
Transport protocol: TS over IP output, RTSP/HTTP/UDP/HLS or RTMP protocol
For HD Ml to IP output, 4*TS over IP stream out (HTTP/RTSP/UDP/HLS or RTMP protocol) 2 Channels with higher resolution (up to 1080P) for large screen application, 2 channels with lower resolution (up to 720P) for small screen application)

Connector: RJ45, 1000M

System
Configuration Interface: Web-based
Upgraded: via network

Connector: RJ45, 1000M Ethernet interface.
Physical and Power
Voltage: 120V-220V
Operating temperature: 0~50°C
Dimensions: 144mm(W)*98mm(D)*38mm(H)
Weight: 10kg (including accessories)

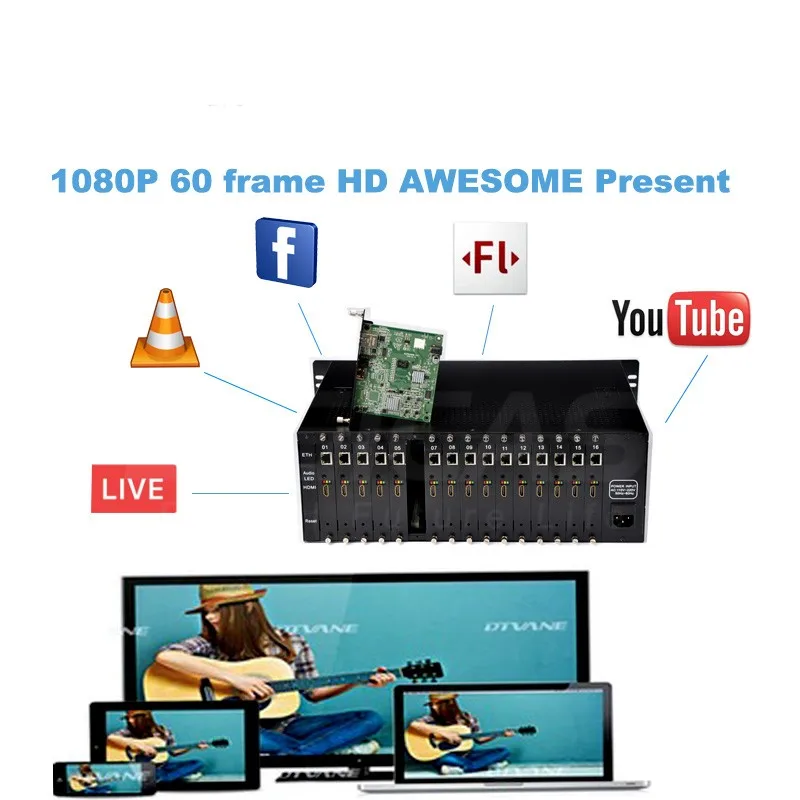

Application

IPTV system
OTT system
Internet TV
Digital Signage Project
Remote Video Conference
Video Monitoring
