DIN-Rail Installation PoE Power 30W SFP Slot PoE Reset Gigabit PoE Media Converter

  • 1-9 Pieces
    $99.00
  • 10-99 Pieces
    $85.00
  • >=100 Pieces
    $79.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Samples: $99.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $99.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
E-link
Model Number:
LNK-IMC1000P-SFP
Keywords:
PoE Media Converter
Keywords 1:
PoE Reset Converter
Forward Filter Rate:
1,488,000pps (1000Mbps)
Cabling:
1000Base-T: Cat5 or above
Maximum Distance:
Cat5 UTP up to 100m
Connector:
1x RJ45
Optical Port::
1 x SFP 1000Base-X
Power Consumption::
36W Max. 0.75A@48VDC
Input Power:
48VDC (Terminal Block)
Operating Temperature:
-40°C to 80°C (-40°F to 176°F)

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
1.5 kg
Package Type:
PoE Media Converter; 1 piece in 1 carton; 1KGS/Carton;
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated
<hz>PoE Media Converter</h>

DIN-Rail Installation PoE Power 30W SFP Slot PoE Reset  Gigabit PoE Media Converter

Product Description





Model: LNK-IMC1000P-SFP Series

Overview

LNK-IMC1000P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +80°C. LNK-IMC1000P-SFP supports 10/100/1000M Ethernet Port and 1000M SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. In addition, with PoE reset function, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize.





 Features

  • Converts 10/100/1000Base-T to 1000Base-FX
  • Supports IEEE802.3at PoE+(30W)
  • Advanced features: PoE Power Reset function
  • Supports Full/Half duplex
  • Supports external 1000Base-X SFP
  • Supports Auto MDI/MDI-X
  • Supports DIN-Rail & Wall-mount installation
  • Extensive LED indicators for network diagnostics
  • Environmentally hardened -40°C to 80°C
    (-40°F to 176°F) operating temperature



Warranty

  •  5-Year Warranty

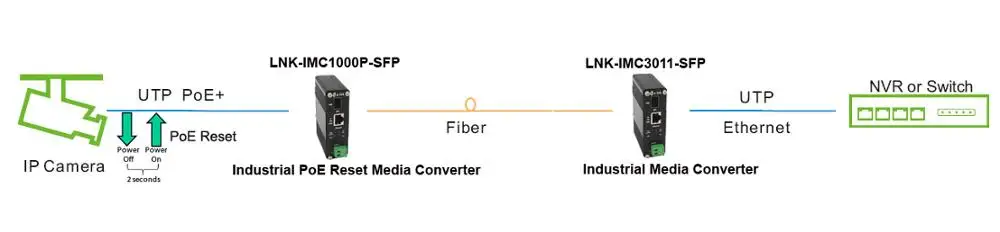

Typical Application



Technical Indexes

Ethernet

Standards:

IEEE802.3ab 1000Base-T

IEEE802.3az Gigabit Fiber

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3x Flow Control

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

48VDC (Terminal Block)

Power Consumption:

36W Max. 0.75A@48VDC

Standard:

IEEE802.3af/at

PoE:

Port:

RJ45

Max. Power per Port:

30W Max per port (Alternative B Mode)

PoE Reset Function

Ideal for remotely resetting equipment, this configurable function performs a momentary power reset to the attached Powered Device (PD). When enabled, the media converter will, upon loss of fiber RX, turn off PSE output power supplied to the PD device for 2 seconds then turn the power back on and leave it on until such time that another fiber RX link is lost (after it was re-established). When disabled, a loss of fiber RX has no effect on PSE power to the PD device(s).

LED Indicators:

Power:

Power Status

1000TX:

Link/Activity, Speed

SFP:

Link/Activity

Dimensions (WxDxH):

95 x 70 x 28 mm

Weight:

0.25Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV





Ordering Information

Model

Description

LNK-IMC1000P-SFP

Hardened 10/1001000BASE-TX to 1000BASE SFP Ethernet Media Converter with PoE+

SFP Options

 SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

 SFP module is to be purchased separately.

Mounting Options

 Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

 Power Supply is to be purchased separately.
