DIN abrasion test machine sole friction tester HY-8052 DIN shoes rubber abrasion resistance tester

Feedback Ratings
  • 1-49 Sets
    $4,500.00
  • >=50 Sets
    $4,000.00
Usage:
Abrasion Tester
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Hengrun
Model Number:
HY-8052 DIN
Power:
0.2kw
Standard:
ISO4649 ENISO 20344 DIN53516
Product name:
DIN abrasion resistance Testing machine
Warranty:
12 Months
Power supply:
220V 50Hz
Weight:
55 kg
Package:
Wooden Case

Packaging & Delivery

Selling Units:
Single item
Single package size:
110X80X40 cm
Single gross weight:
55.0 kg
Package Type:
wooden case
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Standard
GB T 9867 2008 ISO 4649 2002
GB T20991 GB T26703 ENISO20344 ISO4649 DIN53516

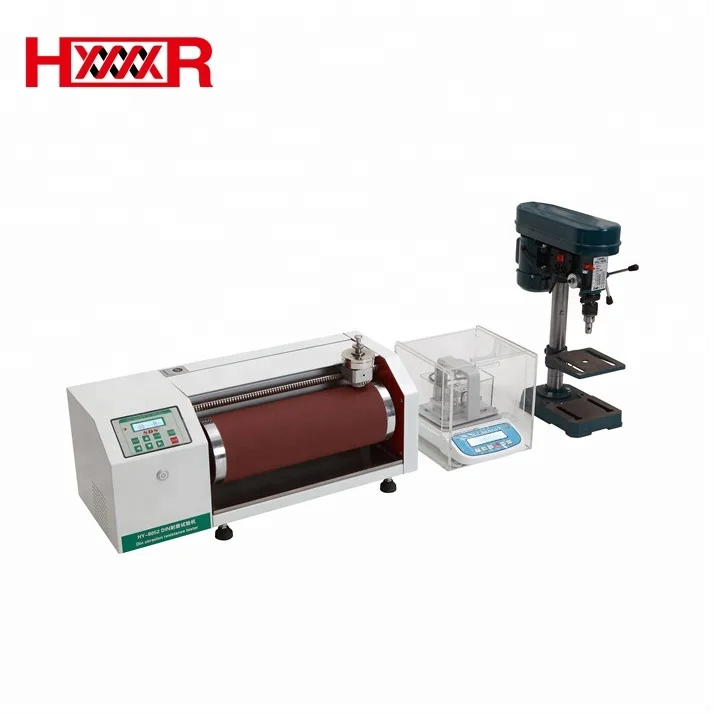

HY-8052 Rubber material DIN abrasion test  mahchine

DIN abrasion resistance tester
Sole friction testing machine
friction tester

.

Detailed description

This machine is used to test the abrasion strength of polyester sole or shoes sole.

In the case of abrasion wheel rotation,the test sample is generated by friction on a certain sand content sandpaper to check the abrasion performance.

Feature:High-performance. Good reproducbility. Easy to operate

Abrasion trip
40±0.2M
Roller speed
40 r min±1r min
Abrasion path setting
20m/40m pre-setting
Horizontal displacement of clamping device when the roller rotate once a circle.
4.20mm±0 04mm . each circle of the roller
Test method
Rotating pre-setting
Test sample extension length over clamping device
2.0mm±0.2mm
Horizontal displacement of clamping device
4 20±0.04r /min

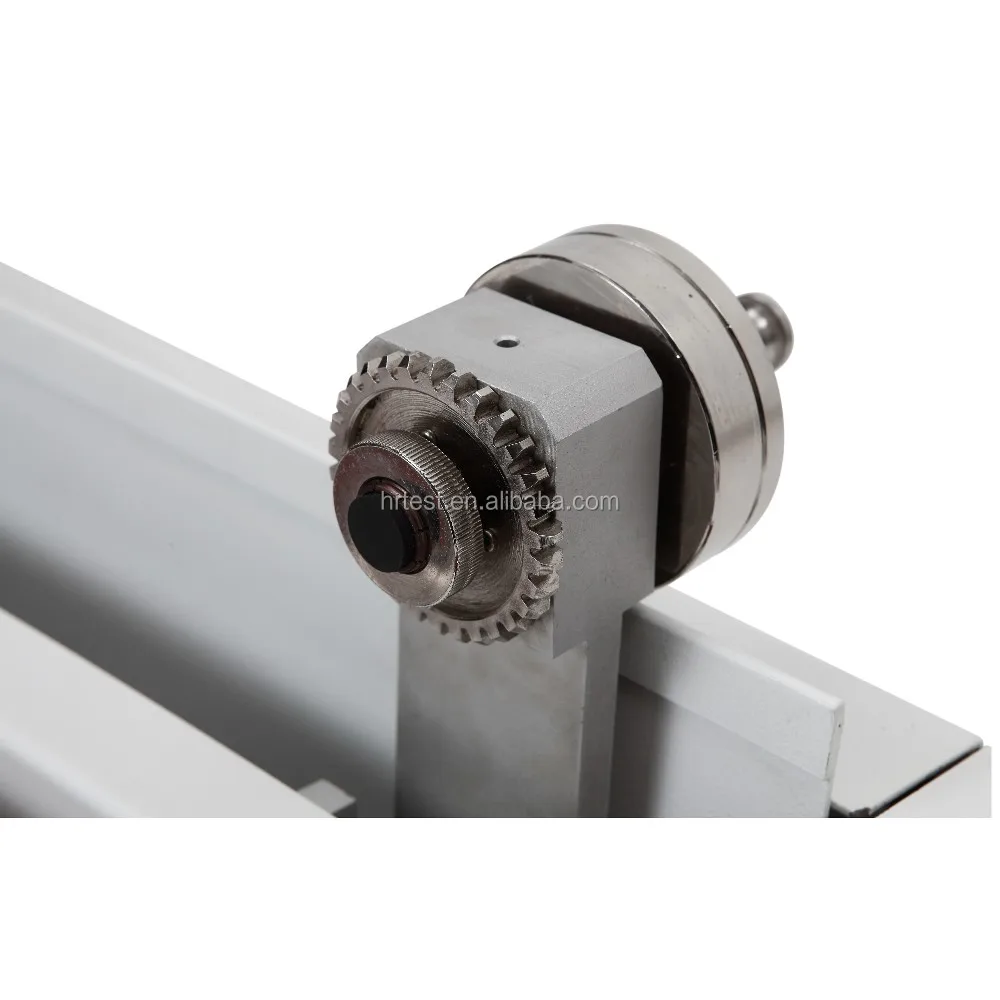

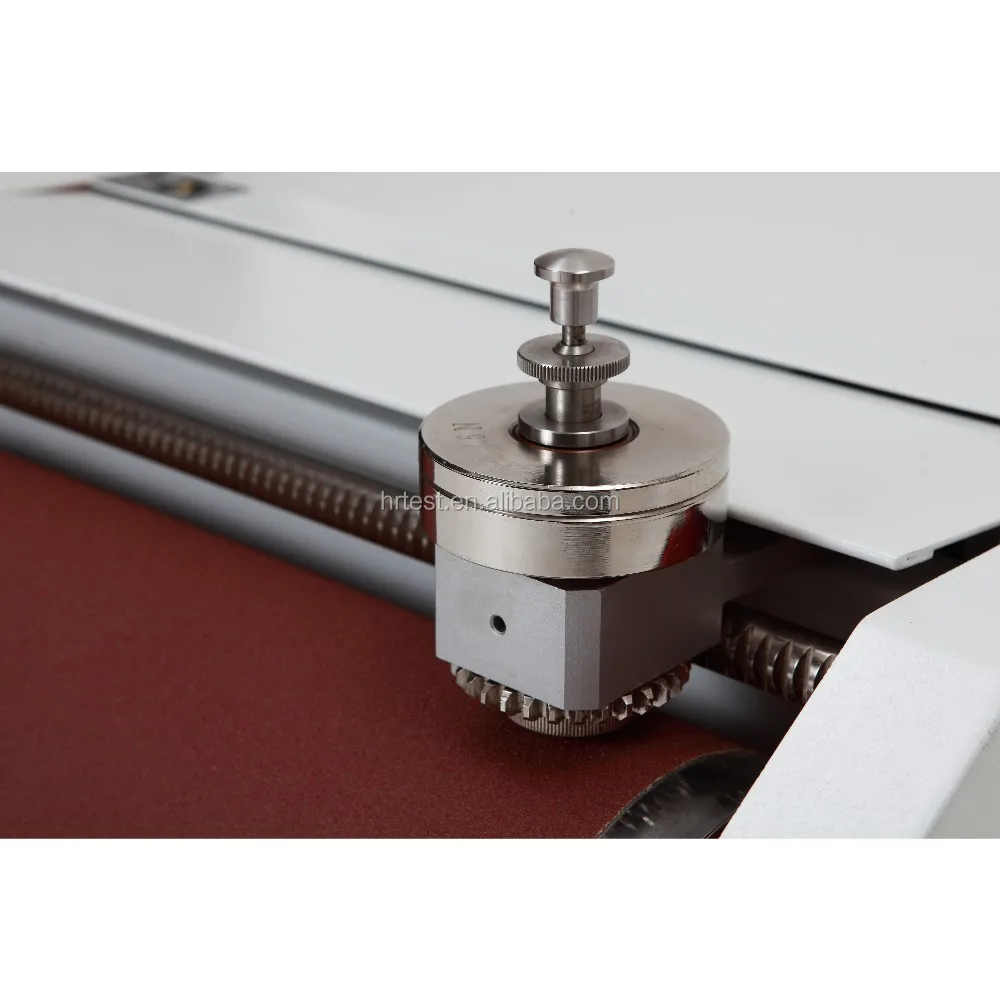

Weight of the clamping device
Used for test with 5N vertical force.(including a thin adjust weight )
Load
2.5±0.1N 5±0.1N 10±0.1N
Weight
weight 5N, Clamping device 5N, total can be a 10N vertical force.
Sandpaper
60# Original import from German
Angle between clamping device center axis&roller direction
Clamping ranges of clamping
Φ15.5mm~Φ16.3mm
Parts
1 set Electronic balance

1 set Bench drill

1 set Sample knife
Roller diameter
Φ150.0mm±0.2mm length 500mm
Dimension (W×D×H)
95*66*31cm
Power
AC 220V 50HZ
Machine Weight
55KG
