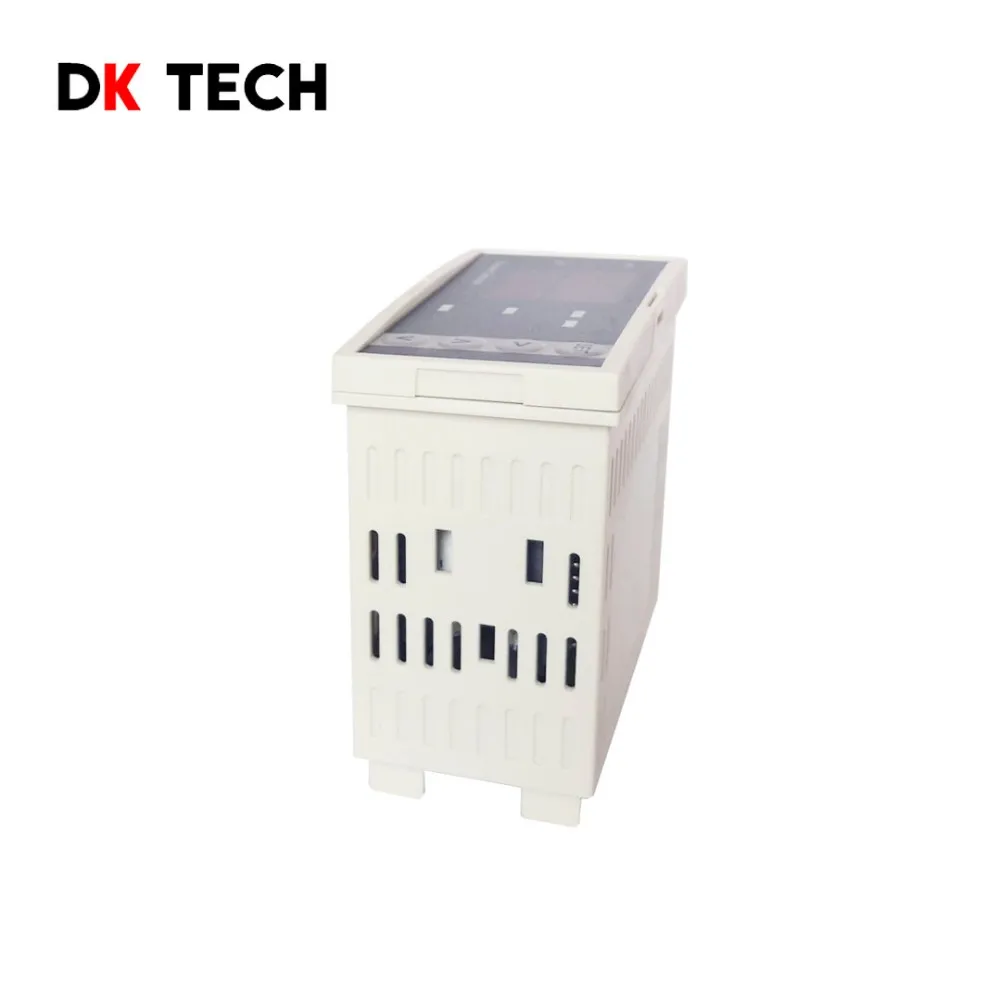

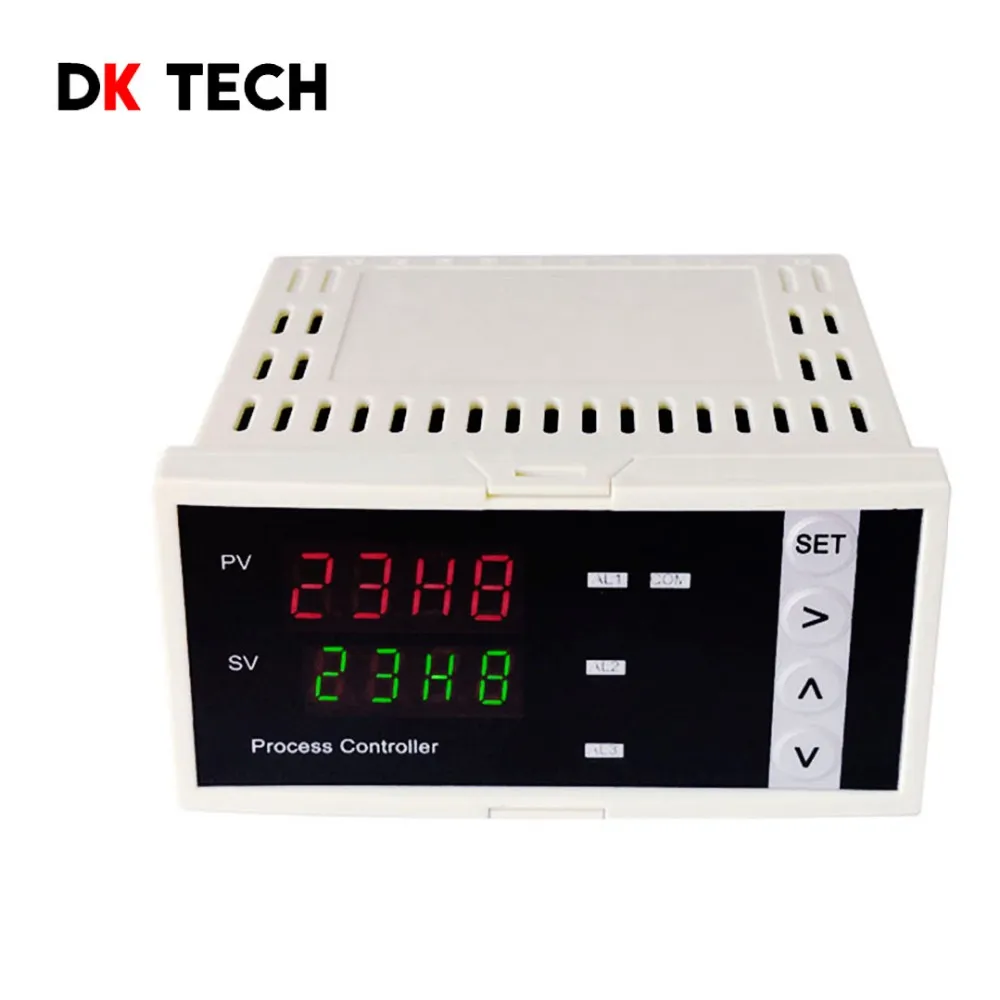

DK23H8p PT100/K/E/J/B/R input pid temperature controller with RS485 Modbus-RTU Module Type Controllers 48*96mm

Feedback Ratings
  • 1-99 Pieces
    $39.00
  • >=100 Pieces
    $37.50
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.1%
Temperature range:
-1999-9999
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Dekun
Model Number:
DK23H8P
Input signal range:
23 common industrial standard signals
Basic error:
0.2%FS + 1 words
Resolution:
1/20000
Measure AD:
24 bits, 40Hz
Output DA:
12 bits, 100KSPS
Input impedance:
voltage (> 500K) and current (< 300)
Display mode:
LED
Control output cycle:
10Hz
Communication mode:
RS485 interface, two wire system
Selection size:
48*96mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
17.5X13.5X12 cm
Single gross weight:
0.5 kg
Package Type:
17*13.5*12cm Corrugated Carton
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description

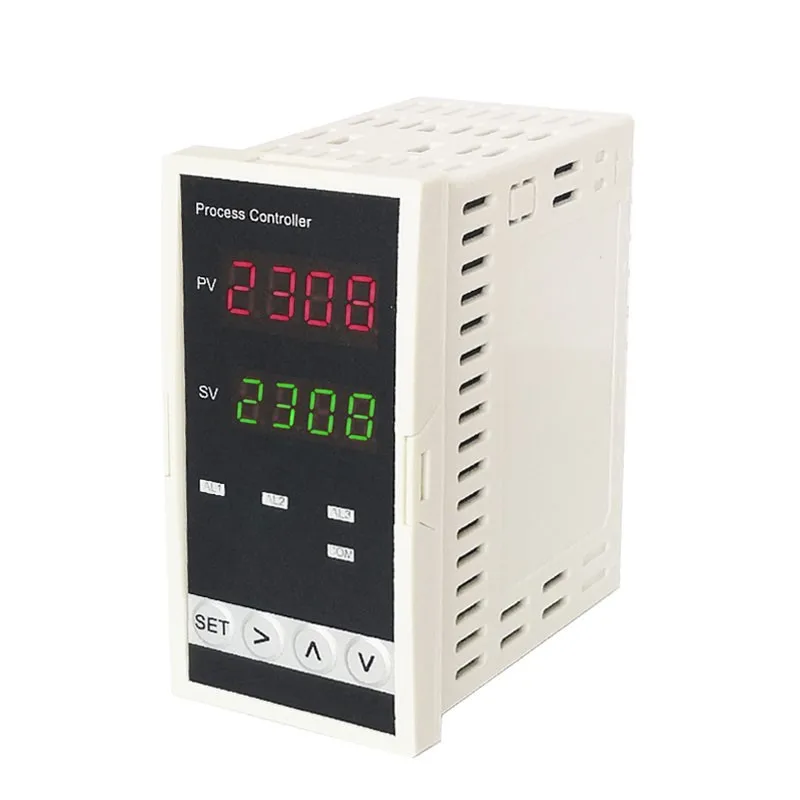

DK2300 series PID controller is a single loop process controller and display instrument based on advanced microprocessor technology. It can control and display process parameters such as temperature, pressure and flow. The instrument is flexible, easy to configure and operate.
The series includes five controllers: DK2304, DK2306, DK2308, DK23H8 and DK2316.






Product features
High precision 24 bit AD measurement, feeding with sensor.
Maximum can provide 4 way alarm relay output control.
Standard MODBUS RTU communication
With signal conversion function
It can realize double output control of heating and refrigeration (refrigeration adopts relay, which can protect the function of refrigeration compressor)
Patent designed anti-interference chip design measuring circuit, can work in harsh working environment.
Improved DK PID algorithm control, output faster and no overshoot. Control speed 100MS

input
Input signal range: 23 common industrial standard signals.
K
S
R
T
E
J
B
N
WRe3-WRe25
WRe5-WRe26
Cu50
Pt100
0~80Ω
0~400Ω
0~10mA
0~20mA
4~20mA
0~20mV
0~100mV
0~1V
0~2V
0~5V
1~5V

output
0-10MA
0-20MA
4-20MA

communication
Photoelectric isolation RS-485 communication interface

Alarm
Up to 4 routes (2316 for all alarms)
When heating, the main control output is used for upper alarm of position control.
When cooling, the main control output is used for lower limit alarm.

Other detailed parameters
Input signal range: 23 common industrial standard signals.
Basic error: 0.2%FS + 1 words.
Measure AD:24 bits, 40Hz
Output DA:12 bits, 100KSPS
Main control output: 1 way (optional heating refrigeration output mode, alarm three can be defined as refrigeration output).
Input impedance: when the voltage is greater than or equal to 500K, the current is less than 200 ohms, the thermal resistance is less than 0.25mA, and the thermocouple is more than 500K
Output impedance (with load capacity): current less than 500_ (current has special requirements, can achieve 650 Euros, when ordering instructions), relays AC220V/2A, DC30V/1A
Display mode: digital tube
Control output cycle: 10Hz
Communication protocol: MODBUS RTU (RS485 interface, two wire system)
Driving distance: 1200 meters
Check mode: no check, odd check, even check.
Baud rate: 4800960019200
Communication data format: one start bit, eight bit data bits, one stop bit.
Supply voltage: 100-240V AC (47~63Hz)
Isolation voltage: input, output, power three isolation, 2300 V AC 1 minutes.
Working conditions: temperature -20 ~ +50 C, humidity 10% ~ 90%RH
Storage conditions: temperature: -40 ~ +80 C; humidity: 10% ~ 90%RH

Related Products

sensor

Power meter


Process control instrument

Our Company

    Dekun Technology Co., Ltd. is a professional technology company. It is engaged in engineering design, product development, technical services and sales of industrial automation products in the field of industrial automation control.
    Dekun Technology specializes in R&D and production of industrial heating power controller (voltage regulator), MODBUS RTU data acquisition module, isolation transmitter and industrial process control instrument.
    As a leading manufacturer of industrial control products, Dekun Technologies is based on absorbing the excellent technology of international brands and combining the advantages of digital and analog circuits accumulated by our technical team in the past 20 years. The company has a number of national patents and software copyright certificates. The product is certified by the European Union CE. The purpose of DK TECH is to provide our customers with the most advanced and reliable industrial automation products.
    We have the best and efficient sales team, as far as possible let our products get more applications in various control areas. We also have professional after-sales service personnel to ensure that whenever and wherever possible, to provide a full range of technical support services. We are well aware that in the increasingly competitive and rapid development of automation industry, only to provide high quality and reasonable price products is a century-long plan. We hope to make efforts for the development of industrial automation products. We hope to be your faithful partner. Our efforts have never stopped! We persevered. Long Way has a long way to go.
    The DK TECH, the pursuit of excellence, is born for quality.

Certifications
Packing & Delivery
FAQ

1.What's your MOQ?
Normally our MOQ is 10 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.

2.Are you a trading company?
We are manufacturers. Our factories and products have successively obtained CE, ISO9001, IEC60950,RoHS, FCC, a number of invention, utility model patents, copyright certificates, third-party testing certificates, etc. We have good quality control.

3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.

4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.

5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.

6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.

7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
