DMTC-250T China Supplier High Precision Mini Lathe Bench Lathe Desktop lathe

Feedback Ratings
  • 1-9 Sets
    US $1700.00
  • >=10 Sets
    US $1200.00
Model Number:
DMTC-250T
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Automatic Grade:
manual
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
DMTC
Voltage:
220V 50HZ
Power(W):
1.5KW
Dimension(L*W*H):
1100*550*540mm
Weight:
135kg
Certification:
ISO9001 CE BV
Max. Swing Diameter:
250mm
product type:
Mini Lathe
Working length:
500
Max.swing over carriage:
125 mm
Main motor power:
1.5kw
technology documents:
English
delivery time:
20 days
Spindle taper:
Morse 5
Spindle bore diameter:
38mm
Spindle travel:
315mm
Gross weight:
150kg
After-sales Service Provided:
Overseas service center available

Packaging & Delivery

Selling Units:
Single item
Single package size:
1200X500X600 cm
Single gross weight:
150.0 kg
Package Type:
suitable for long time shipping
Lead Time :
Quantity(Set) 1 - 1 2 - 2 >2
Est. Time(day) 30 30 To be negotiated
Video Description
Product Description

Product Application

DMTC-250T bench lathe can carry out turning, drilling, boring, metric and British thread-cutting. It is suitable for processing metal and nonmetal parts. It is the ideal equipment of single and batch production in instrument, light industry machinery, motorcycle, automotive component industries as well as school teaching, automotive repair, family repair, scientific research units, etc.

Features

 Wide bedway, high rigidity and easy operation

Standard Configuration

Three-jaw chuck, center, metric exchange gear, exchange gear sleeve, V-belt, oil gun, adjusting tools, etc.

Special Configuration

Stand, steady rest, follow rest, live center, inch exchange gear, drill taper stock, reductive sleeve,etc

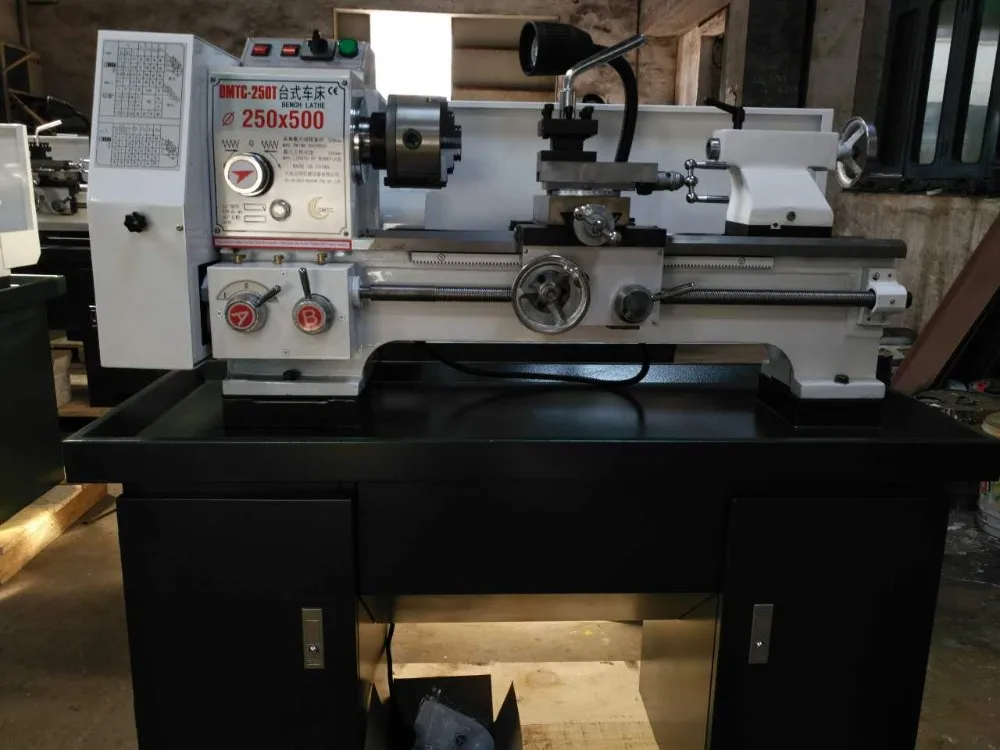

SPECIFICATIONS FOR DMTC-250T BENCH LATHE
Item
DMTC-250T Bench Lathe
     Unit
Max. Swing over bed
250
mm
Max.workpiece length
500
mm
Max. Swing Workpiece diameter over carriage
125
mm
Spindle bore
38
mm
Tail stock
Morse 2

Spindle taper
Spindle taper

Spindle speed range
25-1500
r/min
Spindle speed series
6
Step
Longitudinal feed
0.08-0.20
mm/y
Spindle travel
315
mm
Max.size of tool cutter bar(WXH)
12*12
mm
Metric Thread Range,type
0.25-3.5mm,17
mm
Inch Thread range,type
12-40/1",15

Max.travel of tail sleeve
50
mm
Motor power
1.5,220V
kw
Dimensions
135kg
kg
More pictures
Packing & Delivery
Packaging
Size
1100 (L) * 550 (W) * 540(D)
Weight
150kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
Ordinary Lathe

*CDE6140A Small Lathe

*Max swing dia. :400mm
*Max workpiece length: 3000mm
*Spindle bore : Φ52

*CW62100E Horizontal Big Lathe
*Max swing dia. :1000mm
*Max workpiece length: 7000mm
*Spindle bore : Φ130
*Bed width :755mm

*CDL6241 Universal Lathe
*Max swing dia. :410mm

*Max workpiece length: 1500mm
*Spindle bore : Φ52
*Bed width :300mm

CNC LATHE

*CKA6140
*Fanuc Controller
*Max swing dia. :400mm
*Max workpiece length: 1000mm
*Spindle bore : Φ48/52

*CKA6150
*Fanuc Controller
*Max swing dia. :500mm
*Max workpiece length: 2000mm
*Spindle bore : Φ82

*CKA6180
*Fanuc Controller
*Max swing dia. :800mm
*Max workpiece length: 4000mm
*Spindle bore : Φ110

Vertical Lathe

*C5112 vertical lathe
*Max cutting dia. :1250mm
*Max workpiece height: 1000mm
*Worktable diameter : 1000mm
*Max worktable load: 3.2t

*C5116 vertical lathe
*Max cutting dia. :1600mm
*Max workpiece height: 1200mm
*Worktable diameter : 1400mm
*Max worktable load: 5t

*C5120 vertical lathe
*Max cutting dia. :2000mm
*Max workpiece height: 1250mm
*Worktable diameter : 1800mm
*Max worktable load: 8t

Radial Drilling

*Z3040*11 Radial Drilling Machine
*Max drilling dia. : 40mm
*Distance from spindle center to column surface : 330/1050
*Distance from spindle nose to table surface : 170/ 1100mm
*Spindle travel : 260mm

*Z3050*16 Radial Drilling Machine
*Max drilling dia. : 50mm
*Distance from spindle center to column surface : 350/1600
*Distance from spindle nose to table surface : 370/ 1270mm
*Spindle travel : 315mm

*Z3080*25 Radial Drilling Machine
*Max drilling dia. : 80mm
*Distance from spindle center to column surface : 530/2530
*Distance from spindle nose to table surface : 600/ 2050mm
*Spindle travel : 450mm
