DPP80 Small Tablet Blister Packing Machine

  • >=1 Sets
    $2,200.00
Model Number:
DPP-88A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Automatic Grade:
Automatic
Dimension(L*W*H):
1800*460*1070mm
Type:
Blister Packaging Machine
Condition:
New
Application:
Chemical, Commodity, Food, Machinery & Hardware, Medical
Driven Type:
Electric
Voltage:
110V/220V/380V/Customize
Power:
3.5KW
Place of Origin:
CHINA
Brand Name:
HANYOO
Weight:
480KG
Certification:
CE
Name:
DPP80 Small Tablet Blister Packing Machine
Usage:
Blister Packaging
Packaging Type:
Blister Forming Sealing
Packaging Material:
Aluminum foil, PVC film, Paper film
Body Material:
SUS304
Certificate:
CE
Factory Certificate:
SGS
Max Forming Area And Depth:
100*85*20mm
Keyword:
Small Blister Packing Machine
Speed:
2000-4000 sheets/hour
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Year DPP80 Small Tablet Blister Packing Machine
Packaging & Delivery
Packaging Details
Wooden Box of DPP80 Small Tablet Blister Packing Machine
Port
Shanghai, Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Video Description
Product Description

DPP80 Small Tablet Blister Packing Machine is a newly packaging machine designed for machine in our company; its function has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine is adopted with micro-computer, frequency converter, touch panel operation, with high automation.


DPP80 Small Tablet Blister Packing Machine
Model
88A
Blanking (times /min)
10-50
Output Capacity (sheet/hour)
2000-4000
Scope of Feeding travel (mm)
30-90
Forming Area & Dep (mm)
100×85×20
Power Supply
220V 50HZ 3.5KW
Max. Foil Width (mm)
110
Overall Dimension (mm)
1800×460×1070
Weight(KG)
350

Main Features

1. Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel.

2. Forming positive pressure air distribution with mechanical punch, ensuring blister forming well, and could collocate exclusive Automatic Feeder.

3. Main transmission part adopts parallel axis and bevel wheel speed reducer, forming dies and hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change molds and material saving.

Note: The price is the deposit.
Detailed Images

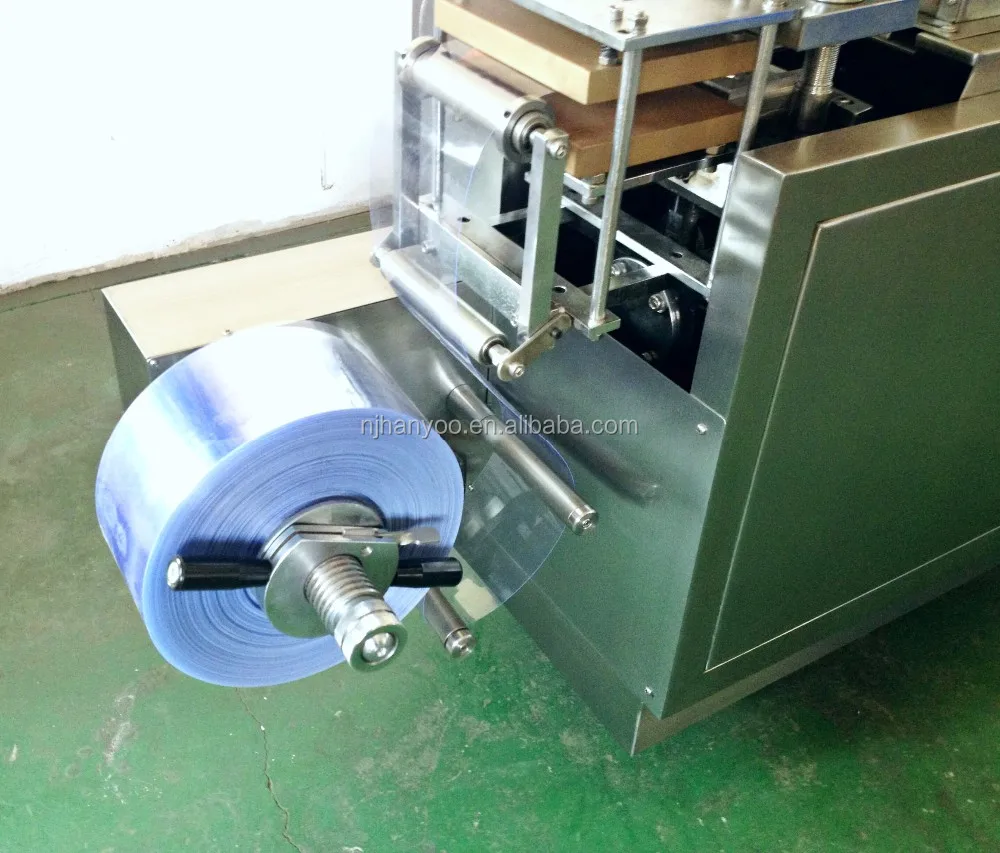

PVC Station

The PVC film maximum diameter can be used to 320mm, it is easy to change the PVC film roll.






Touch Panel

Use the China well know brand touch panel, increase the lifetime.

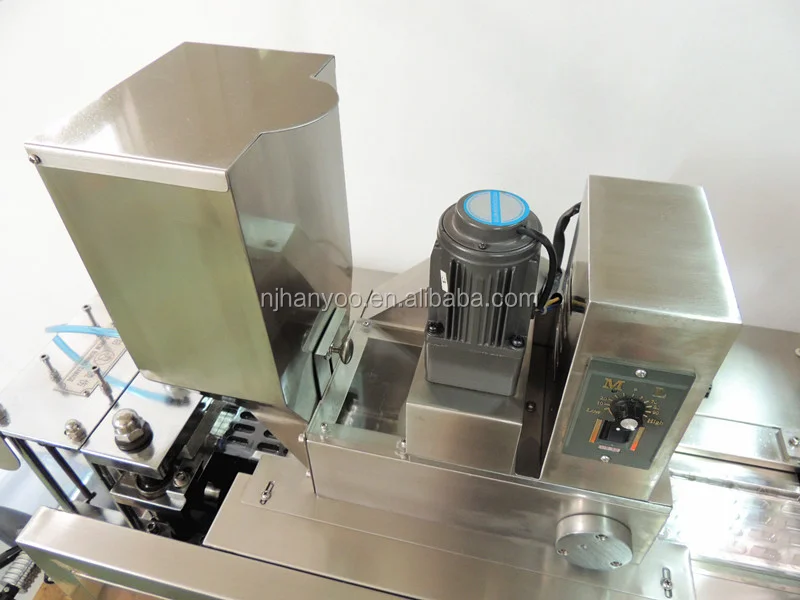

Brush Feeder

The brush feeder is for feeding the tablets or capsules into the blisters automatically.

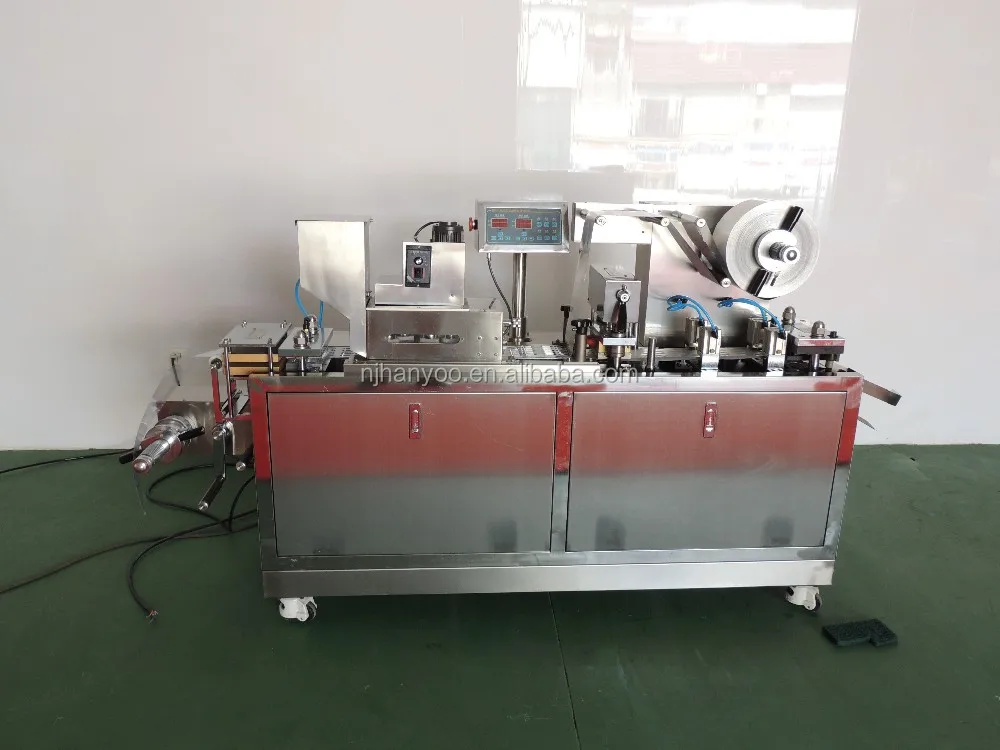

Main Machine


The machine body and medicine contact parts made by SUS304 good quality stainless steel, according with cGMP standard.

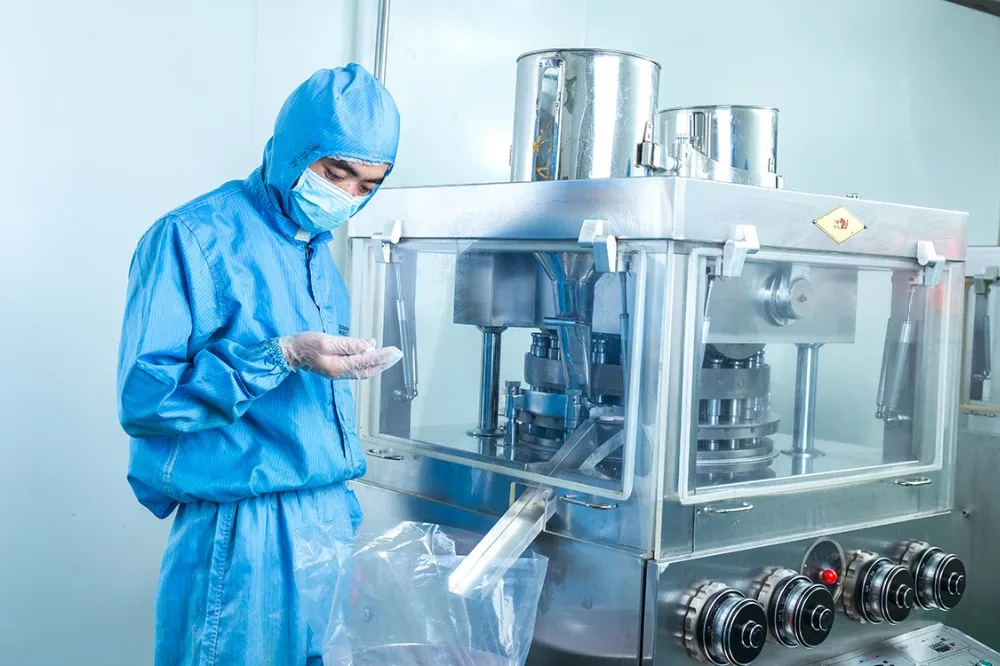

Our Company
Product Samples
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications
Packing & Delivery
Packaging
Size
2050*620*1200mm
Weight
530KG

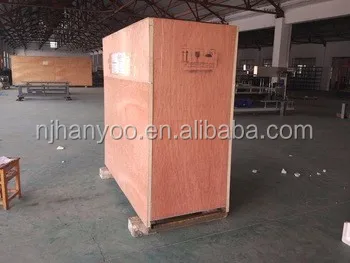

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

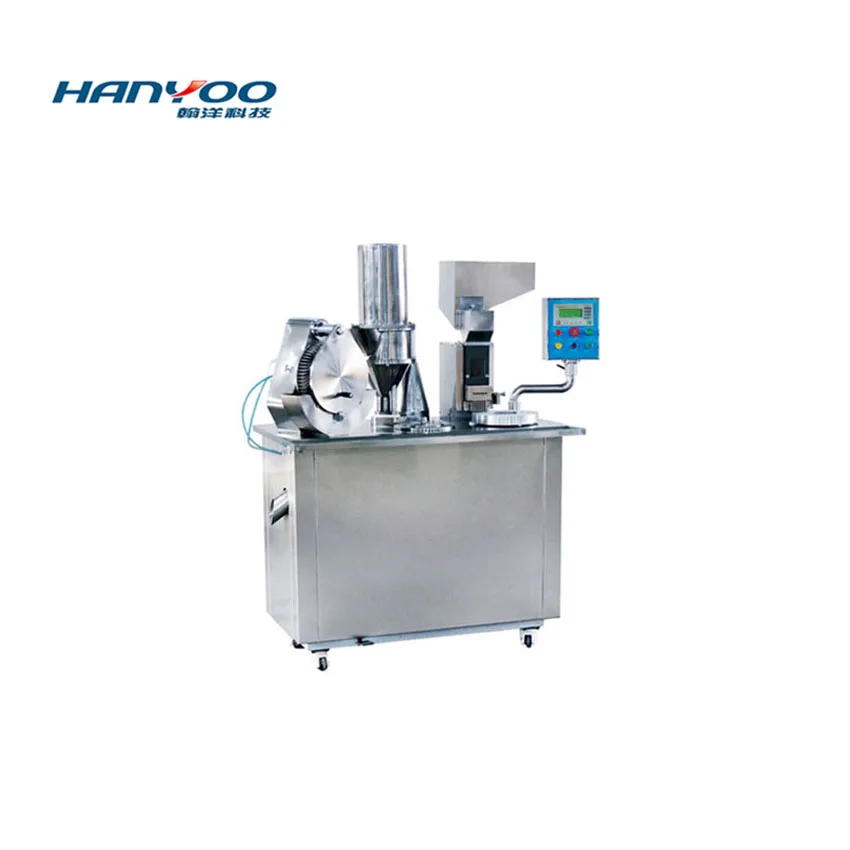

Semi-Automatic Filling Machine
